      Hybrid Multi-Band Beamforming Antenna 8HBF4R-BUH8NA




  PI 12HBF4RBUH8NB ISO FRONT PI 8HBF4RBUH8NA ISO REAR

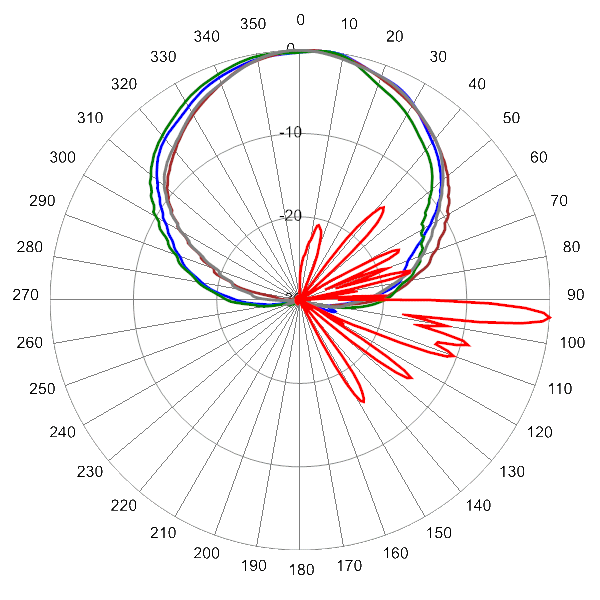

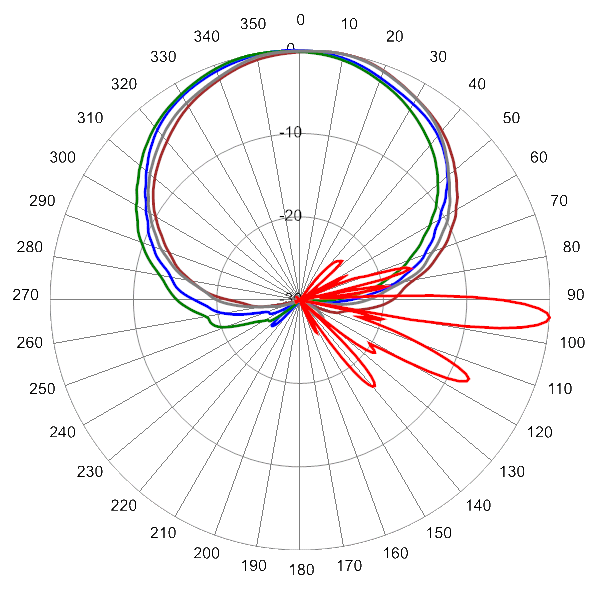

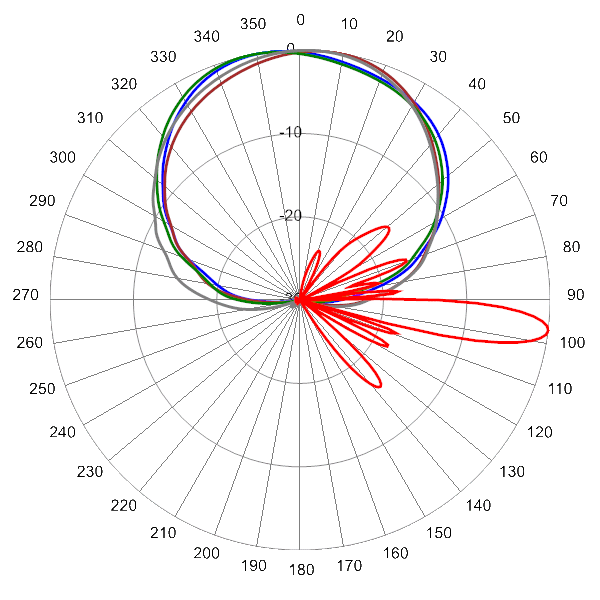

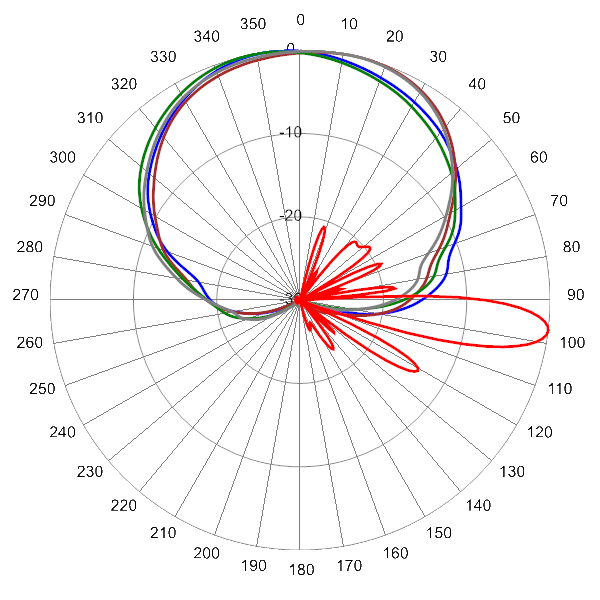

  • Eight foot(2.4 m), Hybrid Multiband Beamforming Antenna, deploying a high performing 65° azimuth beamwidth covering 698-896 MHz/1695-2400 MHz frequencies and an 8T8R Beamforming array covering 3300-4200 MHz

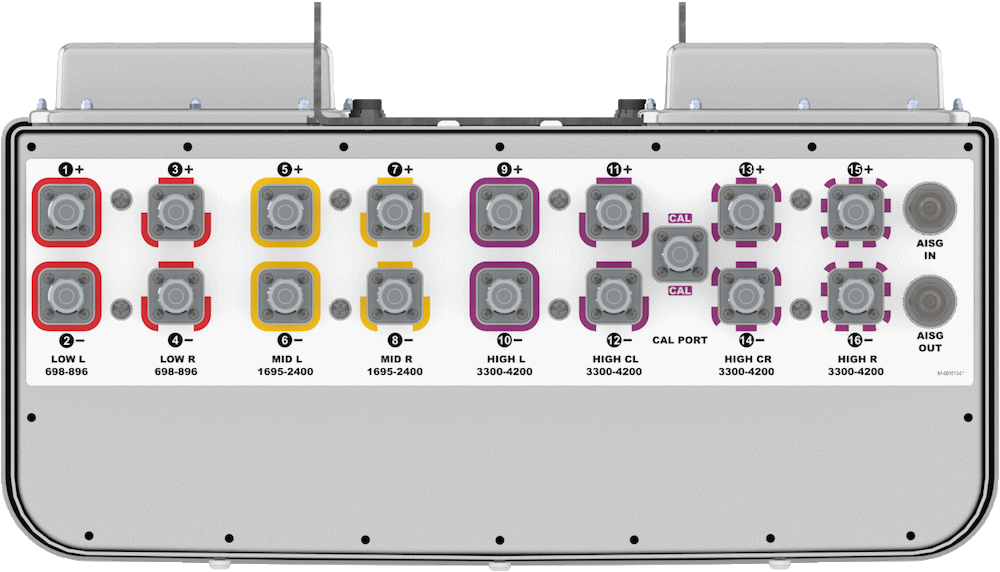

  • Four wide low band ports covering 698-896 MHz, Four wide mid band ports covering 1695-2400 MHz and Eight wide high band ports covering 3300-4200 MHz, in a single antenna
  • Full Spectrum Compliance for 698-896 MHz, 1695-2400 MHz and 3300-4200 MHz

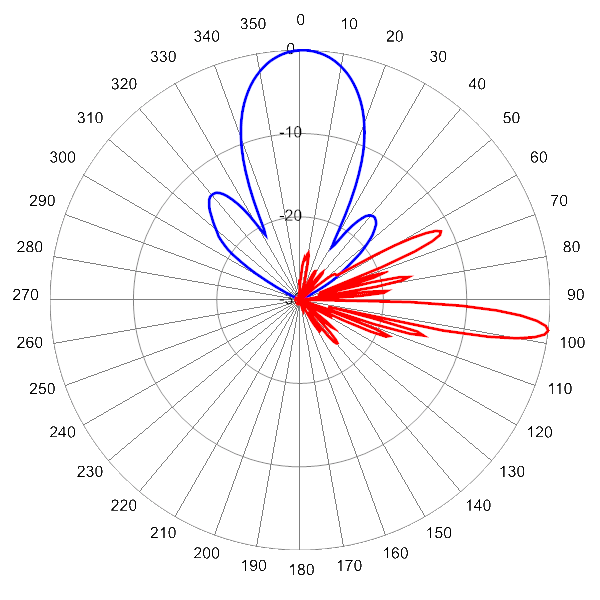

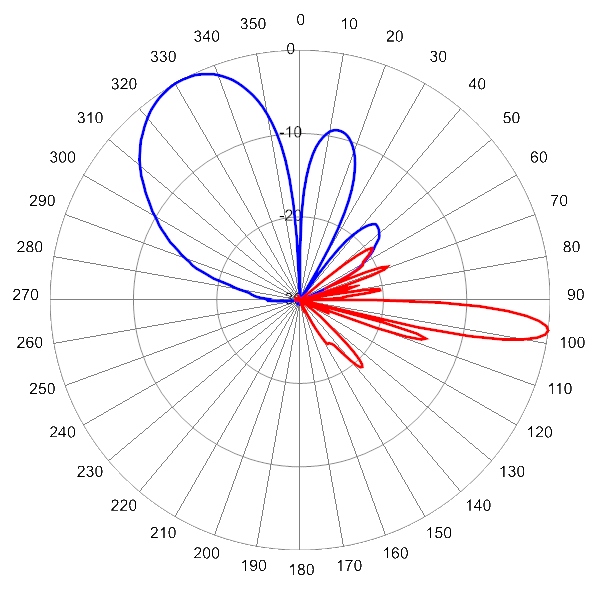

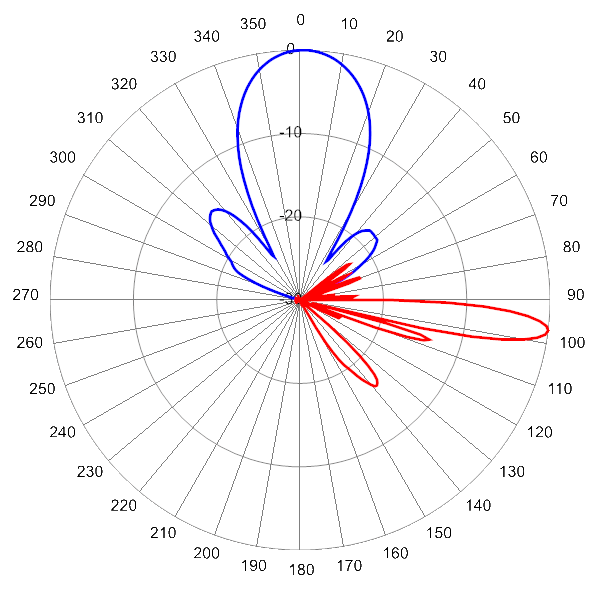

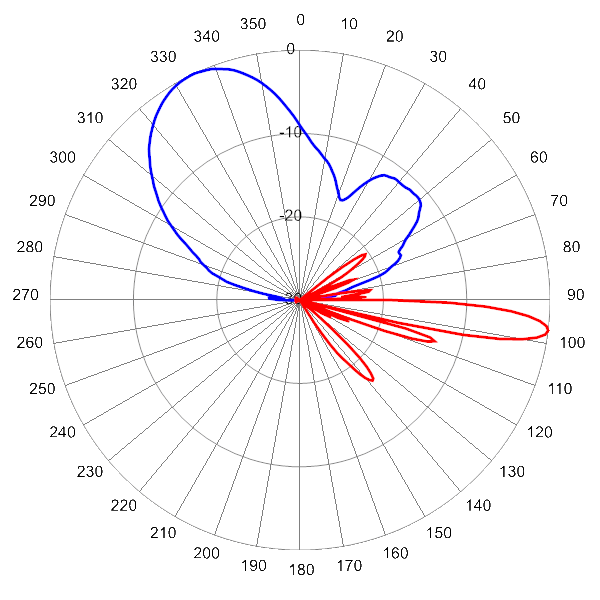

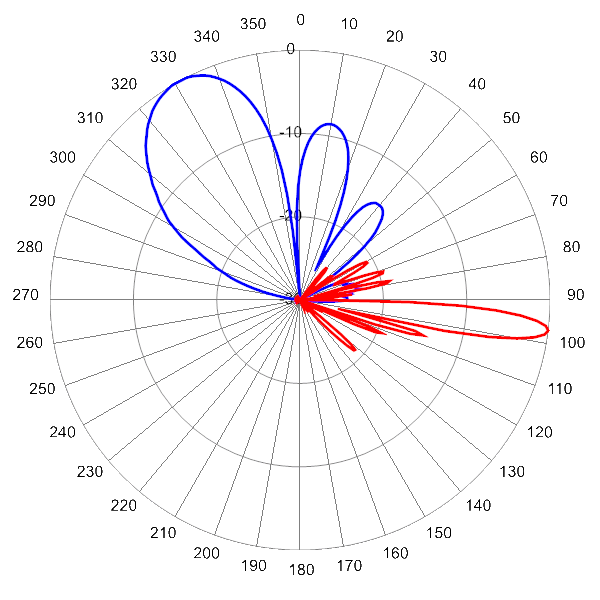

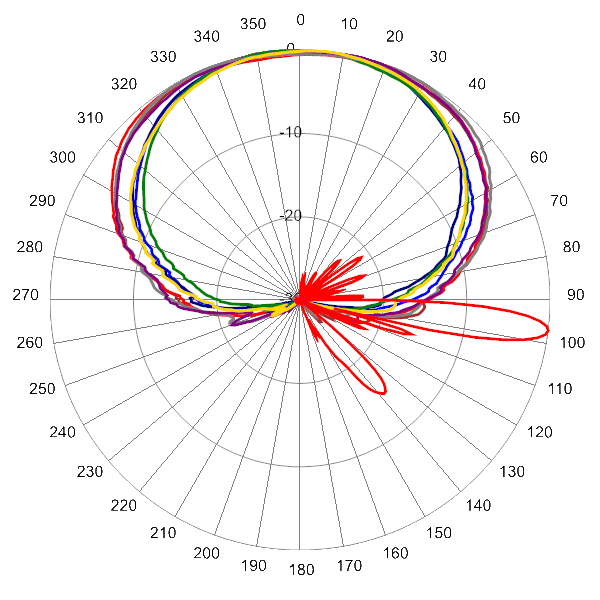

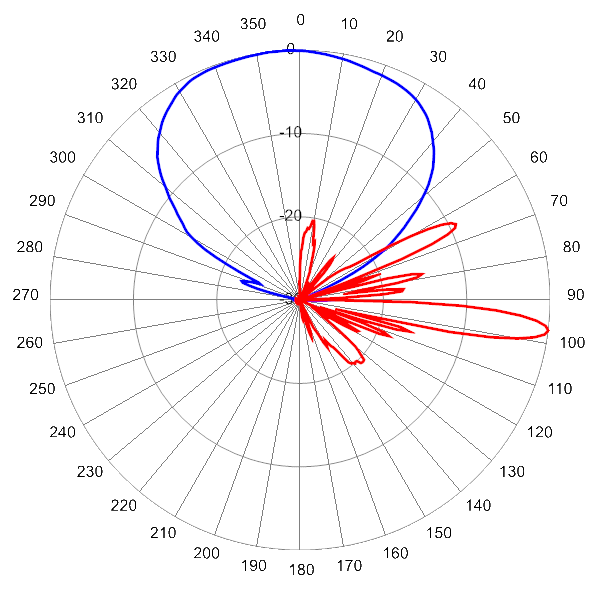

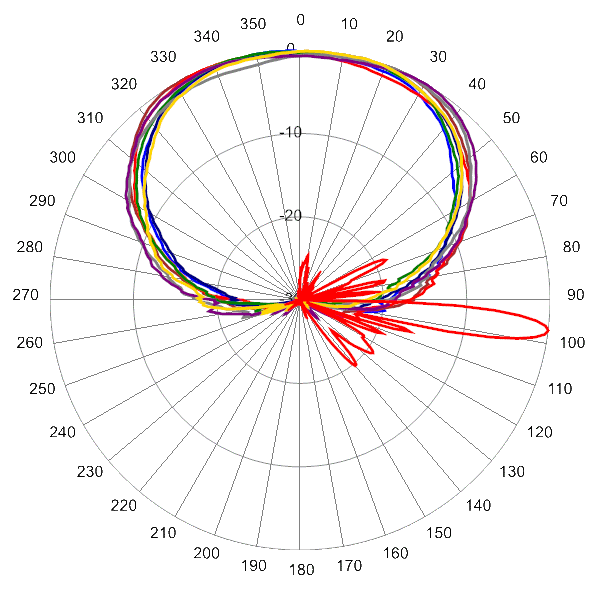

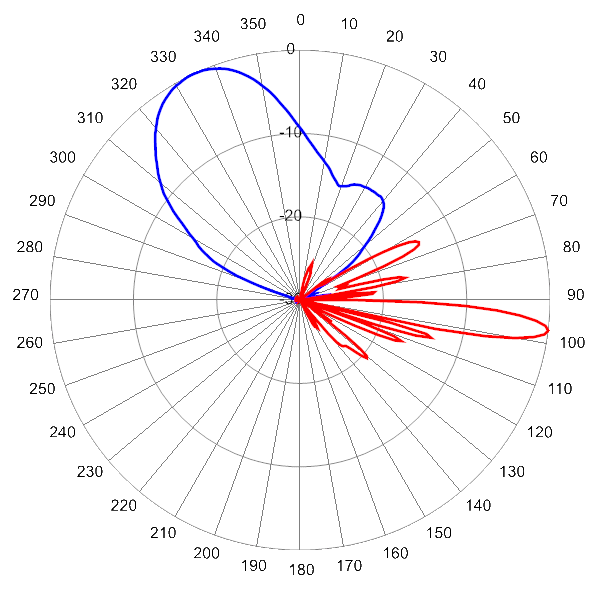

  • Provides an 8T8R Beamforming array, with a calibration port, for RRU controlled Azimuth beam control and beamforming, for increased 5G services data throughput and decreased latency, by minimizing interference and increasing signal strength at directed users
  • Beamforming array can be deployed with tapering (or without tapering), for improved Azimuth SLL performance
  • LTE Optimized FBR, SPR and Boresight/Sector XPD Performance, essential for today’s LTE Data Networks
  • Exceeds minimum PIM performance requirements
  • Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
  • Equipped with Four Field Replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET)
MBK-16   MBK-16 Mounting Kit with fixed 0° mechanical tilt
MBK-01   MBK-01 Mounting Kit with 0° - 10° mechanical tilt
BSA-RET400   Type 17 Remote Electrical Tilt System (RET)
AISGC-M-F-10FT   10 Ft (3 m) Male/Female RRU to Antenna AISG cable
SCU-AISG-P   Portable AISG 2.0 Site Control Unit
