Ten/Five-Beam Special Events Antenna | MBA10-6F-BU-H3 | |||
|
The CCI Ten/Five-Beam Special Events Antenna is an LTE ready multi-beam, multi-band antenna that simultaneously supports (10) high band and (5) low band sectors from a single antenna. This Ten/Five-Beam Antenna is intended for use at sporting and entertainment venues where social media and the ability to share photos and videos demand high capacity and high data rates. The high band ports provide coverage for PCS 1900 MHz, AWS 1695/2180 MHz and WCS 2300 MHz bands while the low band ports provide LTE 700 MHz, SMR 800 and Cellular 850 MHz capability in a compact, 3 ft (1.0 m) high single enclosure. Each beam is fed by a pair of +45° and -45° cross-polarized ports. The high band beams are each roughly 15 degrees apart and each pair are evenly juxtaposed on the five low band beams. This antenna segments large audiences into multiple sectors thus enabling maximum spectrum re-use by sectorization, providing as much as nine times increase in network capacity. Our unique beam shaping technology provides fast roll off between beams, minimizing interference between sectors thus increasing the carrier to interference plus noise (CINR) ratio and lowering soft handover losses in LTE, UMTS/HSPA+ and CDMA/EVDO networks. Such an approach enhances data transfer rates within LTE, UMTS and EVDO network sectors and addresses “hotspots” in mobile wireless operator networks. |

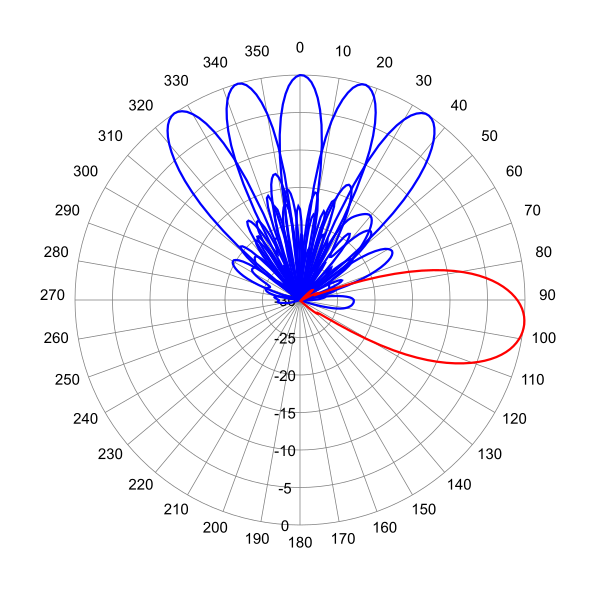

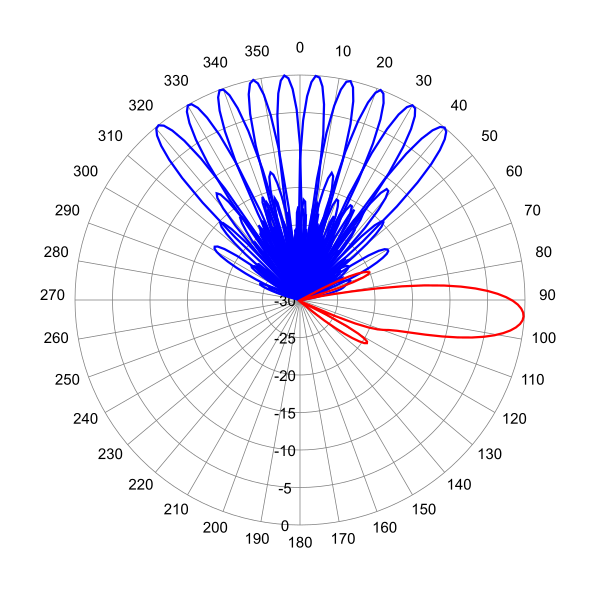

Ports | 10 × Low Band Ports for 698-896 MHz | 20 × High Band Ports for 1695-2360 MHz | ||||
Frequency Range | 698-806 MHz | 824-896 MHz | 1850-1990 MHz | 1695-1780/2110-2180 MHz | 2305-2360 MHz | |
Gain | 19.0 dBi | 19.7 dBi | 23.9 dBi | 22.8 dBi | 24.4 dBi | 24.5 dBi |
Azimuth Beamwidth (-3dB) | 5 x 11.6° | 5 x 9.9° | 10 x 5.3° | 10 x 5.9° | 10 x 4.6° | 10 x 4.2° |
Azimuth Beam Crossover (Typ.) | -10 dB | -10 dB | -10 dB | -10 dB | -10 dB | -14 dB |
Elevation Beamwidth (-3dB) | 22.2° | 19.7° | 11.4° | 12.6° | 10.3° | 9.6° |
Electrical Downtilt | 6° | 6° | 4° | 4° | 4° | 4° |
Elevation Sidelobes (1st Upper) | < -26 dB | < -24 dB | < -20 dB | < -20 dB | < -18 dB | < -16 dB |
Front-to-Back Ratio @180° | > 40 dB | > 40 dB | > 40 dB | > 40 dB | > 40 dB | > 40 dB |
Cross-Polar Port-to-Port Isolation | > 25 dB | > 25 dB | > 25 dB | > 25 dB | > 25 dB | > 25 dB |
Interbeam Isolation (Adjacent Beams) | > 15 dB | > 15 dB | > 15 dB | > 15 dB | > 15 dB | > 15 dB |
Interbeam Isolation (Non-Adjacent Beams) | > 15 dB | > 15 dB | > 11 dB | > 15 dB | > 15 dB | > 15 dB |
Voltage Standing Wave Ratio(VSWR) | < 1.5:1 | < 1.5:1 | < 1.5:1 | < 1.5:1 | < 1.5:1 | < 1.5:1 |
Passive Intermodulation (2×20W) | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc |
Input Power Continuous Wave per Port | 200 watts | 200 watts | 200 watts | 200 watts | 200 watts | 200 watts |
Polarization | Dual Linear 45° | Dual Linear 45° | Dual Linear 45° | Dual Linear 45° | Dual Linear 45° | Dual Linear 45° |
Input Impedance | 50 ohms | 50 ohms | 50 ohms | 50 ohms | 50 ohms | 50 ohms |
Lightning Protection | DC Ground | DC Ground | DC Ground | DC Ground | DC Ground | DC Ground |
Dimensions (L×W×D) | 40.8×83.0×11.6 in (1036×2109×295 mm) |
Survival Wind Speed | > 150 mph (> 241 kph) |
Front Wind Load1 | 641 lbf @ 100 mph 2853 N @ 161 kph |
Side Wind Load1 | 38 lbf @ 100 mph 170 N @ 161 kph |
Effective Projective Area (EPA), Front1 | 28.0 ft2 (2.6 m2) |
Weight * | 157.4 lbs (71.4 kg) |
RF Connector | 30 × 4.3-10 female |
Mounting Pole | 2 to 5 in (5 to 12 cm) |
Mounting Pole Spacing | 38.4 in (976 mm) |
1Windload values calculated using CFD analysis * Weight excludes mounting |

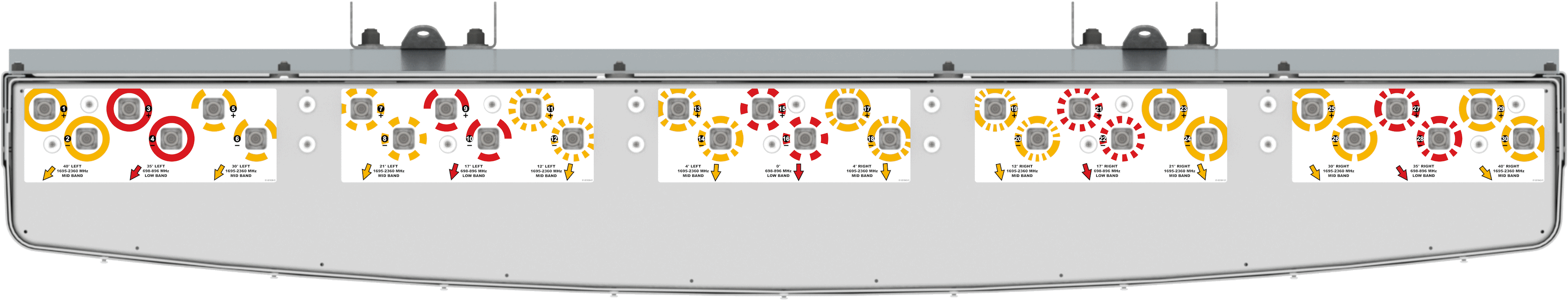

Bottom View | ||
Connector Spacing | ||
MBA10-6F-BU-H3-K | Three foot (1.0 m) Antenna, Ten-Five Beam Special Events Antenna with fixed electrical tilt and 4.3-10 female connectors and two MBK-03 Mounting Brackets |
MBK-03 x 2 | Mounting bracket kit (top and bottom) with 0° to 12° mechanical tilt adjustment |
