 Details |
|||||
MBA3R-B4A |
Four foot (1.3 m) tall, single band, six port multibeam array. Containing three Independent LTE Optimized Beams covering 698-896 MHz frequencies with individual tilt control of each beam pair |
||||||
- Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz
- Height4 ft. (1067 - 1371 mm)
- Number of Sectors3 (MBA3)
- Horizontal Beamwidth10° to 20°
- QuickSelectionAntType2T2R MultiBeam
- QuickSelectionAntSubType3 Beam Low Band
- QuickSelectionMarketAT&T
 |
|
Details |
|||||
MBA3R-K4A |

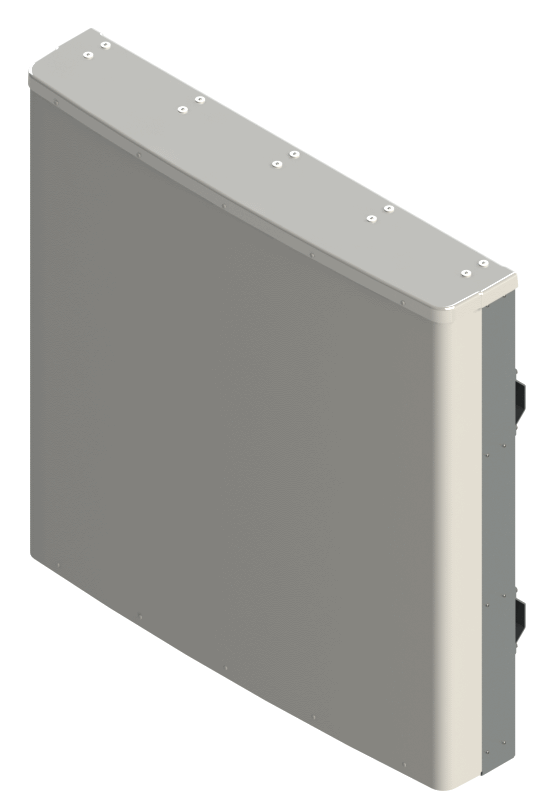

Four foot (1.3 m) tall, single band, six port multibeam array. Containing three Independent LTE Optimized Beams covering 694-960 MHz frequencies with individual tilt control of each beam pair |
||||||
- Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz
- Height4 ft. (1067 - 1371 mm)
- Number of Sectors3 (MBA3)
- Horizontal Beamwidth10° to 20°
 |
|
Details |
|||||
MBMD9F-BW4A |
Four foot (1.2 m) Dual-Band MulitBeam with CCI’s Innovative Array Compensated Butler Matrices, allows for Near Zero dispersion in both Az/El Peak and Az/El BW across the mid band spectrum (1695-2200 MHz) and has Six Low Band Dual-Pol +45°/-45°ports covering 698-896 MHz in a single antenna. |
||||||
- Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz
- Height4 ft. (1067 - 1371 mm)
- Number of Sectors9 (MBA9)
- Horizontal Beamwidth10° to 20°
- Number of Ports>12
- Low Band Ports6
- High Band Ports24
- QuickSelectionAntType4T4R MultiBeam
