      Six/Three-Beam Special Events Antenna MBM9F-BU6A




  PI MBM9FBU6A front
  • Six foot (1.9 m) tall, thirty-six port, Dual Band Multifunction Multibeam array. Containing Nine Independent (Three for Low Band and Six for High Band) LTE Optimized Beams with 4x4 MIMO capability or Eighteen Independent LTE Optimized Beams with 2x2 MIMO capability covering 698-896 MHz and 1695-2400 MHz frequencies, an Industry First

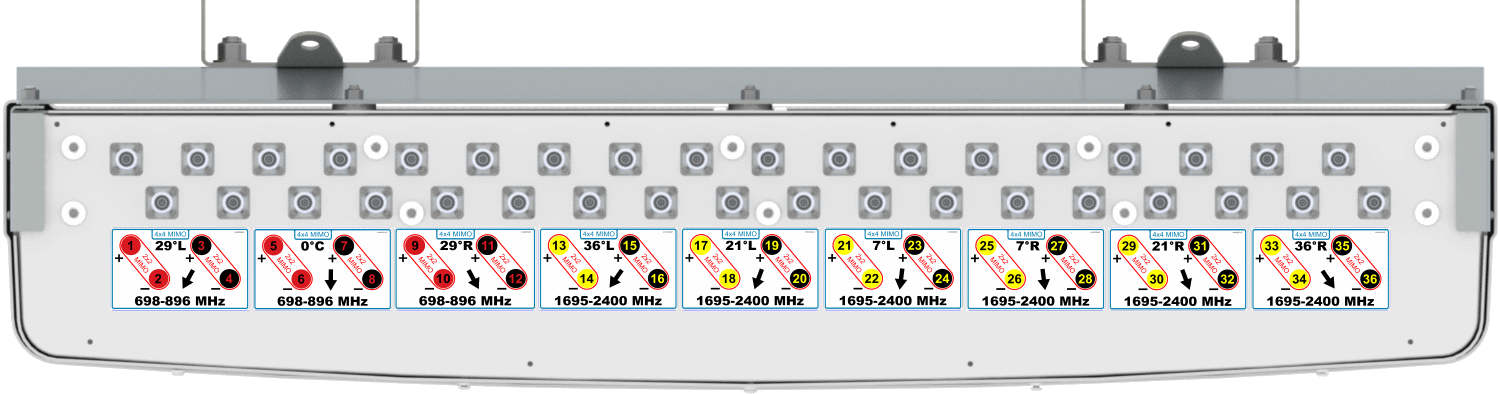

  • Twelve Low Band and Twenty-four High Band Dual-Pol +45°/-45°ports (Two or Four ports per Beam) covering 698-896 MHz and 1695-2400 MHz in a single antenna
  • Full Spectrum Compliance for 698-896 MHz / 1695-2400 MHz Frequencies
  • Unique Antenna Configuration provides the end user with complete flexibility with both the MIMO Configuration and Low Band and High Band Frequency Configuration of each beam, an Industry First
  • Deployment of a 4x4 MIMO LTE Optimized Beam allows for greater capacity and data throughput over a conventional 2x2 MIMO LTE Optimized Beam deployment. Essential for today’s LTE Data Driven Networks
  • LTE Optimized Beams for improved LTE data throughput by minimizing beam crossover, providing for an efficient use of valuable radio capacity and frequency spectrum. Essential for today’s LTE Data Driven Networks
  • LTE Optimized FBR, USLS and Co-Pol Beam Isolation Performance. Essential for today’s LTE Data Driven Networks
  • Exceeds minimum PIM performance requirements
MBK-01   MBK-01 Mounting Kit
