The CCI Broadband Rackmount Pentaplexer, which is available in a Single configuration, combines the Tx/Rx signals of 617-960 MHz, PCS, AWS and two sets of WCS/BRS band inputs onto a common port. Specifically intended for use in multiband systems with limited feeder lines, this CCI Pentaplexer facilitates the addition of new technologies including LTE and new spectrum including AWS-3 and 600 MHz to existing sites. The Pentaplexer provides a minimum of 50 dB of isolation between each of the individual frequency ranges and a minimum of 25 dB of isolation between the two 2305-2690 band ports. By reducing the number of feeder lines, the cost to upgrade a site (tower loading, leasing and installation costs) is reduced.

The CCI Pentaplexer Combiner provides full band performance for each band with low insertion loss, low Intermodulation, and high power handling. Excellent return loss delivers the best match to the antennas and base station, saving precious transmit power. The Pentaplexer is fully outdoor rated and can be pole or wall mounted with an optional outdoor configuration.

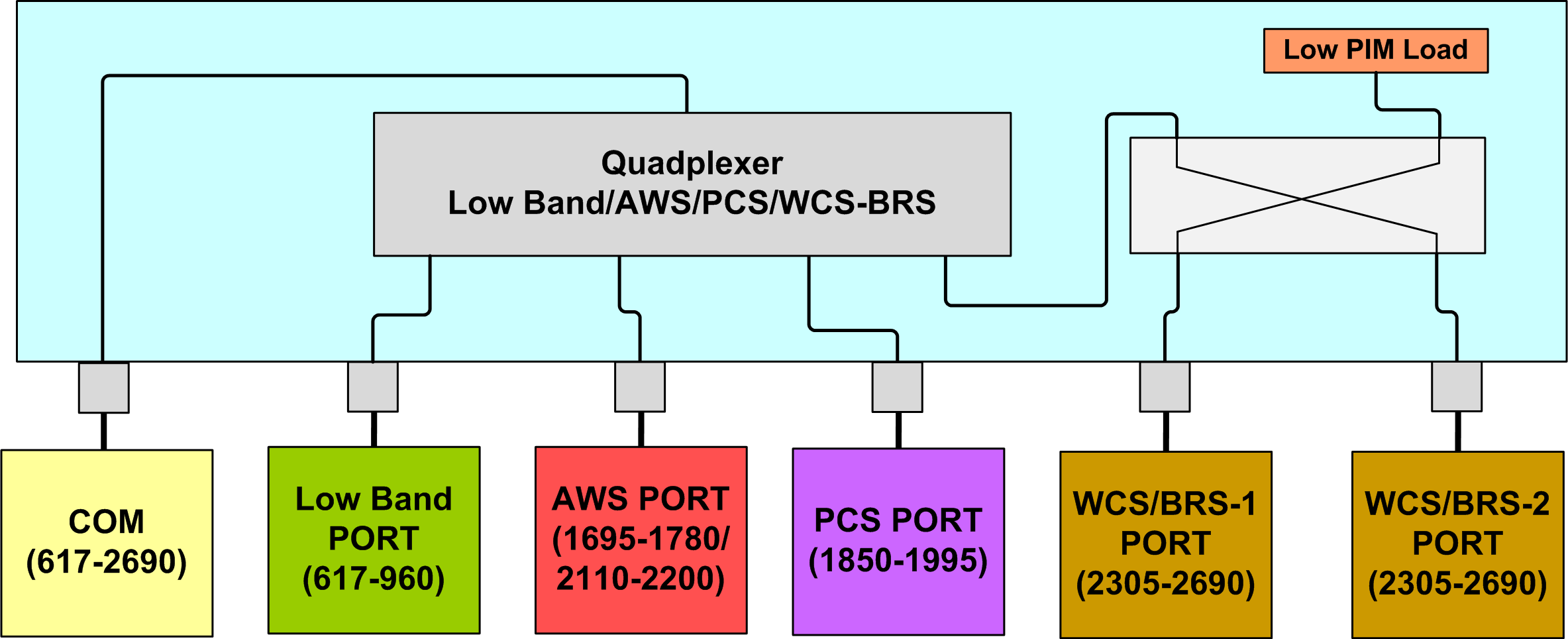

The Outdoor Broadband Pentaplexer Combiner consists of multiple filters to combine (or divide) full band 617-960 MHz, PCS, AWS and 2 x WCS/BRS signals. This tower mount unit can be used as either a splitter or combiner to aggregate multiple bands on a common feeder line. All RF ports are terminated in 4.3-10 connectors.

The filters have been designed to minimize insertion loss while maximizing isolation. Particular attention has been given to the intermodulation performance of the Broadband Pentaplexer to minimize any passive intermodulation products from occurring. The Pentaplexer is IP67 rated.

CCI filter and combiner products are designed and produced to ISO 9001 certification standards for reliability and quality at our state-of-the-art engineering and manufacturing facilities.
