| Wideband Hybrid Combiner | HYO-75-3xx | |||
 |
|
| Parameters | HYO-75-3F1 | HYO-75-3F2 | HYO-75-3F3 |
| Connectors | 6 x 7-16 | 6 x 4.3-10 | 6 x N-type |
| Housing Dimensions | 329 × 114 × 30 mm (13.0 × 4.5 × 1.2 in.) |
329 × 114 × 30 mm (13.0 × 4.5 × 1.2 in.) |
329 × 114 × 30 mm (13.0 × 4.5 × 1.2 in.) |
| Weight | 0.68 Kg (1.5 lbs) | 0.68 Kg (1.5 lbs) | 0.68 Kg (1.5 lbs) |
| Mounting | Pole/Wall mounting bracket | ||
 |
|

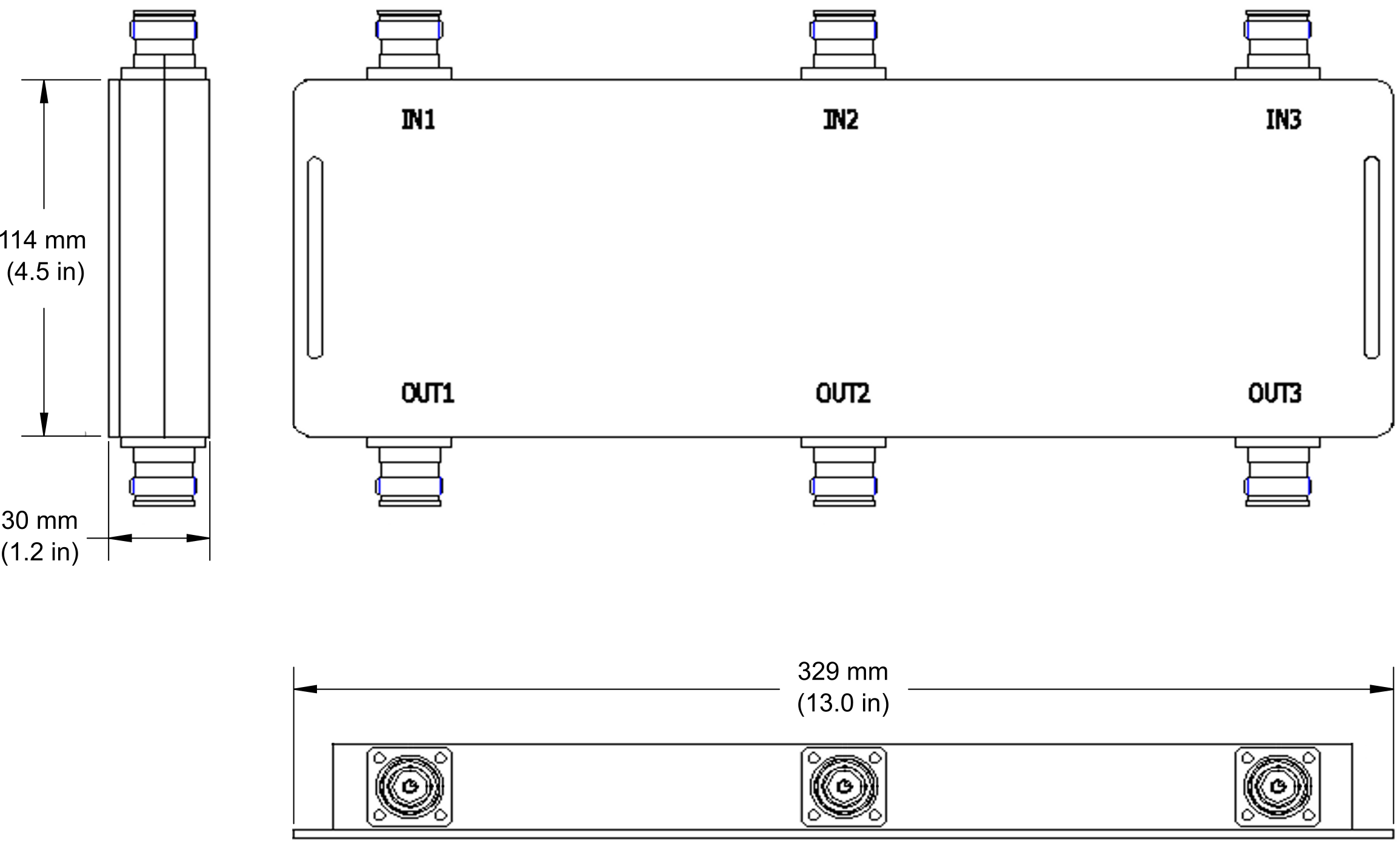

| 3-Way Hybrid Combiner Outline Drawing with 4.3-10 Connectors |
|
|
 | FREQUENCY BAND | |
 | 617-698 MHz (600 Band) |
| 698-798 MHz (700 Band) |
| 790-862 MHz (LTE 800) |
| 806-869 MHz (SMR 800) |
| 816-869 MHz (SMR 800ABC) |
| 824-894 MHz (Cellular) |
| 880-960 MHz (GSM 900) |
| 1427-1518 MHz (IMT 1400) |
| 1710-1880 MHz (DCS) |
| 1695-1780/2110-2180 MHz (AWS) |
| 1850-1995 MHz (PCS) |
| 1920-2170 MHz (IMT 2100) |
| 2305-2360 MHz (WCS) |
| 2300-2400 MHz (TDD) |
| 2496-2690 MHz (BRS) |
| 2570-2620 MHz (TDD) |
| 3300-3800 MHz |
| 5150-5925 MHz |
 |
|||
