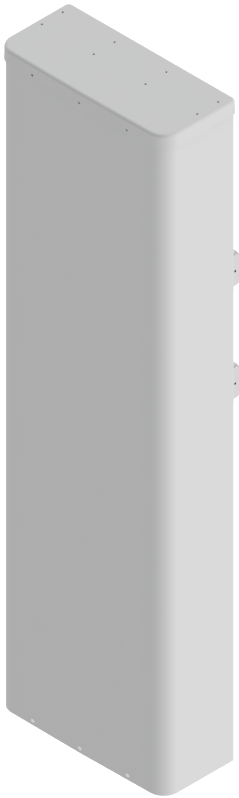

PI 12HBFR4BUH6NA ISO FRONT PI 12HBFR4BUH6NA ISO BACK
AntennaDataSheetIcon

12HBF4R-BUH6NA


12HBF4R-BUH6NA

Six foot (1.8 m), Hybrid Multiband Beamforming Antenna, deploying a high performing 65° azimuth beamwidth covering 698-896 MHz / 1695-2400 MHz frequencies and an 8T8R Beamforming array covering 3300-4200 MHz.


  • Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz, 3300-3800 MHz
  • Height6 ft. (1677 - 1981 mm)
  • Number of Sectors1
  • Horizontal Beamwidth50° to 70°, 80° to 100°
  • Number of Ports>12
  • Low Band Ports4
  • High Band Ports16
PI 12HBF4RBUH8NA ISO FRONT PI 12HBF4RBUH8NA ISO BACK
AntennaDataSheetIcon

12HBF4R-BUH8NA


12HBF4R-BUH8NA

Eight foot (2.4 m), Hybrid Multiband Beamforming Antenna, deploying a high performing 65° azimuth beamwidth covering 698-896 MHz / 1695-2400 MHz frequencies and an 8T8R Beamforming array covering 3300-4200 MHz.


  • Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz, 3300-3800 MHz
  • Height 8 ft. (2287 - 2590 mm)
  • Number of Sectors1
  • Horizontal Beamwidth50° to 70°, 80° to 100°
  • Number of Ports>12
  • Low Band Ports4
  • High Band Ports16
PI 12HBSAR BU6NA front iso 20201202 PI 12HBSAR BU6NA rear iso 20201202
AntennaDataSheetIcon

12HBSAR-BU6NA


12HBSAR-BU6NA

Six foot (1.98 m) tall and 19.5” (496 mm) wide, multiband, Twelve port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-896 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2400 MHz frequencies.


  • Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
  • Height6 ft. (1677 - 1981 mm)
  • Number of Sectors2 (BSA)
  • Horizontal Beamwidth30° to 40°, 50° to 70°
  • Number of Ports12
  • Low Band Ports4
  • High Band Ports8
PI 12HBSAR BW6NA front iso 20201202 PI 12HBSAR BW6NA rear iso 20201202
AntennaDataSheetIcon

12HBSAR-BW6NA


12HBSAR-BW6NA

Six foot (1.98 m) tall and 19.5” (496 mm) wide, multiband, Twelve port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-896 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2180 MHz frequencies.


  • Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1850-1995 MHz
  • Height6 ft. (1677 - 1981 mm)
  • Number of Sectors2 (BSA)
  • Horizontal Beamwidth30° to 40°, 50° to 70°
  • Number of Ports12
  • Low Band Ports4
  • High Band Ports8
PI 12HBSAR KE6NA front iso 20201202 PI 12HBSAR KE6NA rear iso 20201202
AntennaDataSheetIcon

12HBSAR-KE6NA


12HBSAR-KE6NA

Six foot (1.98 m) tall and 19.5” (496 mm) wide, multiband, Twelve port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies.


  • Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height6 ft. (1677 - 1981 mm)
  • Number of Sectors2 (BSA)
  • Horizontal Beamwidth30° to 40°, 50° to 70°
  • Number of Ports12
  • Low Band Ports4
  • High Band Ports8
