Six/Three-Beam Special Events Antenna | MBA9F-BW3A | |||
![]() |
|

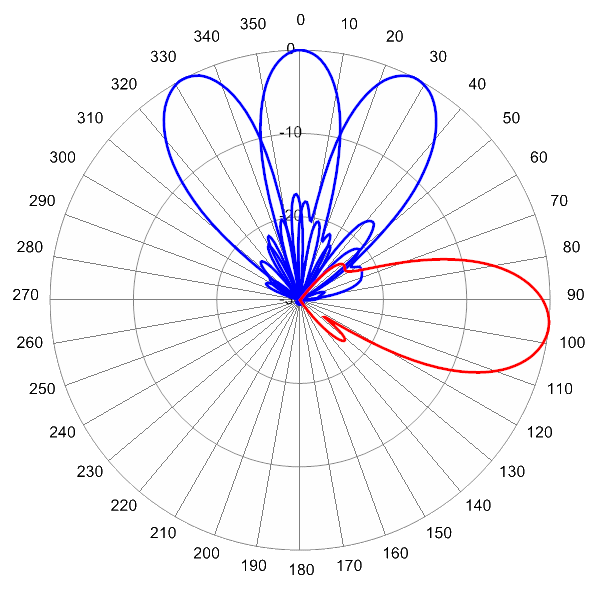

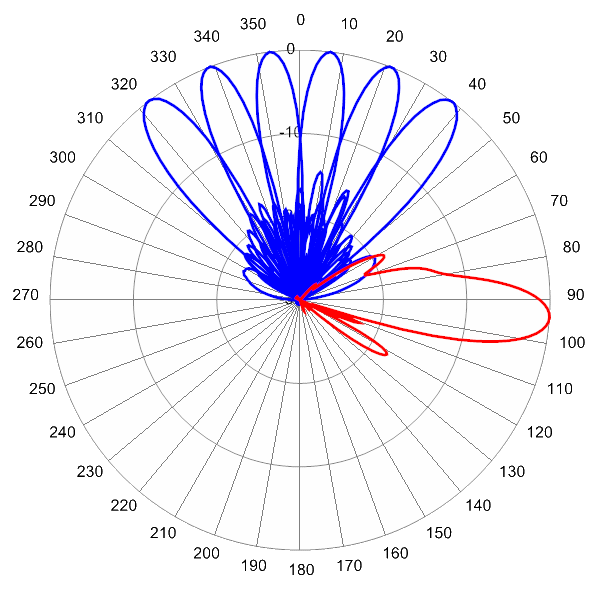

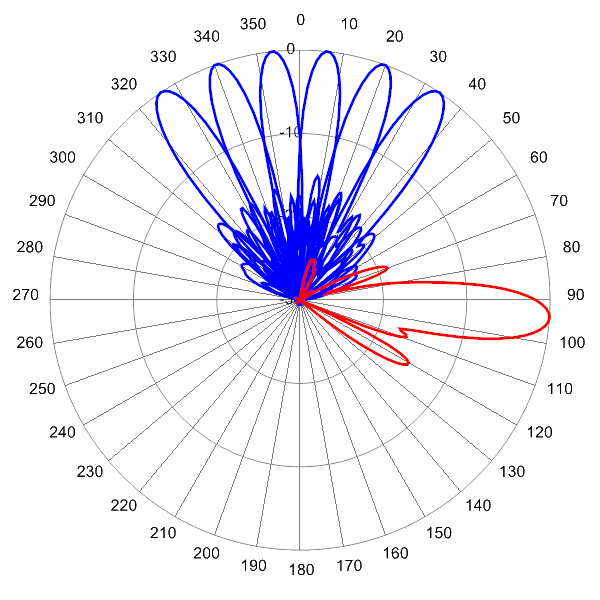

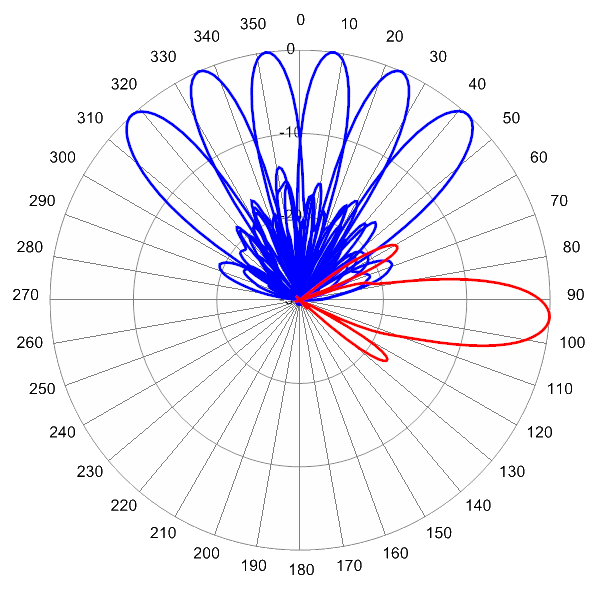

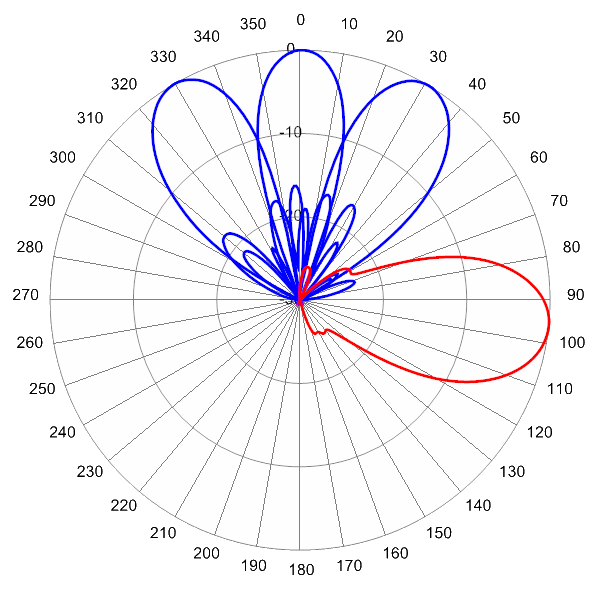

Antenna Pattern
|
In the Americas | |
Sales | |
+1 (201) 342-3338 phone | |
+1 (201)-342-3339 fax | |
89 Leuning Street | |
South Hackensack, NJ 07606 | |
USA | |
Customer Service | |
+1 (201) 342-3338 phone | |
+1 (201)-342-3339 fax | |
89 Leuning Street | |
South Hackensack, NJ 07606 | |
USA | |
Technical Support | |
+1 (201) 342-3338 phone | |
+1 (201)-342-3339 fax | |
89 Leuning Street | |
South Hackensack, NJ 07606 | |
USA | |
|
||||
Six/Three-Beam Special Events Antenna | MBA9F-BW3A | |||
![]() |
|
The CCI Six/Three Beam Special Events Antenna simultaneously supports (6) mid-band and (3) low-band sectors from a single antenna. This Six/Three-Beam Antenna is intended for use at sporting and entertainment venues where social media and the ability to share photos and videos demand high capacity and high data rates. The mid band ports provide coverage for DCS 1800 MHz, PCS 1900 MHz, AWS and AWS-3 1695/2180 MHz and UMTS 2100 MHz bands while the low band ports provide LTE 700 MHz, 800 MHz and Cellular 850 MHz band capability in a compact, 3.4 ft (1.0 m) high single enclosure. Each beam is fed by a pair of +45° and -45° cross-polarized ports. The mid band beams are each roughly 15 degrees apart and each pair are evenly juxtaposed on the three low band beams. This antenna segments large audiences into multiple sectors thus enabling maximum spectrum re-use by sectorization, providing as much as nine times increase in network capacity. Our unique beam shaping technology provides fast roll off between beams, minimizing interference between sectors thus increasing the carrier to interference plus noise (CINR) ratio and lowering soft handover losses in LTE, UMTS/HSPA+ and CDMA/EVDO networks. Such an approach enhances data transfer rates within LTE, UMTS and EVDO network sectors and addresses “hotspots” in mobile wireless operator networks.
|
Ports | 6 × Low Band Ports for 698-896 MHz | ||
Frequency Range | 698-806 MHz | 790-862 MHz | 824-896 MHz |
Gain | 16.7 dBi | 17.6 dBi | 18.0 dBi |
Azimuth Beamwidth (-3dB) | 18.8° | 16.9° | 16.2° |
Azimuth Beam Crossover | 10.2° | 10.0° | 10.0° |
Elevation Beamwidth (-3dB) | 24.0° | 21.6° | 20.7° |
Electrical Downtilt | 6° | 6° | 6° |
Elevation Sidelobes (1st Upper) | < -28 dB | < -22 dB | < -22 dB |
Front-to-Back Ratio @180° | > 40 dB | > 40 dB | > 40 dB |
Cross-Polar Port-to-Port Isolation | > 24 dB | > 24 dB | > 24 dB |
Interbeam Co-Pol Isolation (Adjacent Beams) (Worst Case) | > 10 dB | > 10 dB | > 10 dB |
Voltage Standing Wave Ratio (VSWR) | < 1.5:1 | < 1.5:1 | < 1.5:1 |
Passive Intermodulation (2×20W) | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc |
Input Power Continuous Wave (CW) | 200 watts | 200 watts | 200 watts |
Polarization | Dual Pol 45° | Dual Pol 45° | Dual Pol 45° |
Input Impedance | 50 ohms | 50 ohms | 50 ohms |
Lightning Protection | DC Ground | DC Ground | DC Ground |
Ports | 12 × Mid Band Ports for 1695-2180 MHz | ||
Frequency Range | 1695-1880 MHz | 1850-1990 MHz | 1920-2180 MHz |
Gain | 19.7 dBi | 20.7 dBi | 21.1 dBi |
Azimuth Beamwidth (-3dB) | 10.0° | 9.2° | 8.5° |
Azimuth Beam Crossover | 10.9° | 10.5° | 10.4° |
Elevation Beamwidth (-3dB) | 13.4° | 12.5° | 11.4° |
Electrical Downtilt | 4° | 4° | 4° |
Elevation Sidelobes (1st Upper) | < -15 dB | < -17 dB | < -17 dB |
Front-to-Back Ratio @180° | > 40 dB | > 40 dB | > 40 dB |
Cross-Polar Port-to-Port Isolation | > 28 dB | > 28 dB | > 28 dB |
Interbeam Co-Pol Isolation (Adjacent Beams) (Worst Case) | > 10 dB | > 10 dB | > 10 dB |
Voltage Standing Wave Ratio (VSWR) | < 1.5:1 | < 1.5:1 | < 1.5:1 |
Passive Intermodulation (2×20W) | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc |
Input Power Continuous Wave (CW) | 200 watts | 200 watts | 200 watts |
Polarization | Dual Pol 45° | Dual Pol 45° | Dual Pol 45° |
Input Impedance | 50 ohms | 50 ohms | 50 ohms |
Lightning Protection | DC Ground | DC Ground | DC Ground |
Dimensions (L×W×D) | 38.9×53.0×9.0 in (988×1345×228 mm) |
Survival Wind Speed | > 150 mph (> 241 kph) |
Front Wind Load1 | 392 lbf @ 100 mph 1745 N @ 161 kph |
Side Wind Load1 | 18 lbf @ 100 mph 78 N @ 161 kph |
Effective Projective Area (EPA), Front1 | 16.1 ft2 (1.5 m2) |
Weight * | 90.4 lbs (41.0 kg) |
RF Connector | 18 × 4.3-10 female |
Mounting Pole | 2 to 5 in (5 to 12 cm) |
Mounting Pole Spacing | 31.5 in (800 mm) |
1Windload values calculated using CFD analysis * Weight excludes mounting |

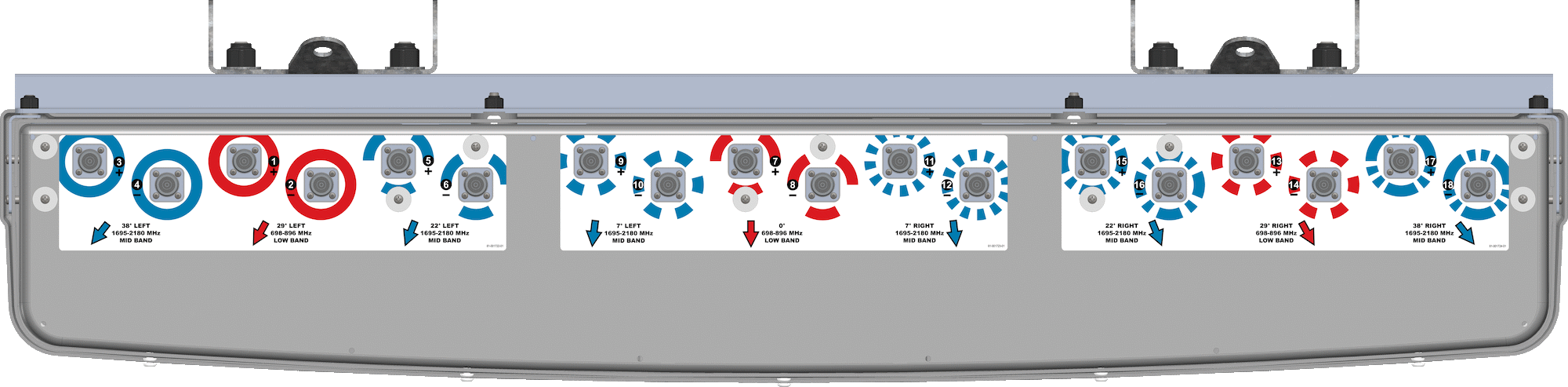

Bottom View | |
![]() |
