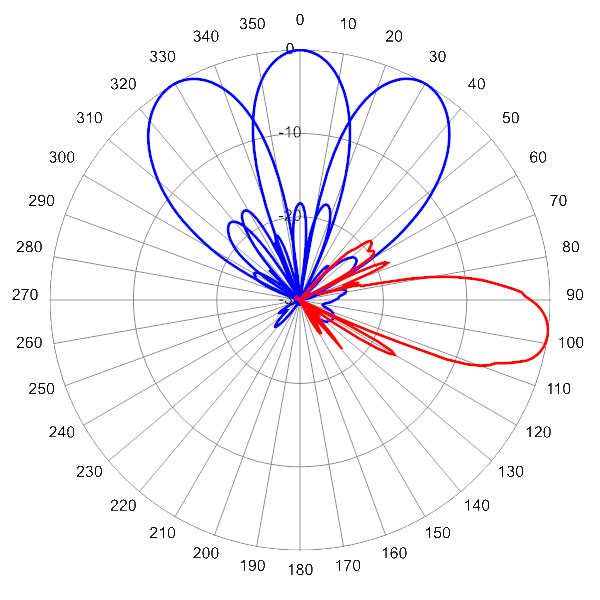

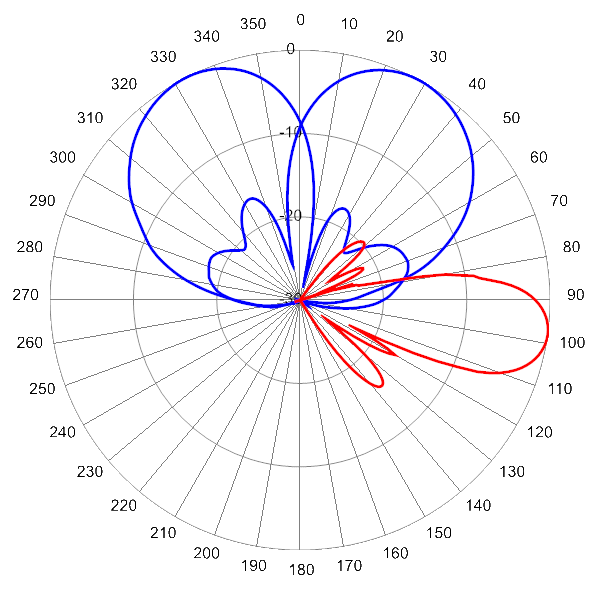

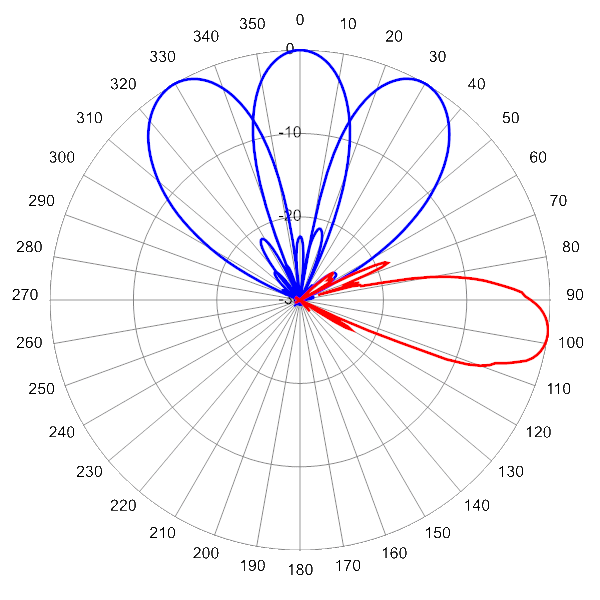

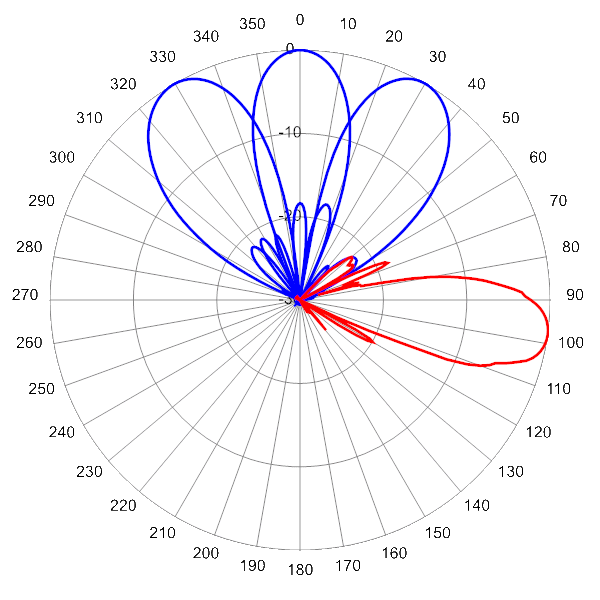

This CCI Dual Band low dispersion Multibeam Antenna contains three Independent Mid Band LTE Optimized Beams with 4x4 MIMO capability or six Independent LTE Optimized Beams with 2x2 MIMO capability covering 1695-2360 MHz frequencies and two Independent Low Band LTE Optimized Beams with 4x4 MIMO capability or four Independent LTE Optimized Beams with 2x2 MIMO capability covering 698-896 MHz. This Dual Band low dispersion Multibeam Antenna is intended for Macro deployment, where offload for data hotspots and other congested locals is critical.

This Dual Band low dispersion Multibeam Antenna enables maximum spectrum re-use by sectorization, greatly increasing network capacity. With deployment of low dispersion 4x4 MIMO (on any of the beams available), capacity and data throughput is greatly enhanced, over a conventional 2x2 MIMO beam deployment. Our LTE Optimized Beam Design approach provides fast roll off between beams, minimizing interference between sectors thus increasing the carrier to interference plus noise (CINR) ratio and lowering soft handover losses in LTE networks. Such an approach enhances data transfer rates within LTE network sectors and addresses “hotspots” in mobile wireless operator networks.

The single panel design of the CCI Dual Band low dispersion Multibeam Macro Antenna offers the opportunity to reduce antenna count and directly replaces multiple narrow beam antennas. The antenna minimizes the need for optimization as each beam is spaced optimally for maximum throughput thus providing significant CAPEX and OPEX cost savings.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.
