      Six Beam 4 x 4 MIMO Special Events Antenna MBM6F-P3B




  PI MBM6FP3BA Front ISO
  • Three foot (1.0 m) tall, single band, twenty-four port Multifunction Multibeam array. Containing Six Independent LTE Optimized Beams with 4x4 MIMO capability or Twelve Independent LTE Optimized Beams with 2x2 MIMO capability covering 1850-1995 MHz frequencies, an Industry First
  • Twenty-Four High Band Dual-Pol +45°/-45°ports (Two or Four ports per Beam) covering 1850-1995 MHz in a single antenna
  • Full Spectrum Compliance for 1850-1995 MHz Frequencies

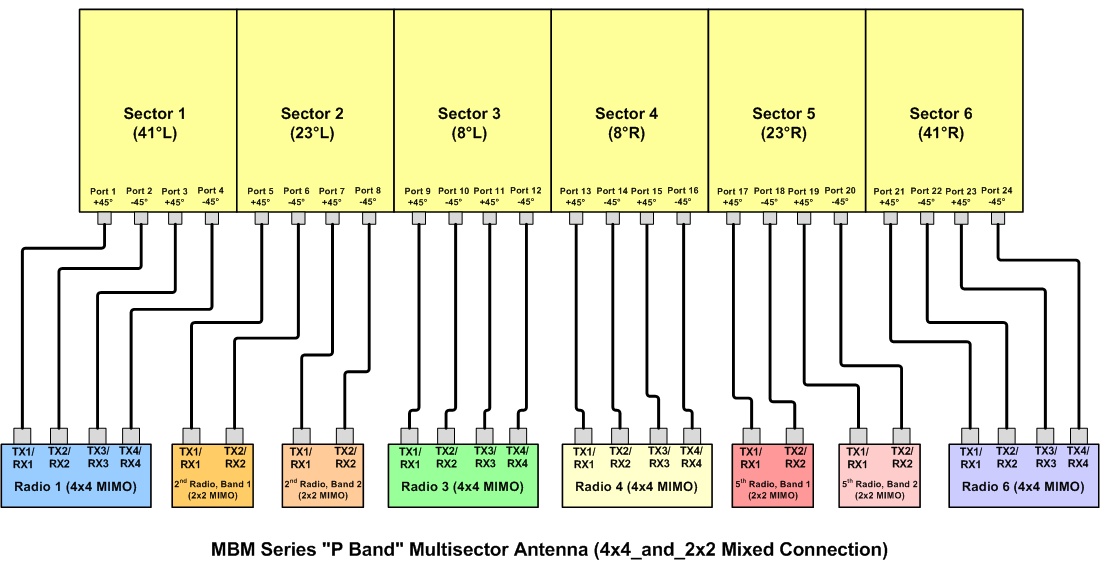

  • Unique Antenna Configuration provides the end user with complete flexibility with both the MIMO Configuration and High Band Frequency Configuration of each beam, an Industry First

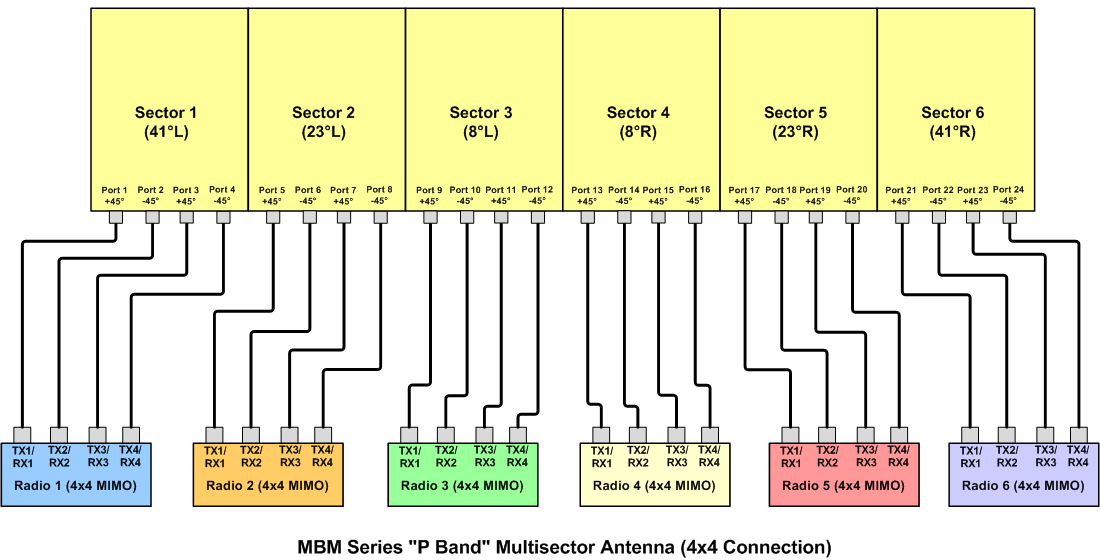

  • Deployment of a 4x4 MIMO LTE Optimized Beam allows for greater capacity and data throughput over a conventional 2x2 MIMO LTE Optimized Beam deployment. Essential for today’s LTE Data Driven Networks
  • LTE Optimized Beams for improved LTE data throughput by minimizing beam crossover, providing for an efficient use of valuable radio capacity and frequency spectrum. Essential for today’s LTE Data Driven Networks
  • LTE Optimized FBR, USLS and Co-Pol Beam Isolation Performance. Essential for today’s LTE Data Driven Networks
  • Exceeds minimum PIM performance requirements
MBK-10   MBK-10 Mounting Kit
