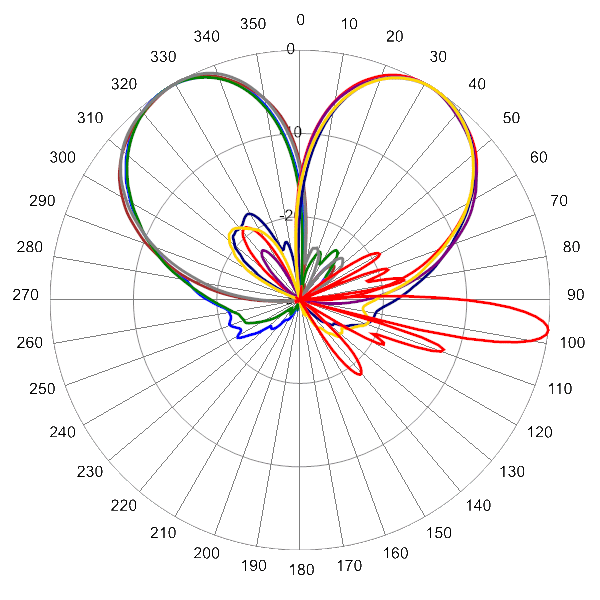

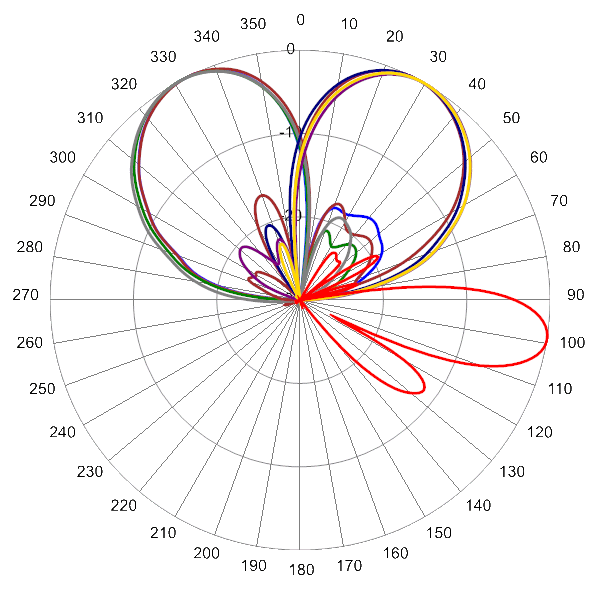

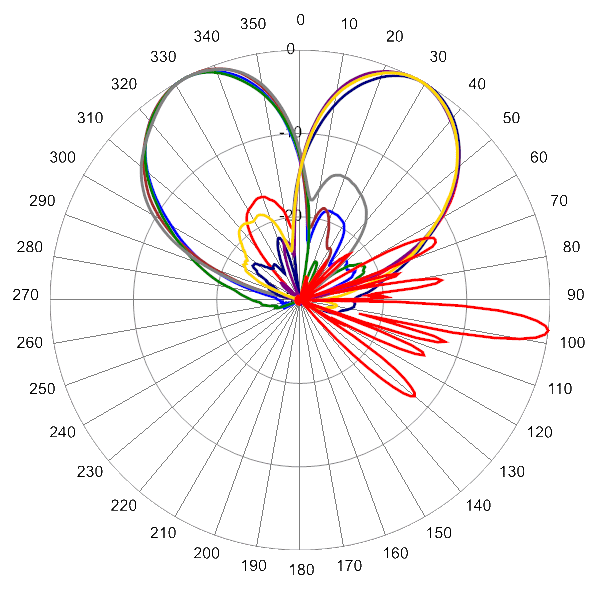

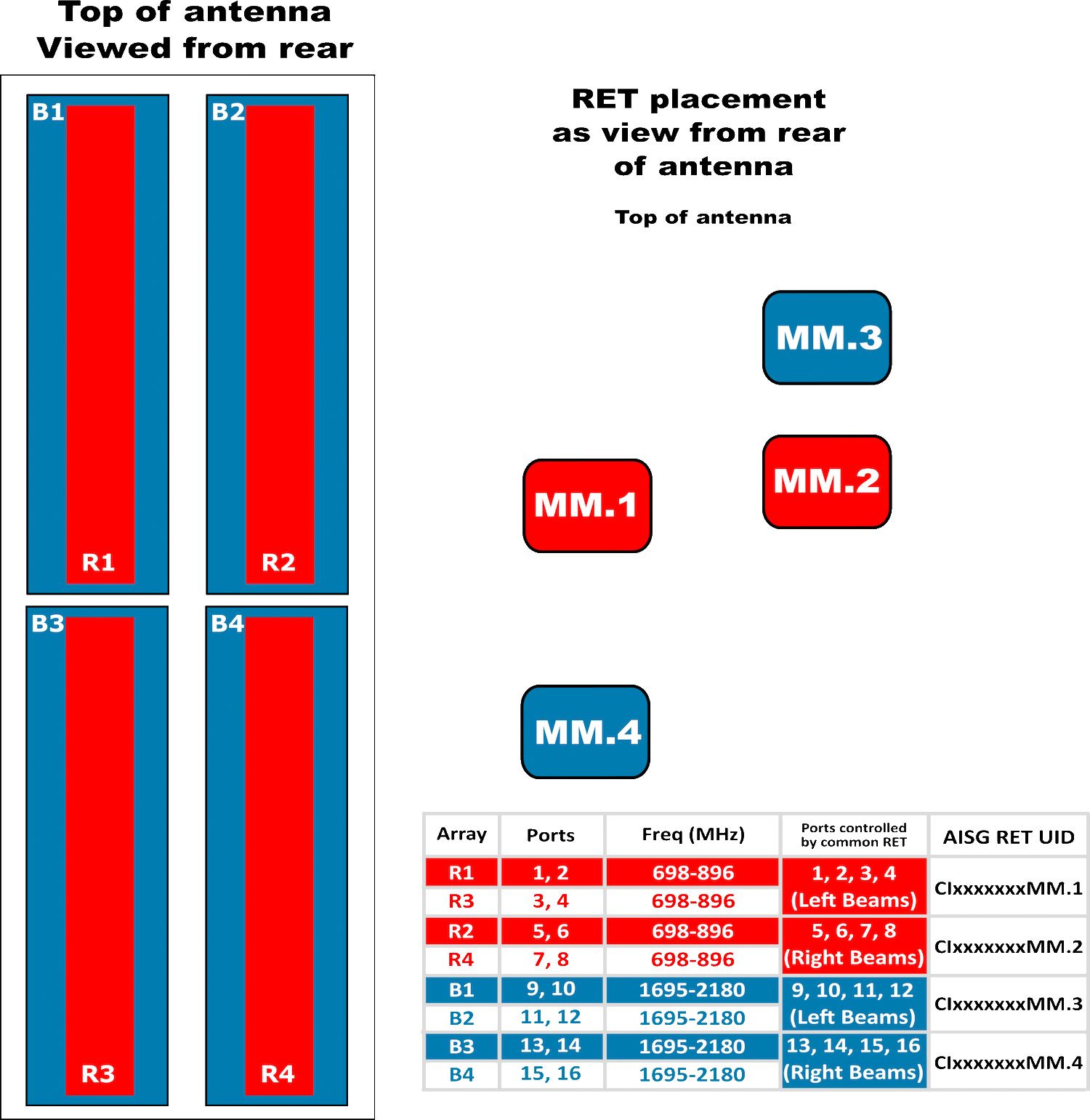

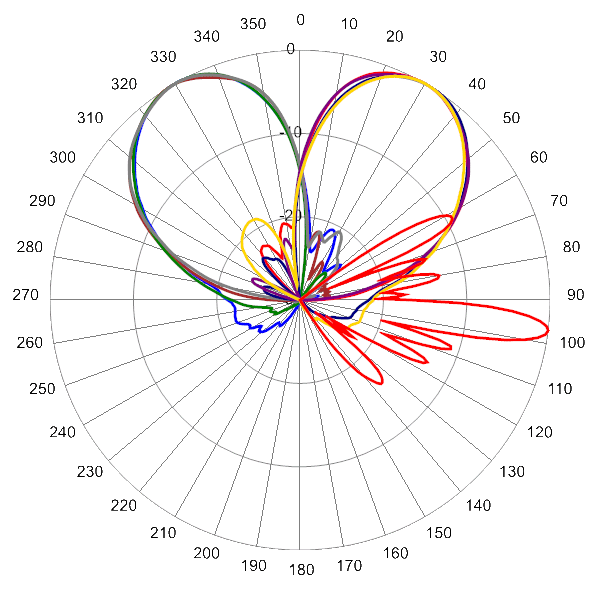

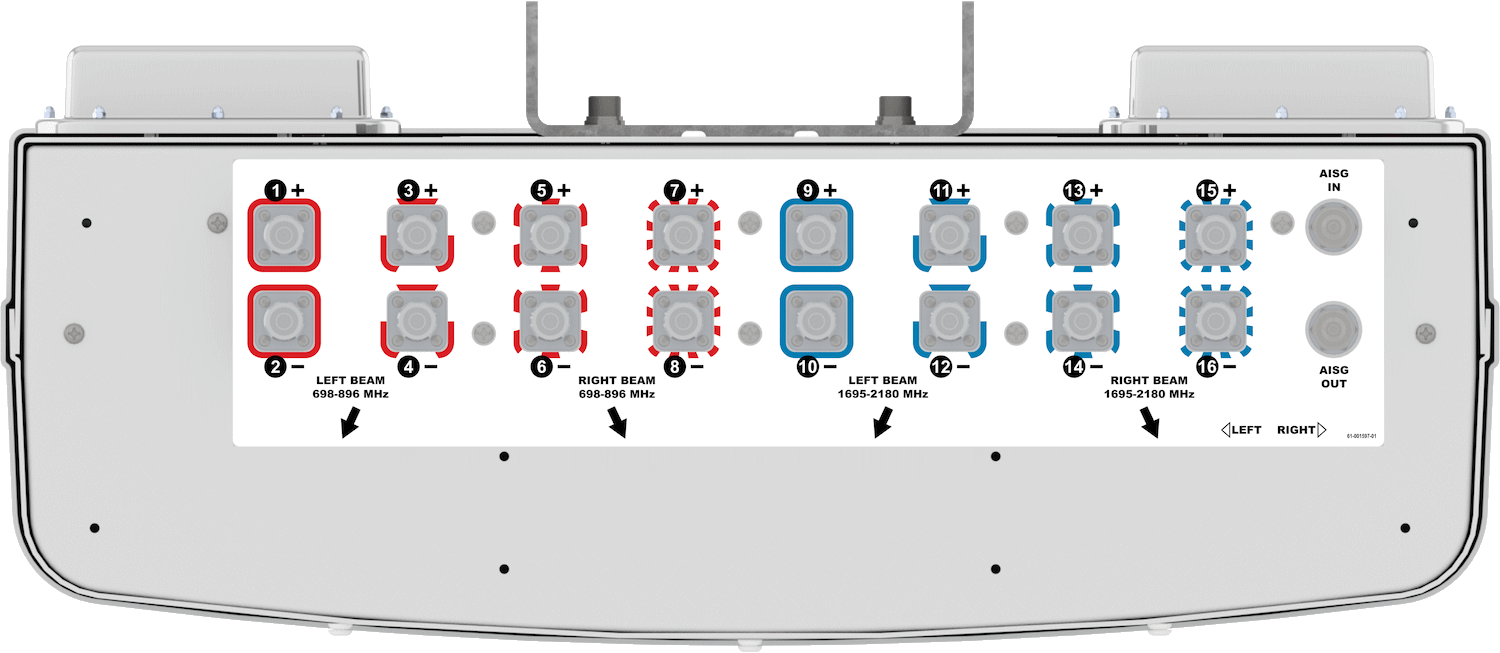

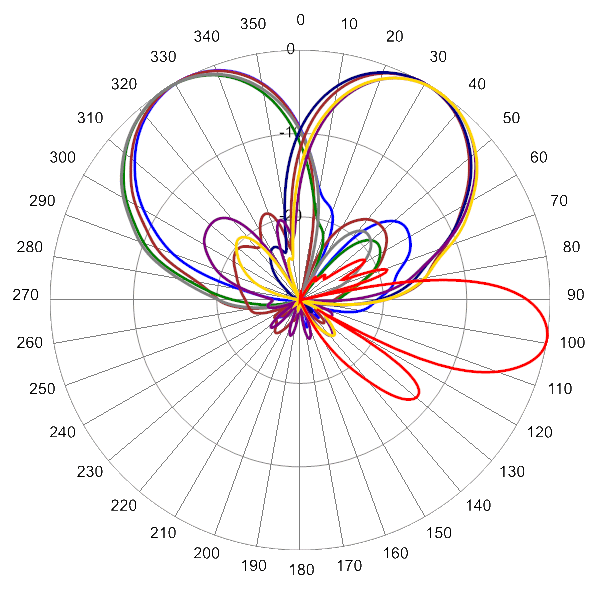

This version of the CCI Dual Band Bi-Sector^TM Multiband Array is a Sixteen port antenna, with eight wide high band ports covering 1695-2180 MHz and eight wide low band ports covering 698-896 MHz. The CCI Dual Band Bi-Sector^TM array uses two independent pairs of CCI’s Patented Asymmetric 33° Shaped Beams in the High Band frequencies and low band frequencies. The CCI Dual Band Bi-Sector^TM Array thus provides the capability to deploy Dual (over split beams) 4×4 Multiple-input Multiple-output (MIMO) in the high band and (over split beams) 4×4 Multiple-input Multiple-output (MIMO) in the low band. The CCI Dual Band Bi-Sector^TM Array utilizes four RET controllers, with a separate RET control in the Low Band and High Band for each LEFT and RIGHT pair of CCI’s Patented Asymmetric 33° Shaped Beams.

The CCI Dual Band Bi-Sector^TM Multiband Array, allow operators to reduce antenna count and replace existing 65° networks, while increasing cell site capacity and LTE data throughput by minimizing overlap between CCI’s Patented Asymmetric 33° Shaped Beams. This design approach lowers interference between sectors. All of this is achieved through a single panel array, producing significant CAPEX and OPEX cost savings for the operator.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.
