PI MBA96FPH3 front iso 20150727
AntennaDataSheetIcon


MBA9-6F-P-H3

Three foot (0.8 m), single panel, with nine beams covering 1850-1995 MHz intended for use at sporting and entertainment venues.


  • Frequency Band1850-1995 MHz
  • Height 3 ft. (762 - 1066 mm)
  • Number of Sectors9 (MBA9)
  • Horizontal Beamwidth0° to 10°
PI MBA96FUH3 front
AntennaDataSheetIcon

MBA9-6F-U-H3


MBA9-6F-U-H3

Three foot (0.8 m), single panel, with nine beams covering 1710-2360 MHz intended for use at sporting and entertainment venues.


  • Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz
  • Height 3 ft. (762 - 1066 mm)
  • Number of Sectors9 (MBA9)
  • Horizontal Beamwidth0° to 10°

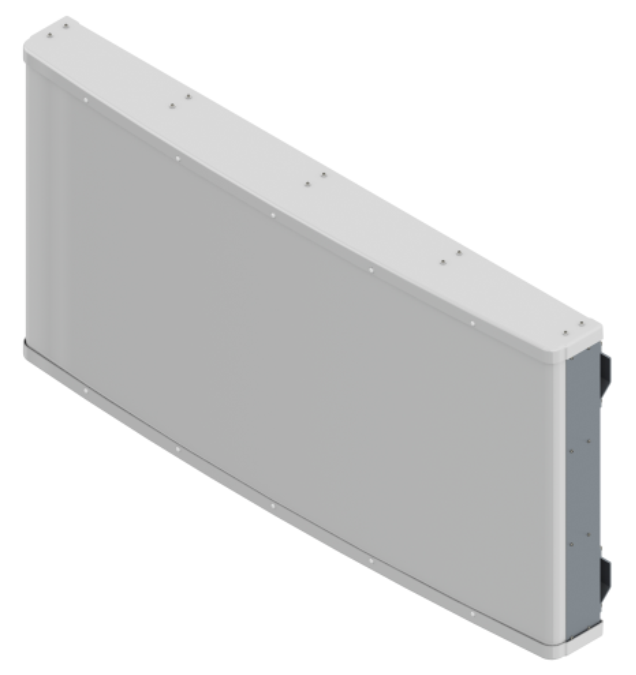

PI MBA96FWH3 front iso 20150727
AntennaDataSheetIcon

MBA9-6F-W-H3


MBA9-6F-W-H3

Three foot (0.8 m), single panel, with nine beams covering 1695-2180 MHz intended for use at sporting and entertainment venues.


  • Frequency Band1695-1880 MHz, 1695-2180 MHz, 1850-1995 MHz
  • Height 3 ft. (762 - 1066 mm)
  • Number of Sectors9 (MBA9)
  • Horizontal Beamwidth0° to 10°

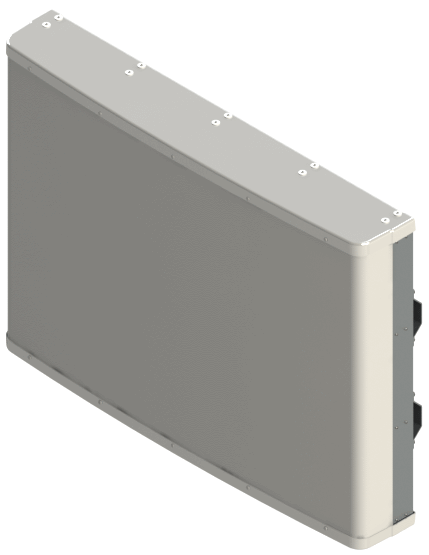

PI MBA9FKE3A Front ISO
AntennaDataSheetIcon

MBA9F-KE3A


MBA9F-KE3A

Three foot (1.0 m), single panel, with three beams covering 694-960 MHz and six beams covering 1695-2690 MHz intended for use at sporting and entertainment venues.


  • Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height 3 ft. (762 - 1066 mm)
  • Number of Sectors9 (MBA9)
  • Horizontal Beamwidth10° to 20°
PI MBA9FV2AA Front ISO
AntennaDataSheetIcon

MBA9F-V2A


MBA9F-V2A

Two foot (0.6 m), single panel, with nine beams covering 2300-2690 MHz intended for use at sporting and entertainment venues.


  • Frequency Band2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height 2 ft. (458 - 761 mm)
  • Number of Sectors9 (MBA9)
  • Horizontal Beamwidth0° to 10°
