PI 16HBSARBUU7NA ISO Front PI 16HBSARBUU7NA ISO Back
AntennaDataSheetIcon

16HBSAR-BUU7NA


16HBSAR-BUU7NA

Seven foot (2.1 m) and 19.6” (498 mm) wide, multiband, Sixteen port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2400 MHz frequencies.


  • Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
  • Height 7 ft. (1982 - 2286 mm)
  • Number of Sectors2 (BSA)
  • Horizontal Beamwidth30° to 40°, 50° to 70°
  • Number of Ports>12
  • Low Band Ports4
  • High Band Ports12
PI 16HBSARBWW7NA ISO Front PI 16HBSARBWW7NA ISO Back
AntennaDataSheetIcon

16HBSAR-BWW7NA


16HBSAR-BWW7NA

Seven foot (2.1 m) and 19.6” (498 mm) wide, multiband, Sixteen port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-896 MHz and 1695-2180 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2180 MHz frequencies.


  • Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1850-1995 MHz
  • Height 7 ft. (1982 - 2286 mm)
  • Number of Sectors2 (BSA)
  • Horizontal Beamwidth30° to 40°, 50° to 70°
  • Number of Ports>12
  • Low Band Ports4
  • High Band Ports12
PI 16HBSARKOE7NA ISO Front PI 16HBSARKOE7NA ISO Back
AntennaDataSheetIcon

16HBSAR-KOE7NA


16HBSAR-KOE7NA

Seven foot (2.1 m) and 19.6” (498 mm) wide, multiband, Sixteen port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and 1427-2690 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies.


  • Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1427-1518 MHz, 1427-2200 MHz, 1427-2690 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height 7 ft. (1982 - 2286 mm)
  • Number of Sectors2 (BSA)
  • Horizontal Beamwidth30° to 40°, 50° to 70°
  • Number of Ports>12
  • Low Band Ports4
  • High Band Ports12

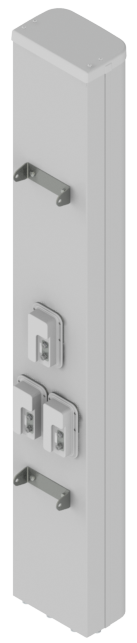

PI HBSAM65RKUH8 front iso PI HBSAM65RKUH8 REAR iso
AntennaDataSheetIcon

HBSA-M65R-KU-H8


HBSA-M65R-KU-H8

Eight foot (2.2 m), six port hybrid multi-band Bi-SectorTM antenna with a 65° azimuth beamwidth covering 698-960 MHz and 33°left and right azimuth beamwidth covering 1695-2360 MHz.


  • Frequency Band698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz
  • Height 7 ft. (1982 - 2286 mm)
  • Number of Sectors2 (BSA)
  • Horizontal Beamwidth30° to 40°, 50° to 70°
  • Number of Ports6
  • Low Band Ports2
  • High Band Ports4
PI TSB20RE7A FRONT ISO PI TSB20RE7A REAR ISO
AntennaDataSheetIcon

TSB20R-E7A


TSB20R-E7A

Seven foot (2.3 m) tall and 19.4 inch (494 mm) wide, twelve port Single Band Tri-Split Beam array. Containing Three Independent LTE Optimized Beams with 4x4 MIMO capability covering 1695-2690 MHz frequencies, all with Independent RET for each Beam, an Industry First.


  • Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height 7 ft. (1982 - 2286 mm)
  • Number of Sectors3 (MBA3)
  • Horizontal Beamwidth10° to 20°, 20° to 30°
  • Number of Ports12
  • High Band Ports12
