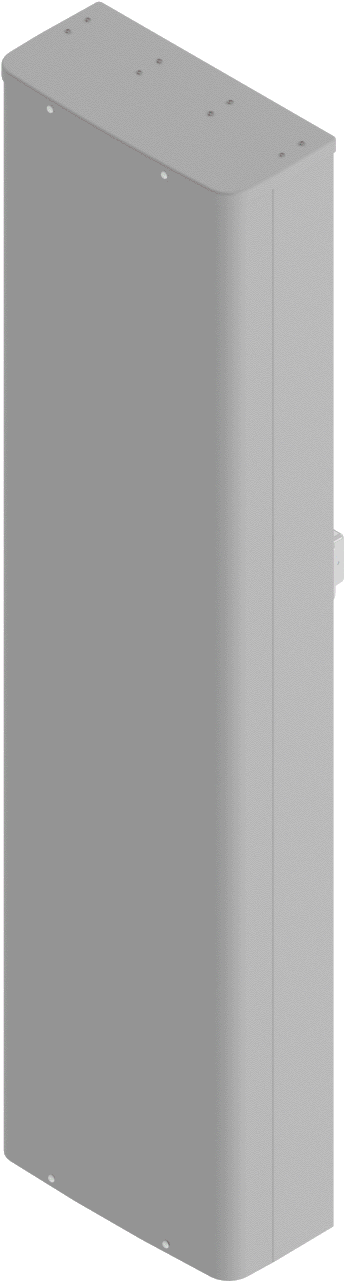

PI 12HBSAR KE6NA front iso 20201202 PI 12HBSAR KE6NA rear iso 20201202
AntennaDataSheetIcon

12HBSAR-KE6NA


12HBSAR-KE6NA

Six foot (1.98 m) tall and 19.5” (496 mm) wide, multiband, Twelve port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies.


  • Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height6 ft. (1677 - 1981 mm)
  • Number of Sectors2 (BSA)
  • Horizontal Beamwidth30° to 40°, 50° to 70°
  • Number of Ports12
  • Low Band Ports4
  • High Band Ports8

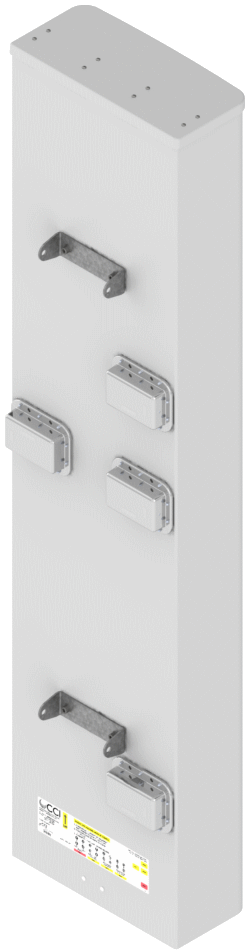

PI 16HBSARKOE7NA ISO Front PI 16HBSARKOE7NA ISO Back
AntennaDataSheetIcon

16HBSAR-KOE7NA


16HBSAR-KOE7NA

Seven foot (2.1 m) and 19.6” (498 mm) wide, multiband, Sixteen port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and 1427-2690 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies.


  • Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1427-1518 MHz, 1427-2200 MHz, 1427-2690 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height 7 ft. (1982 - 2286 mm)
  • Number of Sectors2 (BSA)
  • Horizontal Beamwidth30° to 40°, 50° to 70°
  • Number of Ports>12
  • Low Band Ports4
  • High Band Ports12

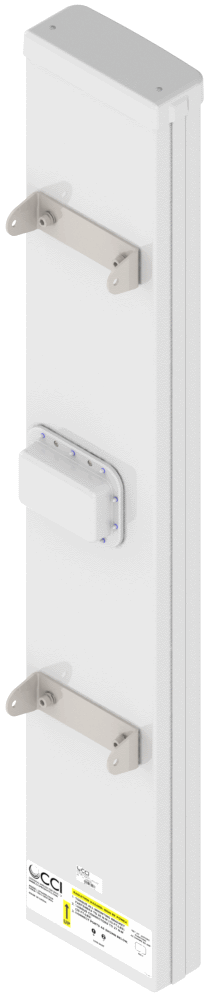

PI 2PA65RE5AA front PI 2PA65RE5AA back
AntennaDataSheetIcon

2PA65R-E5A


2PA65R-E5A

Five foot (1.5 m), WideBand, two port antenna with a 65° azimuth beamwidth covering 1695-2690 MHz frequencies.


  • Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height 5 ft. (1372 - 1676 mm)
  • Number of Sectors1
  • Horizontal Beamwidth50° to 70°
  • Number of Ports2
  • High Band Ports2
PI FPA65RBU8D ISO FRONT PI FPA65RBU8D ISO REAR
AntennaDataSheetIcon

30PA65R-KO9A


30PA65R-KO9A

Nine foot (2.7 m) internally multiplexed MultiBand, thirty port antenna, with a 65° azimuth beamwidth covering 698-960 MHz and 1427-2690 MHz frequencies.


  • Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height 9 ft. (2591 - 2896 mm)
  • Number of Sectors1
  • Horizontal Beamwidth50° to 70°
  • Number of Ports>12
  • Low Band Ports6
  • High Band Ports24
 PI BFA4RV5A FRONT ISO  PI BFA4RV5A REAR ISO
AntennaDataSheetIcon

BFA4R-V5A


BFA4R-V5A

Five foot (1.5 m), Beamforming Antenna, Deploying a high performing 8T8R Beamforming array covering 2300-2690 MHz.


  • Frequency Band2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height 5 ft. (1372 - 1676 mm)
  • Number of Sectors1
  • Horizontal Beamwidth30° to 40°, 50° to 70°, 80° to 100°
  • Number of Ports8
  • High Band Ports8

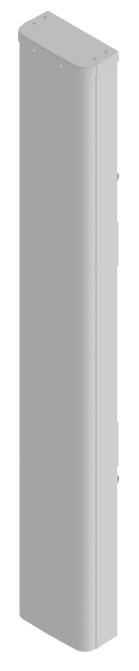

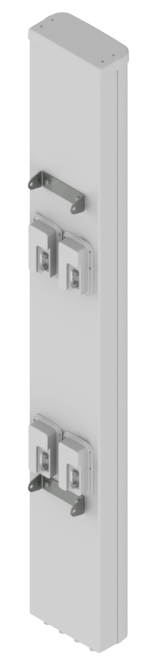

PI BSAM65RUVH8 front iso PI BSAM65RUVH8 REAR iso
AntennaDataSheetIcon

BSA-M65R-UV-H8


BSA-M65R-UV-H8

Eight foot (2.3 m), eight port Ultra-wideband Bi-SectorTM antenna with left and right azimuth beams covering 1695-2400 MHz and left and right azimuth beams covering 2300-2690 MHz.


  • Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height 8 ft. (2287 - 2590 mm)
  • Number of Sectors2 (BSA)
  • Horizontal Beamwidth20° to 30°, 30° to 40°
  • Number of Ports8
  • High Band Ports8

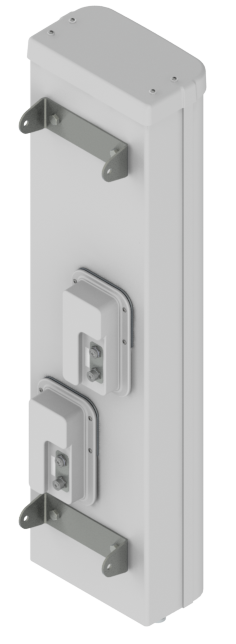

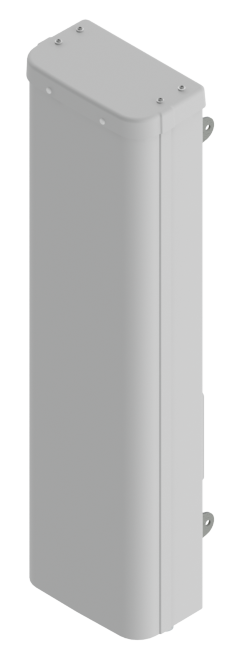

 P1 BSAS65RVH3 front iso  P1 BSAS65RVH3 rear iso
AntennaDataSheetIcon

BSA-S65R-V-H3


BSA-S65R-V-H3

Three foot (1.1 m), four port multi-band Bi-SectorTM antenna with left and right azimuth beams covering 2300-2690 MHz.


  • Frequency Band2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height 3 ft. (762 - 1066 mm)
  • Number of Sectors2 (BSA)
  • Horizontal Beamwidth50° to 70°
  • Number of Ports4
  • High Band Ports4

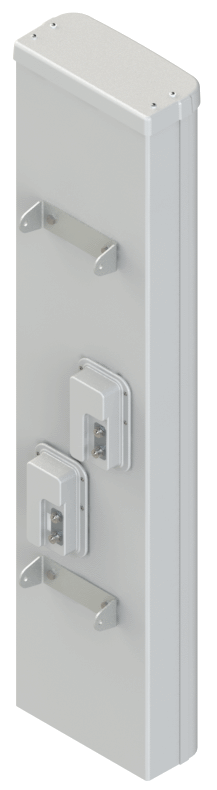

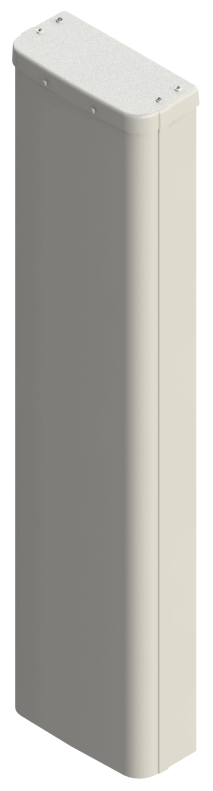

PI BSA33RE5A FRONT iso PI BSA33RE5A REAR iso
AntennaDataSheetIcon

BSA33R-E5A


BSA33R-E5A

Five foot (1.5 m), Wideband, four port Bi-SectorTM Antenna. Deploying a high performing pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies


  • Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height 5 ft. (1372 - 1676 mm)
  • Number of Sectors2 (BSA)
  • Horizontal Beamwidth30° to 40°
  • Number of Ports4
  • High Band Ports4
PI BSA33RE5BA ISO FRONT PI BSA33RE5BA ISO REAR
AntennaDataSheetIcon

BSA33R-E5B


BSA33R-E5B

Five foot (1.5 m), Ultra wideband, Eight port Bi-SectorTM Antenna. Deploying two high performing pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies.


  • Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height 5 ft. (1372 - 1676 mm)
  • Number of Sectors2 (BSA)
  • Horizontal Beamwidth30° to 40°
  • Number of Ports8
  • High Band Ports8
PI BSA33RKE6B front iso PI BSA33RKE6B rear iso
AntennaDataSheetIcon

BSA33R-KE6B


BSA33R-KE6B

Six foot (1.8 m), multiband, Sixteen port Dual Band Bi-SectorTM Antenna. Deploying two independent high performing pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 698-960 MHz and 1695-2690 MHz frequencies.


  • Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Height6 ft. (1677 - 1981 mm)
  • Number of Sectors2 (BSA)
  • Horizontal Beamwidth30° to 40°
  • Number of Ports>12
  • Low Band Ports8
  • High Band Ports8
