Communication Components Inc.

12HBSAR-BU6NA

Details

12HBSAR-BU6NA

Six foot (1.98 m) tall and 19.5” (496 mm) wide, multiband, Twelve port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-896 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeHybrid Bi-Sectors
QuickSelectionAntSubTypeHybrid Bi-Sector 65° Low Band 33° Mid Band Pair

12HBSAR-KE6NA

Details

12HBSAR-KE6NA

Six foot (1.98 m) tall and 19.5” (496 mm) wide, multiband, Twelve port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

12HBSAR-KU6NB

Details

12HBSAR-KU6NB

Six foot (1.9 m), multiband, Twelve port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

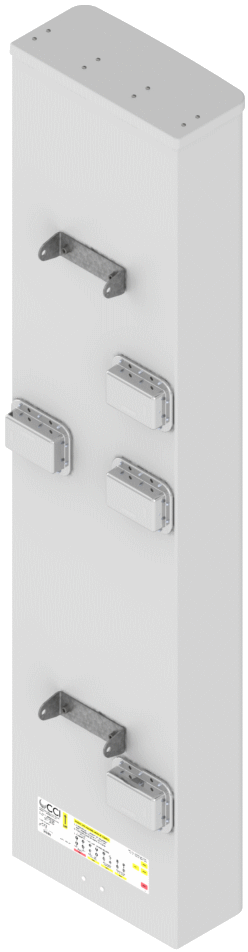

16HBSAR-BUU7NA

Details

16HBSAR-BUU7NA

Seven foot (2.1 m) and 19.6” (498 mm) wide, multiband, Sixteen port Hybrid Bi-Sector^TM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 7 ft. (1982 - 2286 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports>12
Low Band Ports4
High Band Ports12

16HBSAR-KOE7NA

Details

16HBSAR-KOE7NA

Seven foot (2.1 m) and 19.6” (498 mm) wide, multiband, Sixteen port Hybrid Bi-Sector^TM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and 1427-2690 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1427-1518 MHz, 1427-2200 MHz, 1427-2690 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 7 ft. (1982 - 2286 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports>12
Low Band Ports4
High Band Ports12

20HBSAR-BU9NB

Details

20HBSAR-BU9NB

Nine foot (2.7 m), multiband, Twenty port Hybrid Bi-Sector^TM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-896 MHz and two independent pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 9 ft. (2591 - 2896 mm)
Number of Sectors1
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports>12
Low Band Ports4
High Band Ports16
QuickSelectionAntTypeHybrid Bi-Sectors
QuickSelectionAntSubTypeHybrid Bi-Sector 65° Low Band Dual 33° Mid Band Pair

2PA65R-E5A

Details

2PA65R-E5A

Five foot (1.5 m), WideBand, two port antenna with a 65° azimuth beamwidth covering 1695-2690 MHz frequencies.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports2
High Band Ports2

30PA65R-KO9A

Details

30PA65R-KO9A

Nine foot (2.7 m) internally multiplexed MultiBand, thirty port antenna, with a 65° azimuth beamwidth covering 698-960 MHz and 1427-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 9 ft. (2591 - 2896 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports>12
Low Band Ports6
High Band Ports24

8HBF4R-BUH4NA

Details

8HBF4R-BUH4NA

Four foot (1.4 m), Hybrid Multiband Beamforming Antenna, deploying a high performing 65° azimuth beamwidth covering 698-896 MHz / 1695-2400 MHz frequencies and an 8T8R Beamforming array covering 3300-4200 MHz.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz, 3300-3800 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°, 80° to 100°
Number of Ports>12
Low Band Ports4
High Band Ports12
QuickSelectionAntTypeHybrid Beamformers
QuickSelectionAntSubTypeHybrid Beamformer 65° Low/Mid bands High Band Beamformer

8HBF4R-BUH6NA

Details

8HBF4R-BUH6NA

Six foot (1.8 m), Hybrid Multiband Beamforming Antenna, deploying a high performing 65° azimuth beamwidth covering 698-896 MHz / 1695-2400 MHz frequencies and an 8T8R Beamforming array covering 3300-4200 MHz.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz, 3300-3800 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°, 80° to 100°
Number of Ports>12
Low Band Ports4
High Band Ports12
QuickSelectionAntTypeHybrid Beamformers
QuickSelectionAntSubTypeHybrid Beamformer 65° Low/Mid bands High Band Beamformer

8HBF4R-BUH8NA

Details

8HBF4R-BUH8NA

Eight foot (2.4 m), Hybrid Multiband Beamforming Antenna, deploying a high performing 65° azimuth beamwidth covering 698-896 MHz / 1695-2400 MHz frequencies and an 8T8R Beamforming array covering 3300-4200 MHz.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz, 3300-3800 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°, 80° to 100°
Number of Ports>12
Low Band Ports4
High Band Ports12
QuickSelectionAntTypeHybrid Beamformers
QuickSelectionAntSubTypeHybrid Beamformer 65° Low/Mid bands High Band Beamformer

8HBF4R-BWH4NA

Details

8HBF4R-BWH4NA

Four foot (1.4 m), Hybrid Multiband Beamforming Antenna, deploying a high performing 65° azimuth beamwidth covering 698-896 MHz / 1695-2180 MHz frequencies and an 8T8R Beamforming array covering 3300-4200 MHz.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz, 3300-3800 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°, 80° to 100°
Number of Ports>12
Low Band Ports4
High Band Ports12

ANT-2300-PB-24

Details

ANT-2300-PB-24

CCI Parabolic antenna for 2W SDAR ECHO Repeater is a high gain antenna which is highly directional and is excellent for point to point connections.

Frequency Band2300-2400 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors12 (MBA12)
Horizontal BeamwidthTBD

BFA4R-V5A

Details

BFA4R-V5A

Five foot (1.5 m), Beamforming Antenna, Deploying a high performing 8T8R Beamforming array covering 2300-2690 MHz.

Frequency Band2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors1
Horizontal Beamwidth30° to 40°, 50° to 70°, 80° to 100°
Number of Ports8
High Band Ports8

BSA-M65R-UV-H8

Details

BSA-M65R-UV-H8

Eight foot (2.3 m), eight port Ultra-wideband Bi-Sector^TMantenna with left and right azimuth beams covering 1695-2400 MHz and left and right azimuth beams covering 2300-2690 MHz.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth20° to 30°, 30° to 40°
Number of Ports8
High Band Ports8

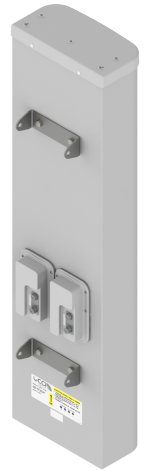

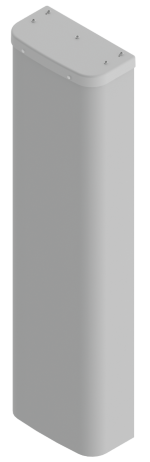

BSA-S65R-U-H5

Details

BSA-S65R-U-H5

Five foot (1.4 m), four port multi-band Bi-Sector^TM antenna with left and right azimuth beams covering 1710-2400 MHz.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°
Number of Ports4
High Band Ports4

BSA-S65R-V-H3

Details

BSA-S65R-V-H3

Three foot (1.1 m), four port multi-band Bi-Sector^TM antenna with left and right azimuth beams covering 2300-2690 MHz.

Frequency Band2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 3 ft. (762 - 1066 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth50° to 70°
Number of Ports4
High Band Ports4

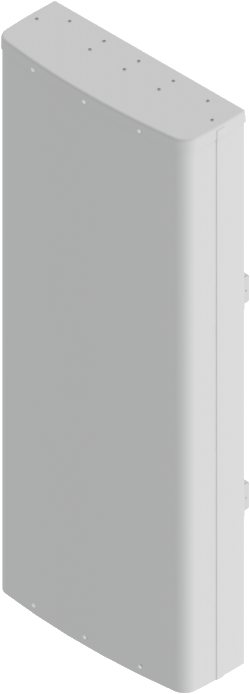

BSA33R-BU6B

Details

BSA33R-BU6B

Six foot (1.8 m), multiband, Sixteen port Dual Band Bi-Sector^TM Antenna. Deploying two independent high performing pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°
Number of Ports>12
Low Band Ports8
High Band Ports8
QuickSelectionAntTypeBi-Sectors
QuickSelectionAntSubTypeDual Band Bi-Sector

BSA33R-BU8A

Details

BSA33R-BU8A

Eight foot (2.4 m), multiband, Sixteen port Dual Band Bi-Sector^TM Antenna. Deploying two independent high performing pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°
Number of Ports>12
Low Band Ports8
High Band Ports8

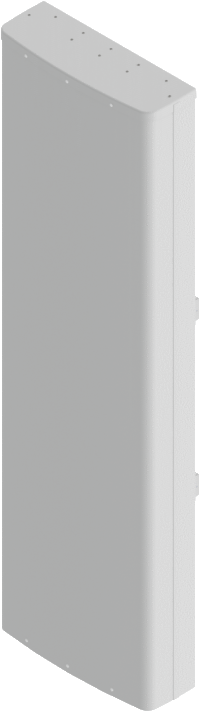

BSA33R-BU8B

Details

BSA33R-BU8B

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°
Number of Ports>12
Low Band Ports8
High Band Ports8
QuickSelectionAntTypeBi-Sectors
QuickSelectionAntSubTypeDual Band Bi-Sector

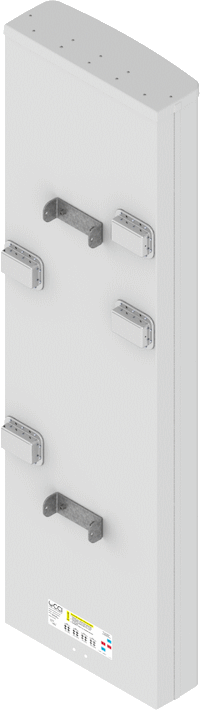

BSA33R-BW8B

Details

BSA33R-BW8B

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°
Number of Ports>12
Low Band Ports8
High Band Ports8

BSA33R-E5A

Details

BSA33R-E5A

Five foot (1.5 m), Wideband, four port Bi-Sector^TM Antenna. Deploying a high performing pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°
Number of Ports4
High Band Ports4

BSA33R-E5B

Details

BSA33R-E5B

Five foot (1.5 m), Ultra wideband, Eight port Bi-SectorTM Antenna. Deploying two high performing pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°
Number of Ports8
High Band Ports8

BSA33R-KE6B

Details

BSA33R-KE6B

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°
Number of Ports>12
Low Band Ports8
High Band Ports8

BSA33R-KE8A

Details

BSA33R-KE8A

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°
Number of Ports>12
Low Band Ports8
High Band Ports8

BSA33R-KE8B

Details

BSA33R-KE8B

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°
Number of Ports>12
Low Band Ports8
High Band Ports8

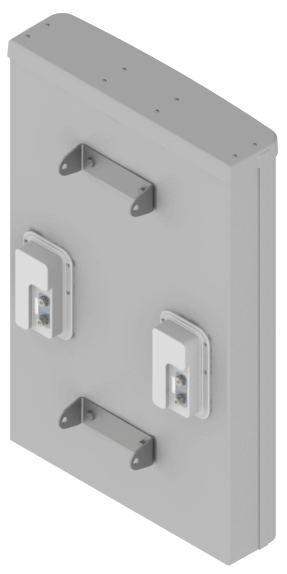

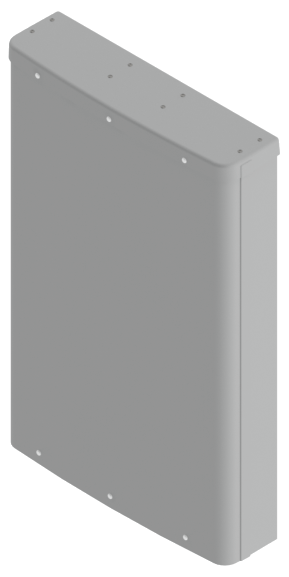

BSA33R-U3A

Details

BSA33R-U3A

Three foot (0.9 m), Wideband, eight port Bi-Sector^TM Antenna. Deploying a high performing two pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2400 MHz frequencies

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 3 ft. (762 - 1066 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°
Number of Ports8
High Band Ports8

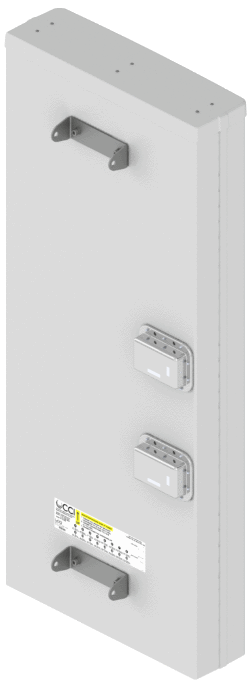

BSA33R-U5C

Details

BSA33R-U5C

Five foot (1.5m), Dualband, sixteen port Bi-Sector^TM Antenna. Deploying a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1710-2400 MHz frequencies.

Frequency Band1695-1880 MHz, 2300-2400 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°
Number of Ports>12
High Band Ports16

BSA33R-U6A

Details

BSA33R-U6A

Six foot (1.9 m), eight port Bi-Sector^TMantenna with a 33° left and right azimuth beamwidth covering 1695-2400 MHz.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°
Number of Ports8
High Band Ports8

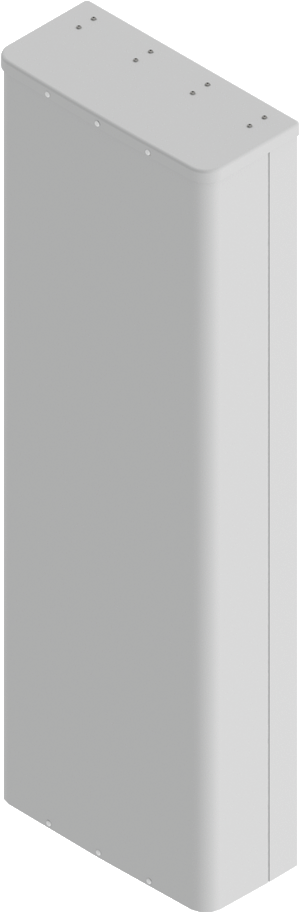

DMP45R-BU6E

Details

DMP45R-BU6E

Six foot (1.8 m) internally multiplexed MultiBand antenna, including twelve external RF ports (16 RF ports internal), with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies

Frequency Band698-798 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPlexed Series 12 Port
QuickSelectionAntSubType45° 700MHz/850MHz Diplexed

DMP65R-BU4D

Details

DMP65R-BU4D

Four foot (1.2 m) internally multiplexed MultiBand antenna, including eight external RF ports (12 RF ports internal), with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4
QuickSelectionAntTypeMultiPlexed Series 8 Port
QuickSelectionAntSubType65° 700MHz/850MHz Diplexed

DMP65R-BU4E

Details

DMP65R-BU4E

Four foot (1.2 m) internally multiplexed MultiBand antenna, including twelve external RF ports (16 RF ports internal), with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies

Frequency Band698-798 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPlexed Series 12 Port
QuickSelectionAntSubType65° 700MHz/850MHz Diplexed

DMP65R-BU6D

Details

DMP65R-BU6D

Six foot (1.8 m) internally multiplexed MultiBand antenna, including eight external RF ports (12 RF ports internal), with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies

Frequency Band698-798 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4
QuickSelectionAntTypeMultiPlexed Series 8 Port
QuickSelectionAntSubType65° 700MHz/850MHz Diplexed

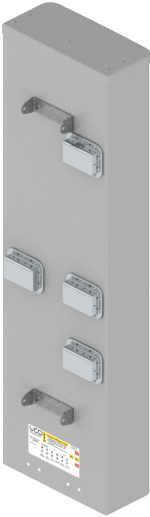

DMP65R-BU6E

Details

DMP65R-BU6E

Six foot (1.8 m) internally multiplexed MultiBand antenna, including twelve external RF ports (16 RF ports internal), with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies

Frequency Band698-798 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPlexed Series 12 Port
QuickSelectionAntSubType65° 700MHz/850MHz Diplexed

DMP65R-BU8D

Details

DMP65R-BU8D

Eight foot (2.4 m) internally multiplexed MultiBand antenna, including eight external RF ports (12 RF ports internal), with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4
QuickSelectionAntTypeMultiPlexed Series 8 Port
QuickSelectionAntSubType65° 700MHz/850MHz Diplexed

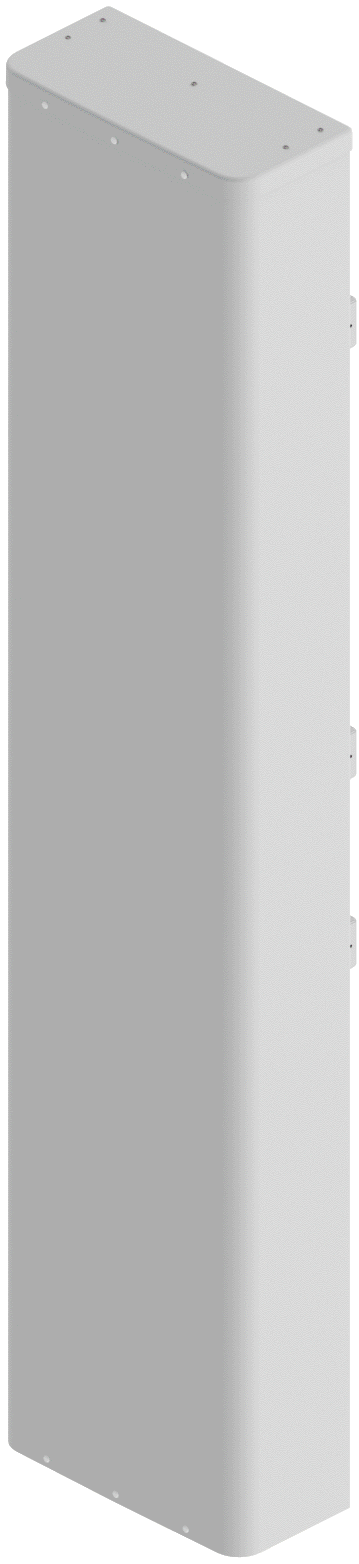

DMP65R-BU8E

Details

DMP65R-BU8E

Eigth foot (2.4 m) internally multiplexed MultiBand antenna, including twelve external RF ports (16 RF ports internal), with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies

Frequency Band698-798 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPlexed Series 12 Port
QuickSelectionAntSubType65° 700MHz/850MHz Diplexed

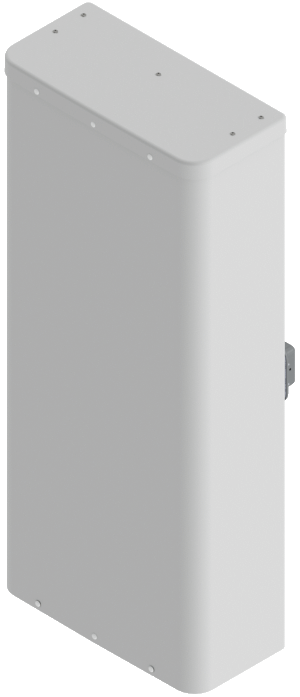

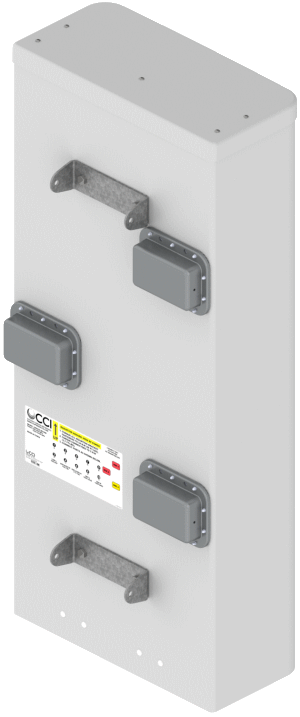

DPA65R-BU4D

Details

DPA65R-BU4D

Four foot (1.2 m) internally multiplexed MultiBand, ten port antenna, with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports10
Low Band Ports6
High Band Ports4
QuickSelectionAntTypeMultiPlexed Series 10 Port
QuickSelectionAntSubTypeB14/B29 Diplexed

DPA65R-BU6D

Details

DPA65R-BU6D

Six foot (1.8 m) internally multiplexed MultiBand, ten port antenna, with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports10
Low Band Ports6
High Band Ports4
QuickSelectionAntTypeMultiPlexed Series 10 Port
QuickSelectionAntSubTypeB14/B29 Diplexed

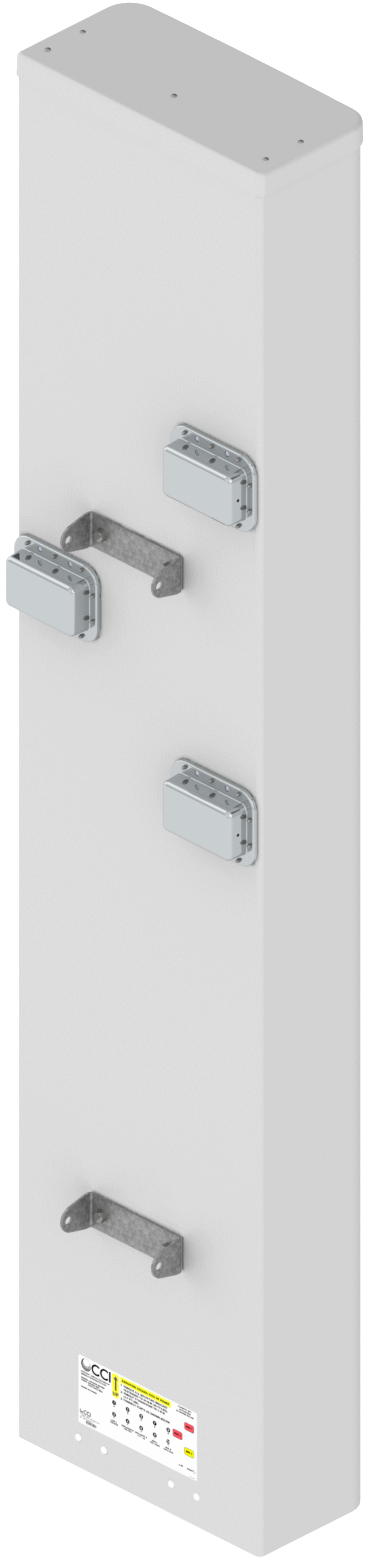

DPA65R-BU8D

Details

DPA65R-BU8D

Eight foot (2.4 m) internally multiplexed MultiBand, ten port antenna, with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports10
Low Band Ports6
High Band Ports4
QuickSelectionAntTypeMultiPlexed Series 10 Port
QuickSelectionAntSubTypeB14/B29 Diplexed

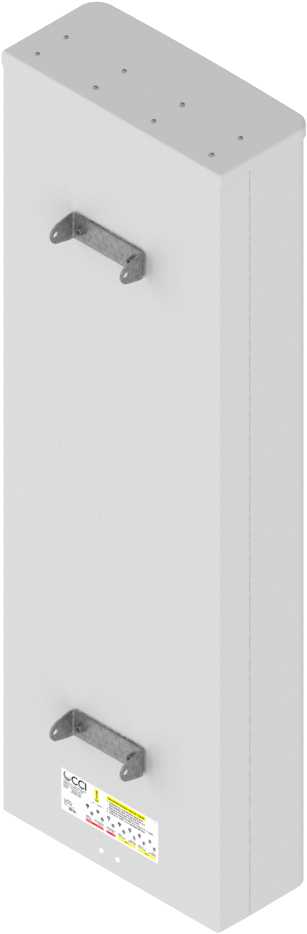

FPA45R-BU6B

Details

FPA45R-BU6B

Six foot (1.8 m) internally multiplexed MultiBand, fourteen port antenna, with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports>12
Low Band Ports6
High Band Ports8

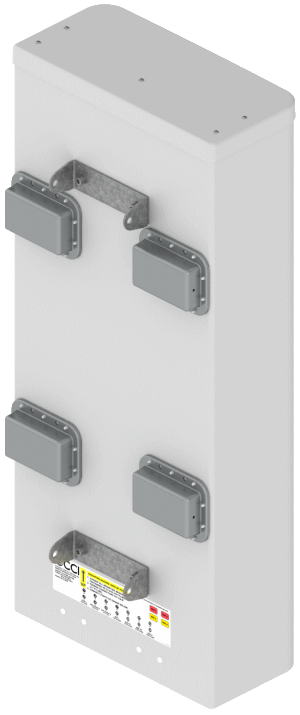

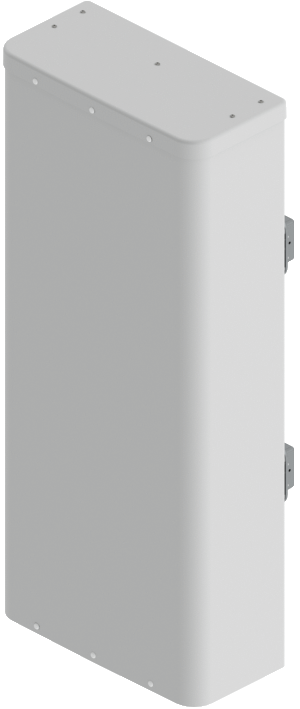

FPA65R-BU4D

Details

FPA65R-BU4D

Four foot (1.2 m) internally multiplexed MultiBand, fourteen port antenna, with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports>12
Low Band Ports6
High Band Ports8
QuickSelectionAntTypeMultiPlexed Series 14 Port
QuickSelectionAntSubTypeB14/B29 Diplexed

FPA65R-BU6D

Details

FPA65R-BU6D

Six foot (1.8 m) internally multiplexed MultiBand, fourteen port antenna, with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports>12
Low Band Ports6
High Band Ports8
QuickSelectionAntTypeMultiPlexed Series 14 Port
QuickSelectionAntSubTypeB14/B29 Diplexed

FPA65R-BU8D

Details

FPA65R-BU8D

Eight foot (2.4 m) internally multiplexed MultiBand, fourteen port antenna, with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports>12
Low Band Ports6
High Band Ports8
QuickSelectionAntTypeMultiPlexed Series 14 Port
QuickSelectionAntSubTypeB14/B29 Diplexed

HBSA-M65R-DU-H6

Details

HBSA-M65R-DU-H6

Six foot (1.8 m), six port, hybrid multi-band Bi-Sector^TM antenna covering 790-960 MHz and 1710-2400 MHz.

Frequency Band790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

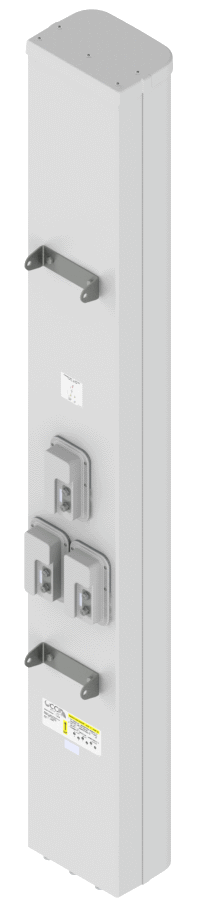

HBSA-M65R-DU-H8

Details

HBSA-M65R-DU-H8

Eight foot (2.4 m), Six port, hybrid multi-band Bi-Sector^TM antenna covering 790-960 MHz and 1710-2400 MHz.

Frequency Band790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

HBSA33R-GU6A

Details

HBSA33R-GU6A

Six foot (1.9 m), multiband, Ten port Hybrid Bi-Sector^TM Antenna. Deploying a high performing 65° azimuth beamwidth covering 617-960 MHz and Two pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2400 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports10
Low Band Ports2
High Band Ports8

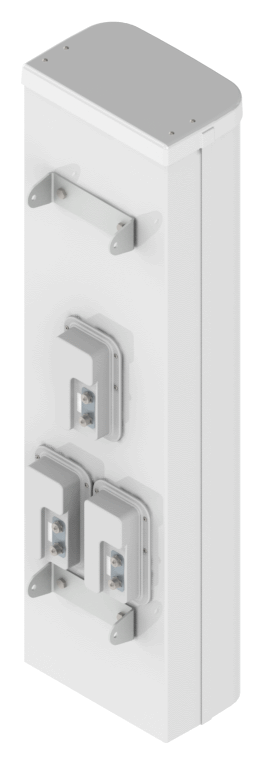

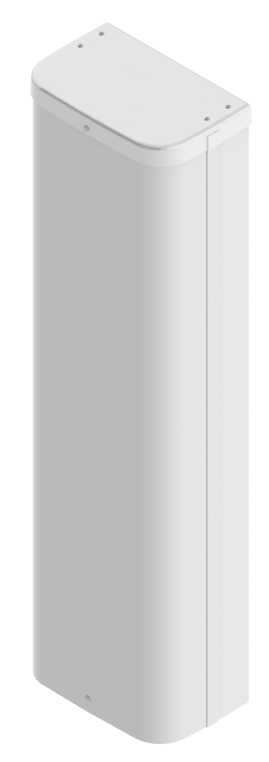

HBSA33R-KE4A

Details

HBSA33R-KE4A

Four foot (1.2 m), multiband, Six port Hybrid Bi-Sector^TM Antenna. Deploying a high performing 65° azimuth beamwidth covering 694-960 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

HBSA33R-KE6B

Details

HBSA33R-KE6B

Six foot (1.8 m), multiband, Ten port Hybrid Bi-Sector^TM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and Two pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports10
Low Band Ports2
High Band Ports8

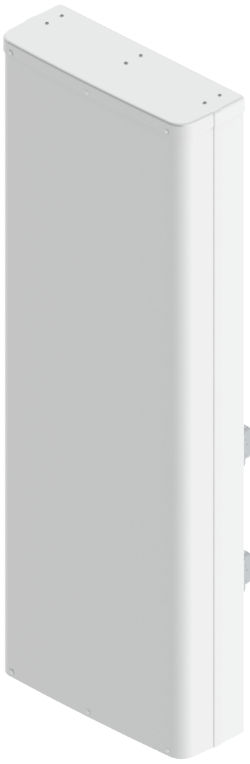

HBSA33R-KE6C

Details

HBSA33R-KE6C

Six foot (1.8 m), multiband, Eighteen port Hybrid Bi-Sector^TM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and two independent pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports>12
Low Band Ports2
High Band Ports16

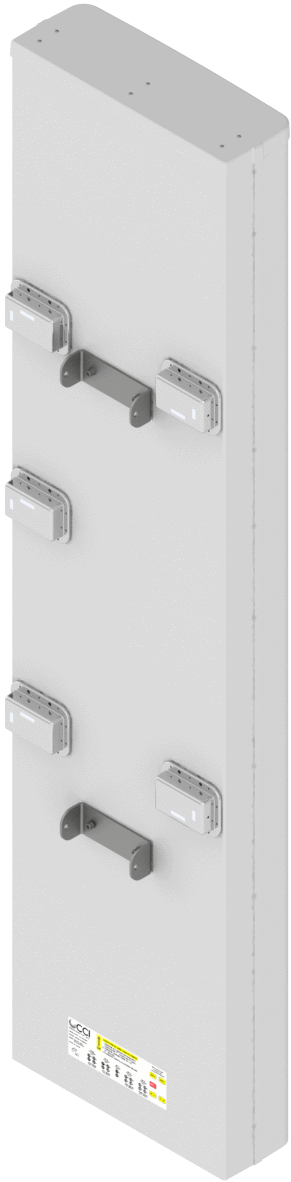

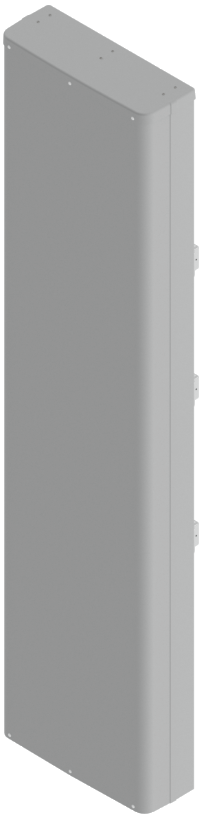

HBSA33R-KE9A

Details

HBSA33R-KE9A

Nine foot (2.7 m), multiband, Eighteen port Hybrid Bi-Sector^TM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and two independent pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 9 ft. (2591 - 2896 mm)
Number of Sectors1
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports>12
Low Band Ports2
High Band Ports16

HBSA33R-KE9B

Details

HBSA33R-KE9B

Nine foot (2.7 m), multiband, Twenty port Hybrid Bi-Sector^TM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and two independent pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 9 ft. (2591 - 2896 mm)
Number of Sectors1
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports>12
Low Band Ports4
High Band Ports16

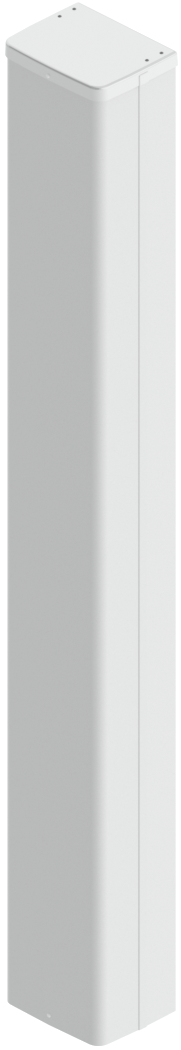

HBSA33R-KE9C

Datasheet Preliminary

HBSA33R-KE9C

Nine foot (2.7 m), multiband, Twenty eight port Hybrid Bi-SectorTM Antenna. Deploying a pair of high performing 65° azimuth beamwidth covering 698-960 MHz and two pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1710-2170 MHz frequencies, two pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 2300-2400 MHz frequencies, two pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 2500-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 9 ft. (2591 - 2896 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports>12
Low Band Ports4
High Band Ports24

HBSA33R-KU6A

Details

HBSA33R-KU6A

Six foot (1.9 m), multiband, Ten port Hybrid Bi-Sector^TM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and Two pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports10
Low Band Ports2
High Band Ports8
QuickSelectionAntTypeHybrid Bi-Sectors
QuickSelectionAntSubTypeDual Band Bi-Sector

HBSA33R-KU6B

Details

HBSA33R-KU6B

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports10
Low Band Ports2
High Band Ports8

HBSA65R-KUE9A

Details

HBSA65R-KUE9A

Nine foot (2.7 m), multiband, ten port Hybrid Bi-Sector^TM Antenna. Deploying two high performing 65° HBW covering 694-960 MHz and 1695-2690 MHz frequency bands and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 9 ft. (2591 - 2896 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports10
Low Band Ports2
High Band Ports8

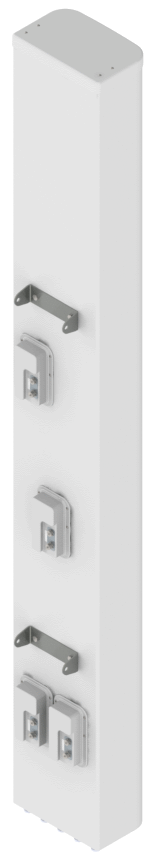

HBSA65R-KUE9B

Details

HBSA65R-KUE9B

Nine foot (2.7 m), multiband, eight port Hybrid Bi-Sector^TM Antenna. Deploying two high performing 65° HBW covering 694-960 MHz and 1695-2690 MHz frequency bands and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 9 ft. (2591 - 2896 mm)
Number of Sectors2 (BSA)
Horizontal Beamwidth30° to 40°, 50° to 70°
Number of Ports8
Low Band Ports2
High Band Ports6

HPA33R-KE6C

Details

HPA33R-KE6C

Six foot (1.8 m), TriBand, six port antenna with a 33° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth30° to 40°
Number of Ports6
Low Band Ports2
High Band Ports4

HPA33R-TE6C

Details

HPA33R-TE6C

Six foot (1.8 m), TriBand, six port antenna with a 33° azimuth beamwidth covering 614-960 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth30° to 40°
Number of Ports6
Low Band Ports2
High Band Ports4

HPA45F-BU2A

Details

HPA45F-BU2A

Two foot (0.6 m), MultiBand, six port antenna with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports6
Low Band Ports2
High Band Ports4

HPA45F-KE2A

Details

HPA45F-KE2A

Two foot (0.6 m), TriBand, six port antenna with a 45° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports6
Low Band Ports2
High Band Ports6

HPA45F-TE2A

Details

HPA45F-TE2A

Two foot (0.6 m), TriBand, six port antenna with a 45° azimuth beamwidth covering 614-960 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports6
Low Band Ports2
High Band Ports4

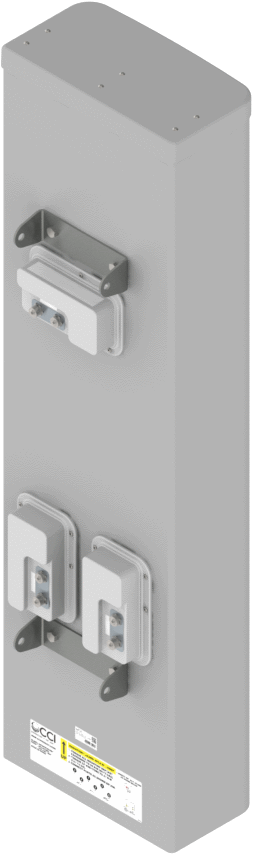

HPA45R-BU5A

Details

HPA45R-BU5A

Four and a half foot (1.4 m), Multiband, six port antenna with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports6
Low Band Ports2
High Band Ports4

HPA45R-BU6A

Details

HPA45R-BU6A

Six foot (1.8 m), Multiband, six port antenna with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports6
Low Band Ports2
High Band Ports4

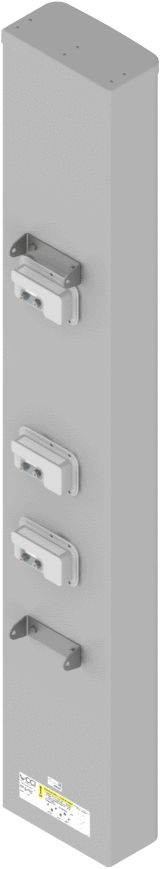

HPA45R-BU8A

Details

HPA45R-BU8A

Eight foot (2.4 m), Multiband, six port antenna with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports6
Low Band Ports2
High Band Ports4

HPA45R-KE5A

Details

HPA45R-KE5A

Four and a half foot (1.4 m), TriBand, six port antenna with a 45° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports6
Low Band Ports2
High Band Ports4

HPA45R-KE6A

Details

HPA45R-KE6A

Six foot (1.8 m), TriBand, six port antenna with a 45° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports6
Low Band Ports2
High Band Ports4

HPA45R-KE8A

Details

HPA45R-KE8A

Eight foot (2.4 m), TriBand, six port antenna with a 45° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports6
Low Band Ports2
High Band Ports4

HPA65F-BU2A

Details

HPA65F-BU2A

Two foot (0.6 m), MultiBand, six port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

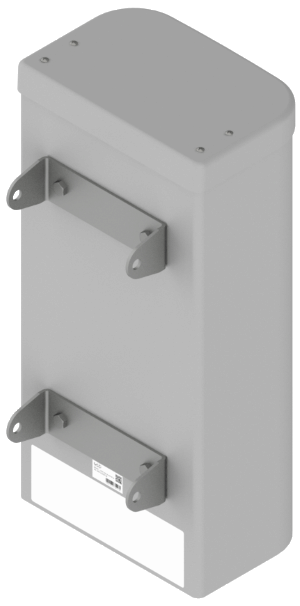

HPA65F-KE2A

Details

HPA65F-KE2A

Two foot (0.6 m), TriBand, six port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

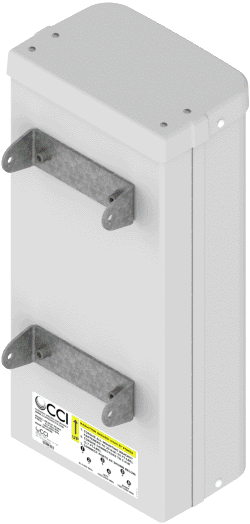

HPA65F-TE2A

Details

HPA65F-TE2A

Two foot (0.6 m), TriBand, six port antenna with a 65° azimuth beamwidth covering 614-960 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

HPA65R-BU4A

Details

HPA65R-BU4A

Four foot (1.2 m), six port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

HPA65R-BU8A

Details

HPA65R-BU8A

Eight foot (2.4 m), six port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

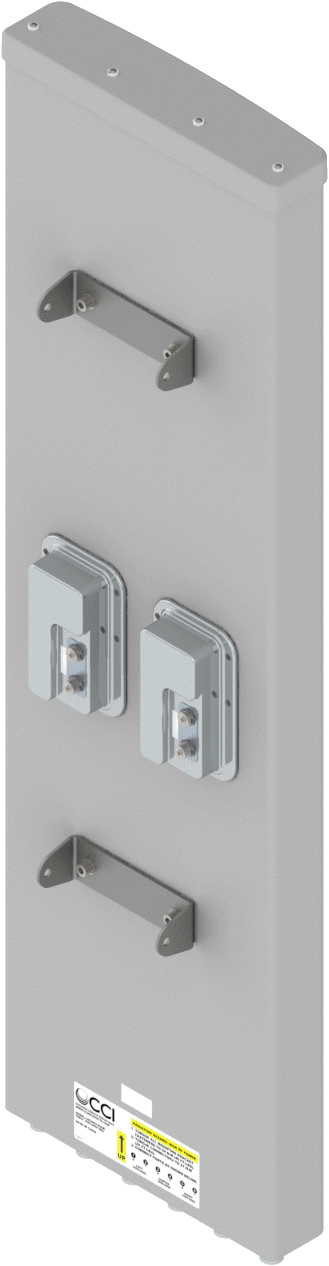

HPA65R-E5A

Details

HPA65R-E5A

Five foot (1.5 m), WideBand, six port antenna with a 65° azimuth beamwidth covering 1695-2690 MHz frequencies.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports6
High Band Ports6

HPA65R-KE4A

Details

HPA65R-KE4A

Four foot (1.2 m), TriBand, six port antenna with a 65° azimuth beamwidth covering 694-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

HPA65R-KE6A

Details

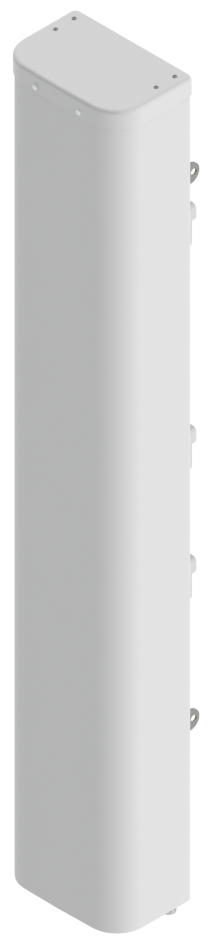

HPA65R-KE6A

Six foot (1.8 m), TriBand, six port antenna with a 65° azimuth beamwidth covering 694-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

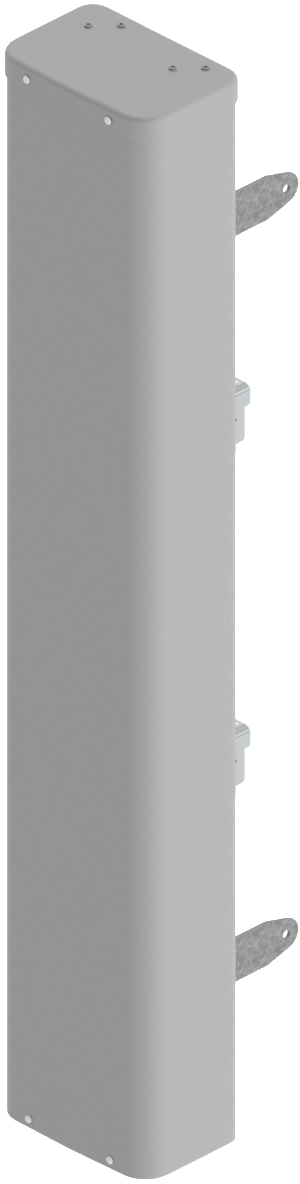

HPA65R-KE6B

Details

HPA65R-KE6B

Six foot (1.7 m), TriBand, six port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1710-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

HPA65R-KE8A

Details

HPA65R-KE8A

Eight foot (2.4 m), TriBand, six port antenna with a 65° azimuth beamwidth covering 694-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

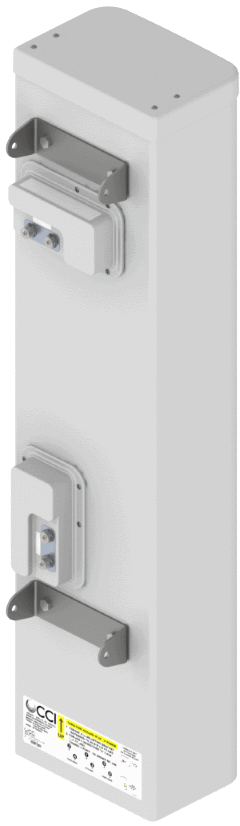

HPA65R-TE4A

Details

HPA65R-TE4A

Four foot (1.2 m), TriBand, six port antenna with a 65° azimuth beamwidth covering 614-896 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

HPA65R-TE6A

Details

HPA65R-TE6A

Six foot (1.8 m), TriBand, six port antenna with a 65° azimuth beamwidth covering 614-896 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

HPA65R-TE8A

Details

HPA65R-TE8A

Eight foot (2.4 m), TriBand, six port antenna with a 65° azimuth beamwidth covering 614-896 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports6
Low Band Ports2
High Band Ports4

MBA3F-E3A

Details

MBA3F-E3A

Three foot (0.8 m) tall, single band, six port multibeam array. Containing Three Independent LTE Optimized Beams covering 1695-2690 MHz frequencies

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 3 ft. (762 - 1066 mm)
Number of Sectors3 (MBA3)
Horizontal Beamwidth0° to 10°
QuickSelectionAntType2T2R MultiBeam
QuickSelectionAntSubType3 Beam Mid Band

MBA3F-U3A

Details

MBA3F-U3A

Three foot (0.8 m) tall, single band, six port multibeam array. Containing Three Independent LTE Optimized Beams covering 1695-2400 MHz frequencies

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 3 ft. (762 - 1066 mm)
Number of Sectors3 (MBA3)
Horizontal Beamwidth0° to 10°
QuickSelectionAntType2T2R MultiBeam
QuickSelectionAntSubType3 Beam Mid Band

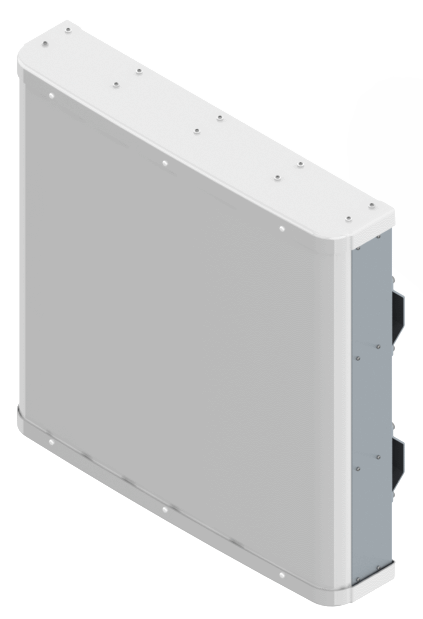

MBA5F-U3A

Details

MBA5F-U3A

Three foot (0.8 m), wideband single panel , with five beams covering 1710-2400 MHz intended for use at sporting and entertainment venues.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 3 ft. (762 - 1066 mm)
Number of Sectors5 (MBA5)
Horizontal Beamwidth10° to 20°
QuickSelectionAntType2T2R MultiBeam
QuickSelectionAntSubType5 Beam Mid Band

MBA6-9F-E-H3

Details

MBA6-9F-E-H3

Three foot (0.8 m), wideband single panel , with six beams covering 1695-2690 MHz intended for use at sporting and entertainment venues.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 3 ft. (762 - 1066 mm)
Number of Sectors6 (MBA6)
Horizontal Beamwidth0° to 10°

MBA6-9F-V-H3

Details

MBA6-9F-V-H3

Three foot (0.6 m) tall, single panel supporting six beams without mount changes covering 2300 to 2690 MHz intended for use at sporting and entertainment venues.

Frequency Band2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors6 (MBA6)
Horizontal Beamwidth0° to 10°

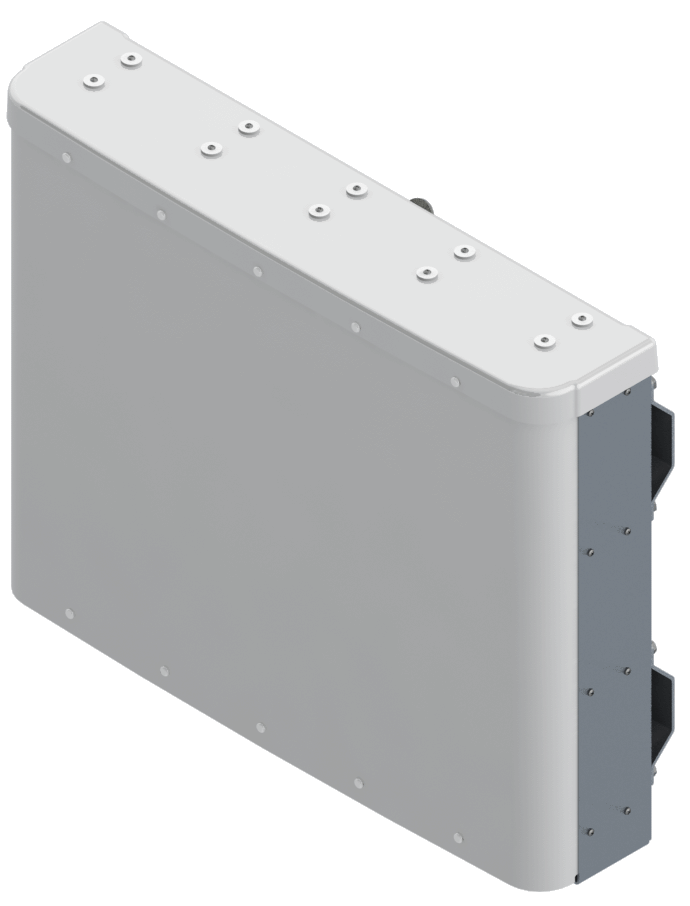

MBA6F-V2A

Details

MBA6F-V2A

Two foot (0.6 m) tall, single band, twelve port multibeam array. Containing Six Independent LTE Optimized Beams covering 2300-2690 MHz frequencies.

Frequency Band2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors6 (MBA6)
Horizontal Beamwidth10° to 20°

MBA9F-KE3A

Details

MBA9F-KE3A

Three foot (1.0 m), single panel, with three beams covering 694-960 MHz and six beams covering 1695-2690 MHz intended for use at sporting and entertainment venues.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 3 ft. (762 - 1066 mm)
Number of Sectors9 (MBA9)
Horizontal Beamwidth10° to 20°
Number of Ports>12
Low Band Ports6
High Band Ports12

MBA9F-V2A

Details

MBA9F-V2A

Two foot (0.6 m), single panel, with nine beams covering 2300-2690 MHz intended for use at sporting and entertainment venues.

Frequency Band2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors9 (MBA9)
Horizontal Beamwidth0° to 10°

MBM6F-E3B

Details

MBM6F-E3B

Three foot (1.0 m) tall, single band, twenty four port multibeam array. Containing six Independent LTE Optimized Beams covering 1695-2690 MHz frequencies

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 3 ft. (762 - 1066 mm)
Number of Sectors6 (MBA6), 12 (MBA12)
Horizontal Beamwidth0° to 10°, 10° to 20°

MBM6F-U3B

Details

MBM6F-U3B

Three foot (1.0 m) tall, single band, twenty four port multibeam array. Containing six Independent LTE Optimized Beams covering 1695-2400 MHz frequencies

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 3 ft. (762 - 1066 mm)
Number of Sectors6 (MBA6), 12 (MBA12)
Horizontal Beamwidth0° to 10°, 10° to 20°
QuickSelectionAntType4T4R MultiBeam
QuickSelectionAntSubType6 Beam Mid Band

MBM6F-V3B

Details

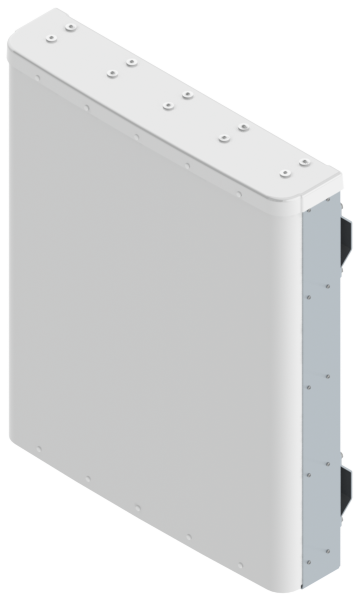

MBM6F-V3B

Three foot (1.0 m) tall, single band, twenty four port multibeam array. Containing six Independent LTE Optimized Beams covering 2300-2690 MHz frequencies

Frequency Band2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 3 ft. (762 - 1066 mm)
Number of Sectors6 (MBA6), 12 (MBA12)
Horizontal Beamwidth0° to 10°, 10° to 20°

MBM9F-BU6A

Details

MBM9F-BU6A

Six foot (1.9 m) tall, thirty-six port, Dual Band Multifunction Multibeam array. Containing Nine Independent (Three for Low Band and Six for High Band) LTE Optimized Beams with 4x4 MIMO capability or Eighteen Independent LTE Optimized Beams with 2x2 MIMO capability covering 698-896 MHz and 1695-2400 MHz frequencies, an Industry First intended for use at sporting and entertainment venues.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors9 (MBA9)
Horizontal Beamwidth10° to 20°
Number of Ports>12
Low Band Ports12
High Band Ports24
QuickSelectionAntType4T4R MultiBeam
QuickSelectionAntSubType3 Beam Low / 6 Beam Mid Band

MBM9F-E3C

Details

MBM9F-E3C

Three foot (1.0 m) tall, single band, Thirty six port multibeam array. Containing nine Independent LTE Optimized Beams covering 1695-2690 MHz frequencies.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 3 ft. (762 - 1066 mm)
Number of Sectors9 (MBA9)
Horizontal Beamwidth0° to 10°, 10° to 20°
Number of Ports>12
High Band Ports36

MBM9F-KE6A

Details

MBM9F-KE6A

Six foot (1.9 m) tall, thirty-six port, Dual Band Multifunction Multibeam array. Containing Nine Independent (Three for Low Band and Six for High Band) LTE Optimized Beams with 4x4 MIMO capability or Eighteen Independent LTE Optimized Beams with 2x2 MIMO capability covering 698-960 MHz and 1695-2690 MHz frequencies, an Industry First intended for use at sporting and entertainment venues.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors9 (MBA9)
Horizontal Beamwidth10° to 20°
Number of Ports>12
Low Band Ports12
High Band Ports24

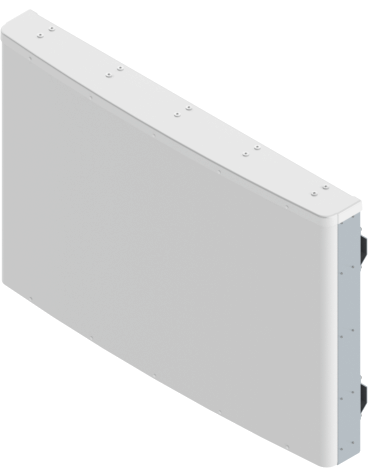

MBM9F-U3C

Details

MBM9F-U3C

Three foot (1.0 m) tall, single band, Thirty six port multibeam array. Containing nine Independent LTE Optimized Beams covering 1695-2400 MHz frequencies.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 3 ft. (762 - 1066 mm)
Number of Sectors9 (MBA9)
Horizontal Beamwidth0° to 10°, 10° to 20°
Number of Ports>12
High Band Ports36
QuickSelectionAntType4T4R MultiBeam
QuickSelectionAntSubType9 Beam Mid Band

ODA65F-KE1A

Details

ODA65F-KE1A

One foot (0.3 m), multiband, four port antenna with a 65° azimuth beamwidth, covering 694-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height1 ft. (0 - 457 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports4
Low Band Ports2
High Band Ports2

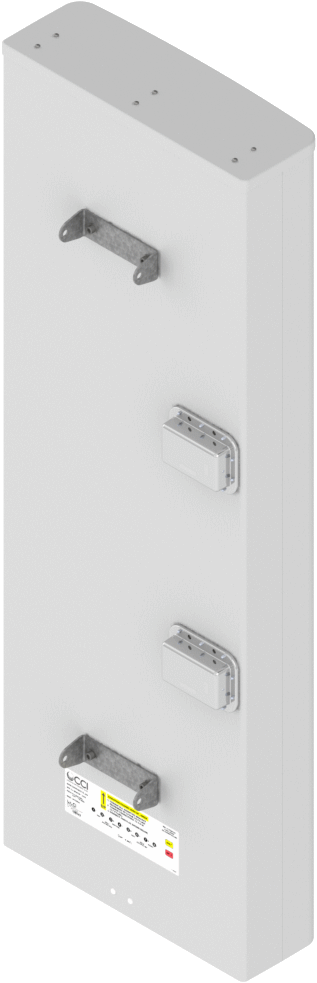

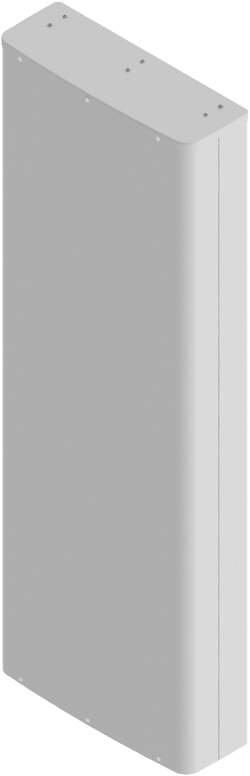

OPA33R-BU6C

Details

OPA33R-BU6C

Six foot (1.8 m), DualBand, eight port antenna with a 33° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth30° to 40°
Number of Ports8
Low Band Ports4
High Band Ports4

OPA33R-KE6C

Details

OPA33R-KE6C

Six foot (1.8 m), TriBand, eight port antenna with a 33° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth30° to 40°
Number of Ports8
Low Band Ports4
High Band Ports4

OPA33R-TE6C

Details

OPA33R-TE6C

Six foot (1.8 m), TriBand, eight port antenna with a 33° azimuth beamwidth covering 614-960 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth30° to 40°
Number of Ports8
Low Band Ports4
High Band Ports4

OPA45R-BU5C

Details

OPA45R-BU5C

Four and a half foot (1.4 m) multiband, eigth port antenna with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports8
Low Band Ports4
High Band Ports4
QuickSelectionAntTypeMultiPort Series 8 Port
QuickSelectionAntSubType45° Full Spectrum

OPA45R-BU6A

Details

OPA45R-BU6A

Six foot (1.8 m) multiband, eight port antenna with a 45° azimuth beamwidth covering 698-798, 824-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports8
Low Band Ports4
High Band Ports4
QuickSelectionAntTypeMultiPort Series 8 Port
QuickSelectionAntSubType45° Low Band Diplexed

OPA45R-BU8A

Details

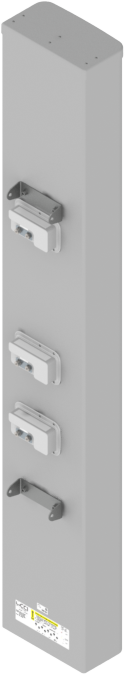

OPA45R-BU8A

Eight foot (2.4 m) multiband, eight port antenna with a 45° azimuth beamwidth covering 698-798, 824-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports8
Low Band Ports4
High Band Ports4

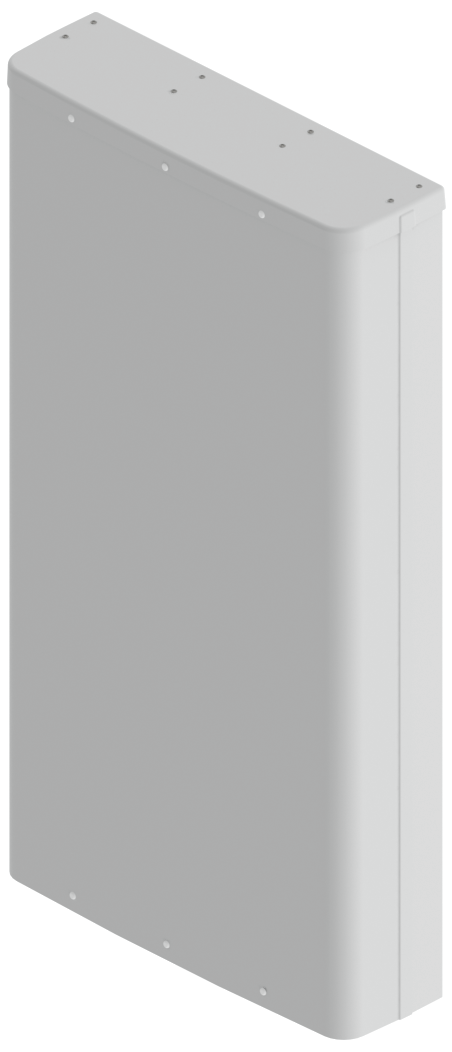

OPA45R-KE5C

Details

OPA45R-KE5C

Four and a half foot (1.4 m) TriBand, eight port antenna with a 45° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports8
Low Band Ports4
High Band Ports4

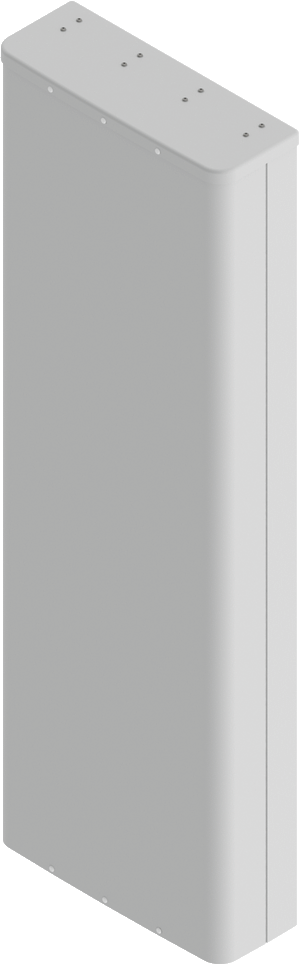

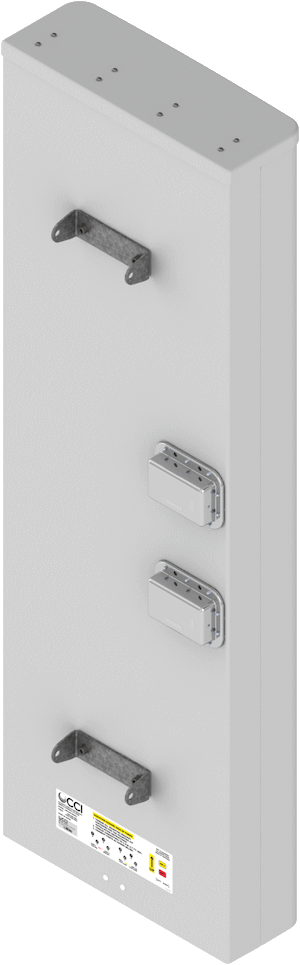

OPA45R-KE6B

Details

OPA45R-KE6B

Six foot (1.8 m) TriBand, eight port antenna with a 45° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports8
Low Band Ports4
High Band Ports4

OPA65R-BU4B

Details

OPA65R-BU4B

Four foot (1.2 m), eight port antenna with a 65° azimuth beamwidth covering 698-798 MHz, 824-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4

OPA65R-BU4D

Details

OPA65R-BU4D

Four foot (1.2 m) Multi-Band, eight port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4
QuickSelectionAntTypeMultiPort Series 8 Port
QuickSelectionAntSubType65° Full Spectrum

OPA65R-BU5D

Details

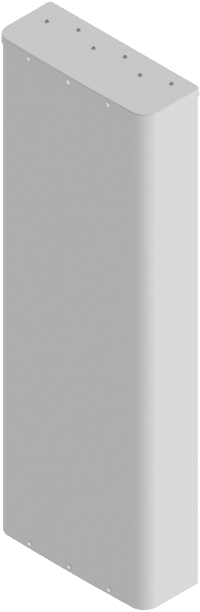

OPA65R-BU5D

Five foot (1.5 m), DualBand, eight port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4
QuickSelectionAntTypeMultiPort Series 8 Port
QuickSelectionAntSubType65° Full Spectrum

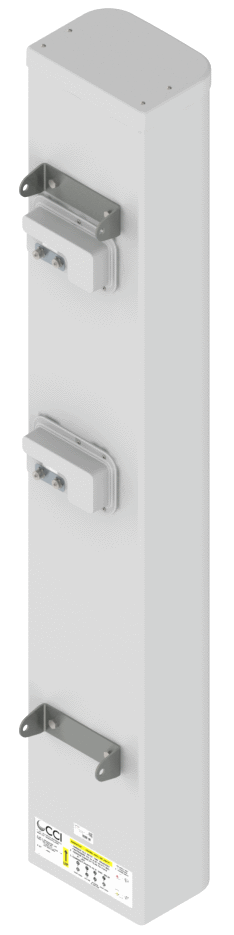

OPA65R-BU6A

Details

OPA65R-BU6A

Six foot (1.8 m), eight port antenna with a 65° azimuth beamwidth covering 698-798 MHz, 824-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4

OPA65R-BU6B

Details

OPA65R-BU6B

Six foot (1.8 m), eight port antenna with a 65° azimuth beamwidth covering 698-798 MHz, 824-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4

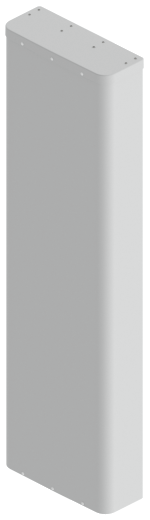

OPA65R-BU6D

Details

OPA65R-BU6D

Six foot (1.8 m) Multi-Band, eight port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4
QuickSelectionAntTypeMultiPort Series 8 Port
QuickSelectionAntSubType65° Full Spectrum

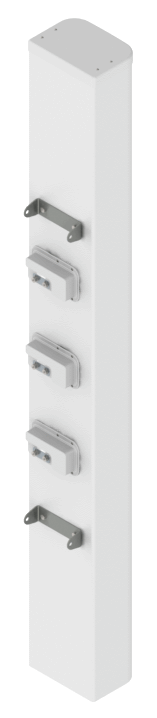

OPA65R-BU8B

Details

OPA65R-BU8B

Eight foot (2.4 m), eight port antenna with a 65° azimuth beamwidth covering 698-798 MHz, 824-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4

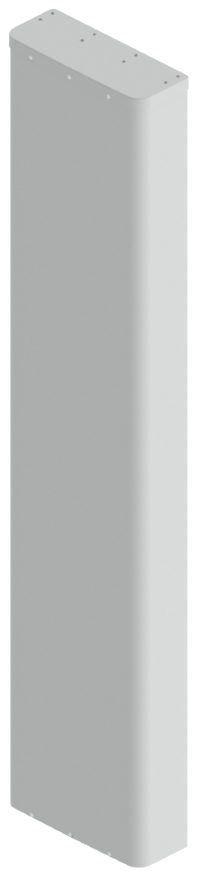

OPA65R-BU8D

Details

OPA65R-BU8D

Eight foot (2.4 m) Multi-Band, eight port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4
QuickSelectionAntTypeMultiPort Series 8 Port
QuickSelectionAntSubType65° Full Spectrum

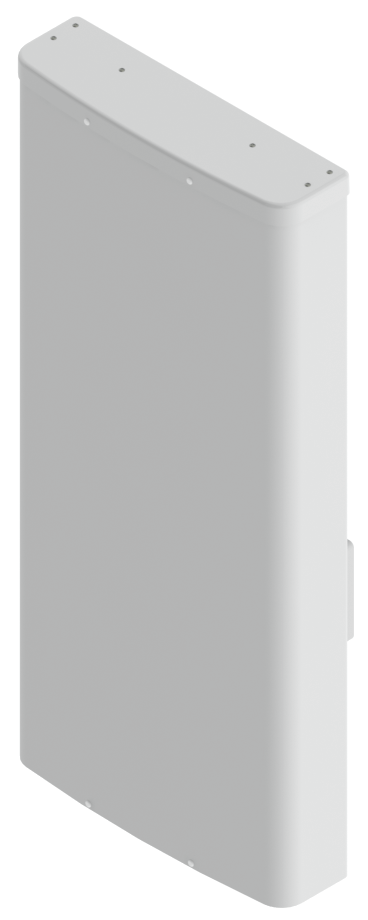

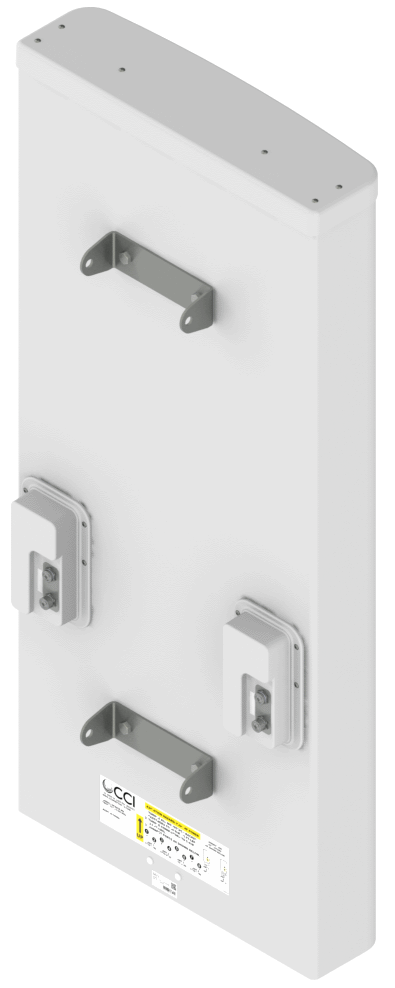

OPA65R-E5A

Datasheet Preliminary

OPA65R-E5A

Five foot (1.5 m), eight port antenna with a 65° azimuth beamwidth covering 1695-2690 MHz.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
High Band Ports8

OPA65R-KE4D

Details

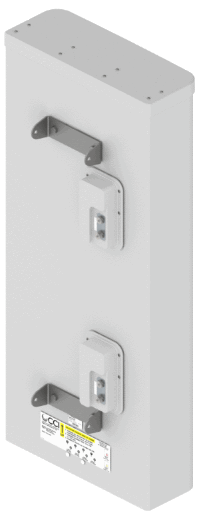

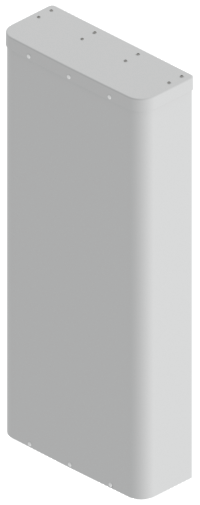

OPA65R-KE4D

Four foot (1.2 m), TriBand, eight port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4

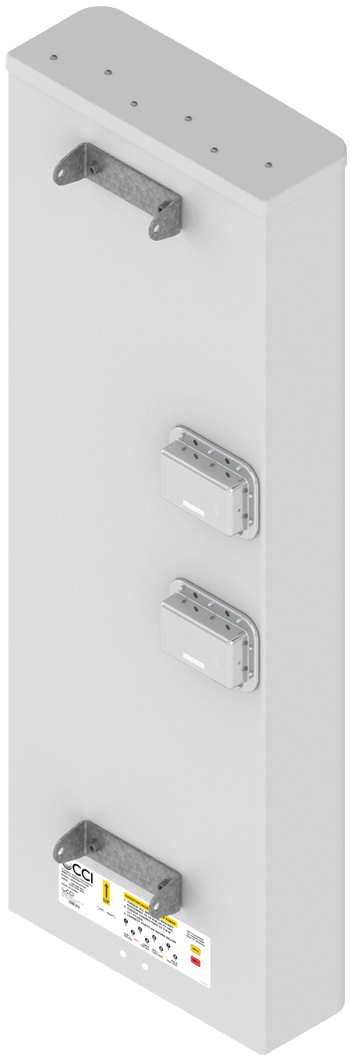

OPA65R-KE5D

Details

OPA65R-KE5D

Five foot (1.5 m), TriBand, eight port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4

OPA65R-KE6A

Details

OPA65R-KE6A

Six foot (1.8 m) QuadBand, eight port antenna with a 65° azimuth beamwidth covering 694-798, 824-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4

OPA65R-KE6C

Details

OPA65R-KE6C

Six foot (1.8 m) QuadBand, eight port antenna with a 65° azimuth beamwidth covering 694-862, 876-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4

OPA65R-KE6D

Details

OPA65R-KE6D

Six foot (1.8 m), TriBand, eight port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4

OPA65R-KE8D

Details

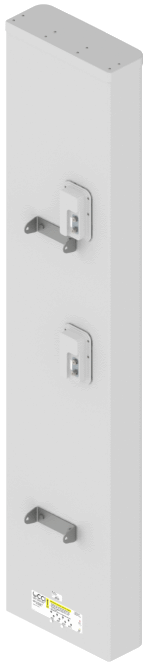

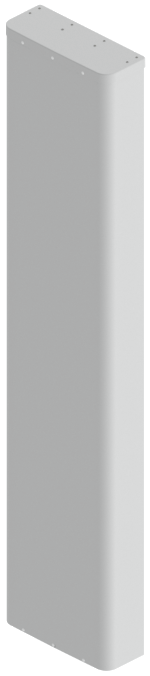

OPA65R-KE8D

Eight foot (2.4 m), TriBand, eight port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4

OPA65R-OH5A

Details

OPA65R-OH5A

Five foot (1.4 m), Multiband, Eight port antenna with a 65° azimuth beamwidth, covering 1427-2690 MHz and 3100-4200 MHz frequencies.

Frequency Band 1427-1518 MHz, 1427-2200 MHz, 1427-2690 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
High Band Ports8

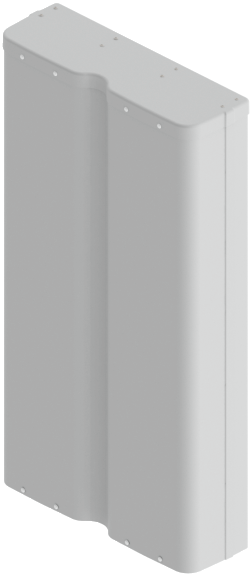

OPA65R-TE4C

Details

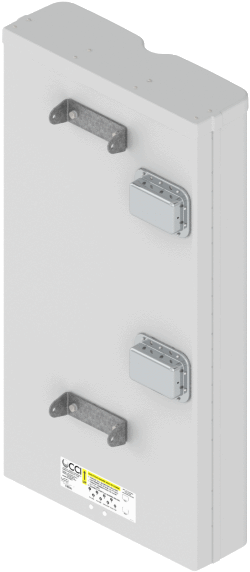

OPA65R-TE4C

Four foot (1.2 m), Tri-Band, eight port antenna with a 65° azimuth beamwidth covering 614-896 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4

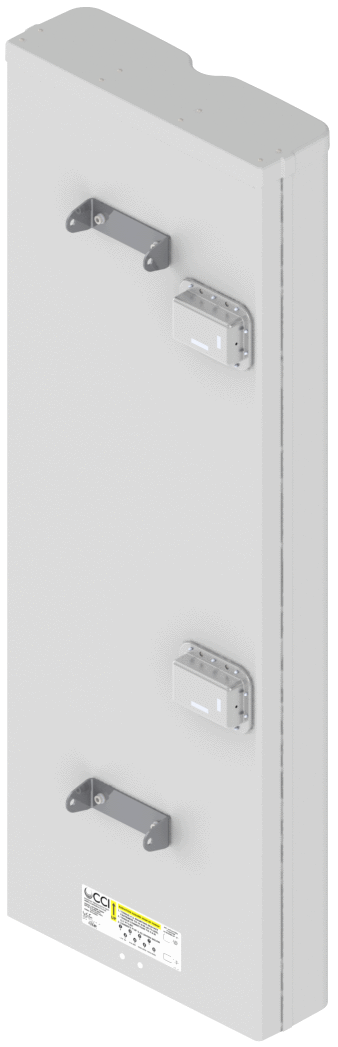

OPA65R-TE6C

Details

OPA65R-TE6C

Six foot (1.8 m), Tri-Band, eight port antenna with a 65° azimuth beamwidth covering 614-896 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4

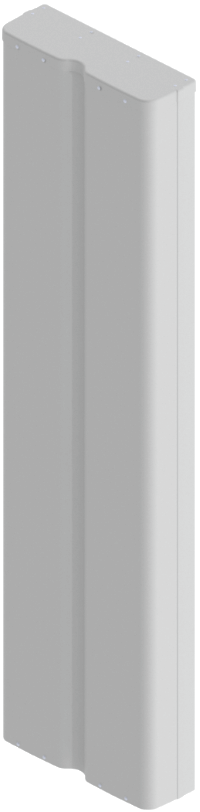

OPA65R-TE8C

Details

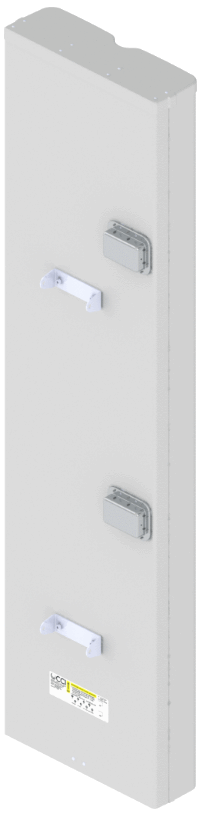

OPA65R-TE8C

Eight foot (2.5 m), Tri-Band, eight port antenna with a 65° azimuth beamwidth covering 614-896 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
Low Band Ports4
High Band Ports4

QPA65R-E5A

Details

QPA65R-E5A

Five foot (1.5 m), WideBand, four port antenna with a 65° azimuth beamwidth covering 1695-2690 MHz frequencies.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports4
High Band Ports4

SCA-DR1-65F2-E-H2S
SCA-DR1-65F6-E-H2S
SCA-DR1-65F12-E-H2S

Details

SCA-DR1-65F2-E-H2S
SCA-DR1-65F6-E-H2S
SCA-DR1-65F12-E-H2S

Two foot (0.4 m), two port 65 degree Small Cell panel antenna optimized over the PCS (1850-1995 MHz) and BRS (2496 to 2690 MHz) bands

Frequency Band1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz
Height1 ft. (0 - 457 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports2
High Band Ports2

SCA-DR3-65F-EEE-H2

Details

SCA-DR3-65F-EEE-H2

Two foot (0.5 m), six port, tri-sector antenna each sector with uniform horizontal beamwidths covering the extended band from 1710-2690 MHz.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors3 (MBA3)
Horizontal Beamwidth50° to 70°
Number of Ports6
High Band Ports6

SCA-OM-360F-E-H2

Details

SCA-OM-360F-E-H2

Two foot (0.5 m), two port, quasi-omni antenna with uniform horizontal beamwidths covering the extended band from 1710-2690 MHz

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports2
High Band Ports2

SCA-OM-360F2-E-H2S
SCA-OM-360F6-E-H2S
SCA-OM-360F12-E-H2S

Details

SCA-OM-360F2-E-H2S
SCA-OM-360F6-E-H2S
SCA-OM-360F12-E-H2S

Two foot (0.5 m), two port, quasi-omni antenna with uniform horizontal beamwidths covering the extended band from 1710-2690 MHz.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports2
High Band Ports2

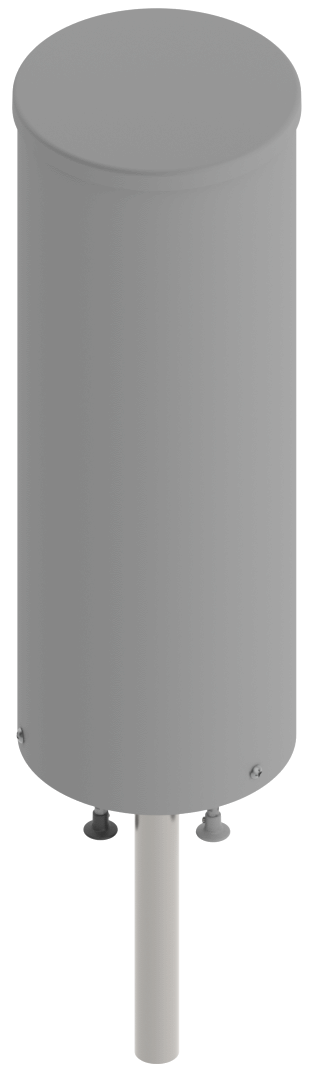

SCA360F-E2A

Details

SCA360F-E2A

Two foot (0.5 m), singleband, two port quasi-omni antenna with 360° of coverage, covering 1710-2690 MHz frequencies.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports2
High Band Ports2

SCA360F-EHJ2A

Details

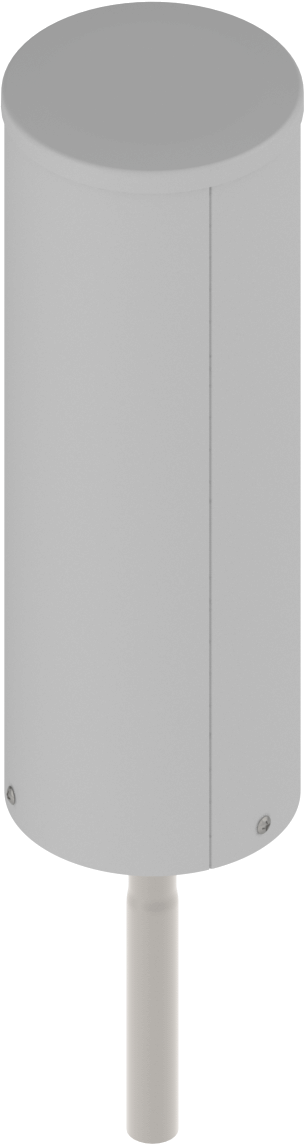

SCA360F-EHJ2A

Two foot (0.6 m), Triband, ten port quasi-omni antenna with 360° of coverage, covering 1695-2690 MHz, 3300-4200 MHz and 5150-5925 MHz frequencies.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports10
High Band Ports10

SCA360F-EHJ2B

Details

SCA360F-EHJ2B

24.0” (0.6 m) tall x 14.5” (0.36 m) wide, Tri-band, 16 port quasi-omni canister antenna with 360° of coverage, providing Full Spectrum Compliance covering 1695-2690 MHz, 3400-3800 MHz and 5150-5925 MHz frequencies.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports>12
High Band Ports16

SCA360F-EHJ2G

Details

SCA360F-EHJ2G

24.6” (0.6 m) tall x 14.5” (0.36 m) wide, Tri-band, 20 port quasi-omni canister antenna with 360° of coverage, providing Full Spectrum Compliance covering 1695-2690 MHz, 3400-3800 MHz and 5150-5925 MHz frequencies and equipped with an internal GPS antenna.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports>12
High Band Ports20

SCA360F-EHJ2Gv2

Details

SCA360F-EHJ2Gv2

24.6” (0.6 m) tall x 14.5” (0.36 m) wide, Tri-band, 20 port quasi-omni canister antenna with 360° of coverage, providing Full Spectrum Compliance covering 1695-2690 MHz, 3300-4200 MHz and 5150-5925 MHz frequencies and equipped with an internal GPS antenna.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports>12
High Band Ports20

SCA360F-EHJ2H

Details

SCA360F-EHJ2H

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports>12
High Band Ports16

SCA360F-EHJ2Hv2

Details

SCA360F-EHJ2Hv2

24.0” (0.6 m) tall x 14.5” (0.36 m) wide, Tri-band, 16 port quasi-omni canister antenna with 360° of coverage, providing Full Spectrum Compliance covering 1695-2690 MHz, 3300-4200 MHz and 5150-5925 MHz frequencies and equipped with an internal GPS antenna.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports>12
High Band Ports16

SCA360F-EHJ4B

Details

SCA360F-EHJ4B

48” (1.2 m) tall x 14.5” (0.36 m) wide, Tri-band, 20 port quasi-omni canister antenna with 360° of coverage, providing Full Spectrum Compliance covering 1695-2690 MHz, 3400-3800 MHz and 5150-5925 MHz frequencies.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports>12
High Band Ports20

SCA360F-EHJ4G

Details

SCA360F-EHJ4G

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports>12
High Band Ports20

SCA360F-EHJ4Gv2

Details

SCA360F-EHJ4Gv2

48” (1.2 m) tall x 14.5” (0.36 m) wide, Tri-band, 20 port quasi-omni canister antenna with 360° of coverage, providing Full Spectrum Compliance covering 1695-2690 MHz, 3300-4200 MHz and 5150-5925 MHz frequencies and equipped with an internal GPS antenna.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports>12
High Band Ports20

SCA360F-KEHJ2G

Details

SCA360F-KEHJ2G

24.6” (0.6 m) tall x 14.5” (0.36 m) wide, Quad-Band, 20 port quasi-omni canister antenna with 360° of coverage, providing Full Spectrum Compliance covering 698-960 MHz, 1695-2690 MHz, 3400-3800 MHz and 5150-5925 MHz frequencies and equipped with an internal GPS antenna.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports>12
Low Band Ports4
High Band Ports16

SCA360F-KEHJ2Gv2

Details

SCA360F-KEHJ2Gv2

24.6” (0.6 m) tall x 14.5” (0.36 m) wide, Quad-Band, 20 port quasi-omni canister antenna with 360° of coverage, providing Full Spectrum Compliance covering 698-960 MHz, 1695-2690 MHz, 3300-4200 MHz and 5150-5925 MHz frequencies and equipped with an internal GPS antenna.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports>12
Low Band Ports4
High Band Ports16

SCA360F-KEHJ4G

Details

SCA360F-KEHJ4G

48.0” (1.2 m) tall x 16.5” (0.42 m) wide, Quad-band, 28 port quasi-omni canister antenna with 360° of coverage, providing Full Spectrum Compliance covering 698-960 MHz, 1695-2690 MHz, 3400-3800 MHz and 5150-5925 MHz frequencies and equipped with an internal GPS antenna.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports>12
Low Band Ports8
High Band Ports20

SCA360F-KEHJ4Gv2

Details

SCA360F-KEHJ4Gv2

48.0” (1.2 m) tall x 16.5” (0.42 m) wide, Quad-band, 28 port quasi-omni canister antenna with 360° of coverage, providing Full Spectrum Compliance covering 698-960 MHz, 1695-2690 MHz, 3300-4200 MHz and 5150-5925 MHz frequencies and equipped with an internal GPS antenna.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports>12
Low Band Ports8
High Band Ports20

SCA360F-KEHJ4H

Details

SCA360F-KEHJ4H

48.0” (1.2 m) tall x 16.5” (420 mm) wide, Quad-band, 24 port quasi-omni canister antenna with 360° of coverage, providing Full Spectrum Compliance covering 698-960 MHz, 1695-2690 MHz, 3400-3800 MHz and 5150-5925 MHz frequencies and equipped with an internal GPS antenna.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports>12
Low Band Ports4
High Band Ports20

SCA360F-KEHJ4Hv2

Details

SCA360F-KEHJ4Hv2

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports>12
Low Band Ports4
High Band Ports20

SCA360F-UHJ2Av2

Details

SCA360F-UHJ2Av2

Two foot (0.6 m), Multi-Band, ten port quasi-omni antenna with 360° of coverage, covering 1695-2400 MHz, 3300-4200 MHz and 5150-5925 MHz frequencies.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz, 3300-3800 MHz, 5150-5925 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports10
High Band Ports10

SCA360V-E2A

Details

SCA360V-E2A

Two foot (0.6 m), Singleband, four port 4T4R (4x4 MIMO) quasi-omni antenna with 360° of coverage, covering 1695-2690 MHz frequencies, with Dual VET control.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth10° to 20°
Number of Ports4
High Band Ports4

SCA360V-EJ2B

Details

SCA360V-EJ2B

Two foot (0.7 m), Dualband, four port 4T4R (4x4 MIMO) quasi-omni antenna with 360° of coverage, covering 1695-2690 MHz frequencies, with Dual VET control and four port Dual 2T2R (2x2 MIMO) quasi-omni antenna with 360° of coverage, covering 5150-5925 MHz frequencies.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 5150-5925 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth360° (Omni)
Number of Ports8
High Band Ports8

SCA360V-U2A

Details

SCA360V-U2A

Two foot (0.6 m), Singleband, four port 4T4R (4x4 MIMO) quasi-omni antenna with 360° of coverage, covering 1695-2400 MHz frequencies, with Dual VET control.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 2 ft. (458 - 761 mm)
Number of Sectors1
Horizontal Beamwidth10° to 20°
Number of Ports4
High Band Ports4

SCA65F-EH1A

Details

SCA65F-EH1A

One foot (298 mm), Dualband, eight port antenna with a 65° azimuth beamwidth, covering 1695-2690 MHz and 3400-3800 MHz frequencies.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz
Height1 ft. (0 - 457 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports8
High Band Ports8

SCA65F-EHJ1A

Details

SCA65F-EHJ1A

One foot (0.3 m), Triband, ten port antenna with a 65° azimuth beamwidth, covering 1695-2690 MHz, 3400-3800 MHz and 5150-5925 MHz frequencies.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz, 5150-5925 MHz
Height1 ft. (0 - 457 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports10
High Band Ports10

SCA65F-KEH1B

Details

SCA65F-KEH1B

One foot (498 mm), TriBand, twelve port antenna with a 65° azimuth beamwidth, covering 698-960 MHz, 1695-2690 MHz and 3300-4200 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz, 3300-3800 MHz
Height1 ft. (0 - 457 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA33R-BU8C

Details

TPA33R-BU8C

Eight foot (2.4 m), DualBand, twelve port antenna with a 33° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth30° to 40°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType33° Full Spectrum

TPA33R-BW8C

Details

TPA33R-BW8C

Eight foot (2.4 m), DualBand, twelve port antenna with a 33° azimuth beamwidth covering 698-896 MHz and 1695-2180 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth30° to 40°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA33R-KE8C

Details

TPA33R-KE8C

Eight foot (2.4 m), TriBand, twelve port antenna with a 33° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth30° to 40°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA33R-TE8C

Details

TPA33R-TE8C

Eight foot (2.4 m), TriBand, twelve port antenna with a 33° azimuth beamwidth covering 614-960 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth30° to 40°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA45R-BU4B

Details

TPA45R-BU4B

Four foot (136 cm) DualBand, twelve port antenna with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType45° Full Spectrum

TPA45R-BU5B

Details

TPA45R-BU5B

Five foot (1.5 m) DualBand, twelve port antenna with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType45° Full Spectrum

TPA45R-BU6B

Details

TPA45R-BU6B

Six foot (1.8 m) DualBand, twelve port antenna with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType45° Full Spectrum

TPA45R-BU8B

Details

TPA45R-BU8B

Eigth foot (2.3 m) DualBand, twelve port antenna with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType45° Full Spectrum

TPA45R-BW4B

Details

TPA45R-BW4B

Four foot (136 cm) DualBand, twelve port antenna with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2180 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA45R-GU6A

Details

TPA45R-GU6A

Six and half foot (1.9 m) multiband, twelve port antenna with a 45° azimuth beamwidth covering 614-806 MHz and 1695-2400 MHz frequencies.

Frequency Band604-806 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA45R-KE6B

Details

TPA45R-KE6B

Six foot (1.8 m) TriBand, twelve port antenna with a 45° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA45R-KE8A

Details

TPA45R-KE8A

Eight foot (2.5 m) multiband, twelve port antenna with a 45° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA45R-KE8B

Details

TPA45R-KE8B

Eigth foot (2.3 m) DualBand, twelve port antenna with a 45° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth40° to 50°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-BU4B

Details

TPA65R-BU4B

Four foot (1.2 m) Multi-Band, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType65° Full Spectrum

TPA65R-BU4D

Details

TPA65R-BU4D

Four foot (1.2 m) Multi-Band, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType65° Full Spectrum

TPA65R-BU5D

Details

TPA65R-BU5D

Five foot (1.5 m), DualBand, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType65° Full Spectrum

TPA65R-BU6A

Details

TPA65R-BU6A

Six foot (1.8 m) Multi-Band, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-BU6D

Details

TPA65R-BU6D

Six foot (1.8 m) Multi-Band, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType65° Full Spectrum

TPA65R-BU6Dv2

Details

TPA65R-BU6Dv2

Six foot (1.8 m) DualBand, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType65° Full Spectrum

TPA65R-BU6G

Details

TPA65R-BU6G

Six foot (1.8 m) DaulBand, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType65° High Gain Full Spectrum

TPA65R-BU8A

Details

TPA65R-BU8A

Eight foot (2.4 m) Multi-Band, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-BU8D

Details

TPA65R-BU8D

Eight foot (2.4 m) Multi-Band, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType65° Full Spectrum

TPA65R-BU8Dv2

Details

TPA65R-BU8Dv2

Eight foot (2.4 m), DualBand, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType65° Full Spectrum

TPA65R-BU8G

Details

TPA65R-BU8G

Eight foot (2.4 m) DualBand, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType65° High Gain Full Spectrum

TPA65R-BU9D

Details

TPA65R-BU9D

Nine foot (2.7 m), MultiBand, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 9 ft. (2591 - 2896 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8
QuickSelectionAntTypeMultiPort Series 12 Port
QuickSelectionAntSubType65° Full Spectrum

TPA65R-GE4A

Details

TPA65R-GE4A

Four foot (1.2 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 614-806 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-GE6A

Details

TPA65R-GE6A

Six foot (1.8 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 614-806 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-GE8A

Details

TPA65R-GE8A

Eight foot (2.4 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 614-806 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-GU6A

Details

TPA65R-GU6A

Six foot (1.8 m) twelve port antenna with a 65° azimuth beamwidth covering 617-806 MHz and 1695-2400 MHz frequencies.

Frequency Band698-798 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-KE4B

Details

TPA65R-KE4B

Four foot (1.2 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 694-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-KE4D

Details

TPA65R-KE4D

Four foot (1.2 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-KE5D

Details

TPA65R-KE5D

Five foot (1.5 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 5 ft. (1372 - 1676 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-KE6A

Details

TPA65R-KE6A

Six foot (1.8 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 694-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-KE6D

Details

TPA65R-KE6D

Six foot (1.8 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-KE6Dv2

Details

TPA65R-KE6Dv2

Six foot (1.8 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-KE6G

Details

TPA65R-KE6G

Six foot (1.8 m) TriBand, twelve port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-KE8B

Details

TPA65R-KE8B

Eight foot (2.4 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 694-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-KE8D

Details

TPA65R-KE8D

Eight foot (2.4 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-KE8Dv2

Details

TPA65R-KE8Dv2

Eight foot (2.4 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-KE8E

Details

TPA65R-KE8E

Eight foot (2.4 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 698-862 MHz, 876-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-960 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-KE8G

Details

TPA65R-KE8G

Eight foot (2.4 m) TriBand, twelve port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-KE9D

Details

TPA65R-KE9D

Nine foot (2.7 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies.

Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 9 ft. (2591 - 2896 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-TE4C

Details

TPA65R-TE4C

Four foot (1.2 m), Tri-Band, twelve port antenna with a 65° azimuth beamwidth covering 614-896 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height4 ft. (1067 - 1371 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-TE6C

Details

TPA65R-TE6C

Six foot (1.8 m), Tri-Band, twelve port antenna with a 65° azimuth beamwidth covering 614-896 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height6 ft. (1677 - 1981 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TPA65R-TE8C

Details

TPA65R-TE8C

Eight foot (2.5 m), Tri-Band, twelve port antenna with a 65° azimuth beamwidth covering 614-896 MHz and 1695-2690 MHz frequencies.

Frequency Band604-806 MHz, 698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 8 ft. (2287 - 2590 mm)
Number of Sectors1
Horizontal Beamwidth50° to 70°
Number of Ports12
Low Band Ports4
High Band Ports8

TSB20R-E7A

Details

TSB20R-E7A

Seven foot (2.3 m) tall and 19.4 inch (494 mm) wide, twelve port Single Band Tri-Split Beam array. Containing Three Independent LTE Optimized Beams with 4x4 MIMO capability covering 1695-2690 MHz frequencies, all with Independent RET for each Beam, an Industry First.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
Height 7 ft. (1982 - 2286 mm)
Number of Sectors3 (MBA3)
Horizontal Beamwidth10° to 20°, 20° to 30°
Number of Ports12
High Band Ports12

TSB20R-U7A

Details

TSB20R-U7A

Seven foot (2.3 m) tall and 19.4 inch (494 mm) wide, twelve port Single Band Tri-Split Beam array. Containing Three Independent LTE Optimized Beams with 4x4 MIMO capability covering 1695-2400 MHz frequencies, all with Independent RET for each Beam, an Industry First.

Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz
Height 7 ft. (1982 - 2286 mm)
Number of Sectors3 (MBA3)
Horizontal Beamwidth10° to 20°, 20° to 30°
Number of Ports12
High Band Ports12
QuickSelectionAntType4T4R MultiBeam
QuickSelectionAntSubType3 Beam Mid Band Macro Multibeam

Results 1 - 198 of 198

Results Per Page: 5 10 20 50 All

Sales


+1 (201) 342-3338 phone
+1 (201)-342-3339 fax

89 Leuning Street
South Hackensack, NJ 07606
USA

Customer Service


+1 (201) 342-3338 phone
+1 (201)-342-3339 fax

89 Leuning Street
South Hackensack, NJ 07606
USA

Technical Support


+1 (201) 342-3338 phone
+1 (201)-342-3339 fax

89 Leuning Street
South Hackensack, NJ 07606
USA

	Amplifiers
	Antennas
	Co-Siting & Antenna Sharing
	DAS & Small Cell Products
	Fiberoptics
	Filters & Combiners
	Network Connectivity
	PIM Analyzers
	Radios

	Antenna Accessories
	Bi-Sector™
	iDAS
	Multi-Sector/Special Events
	Single Sector Multiport
	Small Cell/oDAS
	Specialty

	604-806 MHz
	698-798 MHz
	698-896 MHz
	698-960 MHz
	790-960 MHz
	824-896 MHz
	1695-1880 MHz
	1695-2180 MHz
	1695-2360 MHz
	1695-2690 MHz
	1850-1995 MHz
	2300-2400 MHz
	2300-2690 MHz
	2496-2690 MHz
	3300-3800 MHz
	5150-5925 MHz
	1427-1518 MHz
	1427-2200 MHz
	1427-2690 MHz

	1 ft. (0 - 457 mm)
	2 ft. (458 - 761 mm)
	3 ft. (762 - 1066 mm)
	4 ft. (1067 - 1371 mm)
	5 ft. (1372 - 1676 mm)
	6 ft. (1677 - 1981 mm)
	7 ft. (1982 - 2286 mm)
	8 ft. (2287 - 2590 mm)
	9 ft. (2591 - 2896 mm)

	0° to 10°
	10° to 20°
	20° to 30°
	30° to 40°
	40° to 50°
	50° to 70°
	80° to 100°
	360° (Omni)
	TBD

In the Americas

Solutions

Products

Services

Resources

Support

CCI Portal Login

CCI Customer Portal

12HBSAR-BU6NA

12HBSAR-BU6NA

12HBSAR-KE6NA

12HBSAR-KE6NA

12HBSAR-KU6NB

12HBSAR-KU6NB

16HBSAR-BUU7NA

16HBSAR-BUU7NA

16HBSAR-KOE7NA

16HBSAR-KOE7NA

20HBSAR-BU9NB

20HBSAR-BU9NB

2PA65R-E5A

2PA65R-E5A

30PA65R-KO9A

30PA65R-KO9A

8HBF4R-BUH4NA

8HBF4R-BUH4NA

8HBF4R-BUH6NA

8HBF4R-BUH6NA

8HBF4R-BUH8NA

8HBF4R-BUH8NA

8HBF4R-BWH4NA

8HBF4R-BWH4NA

ANT-2300-PB-24

ANT-2300-PB-24

BFA4R-V5A

BFA4R-V5A

BSA-M65R-UV-H8

BSA-M65R-UV-H8

BSA-S65R-U-H5

BSA-S65R-U-H5

BSA-S65R-V-H3

BSA-S65R-V-H3

BSA33R-BU6B

BSA33R-BU6B

BSA33R-BU8A

BSA33R-BU8A

BSA33R-BU8B

BSA33R-BU8B

BSA33R-BW8B

BSA33R-BW8B

BSA33R-E5A

BSA33R-E5A

BSA33R-E5B

BSA33R-E5B

BSA33R-KE6B

BSA33R-KE6B

BSA33R-KE8A

BSA33R-KE8A

BSA33R-KE8B

BSA33R-KE8B

BSA33R-U3A

BSA33R-U3A

BSA33R-U5C

BSA33R-U5C

BSA33R-U6A

BSA33R-U6A

DMP45R-BU6E

DMP45R-BU6E

DMP65R-BU4D

DMP65R-BU4D

DMP65R-BU4E

DMP65R-BU4E

DMP65R-BU6D

DMP65R-BU6D

DMP65R-BU6E

DMP65R-BU6E

DMP65R-BU8D

DMP65R-BU8D

DMP65R-BU8E

DMP65R-BU8E

DPA65R-BU4D
