Communication Components, Inc. Outdoor Broadband Triplexer combines Base Station TX/RX signals from 694 to 960 MHz on the first port, AWS (1696 - 2180) which includes AWS-3 on the second port, and the extended PCS band (1850-1995) on the third port, onto a common port. Specifically intended for use in multi-band systems with limited feeder lines, the CCI Triplexer model TPX-781921 facilitates the addition of new technologies to existing sites while providing a high degree of isolation between systems. By reducing the number of feeder lines, the cost to upgrade a site (tower loading, leasing and installation costs) is reduced. The CCI Outdoor Broadband Triplexer provides full band performance for each band with low insertion loss, low Intermodulation, and high power handling. Excellent return loss delivers the best match to the antennas and base station, saving precious transmit power. DC and AISG pass-through retains full RET and TMA capability utilizing CCI’s AISG suite of products.
Technical Description:

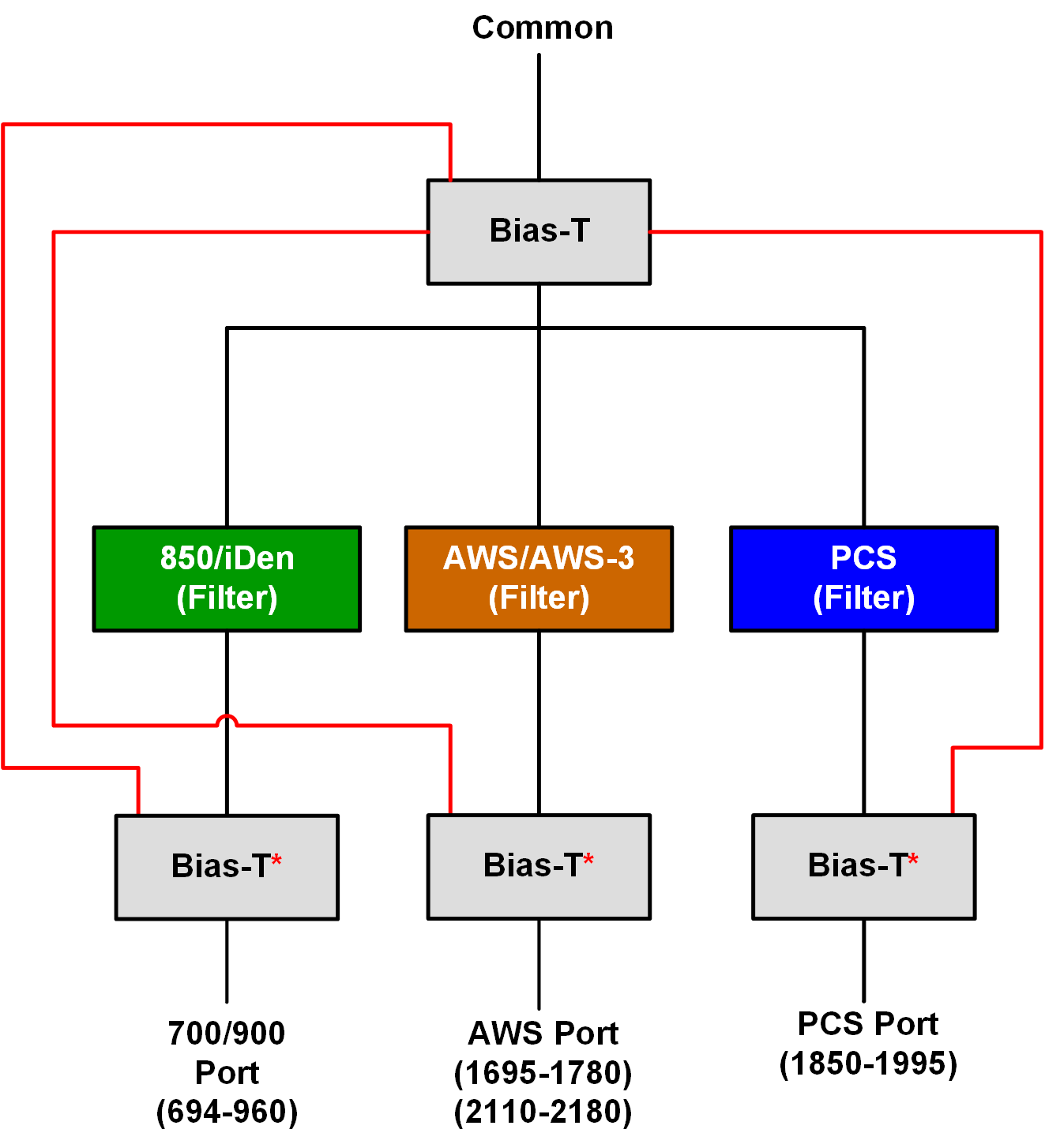

Outdoor Broadband Triplexer consists of multiple filters to combine (or divide) 694-960, AWS, and PCS signals onto a common port. This tower mount unit can be used as either a splitter or combiner to aggregate multiple bands on a common feeder line. All RF ports consist of DIN 7-16 connectors. The fully weatherproof tower mount unit incorporates a Bias-T which passes DC and the AISG carrier frequency from the AWS port to the common port. The unit has internal lightning strike protection using a multi-stage surge protection circuit. The filters have been designed to minimize insertion loss while maximizing isolation. Particular attention has been given to the intermodulation performance of the Broadband Triplexer to minimize any passive intermodulation products from occurring. All DIN Connectors are fully IP68 rated and the unit body is rated for IP66.
|
