Wideband Hybrid Combiner | HYO-68-2xx | |||
![]() |
|
CCI’s Wideband 2-Way Hybrid Combiner provides a solution where combining two RF inputs into one or two common outputs is required. The unit is housed in a weatherproof outdoor enclosure for outdoor basestation or tower mount applications. Technical Description: CCI’s Outdoor Wideband 2-Way Hybrid Combiner covers the full 2700- 5925 MHz spectrum. The unit is housed in an IP67 moisture proof enclosure, with IP67 moisture proof connectors suited for long-life. The combiner can be wall or pole mounted.
|
RF Parameters | Ports | Frequency(MHz) | Specification |
Insertion Loss | Input1 to Output2 | 2700 - 5925 | 3.05 dB ± 0.1 dB |
Coupled Output | Input1 to Coupled Port3 | 2700 - 5925 | 34 dB ± 10 dB |
Isolation | Input Port 1 to Input Port 2 | 2700 - 5925 | 30 dB min. , 32 dB typ. |
Return Loss | All Ports | 2700 - 5925 | 25 dB min. |
1Ports 1 & 2; 2Ports 3 & 4; 3Test Port |
General Characteristics | |
Impedance | 50 ohms |
Continuous Average Power | 500 W maximum (per port) |
Peak Envelope Power | 3 kW maximimum |
DC Pass Current/AISG Pass | DC paths: Port 1 to Port 3; Port 2 to Port 4; (max 6.5 A per AISG 2.0) |
Parameters | HYO-68-2F2 |
Input/Output Connectors | 4.3-10 female × 4 |
Coupled Port | SMA female x 1 |
Dimensions (body only)(H×W×D) | 1.77 × 3.50× 1.69 in. (45.0 × 89.0 × 43.0 mm) |
Dimensions (incl. brackets)(H×W×D) | 1.77 × 5.12 × 2.28 in. (45.0 × 130.0 × 58.0 mm) |
Weight with brackets | 1.5 lbs (0.69 Kg) |
Mounting | Pole/Wall mounting bracket |
![]() |
|

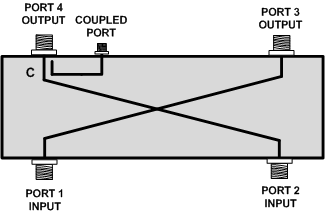

2-Way Hybrid Combiner Outline Drawing with 4.3-10 Conneectors |
Safety | EN 60950-1, UL 60950-1 |
Emission | EN 55022 |
Immunity | EN 55024 |
Environmental | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529 IP65 & IP67 |
|
