The CCI Outdoor Diplexer passes the PCS and AWS bands covering 1695-2200 MHz on its low band input port and the full BRS band which covers 2496-2690 MHz on its high band input port. The Diplexer combines the low band and high band signals on to a common port and is specifically intended for use in multi-band systems with limited feeder lines. The Diplexer facilitates the addition of new technologies including LTE and new spectrum to existing sites while providing a high degree of isolation between systems. Decreasing the number of feeder lines lowers tower loading, leasing and installation expenditures and significantly reduces the total cost to upgrade a site.
The CCI Outdoor Diplexer provides full band performance for each band with low insertion loss, low Intermodulation, and high 250 W per port power handling. Excellent return loss performance delivers the best match to the antennas and base station, saving precious transmit power. The CCI Diplexer is available in a single, twin or quad unit configuration.

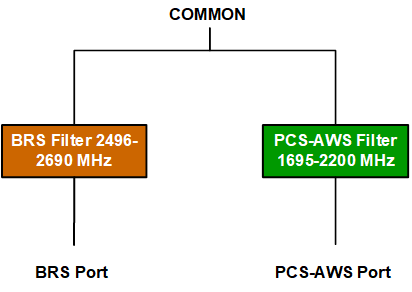

The CCI Outdoor Diplexer consists of multiple filters and can be used as either a splitter or combiner to aggregate the PCS/AWS with the BRS bands on to a common feeder line. The fully weatherproof tower mount Diplexer has internal multi-strike lightning protection using a multi-stage surge protection circuit.
The unit has been designed to minimize insertion loss while maximizing isolation. Particular attention has been given to the intermodulation performance of the Diplexer to minimize any passive intermodulation products from occurring. The Diplexer housing is constructed from die cast aluminum and consists of an IP67 moisture proof enclosure, with IP67 immersion proof connectors suited to long-life masthead mounting. The Diplexer can be pole or wall mounted with the included bracket. The RF ports are available with 4.3-10 connectors.
CCI filter and combiner products are designed and produced to ISO 9001 certification standards for reliability and quality at our state-of-the-art engineering and manufacturing facilities.
