GPS Over Fiber System | GPS-FOS-T2R16-SA3A | |||
|
Overview
Communication Components, Inc. GPS Over Fiber (GPSoF) Systems provides an innovative and cost effective means of routing the GPS signal over a fiberoptic network to a remote Base Station location. This system is ideal for CRAN (Centralized Radio Access Network) deployments and In-building DAS installations when the Base Radio is in a remote location with no direct availability of GPS signal. Technical Description: The Generation Two (Current Gen) GPS-FO-Tx-1A GPS to Fiberoptic Transmitters upconvert the GPS RF signal from any active GPS antenna to the optical band to enable transmission up to 8 km over single fiberoptic lines (max distance for hybrid cable is 4 km, limited by power line). GPS Antenna bias current is provided and comprehensive alarm detection and reporting of the GPS antenna and the fiberoptic transmitter are delivered over the single fiber to the companion Fiberoptic to GPS Receiver for local monitoring. The Transmitter can be powered via a hybrid fiberoptic cable or from any -48VDC source. An optional outdoor AC to -48VDC power supply is also available. The transmitter utilizes ultra-linear, high dynamic range DFB laser technology. Automatic Power Control is also used to stabilize the optical power. |
Electrical
Description | Fiber Converter Unit x16 | Outdoor Remote Unit |
# of RF Channels | 16 RX (GPS-FO-Rx-16P) | 1 TX (2 TX W/Redundancy) |
Band Supported | L1 (GPS, Galileo, BeiDou, and QZSS) | |
RX Noise Figure | N/A | 5 dB max. |
RX Input IP3 (IIP3) | N/A | 30 dBm max. |
RX RF Return Loss | N/A | 14 dB min. |
Antenna Power Supply | N/A | +5VDC, 70 mA max. |
TX RF Output Power | -70 dBm max. | N/A |
TX Output IP3 (OIP3) | +10 dBm max. | N/A |
TX Other Spurious Outputs | -75 dBm max. | N/A |
RF Link Budget to Antenna | N/A | +13 dB |
Optical Ports | SMF, SC/APC | SMF, SC/APC |
Fiber Category | Single Mode (OS2) | |
Fiber Data Rate | 100 GB max. | |
Fiber Core/Cladding Dimension | 9/125um | |
Delay Efficiency | 100 nS max. | |
Optical Budget | Up to 4 Km @ 1310 nm | |
Alarms | LEDs, Dry Contact Closures, USB readout | LED |
Laser warning:Invisible Laser Radiation emitting from Optical connector. Avoid direct exposure to beam. 20 mW max. A 1310 and 1550 nm CDRH Class IIIB. |
General Characteristics | Fiber Converter Unit | Outdoor Remote Unit |
Power Consumption (@ 48 VDC) | 350 mA Max. (Standalone) | 250 mA Max., 200 mA Typ. (includes 70 mA @ 5 VDC provided to the GPS Antenna LNA) |
Power Consumption | 600 mA Max. (includes power supplied to outdoor unit) | |
Input Fuse | 2A Resettable | N/A |
Output Fuse | 1A Resettable (on 48 VDC Output Line) | N/A |
Description | GPS-ANT-28-3 (GPS Antenna) |
Frequency Range | 1575.42 ± 10 MHz |
LNA Gain | 26.5 dB ± 3 dB |
Element Gain | 3.5 dBic |
Out of Band Rejection | ≥ 65 dB @ 1559 MHz, ≥ 65 dB @ 1625 MHz |
VSWR (Return Loss) | ≤ 1.5:1 (≥ 14.0 dB) |
Noise Figure | ≤ 4.0 dB @ 25°C (typ.), ≤ 4.5 dB @ 25°C (max.) |
Current Draw | ≤ 40 mA @ 5V |
ESD Proterction | 15 kV |
DC Voltage | Operating: 3.3-12.0 VDC (regulated), Survival: 24 VDC |
Nominal Impedance | 50 ohms |
Polarization | Right hand circular |
Dimensions | 5.0" (H) x 3.2" (D) (126 mm (H) x 81 mm (D)) |
Weight | 0.6 lbs. (0.3 kg) |
Temperature Range | -40°C to +85°C |
Humidity | 95% |
Description | GPS-ACC-48V (Optional Outdoor AC to DC Power Supply Specifications) |
DC Output Voltage (Nominal) | 48 VDC |
Rated Current | 1.3 A |
Rated Power | 62.4W |
Output Voltage Stability | ±1.0% |
Input Voltage Range | 90 - 264 VAC |
Input Frequency Range | 47 - 63 Hz |
Power Factor (at full load) | 98% typ. (115 VAC), 95% typ. (230 VAC) |
Efficiency | 90.5% typ. (115 VAC), 92% (230 VAC) |
AC Current | 0.64A typ.(115 VAC), 0.32A (230 VAC) |
Inrush Current | Cold Start 55A typ. (twidth = 265uS measured at 50% Ipeak) at 230 VAC |
Overcurrent Protection | 95-108% (Constant current limiting), recovers automatically after fault condition is removed) |
Short Circuit Protection | Hiccup mode (recovers automatically after fault condition is removed) |
Over Voltage Protection | 54-65 V (Shut down output voltage, re-power on to recover) |
Over Temperature | Shut down output voltage, re-power on to recover |
IEC Standard 60529 (Ingress Protection) | IP67 |
UL Certification | UL, ULC |
Working Temperature | Tcase = -40°C - +80°C |
Working Humidity | 20 - 95 % RH (non-condensing) |
Storage Temperature, Humidity | -40°C - +80°C, 10 - 95 % RH |
Temp. Coefficient | ±0.03%/°C (0°C - 60°C) |
Withstanding Voltage | I/P-O/P:3.75 KVAC, I/P-FG:2 KVAC, O/P-FG:1.5 KVAC |
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms (@500 VDC, 25°C, 70% RH) |
EMC Emission | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020 |
MTBF | 338K hrs. minimum |
Dimensions | 171 x 61.5 x 36.8 mm (6.73 x 2.42 x 1.45") |
Weight | 0.73 kg (1.6 Lbs.) |
Environmental
Operating Temperature | 0˚C to +50˚C (Indoor FO/GPS Receiver) / -20˚C to +50˚C (Outdoor GPS/FO Transmitter) |
Enclosure | Indoor FO/GPS Receiver (IP11) / Outdoor GPS/FO Transmitter (IP67) |
Relative Humidity | 0 - 45 % (Indoor) / 0 - 99% (Outdoor) |
MTBF | >500,000 hours |
Lightning Protection | 8/20uS, ±20KA max., 10 strikes each, IEC61000-4-5 |
Mechanical

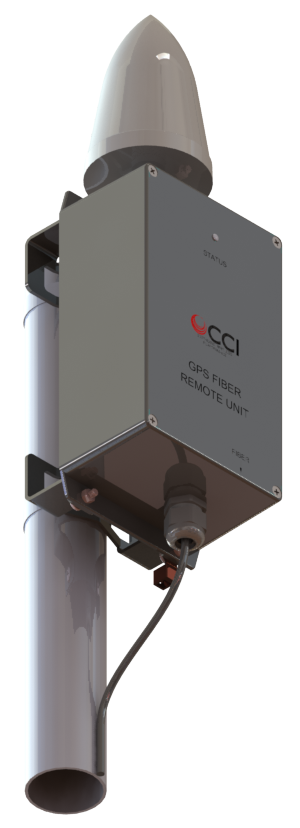

Outdoor GPS to Fiberoptic Transmitter | |
GPS Antenna Input Connector | 1 x N-Type male long neck |
Fiberoptic Connector | SC/APC |
DC Input Connector | 2 Postion Terminal Block |
Dimensions (with connectors & panel) - (HxWxD) | 9.13 x 4.80 x 2.95 in (232 x 122 x 75 mm) |
Weight (w/o Bracket) | < 2.75 lb |
Mounting | Pole/Wall Mount |

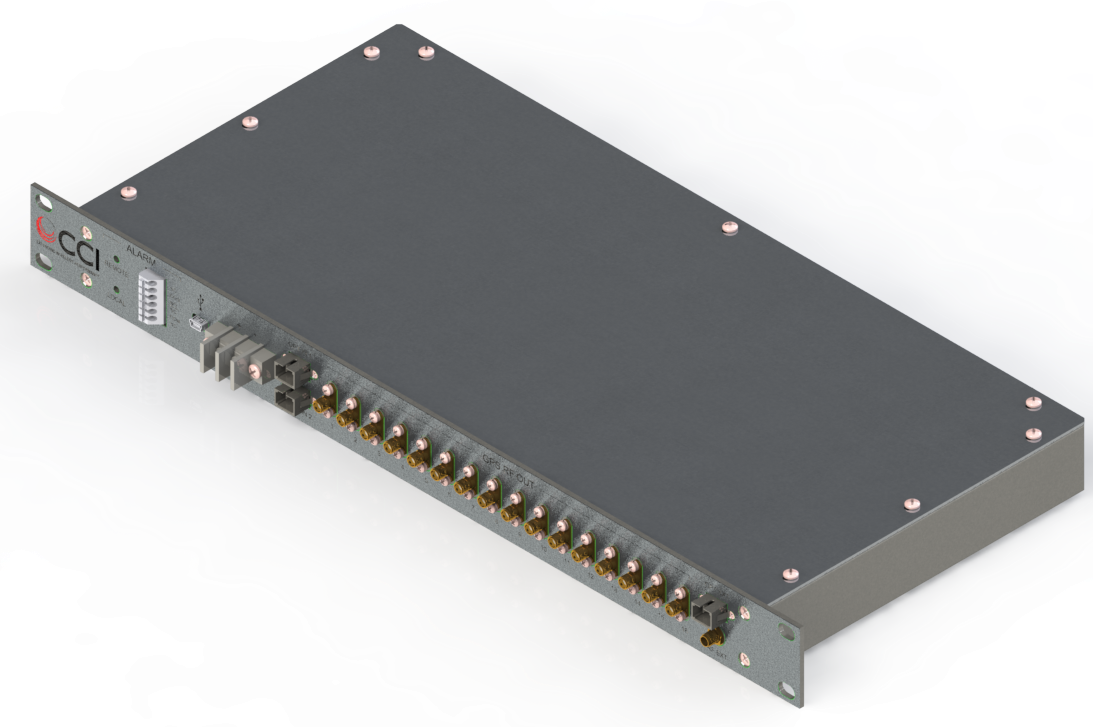

Indoor Fiberoptic to GPS Receiver | Fiber Converter Unit x16 |
GPS RF Output RF Connectors | 16 x SMA female |
Fiberoptic Input Connector | SC/APC x 2 |
Fiberoptic Expansion Output Connector | SC/APC x 1 |
RF GPS Expansion Output Connector | SMA female x 1 |
DC Input Connector | 2 Postion Terminal Block |
DC Output Connector | 2 Postion Terminal Block |
Communications & Control Connector | USB (standard) or RJ45 Ethernet/SNMP (optional) |
Dimensions - (H x W x D) - with Faceplate | 1.72 x 19 x 14 in (43.69 x 482.6 x 355.61 mm) |
Dimensions - (H x W x D) - Body Only | 1.72 x 17 x 14 in (43.69 x 431.8 x 355.61 mm) |
Weight | 6 lbs |
Mounting | 19 in. rack mountable 1U |
Parts & Accessories
GPS-FOS-T2R16-SA3A | This Generation Two (current Gen) GPS Over Fiber System includes two outdoor Generation Two (current Gen) GPS to Fiberoptic Transmitters (GPS-FO-Tx-1A) and one Generation Two (current Gen) 16 Channel Indoor Fiberoptic to GPS Receiver (GPS-FO-Rx-16A) with -48V positive ground. |
GPS-FOS-T2R16-SA3AS | This Generation Two (current Gen) GPS Over Fiber System includes two outdoor Generation Two (current Gen) GPS to Fiberoptic Transmitters (GPS-FO-Tx-1A) and one Generation Two (current Gen) 16 Channel Indoor Fiberoptic to GPS Receiver (GPS-FO-Rx-16A) with -48V positive ground and SNMP option. |
GPS-FOS-T2R16-SA3A-K | This Generation Two (current Gen) GPS Over Fiber System includes two outdoor Generation Two (current Gen) GPS to Fiberoptic Transmitters (GPS-FO-Tx-1A) and one Generation Two (current Gen) 16 Channel Indoor Fiberoptic to GPS Receiver (GPS-FO-Rx-16A) with -48V positive ground and two outdoor 48 VDC AC to DC Power Supplies (GPS-ACC-48). |
GPS-FOS-T2R16-SA3AS-K | This Generation Two (current Gen) GPS Over Fiber System includes two outdoor Generation Two (current Gen) GPS to Fiberoptic Transmitters (GPS-FO-Tx-1A) and one Generation Two (current Gen) 16 Channel Indoor Fiberoptic to GPS Receiver (GPS-FO-Rx-16A) with -48V positive ground and SNMP option and two outdoor 48 VDC AC to DC Power Supplies (GPS-ACC-48). |
GPS-FO-Tx-1A | Generation Two (current Gen) Outdoor GPS to Fiberoptic Transmitter |
GPS-ANT-28-3 | GPS Antenna |
GPS-FO-Rx-16A | Generation Two (current Gen) 16 Channel Indoor Fiberoptic to GPS Receiver with RF and Fiber Expansion ports with -48V positive ground |
GPS-FO-Rx-16AS | Generation Two (current Gen) 16 Channel Indoor Fiberoptic to GPS Receiver with RF and Fiber Expansion portswith -48V positive ground and SNMP Ethernet option |
GPS-ACC-48 | Outdoor 48V AC to DCPower Supply with US and Canadian UL Certification |
|
