Dual Band Quasi-Omni | SCA360V-EJ2B | |||
|
The CCI Dualband Quasi-Omni array is an eight port Small Cell antenna, with four ultra-wideband ports covering 1695-2690 MHz and two pairs of two U-NII ports covering 5150-5925 MHz. The CCI Dualband Quasi-Omni Small Cell antenna provides 4x4 Multiple-input-Multiple-output (MIMO) functionality across the 1695-2690 MHz ports and provides Dual 2x2 Multiple-input-Multiple-output (MIMO) functionality across the 5150-5925 MHz ports. The CCI Dualband Quasi-Omni Small Cell antenna is equipped with Dual VET control on the 1695-2690 MHz ports, with a tilt range of 4°-16°, capable of providing independent tilt per pair ports or single tilt for 4x4 paired ports, providing flexibility for network coverage needs. |
Ports | 4 × High Band Ports for 1695-2690 MHz | 4 × High Band Ports for 5150-5925 MHz | ||||
Frequency Range | 1695-1880 MHz | 1850-1990 MHz | 1920-2180 MHz | 2300-2400 MHz | 2496-2690 MHz | 5150-5925 MHz |
Gain1 | 10.3 dBi | 10.3 dBi | 10.5 dBi | 10.2 dBi | 10.1 dBi | 5.5 dBi |
Gain (Average)2 | 9.1 dBi | 9.5 dBi | 9.7 dBi | 9.6 dBi | 9.0 dBi | 4.8 dBi |
Elevation Beamwidth (-3dB) | 14.8° | 13.7° | 13.0° | 11.7° | 10.5° | 25.8° |
Electrical Downtilt | 4° to 16° | 4° to 16° | 4° to 16° | 4° to 16° | 4° to 16° | 5° |
Elevation Sidelobes (1st Upper) | < -16 dB | < -16 dB | < -16 dB | < -18 dB | < -18 dB | < -19 dB |
Cross-Polar Port-to-Port Isolation | > 25 dB | > 25 dB | > 25 dB | > 25 dB | > 25 dB | > 25 dB |
Voltage Standing Wave Ratio(VSWR) | < 1.5:1 | < 1.5:1 | < 1.5:1 | < 1.5:1 | < 1.5:1 | < 1.5:1 |
Passive Intermodulation (2×20W) | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc | NA |
Input Power Continuous Wave (CW) | 100 watts | 100 watts | 100 watts | 100 watts | 100 watts | 10 watts |
Polarization | Dual Pol 45° | Dual Pol 45° | Dual Pol 45° | Dual Pol 45° | Dual Pol 45° | Dual Pol 45° |
Input Impedance | 50 ohms | 50 ohms | 50 ohms | 50 ohms | 50 ohms | 50 ohms |
Lightning Protection | DC Ground | DC Ground | DC Ground | DC Ground | DC Ground | DC Ground |
1Peak gain across sub-bands. 2Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. |
Dimensions (L×D) | 29.0×8.4 in (737×214 mm) |
Diameter max at top cap | 8.6 in (219 mm) |
Survival Wind Speed | > 150 mph (> 241 kph) |
Wind Load | 31 lbs (116 N) @ 100 mph (161 kph) |
Equivalent Flat Plate Area | 1.2 ft2 (0.1 m2) |
Weight * | 15.0 lbs (6.8 kg) |
Connector | 8× 4.3-10 female |
Mounting Pole | 1.0 to 2.5 in (2.5 to 6.3 cm) |
* Weight excludes mounting kit |

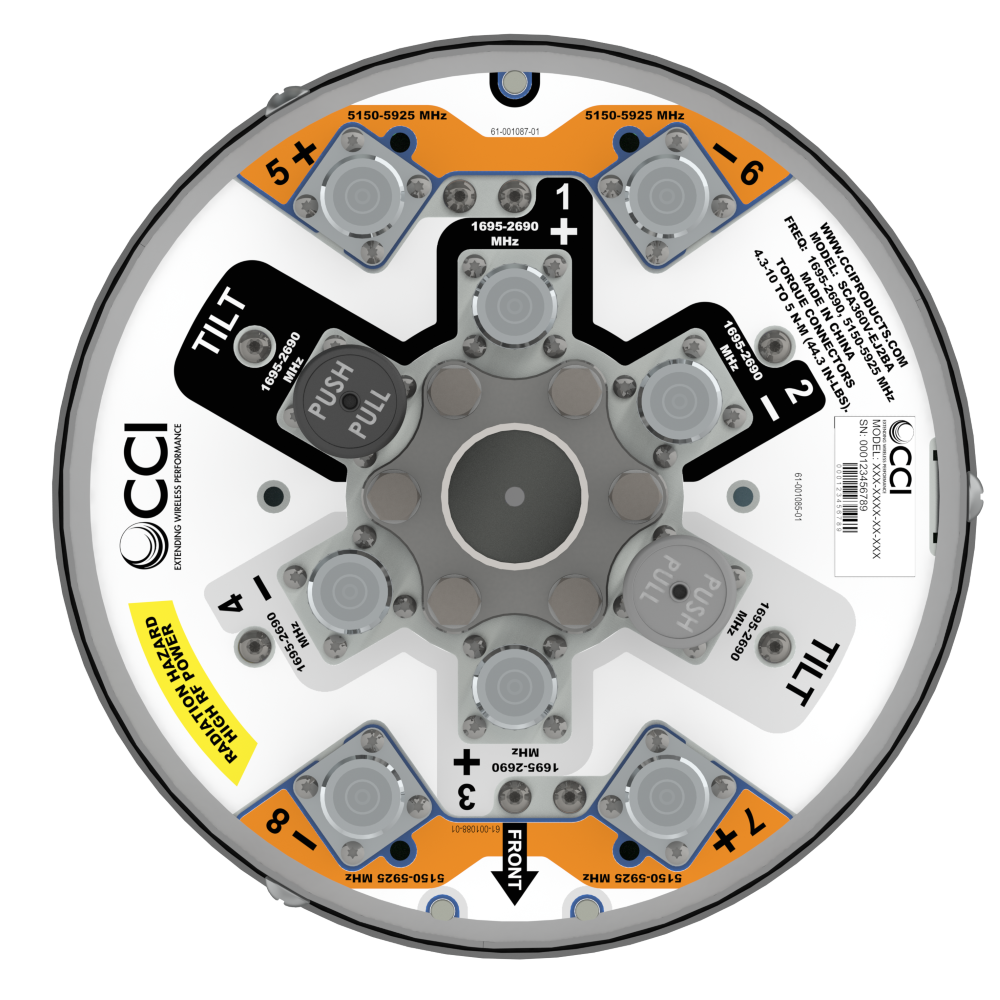

Bottom View | |
Connector Spacing | |
For detailed information on additional antenna patterns, contact customer support at |

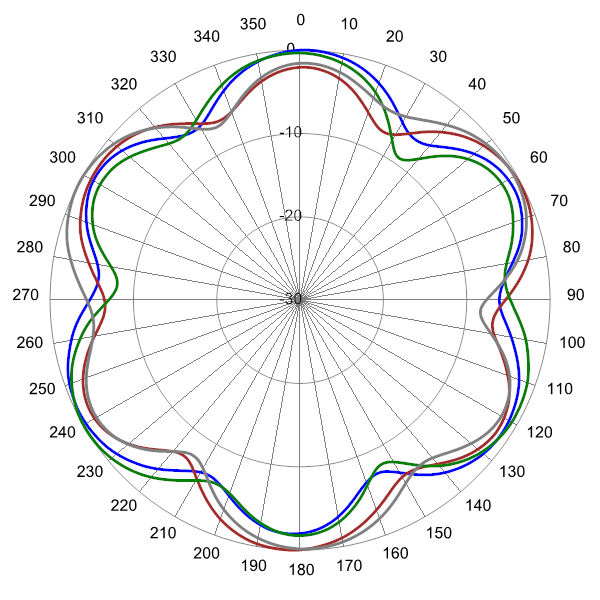

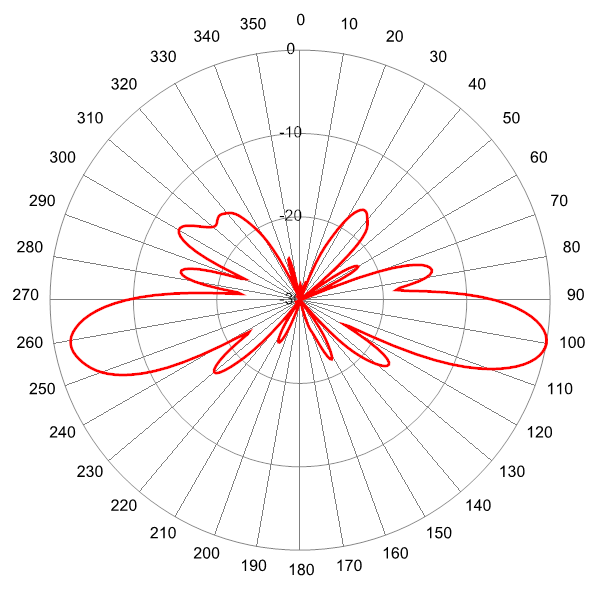

1720 MHz Azimuth | 1720 MHz Elevation 10° | |

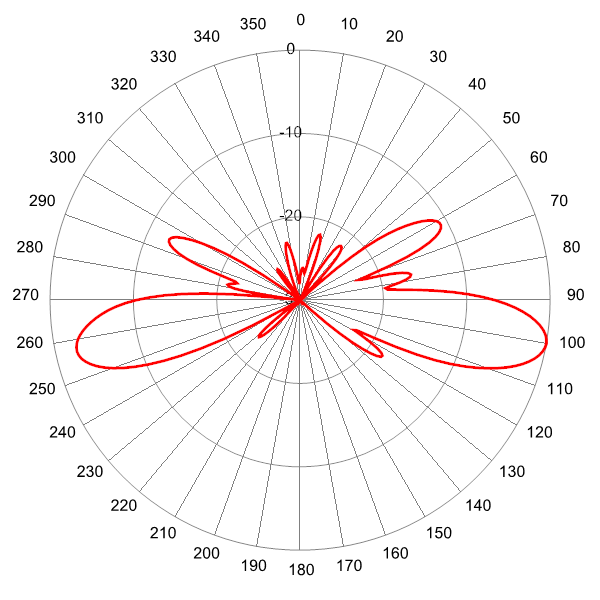

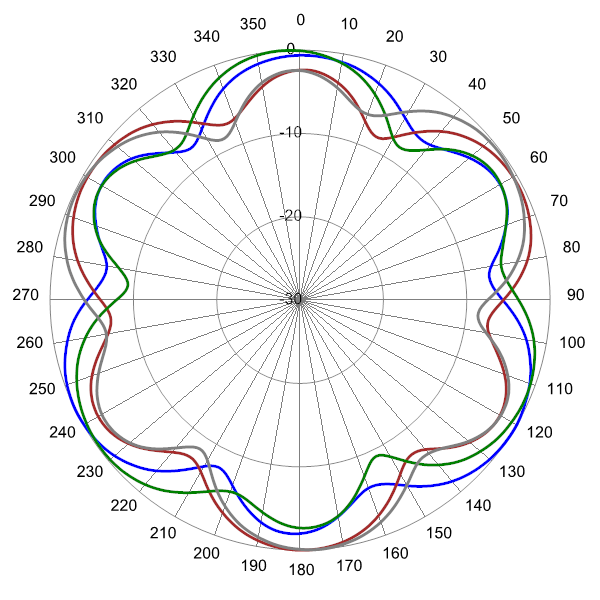

1920 MHz Azimuth | 1920 MHz Elevation 10° |

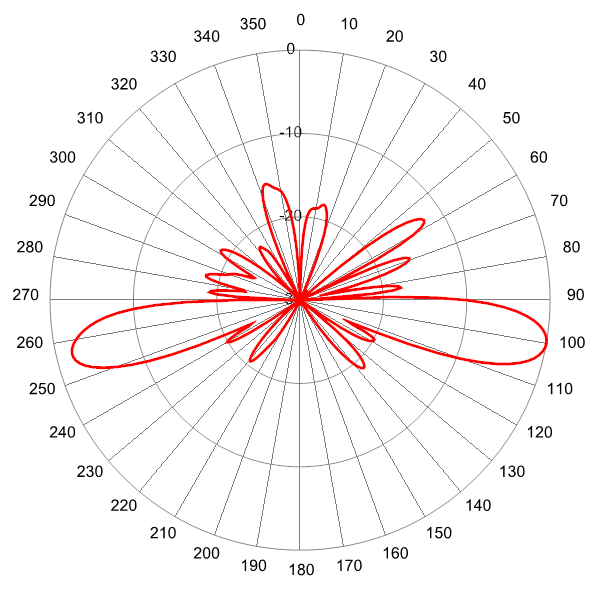

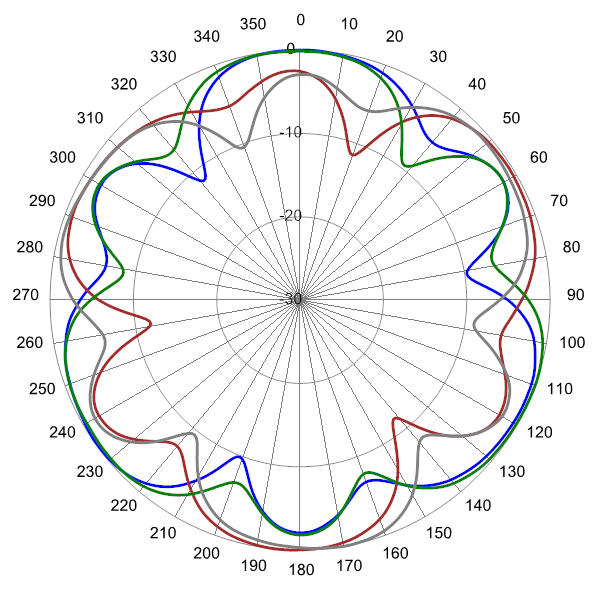

2310 MHz Azimuth | 2310 MHz Elevation 10° | |

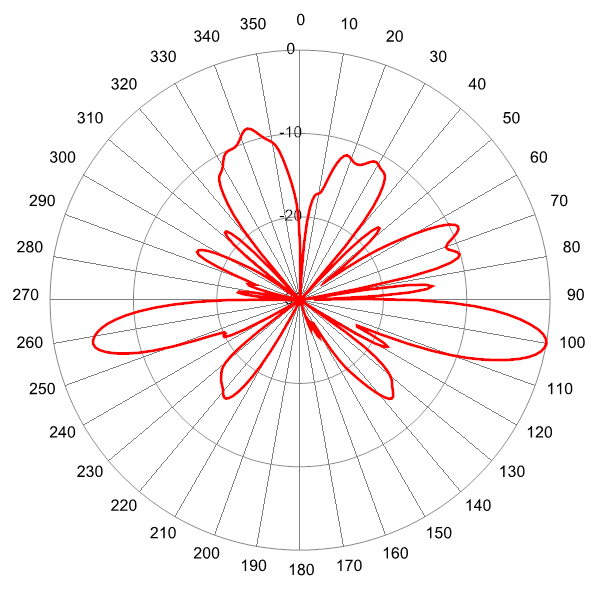

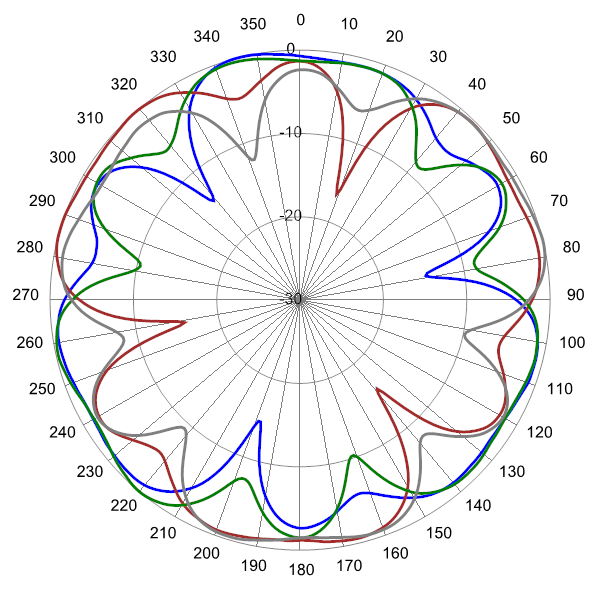

2650 MHz Azimuth | 2650 MHz Elevation 10° |

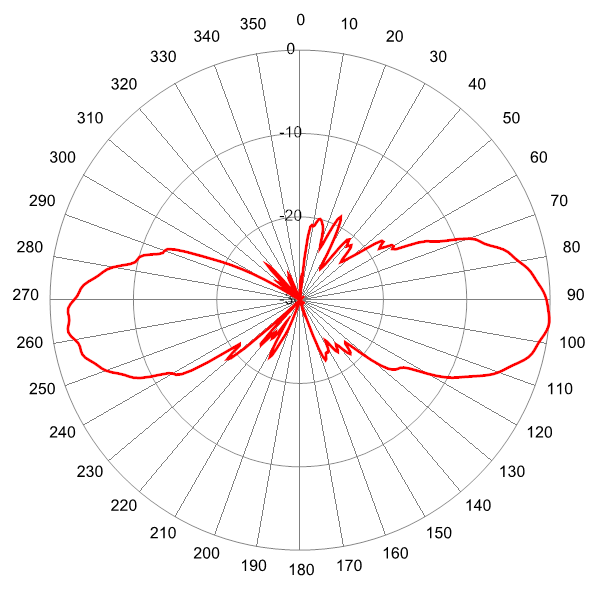

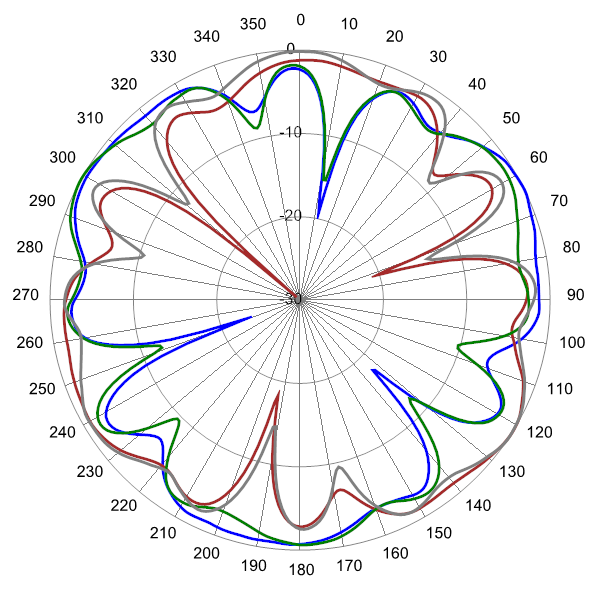

5500 MHz Azimuth | 5500 MHz Elevation 5° | |

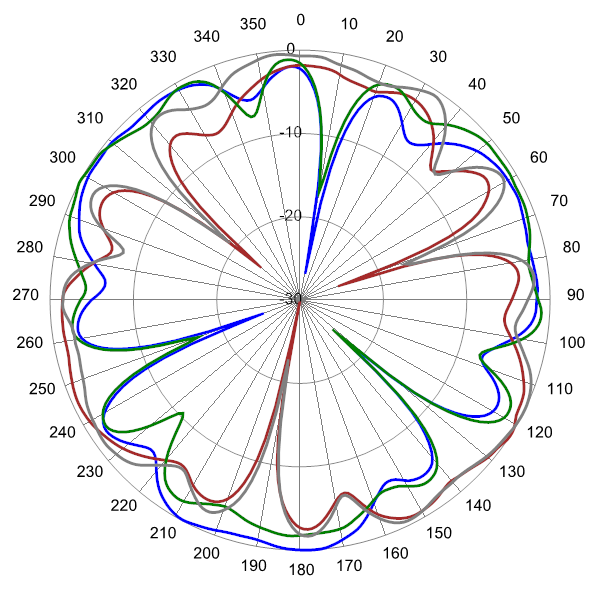

5825 MHz Azimuth | 5825 MHz Elevation 5° |
MBC-02 | MBC-02 Mounting Kit |
SCA360V-EJ2BA-K | Two foot (0.6 m) Wideband Omni antenna with 4.3-10 connectors, two factory install manual VET actuators and MBC-02 mounting kit |
MBC-02 | Clamp kit, Pipe range 1-2.5 in (2.5-6.3 cm) or lag bolt to wooden pole or flat surface. (lag bolts not supplied) |
