Datasheet

TriBand Small Cell ODA Antenna

ODA30F-BUH2A

30 x 30 in (760 x 760 mm), Triband, twelve port antenna with a 30° azimuth and elevation beamwidth, covering 698-896 MHz, 1695-2400 MHz and 3300-4200 MHz frequencies
Innovative Patented LEGO Complimentary Array Topology along with patented decoupled element technology allows for four wide band ports covering 698-896 MHz, four wide band ports covering 1695-2400 MHz and four wide band ports covering 3300-4200 MHz, all within in a low profile square shape 30 inch antenna
The Low weight and Low profile of this panel antenna, makes this an ideal solution for Stadium, and Small Cell/C-RAN Densification deployments in difficult jurisdictional urban, suburban and rural environments
Ordering options for multiple mounting brackets, including simple wall mounting or Dual-Axis adjustment bracket. Which makes it ideal for mounting on utility, lighting and traffic poles
Fixed EDT of 0° for the 698-896 MHz ports, 0° for the 1695-2400 MHz ports and 0° EDT for 3300-4200 MHz ports
Equipped with 12× 4.3-10 female connectors

Overview

The CCI Triband 30° x 30° array is a twelve port antenna Small Cell antenna, with four wide band ports covering 698-896 MHz, four wide band ports covering 1695-2400 MHz and four wide band ports covering 3300-4200 MHz. The CCI 30° x 30° Small Cell antenna provides three independent sets of 4x4 Multiple-input-Multiple-output (MIMO) functionality across the four LB ports, four MB ports and four HB ports

The CCI 30° x 30° Small Cell antenna is an ideal solution for Stadium and Small Cell/C-RAN/O-DAS Densification deployments in difficult jurisdictional urban, suburban and rural where antenna size and count are restricted.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

Stadium and Small Cell/C-RAN/o-DAS in Urban, Suburban and other visually sensitive environments
Ideal for Macro to Small Cell Coverage Transition Zones
Outdoor Distributed Antenna Systems (oDAS), neutral host in venues, campuses and other outdoor coverage applications

Electrical

Ports	4 × Low Band Ports for 698-896 MHz		4 × High Band Ports for 3300-4200 MHz
Frequency Range	698-806 MHz	824-896 MHz	3300-4200 MHz
Gain (Peak)	13.8 dBi	14.3 dBi	15.9 dBi
Gain (Average)*	12.4 dBi	13.5 dBi	15.2 dBi
Azimuth Beamwidth (-3dB)	36°	32°	28°
Elevation Beamwidth (-3dB)	37°	32°	26°
Electrical Downtilt	0°	0°	0°
Front-to-Back Ratio @ 180°	> 32 dB	> 35 dB	> 38 dB
Cross-Polar Discrimination at Peak	> 28 dB	> 28 dB	> 20 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	100 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1. All specifications are subject to change without notice.

Ports	4 × Mid Band Ports for 1695-2400 MHz
Frequency Range	1695-1850 MHz	1850-1910 MHz	1910-2180 MHz	2300-2400 MHz
Gain (Peak)	14.9 dBi	14.9 dBi	15.0 dBi	16.1 dBi
Gain (Average)*	13.9 dBi	14.2 dBi	14.4 dBi	15.7 dBi
Azimuth Beamwidth (-3dB)	36°	35°	35°	31°
Elevation Beamwidth (-3dB)	28°	27°	25°	21°
Electrical Downtilt	0°	0°	0°	0°
Front-to-Back Ratio @180°	> 35 dB	> 35 dB	> 35 dB	> 38 dB
Cross-Polar Discrimination at Peak	> 16 dB	> 20 dB	> 25 dB	> 25 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	250 watts	250 watts	250 watts	200 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	29.9×29.9×8.0 in (760×760×202 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load¹	176 lbf @ 100 mph 782 N @ 161 kph
Side Wind Load¹	30 lbf @ 100 mph 134 N @ 161 kph
Effective Projective Area (EPA), Front¹	7.0 ft² (0.7 m²)
Weight *	41.0 lbs (18.6 kg)
RF Connector	12 × 4.3-10 female
Mounting Pole	2-5 in (5-12 cm)
¹Windload values calculated using CFD analysis * Weight excludes mounting

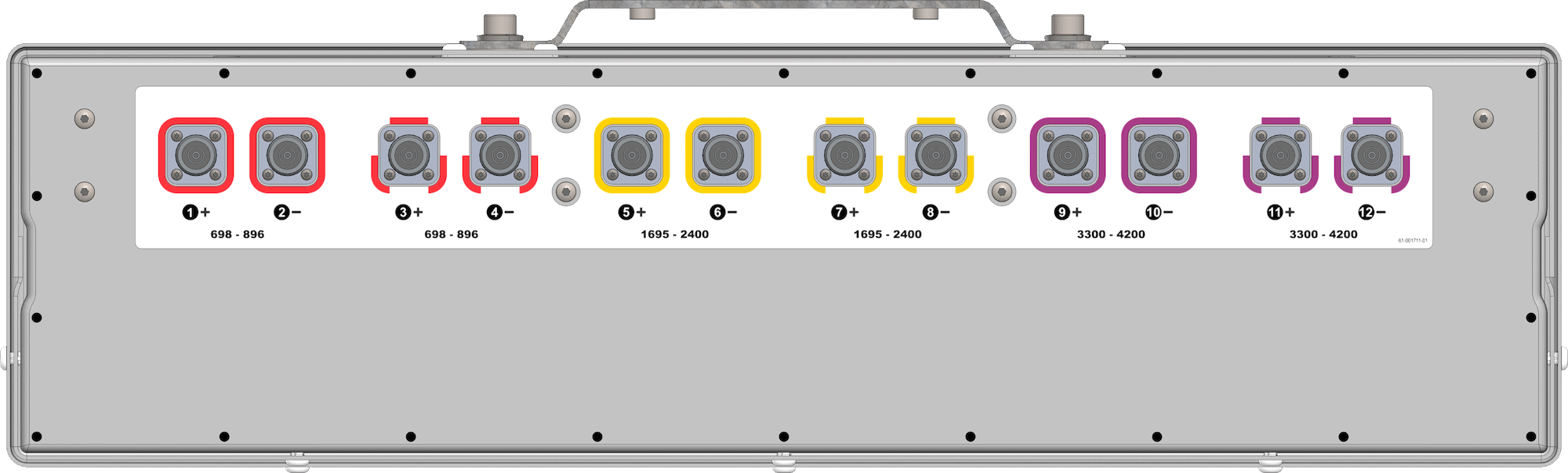

Bottom View

Connector Spacing

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at


	728 MHz Azimuth with Elevation 6°	880 MHz Azimuth with Elevation 6°


	1850 MHz Azimuth with Elevation 6°	2110 MHz Azimuth with Elevation 6°


	2360 MHz Azimuth with Elevation 6°

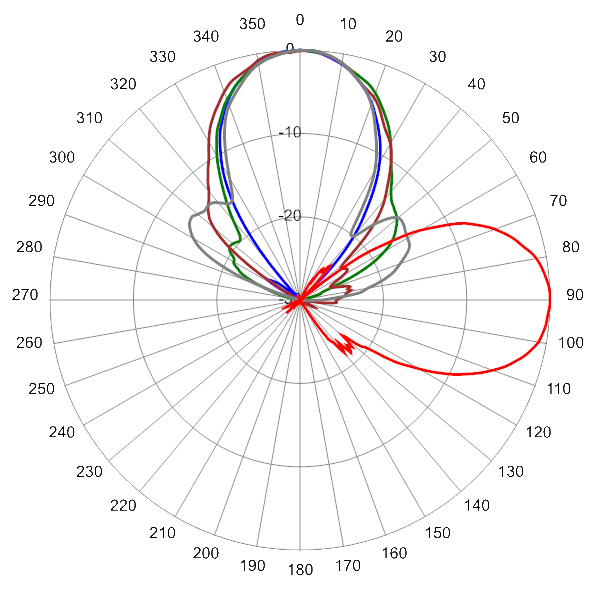

	3425 MHz Azimuth with Elevation 6°	3600 MHz Azimuth with Elevation 6°

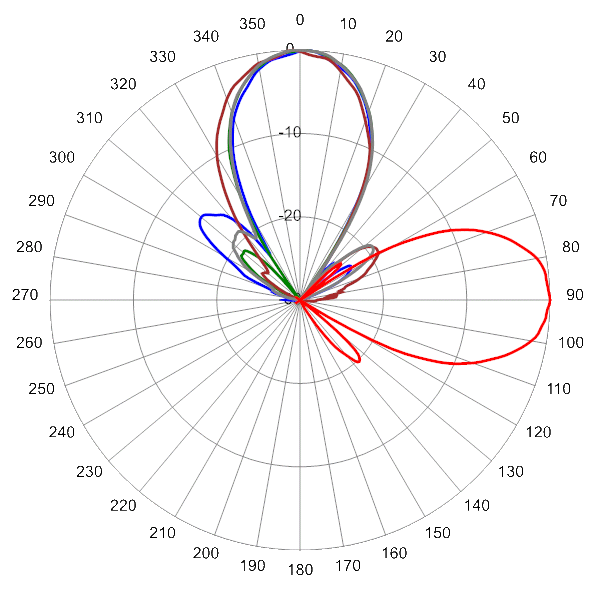

	3700 MHz Azimuth with Elevation 6°

BSA-M05	Adjustable Wall Mount Bracket
MBC-01	Mast Bracket Clamp

Product Information

	Datasheet
	ODA30F-BUH2A Connector Spacing Diagram
	BSA-M05 Installation Guide
	MBC-01 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

ODA30FBUH2A: Text/Planet Format - Default Azimuth

Parts & Accessories

ODA30F-BUH2AA-K	Two foot (0.8 m) TriBand panel antenna with 30° azimuth beamwidth with 4.3-10 female connectors with BSA-M05 wall mounting kit.
ODA30F-BUH2AA-K1	Two foot (0.8 m) TriBand panel antenna with 30° azimuth beamwidth with 4.3-10 female connectors with BSA-M05 and MBC-01 pole mounting kit.
BSA-M05	Adjustable Wall Mount Bracket
MBC-01	Mast Bracket Clamp

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55032
Immunity	EN 55035
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27:2008, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
