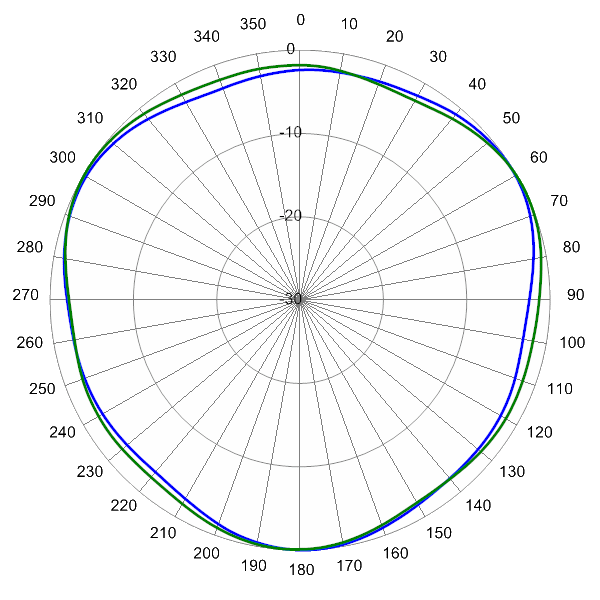

Antenna Pattern
|
In the Americas | |
Sales | |
+1 (201) 342-3338 phone | |
+1 (201)-342-3339 fax | |
89 Leuning Street | |
South Hackensack, NJ 07606 | |
USA | |
Customer Service | |
+1 (201) 342-3338 phone | |
+1 (201)-342-3339 fax | |
89 Leuning Street | |
South Hackensack, NJ 07606 | |
USA | |
Technical Support | |
+1 (201) 342-3338 phone | |
+1 (201)-342-3339 fax | |
89 Leuning Street | |
South Hackensack, NJ 07606 | |
USA | |
|
||||
Highband Quasi-Omni Antenna | SCA360F-W2A | |||
|
The CCI singleband quasi-omni array is a two port Small Cell antenna, with two wide band high band ports covering 1710-1880 MHz. The CCI Quasi-Omni Small Cell antenna provides 2x2 Multiple-input-Multiple-output (MIMO). The CCI Quasi-Omni Small Cell antenna is an ideal choice for Microcells, Small Cell and oDAS densification deployments in urban and suburban environments where antenna size and count are restricted. The CCI Quasi-Omni Small Cell antenna provides a fixed 2° EDT, across all high band frequencies. CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities. |
Ports | 2 × Ports which cover the full range from 1710-1880 MHz |
Frequency Range | 1710-1880 MHz |
Gain1 | 8.2 dBi |
Gain (Average)2 | 7.9 dBi |
Elevation Beamwidth (-3dB) | 19.6° |
Electrical Downtilt | 2° |
First upper sidelobes at peak gain | < -18 dB |
Cross-Polar Port-to-Port Isolation | > 25 dB |
Voltage Standing Wave Ratio(VSWR) | < 1.5:1 |
Passive Intermodulation (2×20W) | ≤ -153 dBc |
Input Power Continuous Wave (CW) | 100 watts |
Polarization | Dual Linear 45° |
Input Impedance | 50 ohms |
Lightning Protection | DC Ground |
1Peak gain across sub-bands. 2Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. |
Dimensions (L×D) | 20.5 × 6.6 in (520 × 168 mm) |
Survival Wind Speed | > 150 mph (> 241 kph) |
Front Wind Load | 17 lbs (76 N) @ 100 mph (161 kph) |
Equivalent Flat Plate Area | 0.7 ft2 (0.1 m2) |
Weight * | 4.8 lbs (2.1 kg) |
Connector (RF) | 2 × 4.3-10 female |
Connector (GPS) | 1 x Type "N" female |
Mounting Pole (MBC-02) | 2 to 2.5 in (50 to 63 mm) |
Mounting Pole (MBC-05) | 4 in and larger (100 mm and larger) |
Mounting Pole (MBC-09) | 2 to 5 in (50 to 125 mm) |
* Weight excludes mounting |

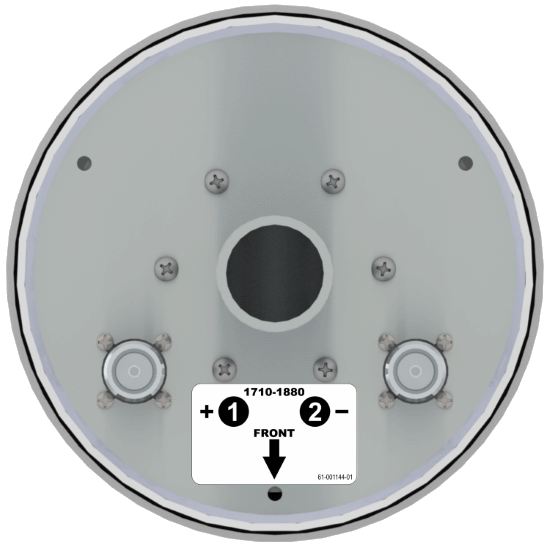

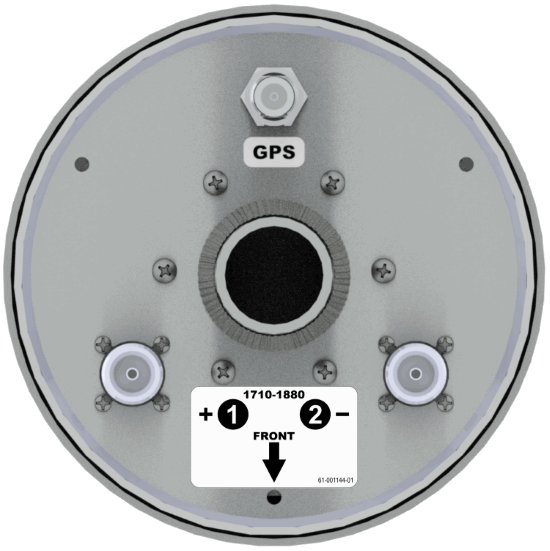

Bottom View | Without GPS option SCA360F-W2AA | With GPS option SCA360F-W2AB |

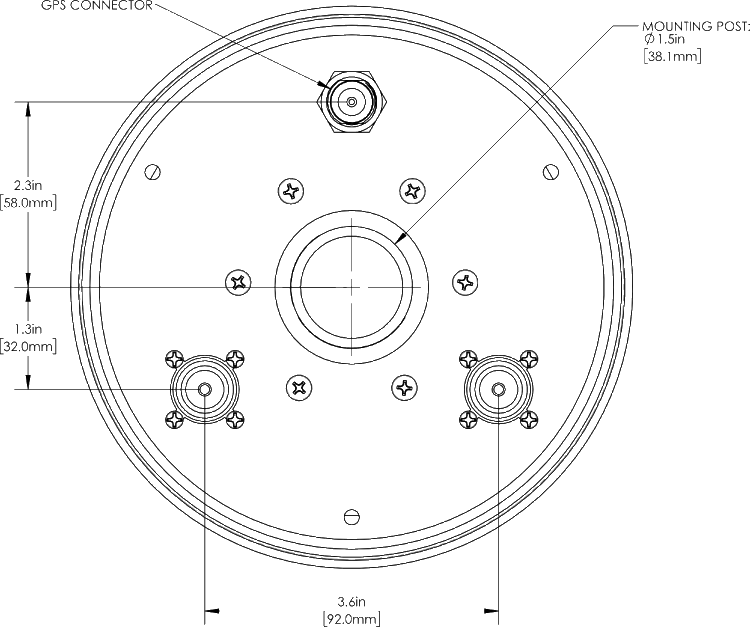

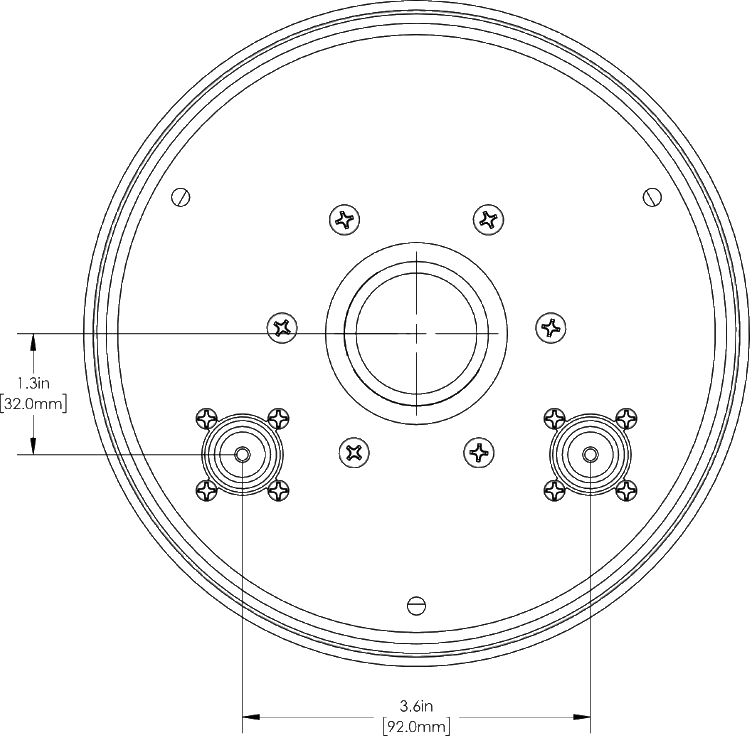

Connector Spacing | Without GPS option SCA360F-W2AA | With GPS option SCA360F-W2AB |
MBC-02 | MBC-02 Clamp kit, Pipe range 1 - 2.5 in. | |
MBC-09 | MBC-09 Clamp kit, Pipe range 2 - 5 in (50 - 125 mm) | |
MBC-05 | MBC-05 Pole top mounting kit suitable for 4" (10 cm) and larger |
SCA360F-W2AA | Two foot (0.5 m) antenna Quasi Omni, Wideband, with 4.3-10 connectors |
SCA360F-W2AB | Two foot (0.5 m) antenna Quasi Omni, Wideband, with 4.3-10 connectors and an internal GPS |
MBC-02 | Clamp kit, Pipe range 1 - 2.5 in. (25 - 63 mm) or lag bolt to wooden pole or flat surface (lag bolts not supplied) |
MBC-09 | Clamp kit, Pipe range 2 - 5 in (50 - 125 mm) |
MBC-05 | Pole top mounting kit suitable for 4" (10 cm) and larger wood, steel or concrete utility or lighting poles. |
