      Tri-Band Omni Antenna SCA360F-EHJ4B




  PI SCA360FEHJ4B front iso 20190827
  • 48” (1.2 m) tall x 14.5” (0.36 m) wide, Tri-band, 20 port quasi-omni canister antenna with 360° of coverage, providing Full Spectrum Compliance covering 1695-2690 MHz, 3400-3800 MHz and 5150-5925 MHz

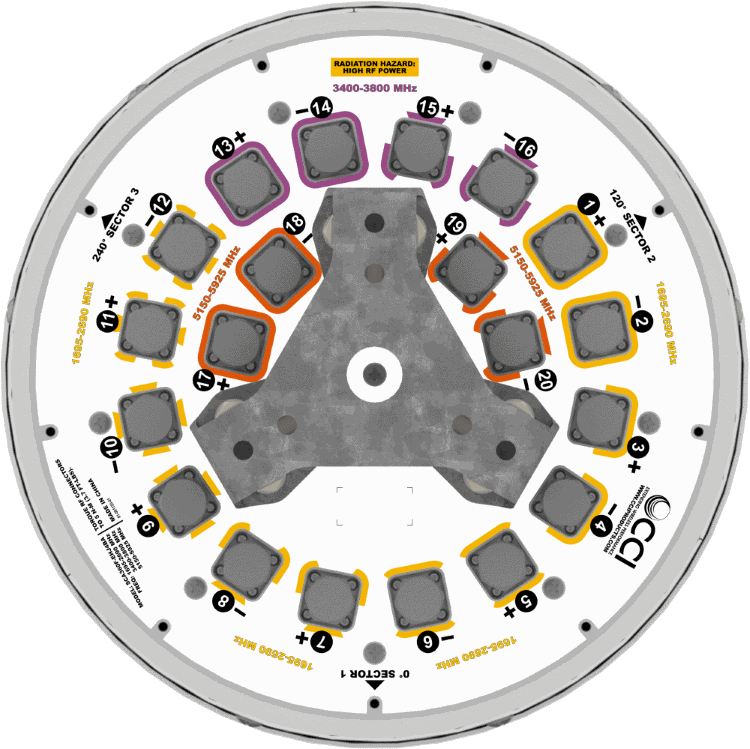

  • Twelve wide band ports covering 1695-2690 MHz, four wide band ports covering 3400-3800 MHz and four wide band ports covering 5150-5925 MHz all within in a low weight and low-profile canister antenna
  • Antenna meets U-NII pattern and gain requirements set forth by FCC and CRTC
  • This canister antenna is designed for multiple operators/platforms, with each pair of ports residing on separate and independent antenna arrays, minimizing potential interference between multiple operators. Pairs of the same frequency band ports can be combined for 4x4 MIMO where applicable
  • The antenna is equipped with standardized 6-Bolt “Starburst” attachment
  • Exceeds minimum PIM performance requirements
  • Equipped with 4.3-10 connectors, which are 40% smaller than 7/16 DIN connectors
  • Can be ordered with Brown or Black radomes in addition to default grey color
  • This canister antenna is also equipped with various EDT configurations, to allow maximum coverage/performance flexibility. Each set of four ports in 1695-2690 MHz, can be configured with a different EDT setting. Refer to the ordering option section for further details
