      WideBand Antenna HPA65R-E5A




  PI HPA65RE5A front iso PI HPA65RE5A rear iso
  • Five foot (1.5 m), WideBand six port antenna with a 65° azimuth beamwidth covering 1695-2690 MHz frequencies
  • Six wide high band ports covering 1695-2690 MHz in a single antenna
  • Full Spectrum Compliance 1695-2690 MHz
  • LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
  • LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
  • Exceeds minimum PIM performance requirements
  • Ordering options include either Two Field Replaceable, integrated AISG 2.0 compliant External (Type 1) Remote Electrical Tilt (RET) or Two Variable Electrical Control Knobs (VET)

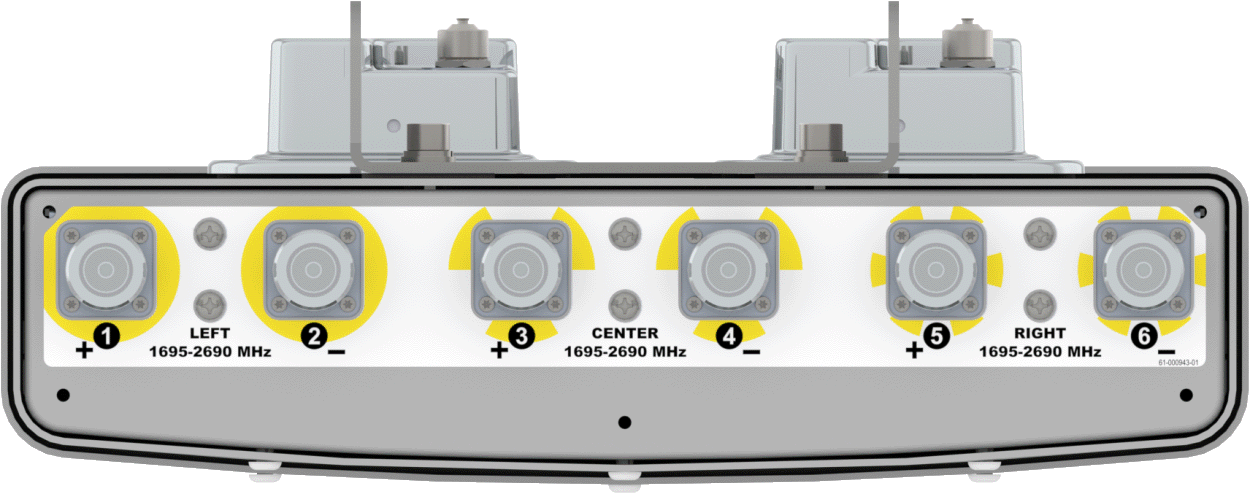

  • Ordering options for 7/16 DIN connector or the new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
MBK-02   MBK-01 Mounting Kit
BSA-RET200   Remote Electrical Tilt System (RET) (Type 1 External)
QPA-CBK-AG-RRU   AISG Cable set for three RET antenna for Type 1 External
QPA-CBK-RA-AG-RRU   AISG Right Angle Cable set for three RET Antenna for Type 1 External
SCU-AISG2-P   Portable AISG 2.0 Site Control Unit
