      OctoPort Multi-Band Antenna OPA45R-BU5A

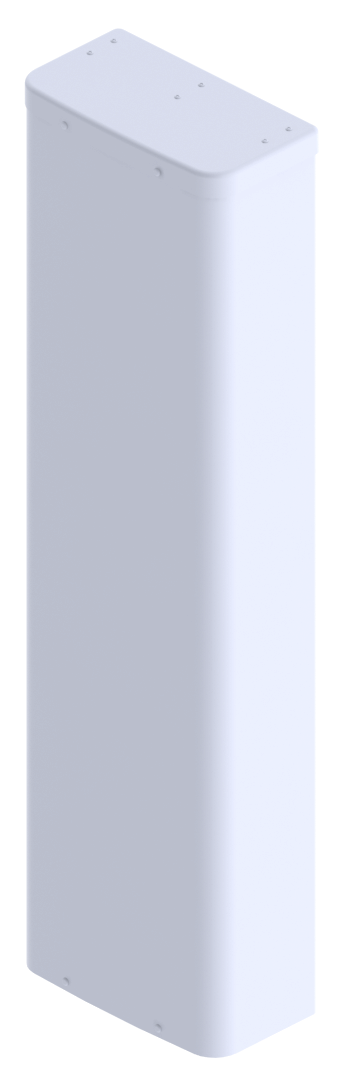

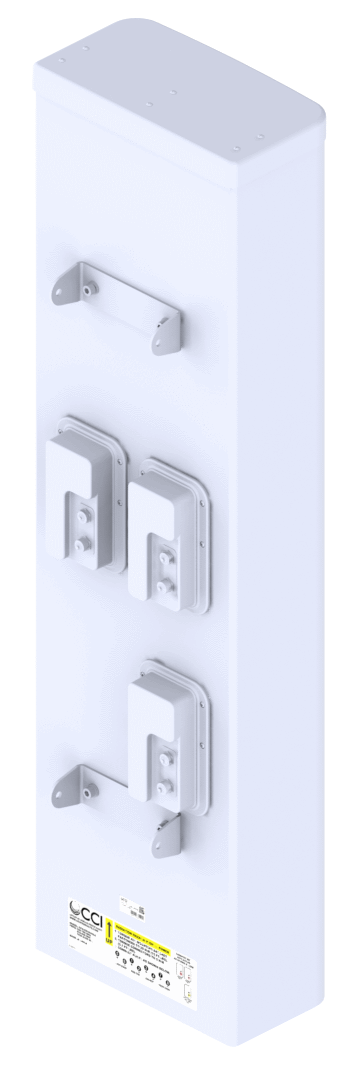

  PI OPA45RBU5AA ISO FRONT PI OPA45RBU5AA ISO REAR

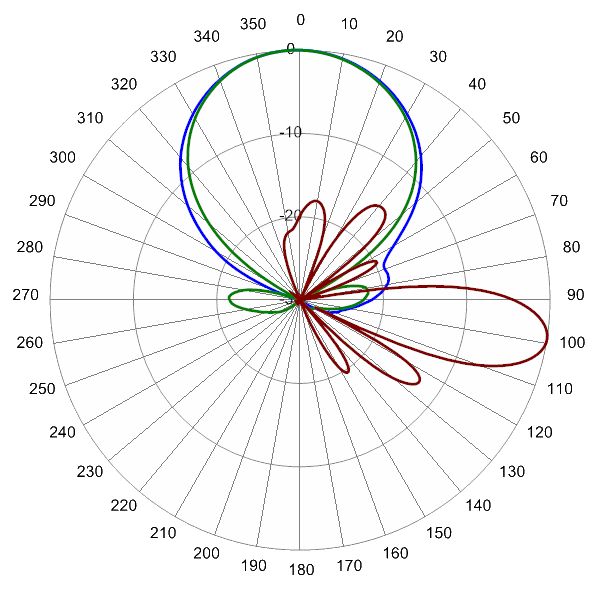

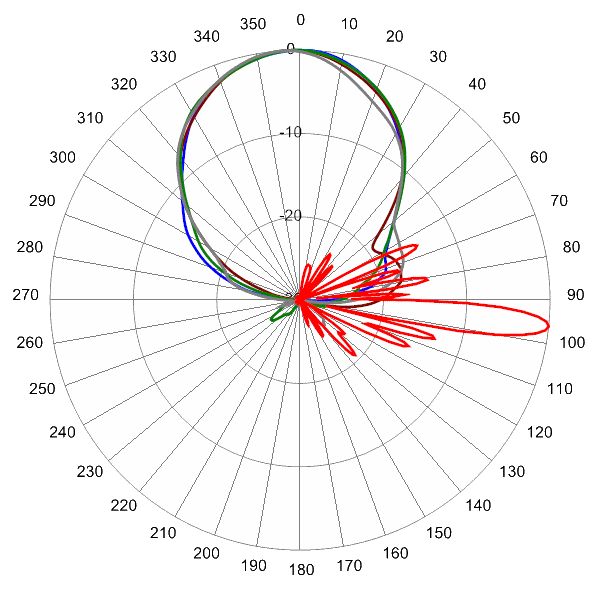

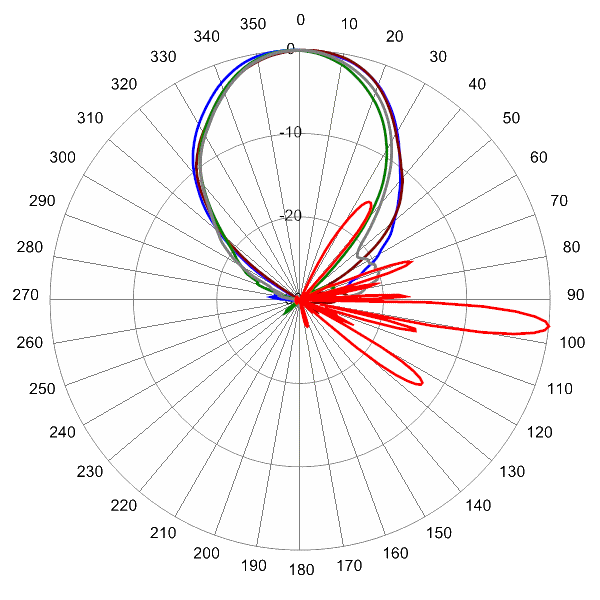

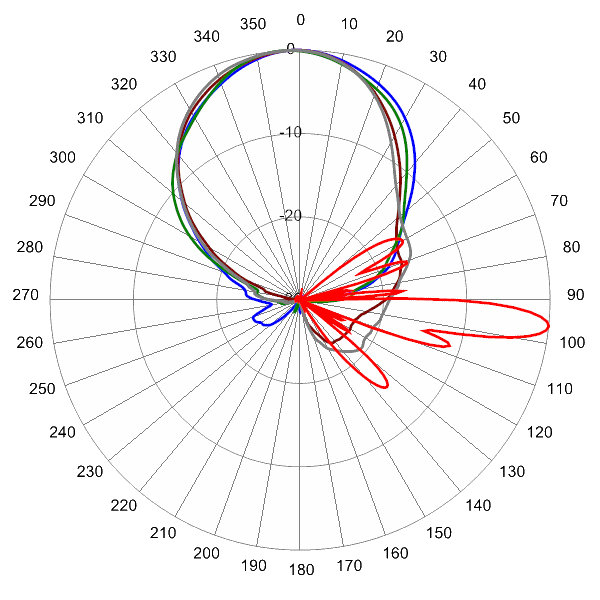

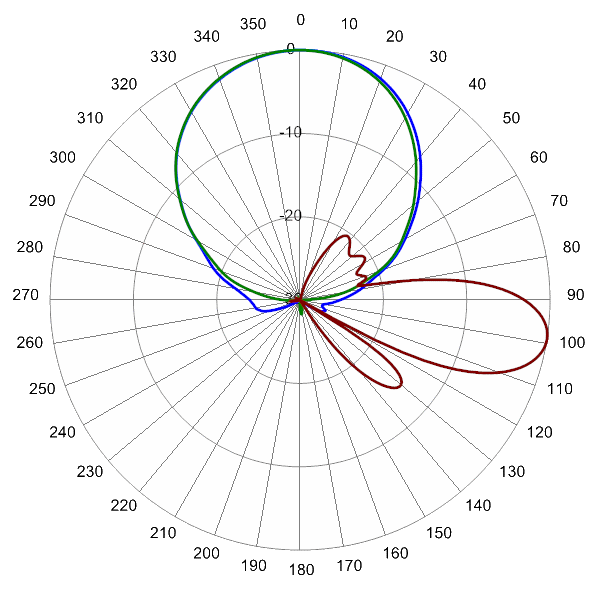

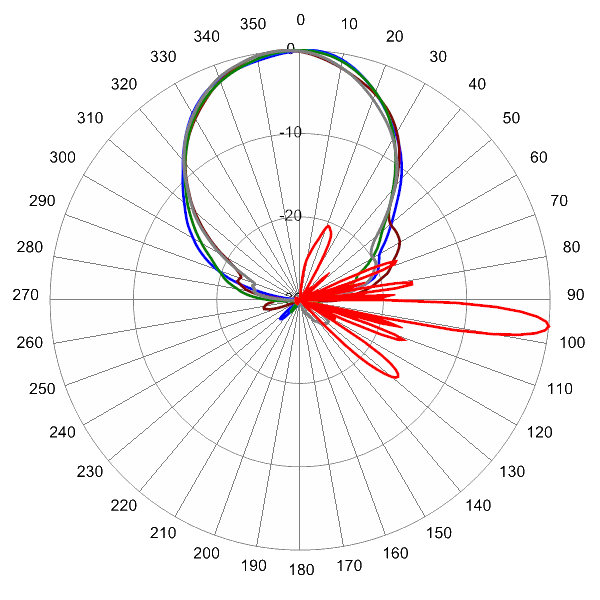

  • Five foot (1.4 m) multiband, eight port antenna with a 45° azimuth beamwidth covering 698-798, 824-896 MHz and 1695-2400 MHz frequencies

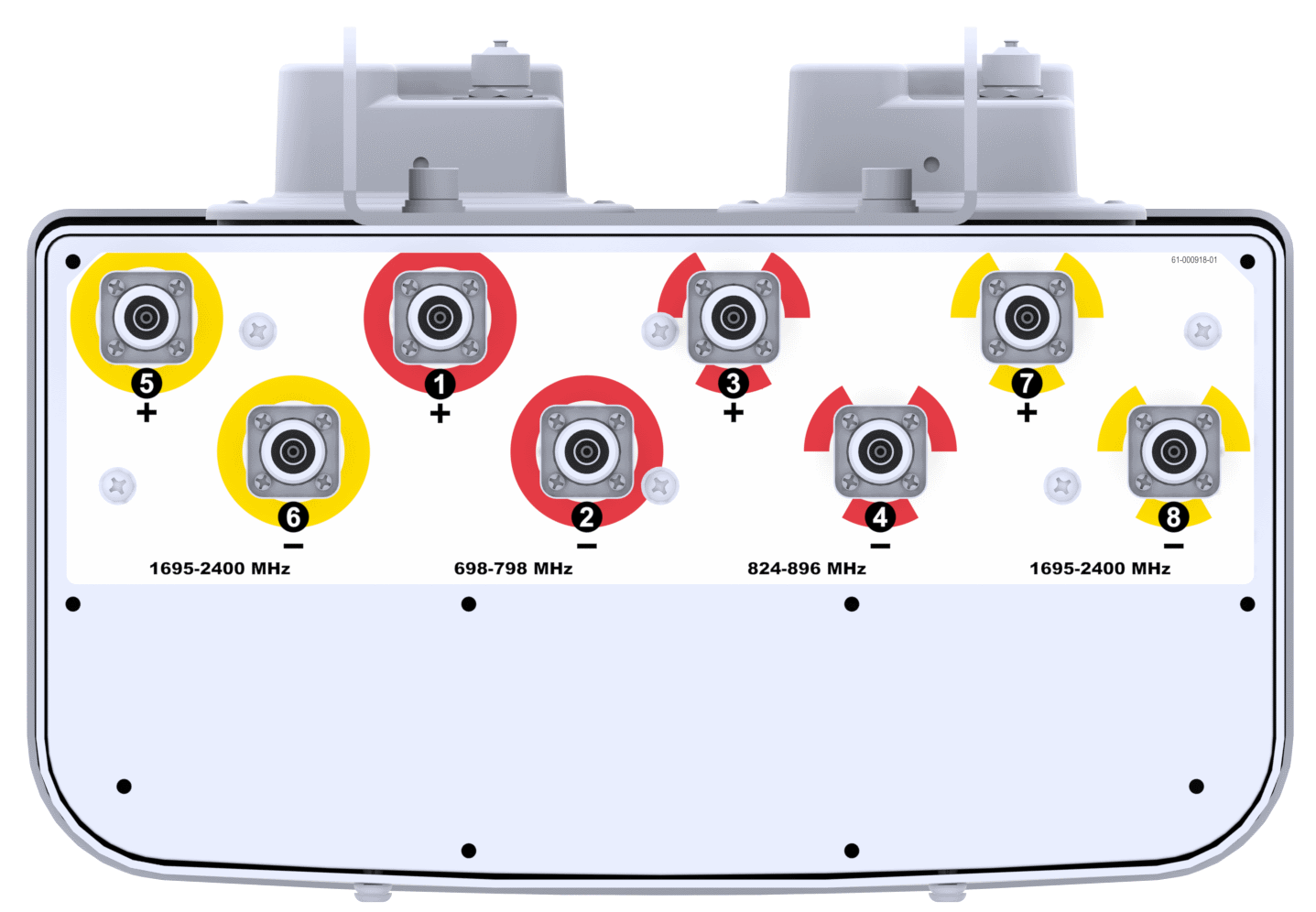

  • Four wide high band ports covering 1695-2400 MHz and four frequency specific low band ports covering 698-798 MHz and 824-896 MHz (over a distributed diplexer) in a single antenna
  • Full Spectrum Compliance for WCS and AWS-3 frequencies and upcoming Band 14 Operations
  • LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
  • LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
  • Exceeds minimum PIM performance requirements
  • Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector

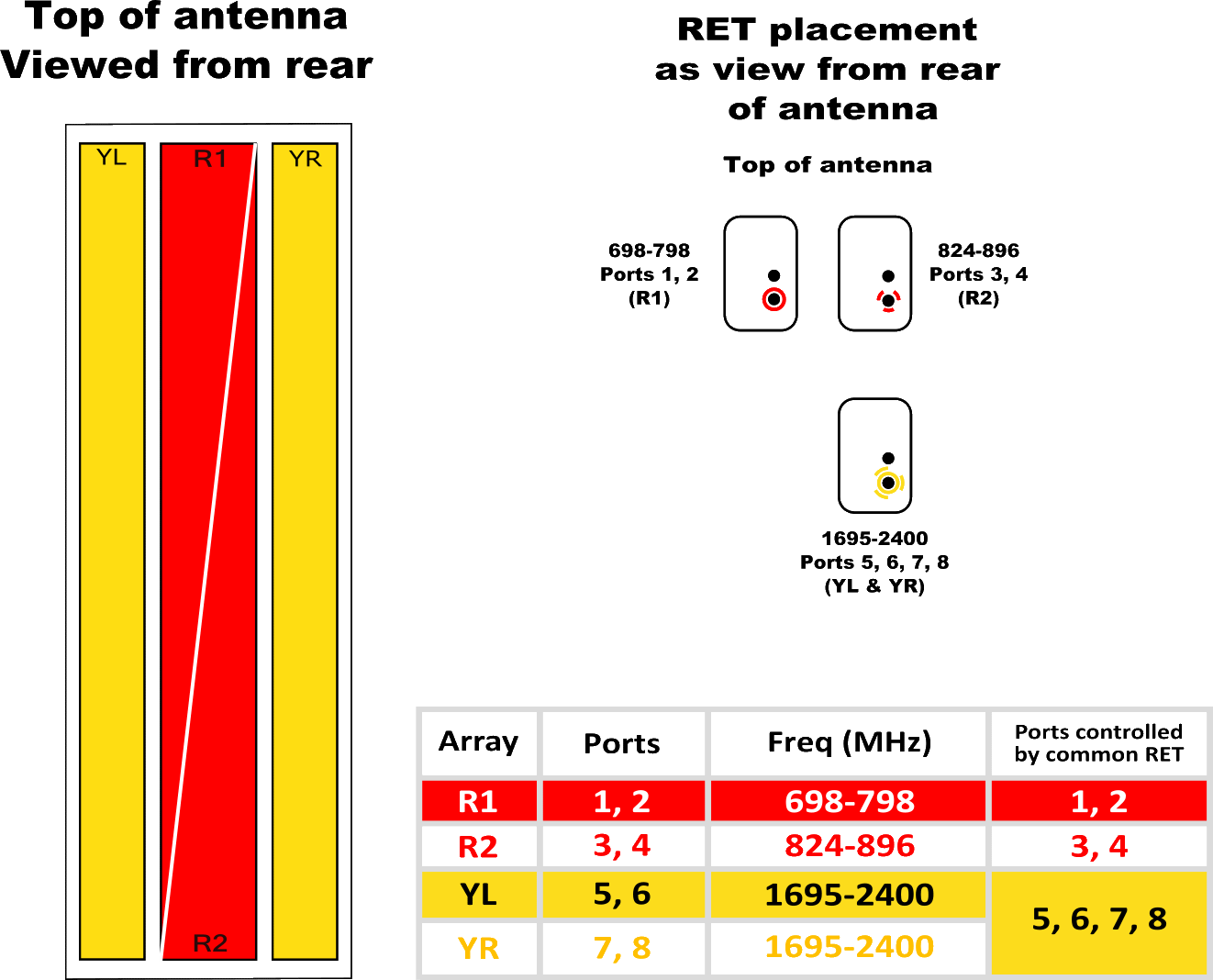

  • Equipped with 3 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) Controllers (Type 1 External)

MBK-02   MBK-02 Mounting Kit
BSA-RET200   Type 1 External Remote Electrical Tilt System (RET)
BSA-RET400   Type 17 External Remote Electrical Tilt System (RET)
HPA-CBK-AG-RRU   OctoPort antenna with 3 RET to RRU AISG cable kit
HPA-CBK-RA-AG-RRU   OctoPort antenna with 3 RET to RRU AISG right angle cable kit
SCU-AISG-P   Portable AISG 2.0 Site Control Unit
Configuration File
