Datasheet

Multi-Band Thirty Port Antenna

30PA65R-KO9A

Nine foot (2.7 m) internally multiplexed MultiBand, thirty port antenna, with a 65° azimuth beamwidth covering 698-960 MHz and 1427-2690 MHz frequencies
Supports multiple radios (up to 8) directly in 4T4R configurations without the need for additional combiners or filters
Six total low band ports covering 698-960MHz allowing for the use of the 700MHz, 800MHz and 900MHz bands each with separate Tx ports
Eight wide mid band ports allowing for Dual 4T4R and covering 1695-1880 for 1800 LTE
Four wide mid band ports allowing for 4T4R and covering 1695-2690 MHz
Eight wide mid band ports allowing for Dual 4T4R and covering 1695-1880 MHz for 1800 LTE
Eight wide mid band ports allowing for Dual 4T4R and covering 2300-2690 MHz
Full Spectrum Compliance for 698-960 MHz / 1427-2690 MHz operations
LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
Exceeds minimum PIM performance requirements
Internally Integrated RET Controllers (Type 17)
Equipped with 4.3-10 connector

Overview

The CCI internally multiplexed MultiBand array is a thirty-port antenna, with six wide low band ports covering within 698-960 MHz and 24 wide mid band ports covering within 1427-2690 MHz.

The antenna provides the capability to deploy 4T4R (4x4 MIMO) or Dual 4T4R (4x4 MIMO) on multiple frequencies within the Mid bands all with separate RET control.

CCI antennas are designed and produced to ISO 9001:2008 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

With CCI’s multiband antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical


Ports	2 × Low Band Ports for 698-862 MHz	2 × Low Band Ports for 880-960 MHz	2 × Low Band Ports for 698-960 MHz
Frequency Range	698-862 MHz	880-960 MHz	698-806 MHz	824-896 MHz	880-960 MHz
Gain	15.7 dBi	16.4 dBi	15.3 dBi	16.4 dBi	16.5 dBi
Azimuth Beamwidth (-3dB)	74°	59°	78°	67°	60°
Elevation Beamwidth (-3dB)	9.7°	7.8°	10.0°	8.3°	7.7°
Electrical Downtilt	2° to 14°	2° to 14°	2° to 14°	2° to 14°	2° to 14°
Elevation Sidelobes (1st Upper)	<-19 dB	<-17 dB	<-17 dB	<-18 dB	<-16 dB
Front-to-Back Ratio @180°	> 30 dB	> 32 dB	> 29 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 25 dB	> 23 dB	> 24 dB	> 25 dB	> 21 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	500 watts	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground	DC Ground
All specifications are subject to change without notice.

BASTA Electrical Specifications
Frequency Range	698-862 MHz	758-798 MHz	698-806 MHz	824-896 MHz	880-960 MHz
Gain over all Tilts (dBi)	14.7	15.8	14.4	15.4	15.8
Gain over all Tilts Tolerance (dB)	1.0	0.7	0.8	0.7	0.7
Gain at Low-Tilt (dBi)	14.8	15.8	14.6	15.5	15.9
Gain at Mid-Tilt (dBi)	14.9	16.2	14.7	15.6	16.0
Gain at High-Tilt (dBi)	14.3	15.4	14.1	15.0	15.5
Azimuth Beamwidth Tolerance (°)	14.0	9.6	8.8	13.5	6.3
Elevation Beamwidth Tolerance (°)	1.4	0.6	1.4	0.6	0.6
Electrical Downtilt Deviation (°)	1.1	0.9	1.0	0.8	0.8
First Upper Sidelobe Suppression (dB)	14.1	13.6	13.0	13.2	13.0
Upper Sidelobe Suppression Peak to 20°(dB)	15.5	13.3	14.4	13.3	13.0
Front-to-Back Ratio over ±20° (dB)	23.4	26.4	20.6	22.2	21.3
Cross-polar Discrimination at ±60° (dB)	7.9	9.3	10.1	8.3	5.2
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1. All specifications are subject to change without notice.


Ports	4 × Mid Band Ports for 1427-2690 MHz and 4 × Mid Band Ports for only 1695-2690 MHz
Frequency Range	1427-1518 MHz	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain¹	15.5 dBi	16.4 dBi	17.4 dBi	17.4 dBi	17.5 dBi	17. 5dBi
Azimuth Beamwidth (-3dB)	64°	70°	67°	68°	60°	66°
Elevation Beamwidth (-3dB)	8.8°	7.2°	6.6°	5.9°	5.0°	4.9°
Electrical Downtilt	2° to 10°	2° to 10°	2° to 10°	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	<-17 dB	<-17 dB	<-17 dB	<-17 dB	<-15 dB	<-14 dB
Front-to-Back Ratio @180°	> 30 dB	> 35 dB	> 35 dB	> 35 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 15 dB	> 16 dB	> 15 dB	> 15 dB	> 20 dB	> 16 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB	> 25 dB	> 20 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground	DC Ground	DC Ground
¹Peak gain across sub-bands. All specifications are subject to change without notice.


BASTA Electrical Specifications
Frequency Range	1427-1518 MHz	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain over all Tilts (dBi)	14.5	15.5	15.9	16.2	16.3	16.0
Gain over all Tilts Tolerance (dB)	0.8	0.7	0.9	0.7	0.5	0.8
Gain at Low-Tilt (dBi)	14.5	15.5	15.5	15.8	16.2	16.1
Gain at Mid-Tilt (dBi)	14.5	15.6	16.0	16.3	16.5	16.2
Gain at High-Tilt (dBi)	14.4	15.5	16.1	16.4	16.1	15.9
Azimuth Beamwidth Tolerance (°)	15.7	7.4	8.4	8.2	12.1	12.9
Elevation Beamwidth Tolerance (°)	0.4	0.6	0.5	0.7	0.3	0.3
Electrical Downtilt Deviation (°)	1.0	0.7	0.7	0.7	0.6	0.6
First Upper Sidelobe Suppression (dB)	9.6	11.9	12.1	12.1	10.0	9.1
Upper Sidelobe Suppression Peak to 20°(dB)	9.6	12.3	12.4	11.8	9.1	9.0
Front-to-Back Ratio over ±20° (dB)	19.1	21.8	22.8	24.3	26.4	26.4
Cross-polar Discrimination at ±60° (dB)	4.0	8.5	6.0	5.9	6.2	8.4
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1. All specifications are subject to change without notice.


Ports	8 × Mid Band Ports for 1695-1880 MHz	8 × Mid Band Ports for 2300-2690 MHz
Frequency Range	1695-1880 MHz	2300-2400 MHz	2496-2690 MHz
Gain	16.7 dBi	17.3 dBi	17.3 dBi
Azimuth Beamwidth (-3dB)	71°	63°	67°
Elevation Beamwidth (-3dB)	7.2°	5.0°	4.9°
Electrical Downtilt	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	<-17 dB	<-16 dB	<-14 dB
Front-to-Back Ratio @180°	> 32 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 17 dB	> 24 dB	> 25 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 21 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground
All specifications are subject to change without notice.

BASTA Electrical Specifications
Frequency Range	1695-1880 MHz	2300-2400 MHz	2496-2690 MHz
Gain over all Tilts (dBi)	15.7	16.5	16.1
Gain over all Tilts Tolerance (dB)	0.6	0.6	0.8
Gain at Low-Tilt (dBi)	15.8	16.8	16.7
Gain at Mid-Tilt (dBi)	15.8	16.7	16.1
Gain at High-Tilt (dBi)	15.5	16.1	15.7
Azimuth Beamwidth Tolerance (°)	5.5	10.2	11.5
Elevation Beamwidth Tolerance (°)	0.6	0.3	0.3
Electrical Downtilt Deviation (°)	0.5	0.5	0.5
First Upper Sidelobe Suppression (dB)	12.2	8.6	9.2
Upper Sidelobe Suppression Peak to 20°(dB)	13.2	8.2	9.5
Front-to-Back Ratio over ±20° (dB)	19.5	25.8	27.5
Cross-polar Discrimination at ±60° (dB)	3.7	6.0	7.4
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	106.3×19.6×10.2 in (2700×498×260 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load¹	307 lbf @ 100 mph 1366 N @ 161 kph
Side Wind Load¹	122 lbf @ 100 mph 541 N @ 161 kph
Effective Projective Area (EPA), Front¹	12.2 ft² (1.1 m²)
Weight*	150.4 lbs (68.2 kg)
Connector	30 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)
¹Windload values calculated using CFD analysis * Weight excludes mounting kit

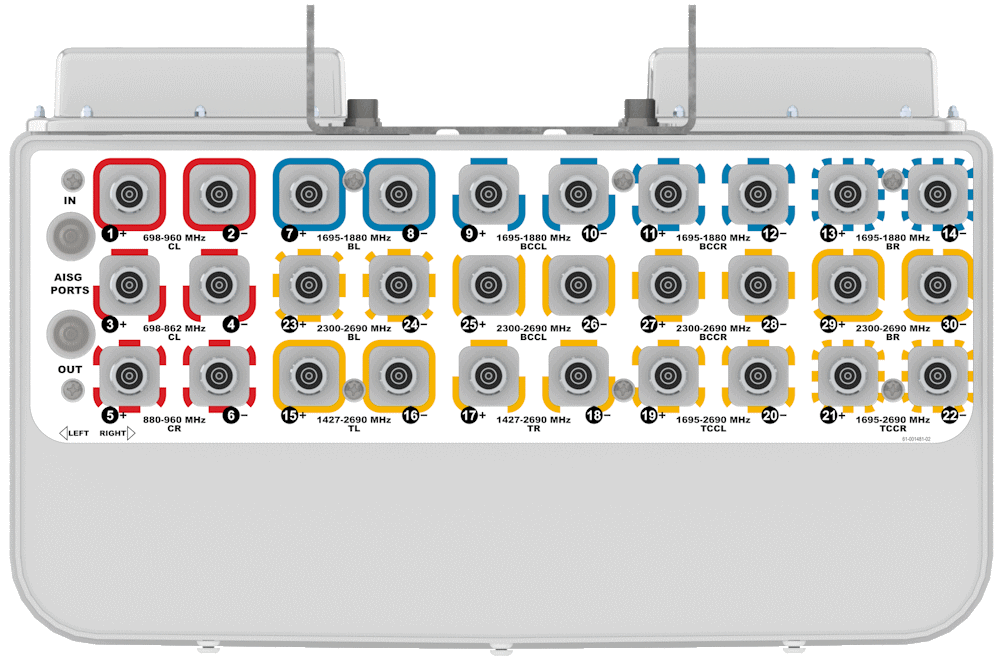

Bottom View	30PA65R-KO9A

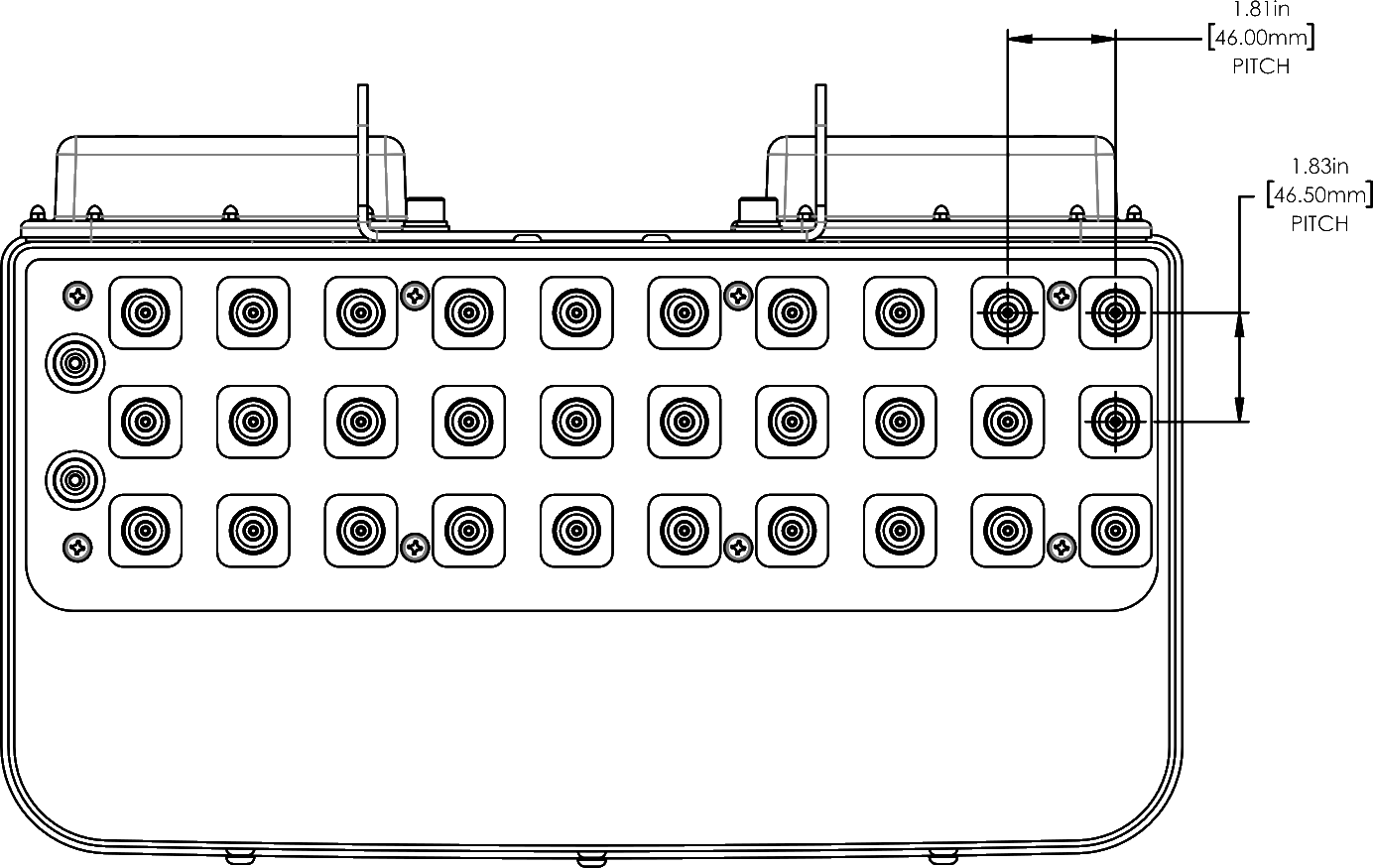

Connector Spacing	30PA65R-KO9A (Type 17 Internal RET)

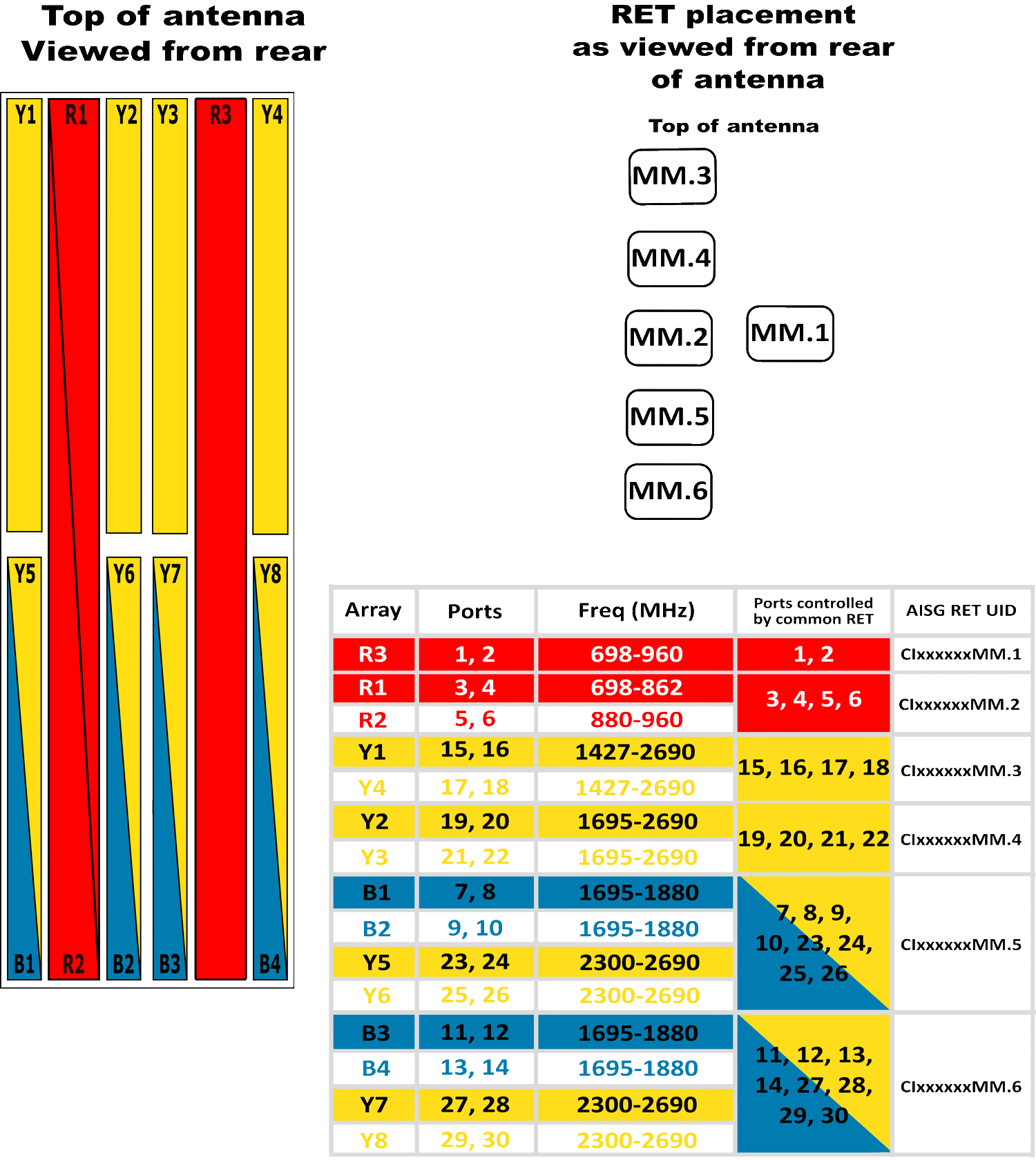

RET to Element Configuration	30PA65R-KO9AA Element and RET configuration (Type 17 Internal RET)

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

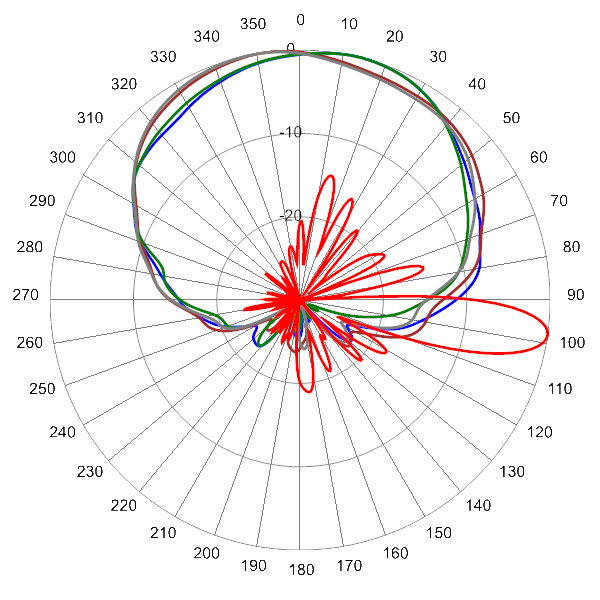

	710 MHz Azimuth with Elevation 8° (Ports 1, 2, 3 & 4)	824 MHz Azimuth with Elevation 8° (Ports 1, 2, 3 & 4)

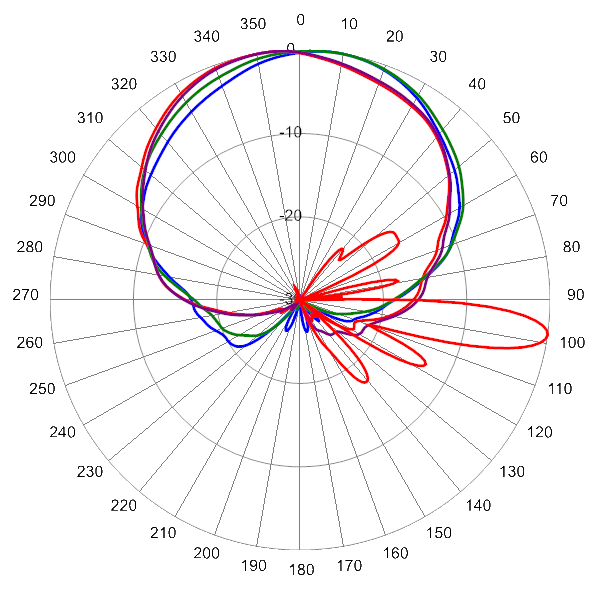

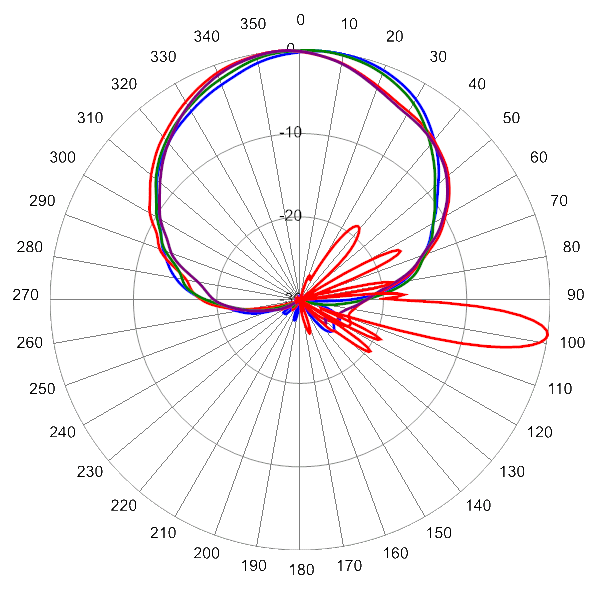

	880 MHz Azimuth with Elevation 8° (Ports 1, 2, 5 & 6)	945 MHz Azimuth with Elevation 8° (Ports 1, 2, 5 & 6)

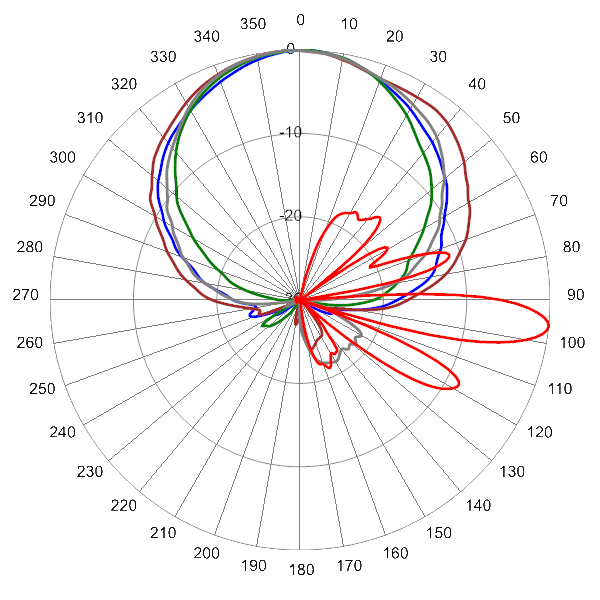

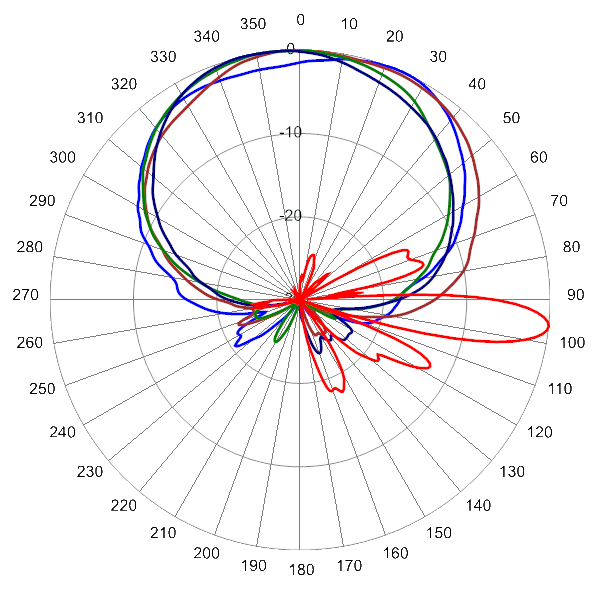

	1455 MHz Azimuth with Elevation 6° (Ports 15 to 18)	1518 MHz Azimuth with Elevation 6° (Ports 15 to 18)

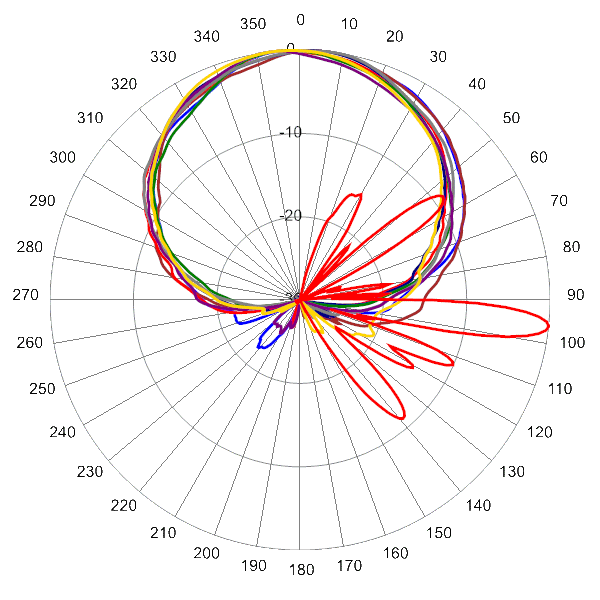

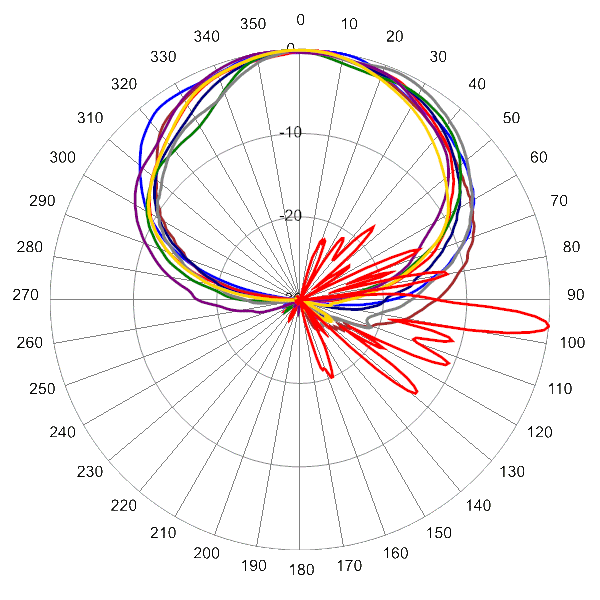

	1990 MHz Azimuth with Elevation 6° (Ports 15 to 18)	2500 MHz Azimuth with Elevation 6° (Ports 15 to 18)

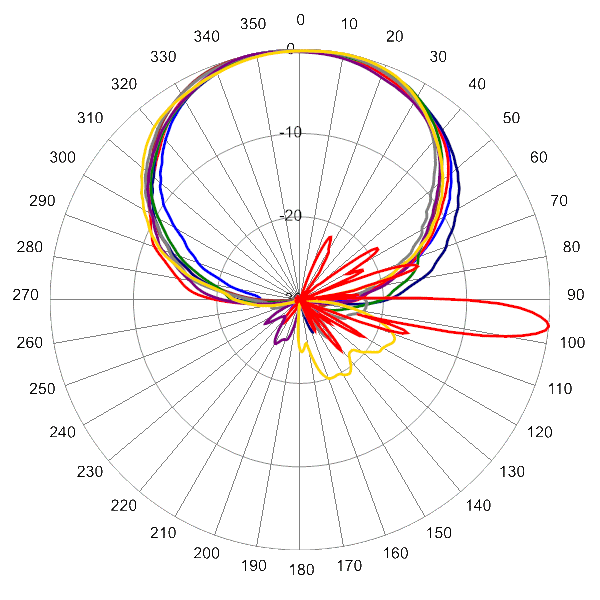

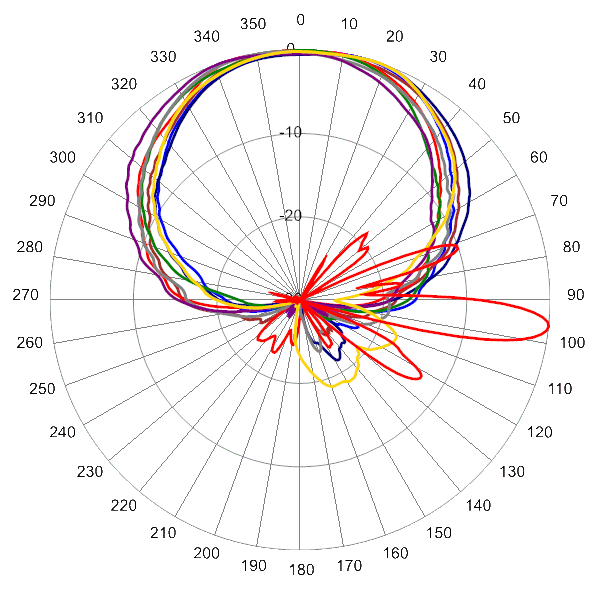

	1695 MHz Azimuth with Elevation 6° (Ports 7 to 14)	1850 MHz Azimuth with Elevation 6° (Ports 7 to 14)

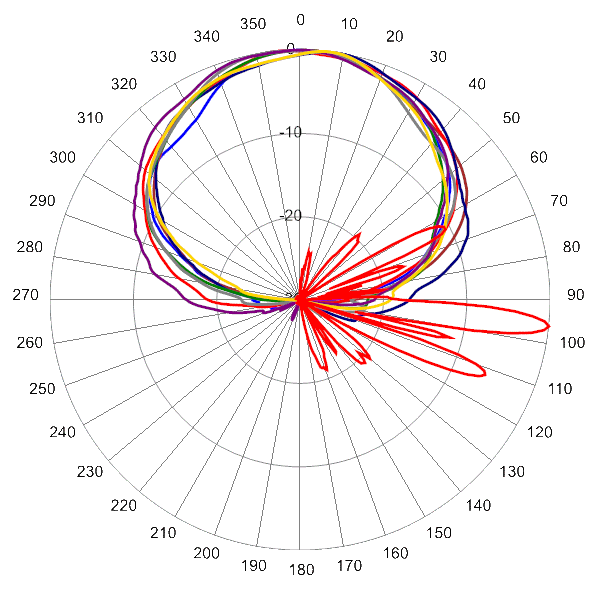

	2340 MHz Azimuth with Elevation 4° (Ports 23 to 30)	2630 MHz Azimuth with Elevation 4° (Ports 23 to 30)

MBK-01		MBK-01 Mounting Kit with with 0° to 10° mechanical tilt adjustment
MBK-16		MBK-16 Mounting Kit with fixed 0° mechanical tilt
BSA-RET400		Type 17 Internal Remote Electrical Tilt System (RET)
AISGC-M-F-10FT		10 Foot (3 M) Male/Female AISG cable for Type 17 RET
SCU-AISG-P		Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	30PA65R-KO9A Connector Spacing Diagram
	30PA65R-KO9AA RET/Array Config Diagram
	MBK-01 Installation Guide
	MBK-16 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

30PA65RKO9A: Text/Planet Format - Default Azimuth

Parts & Accessories

30PA65R-KO9AA-K	Nine foot (2.7 m) antenna with 65° azimuth beamwidth, 4.3-10 female connectors, 5 factory installed BSA-RET400 RET actuators (Type 17 internal) and MBK-01 mounting bracket
MBK-01	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
MBK-16	Mounting Kit with fixed 0° mechanical tilt
BSA-RET400	Type 17 Internal Remote Electrical Tilt System (RET)
AISGC-M-F-xFT AISGC-M-F-10FT	10 Ft (3 m) Male/Female RRU to Antenna AISG cable

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions
