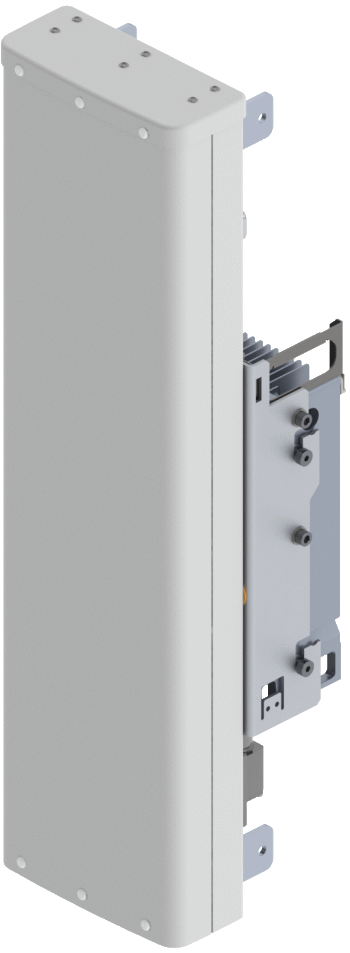

| Quad Port High-Band Antenna | QPA65R-H3A | |||
Pattern Viewer |
 |
|
Mechanical
| Dimensions (L×W×D) | 38.4×10.1×4.3 in (975×256×108 mm) |
| Survival Wind Speed | > 201 mph (> 90 m/s) |
| Front Wind Load1 | 59 lbf @ 100 mph 264 N @ 161 kph |
| Side Wind Load1 | 40 lbf @ 100 mph 178 N @ 161 kph |
| Front Wind Load1 | 228 lbf @ 201 mph 1014 N @ 324 kph |
| Side Wind Load1 | 151 lbf @ 201 mph 671 N @ 324 kph |
| Effective Projective Area (EPA), Front1 | 2.4 ft2 (0.2 m2) |
| QPA65R-H3AA Weight* | 45.0 lbs (20.4 kg) |
| QPA65R-H3AA Weight** | 20.9 lbs (9.5 kg) |
| Connector | 4 × custom blind-mate 4.3-10 connectors |
| Mounting Pole | 3.5 to 5.5 in (8.9 to 14.0 cm) |
| 1Windload values calculated using CFD analysis * Weight excludes mounting kit and calculated with a weight of 20.9 lbs (9.9 kg) for the Zillnk Radio ** Weight excludes mounting, radio interconnect parts and radio |
|

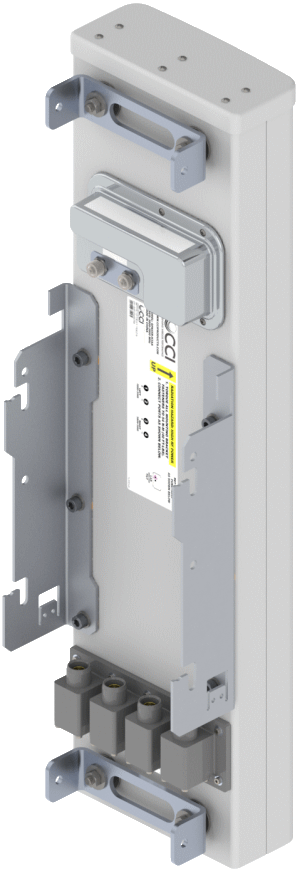

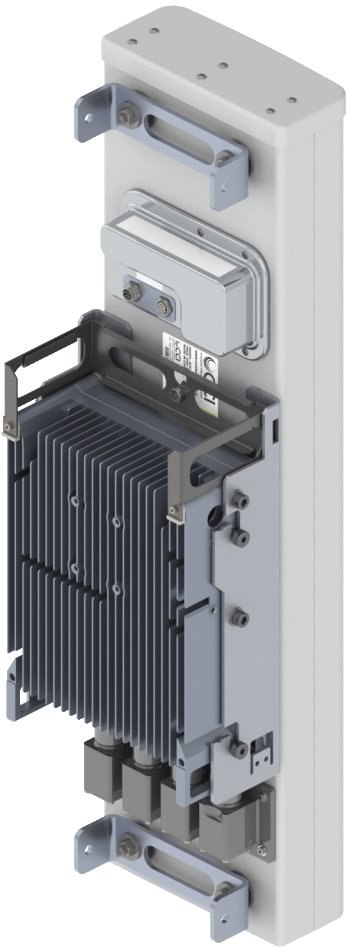

| Rear View | QPA65R-H3AA | QPA65R-H3AA w/o RRU |
|
 |

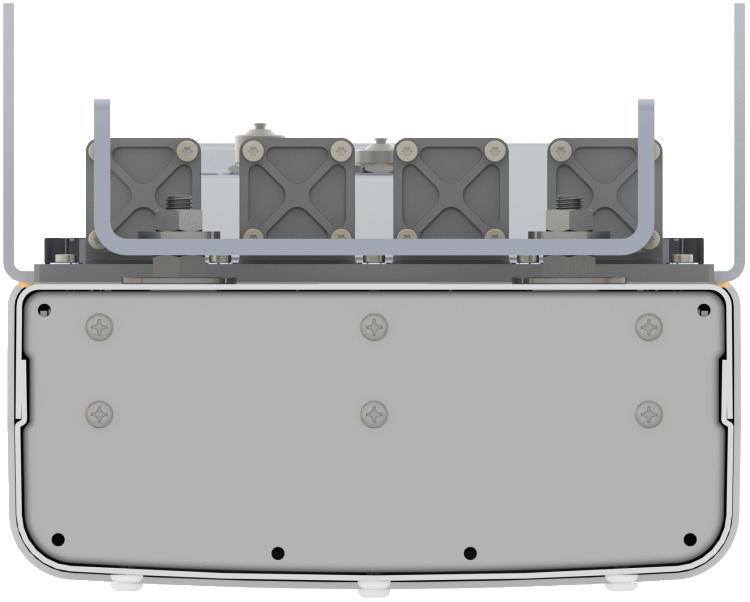

| Bottom View | QPA65R-H3AA w/o RRU |
 |
| RET/Element Configuration | QPA65R-H3AA |
 |
| Model BSA-RET200 | Type 1 External Remote Electrical Tilt System (RET) | |
| MBK-30 | Single antenna mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment and ±30° of azimuth swing adjustment | |
| MBK-31 | Tri antenna mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment and ±30° of azimuth swing adjustment | |
| RM-04 | Interconnect system for Zillnk Radio | |
| TL-02 | Tool for installation and removal of RRU on antenna | |
| TL-03 | 3 way lifting handle for Zillnk radio | |
| AISGC-M-FRA-39 | 59 in (1.5 m) Male/ Right Angle Female AISG cable for Type 1 RET | |
| SCU-AISG2-P | Portable AISG 2.0 Site Control Unit |

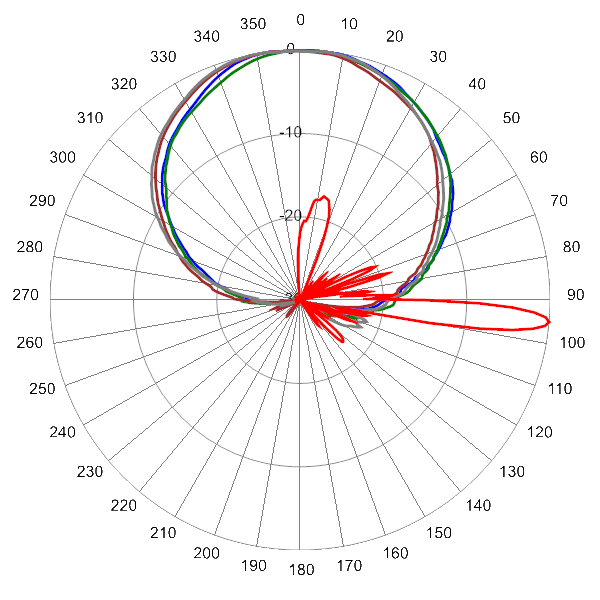

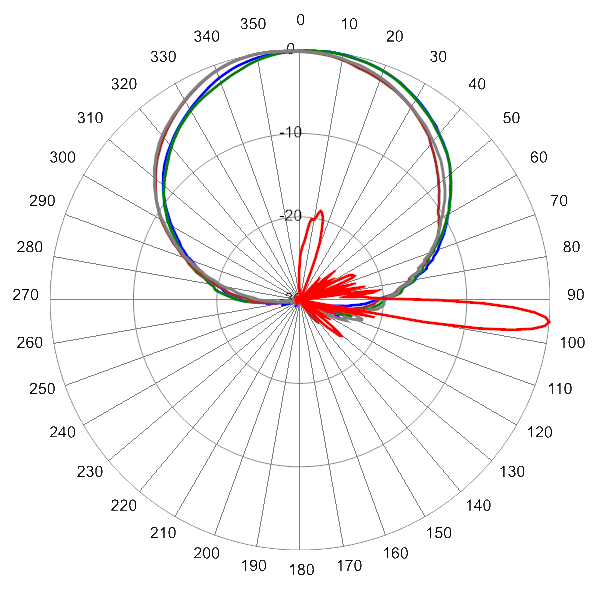

Antenna Pattern
