Datasheet

LowBand Antenna

2PA65R-K8A

Eight foot (2.4 m), two port antenna with a 65° azimuth beamwidth covering 698-960 MHz frequencies
Two wide low band ports covering 698-960 MHz in a single antenna
Full Spectrum Compliance 698-960 MHZ
LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
Exceeds minimum PIM performance requirements
4.3-10 connector, which are 40% smaller than traditional 7/16 DIN connector

Overview

The CCI antenna is a two port antenna, with two wide low band ports covering 698-960 MHz. The CCI antenna provides the capability to deploy 2x2 Multiple-input Multiple-output in the low band.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

2×2 MIMO for the low band
Ready for Network Standardization on 4.3-10 connectors
With CCI’s antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical

Ports	2 × Low Band Ports for 698-960 MHz
Frequency Range	698-806 MHz	790-862 MHz	824-896 MHz	880-960 MHz
Gain	15.9 dBi	16.4 dBi	16.6 dBi	16.5 dBi
Azimuth Beamwidth (-3dB)	70°	75°	74°	69°
Elevation Beamwidth (-3dB)	9.2°	8.2°	7.9°	7.3°
Electrical Downtilt	0° to 10°	0° to 10°	0° to 10°	0° to 10°
Elevation Sidelobes (1st Upper)	<-20 dB	<-20 dB	<-19 dB	<-18 dB
Front-to-Back Ratio @180°	> 28 dB	> 30 dB	> 30 dB	> 30 dB
Cross-Polar Discrimination at Peak	> 24 dB	> 24 dB	> 22 dB	> 22 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications*
Frequency Range	694-806 MHz	790-862 MHz	824-896 MHz	880-960 MHz
Gain over all Tilts (dBi)	15.6	15.8	16.1	16.2
Gain over all Tilts Tolerance (dB)	0.4	0.3	0.4	0.3
Gain at Low-Tilt (dBi)	15.7	15.8	16.1	16.2
Gain at Mid-Tilt (dBi)	15.7	15.9	16.2	16.3
Gain at High-Tilt (dBi)	15.4	15.8	15.9	16.1
Azimuth Beamwidth Tolerance (°)	3.5	2.3	4.1	3.2
Elevation Beamwidth Tolerance (°)	0.9	0.5	0.5	0.6
Electrical Downtilt Deviation (°)	0.5	0.4	0.4	0.5
First Upper Sidelobe Suppression (dB)	14.7	15.2	14.9	15.1
Upper Sidelobe Suppression Peak to 20° (dB)	15.6	15.2	14.9	15.2
Front-to-Back Ratio over ±20° (dB)	24.7	27.7	27.8	28.4
Cross-polar Discrimination at ±60° (dB)	9.3	9.1	9.1	9.3
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	96.0×11.7×8.3 in (2439×297×211 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load¹	175 lbf @ 100 mph 780 N @ 161 kph
Side Wind Load¹	139 lbf @ 100 mph 617 N @ 161 kph
Effective Projective Area (EPA), Front¹	7.0 ft² (0.6 m²)
Weight *	49.8 lbs (22.6 kg)
RF Connector	2 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)
¹Windload values calculated using CFD analysis * Weight excludes mounting

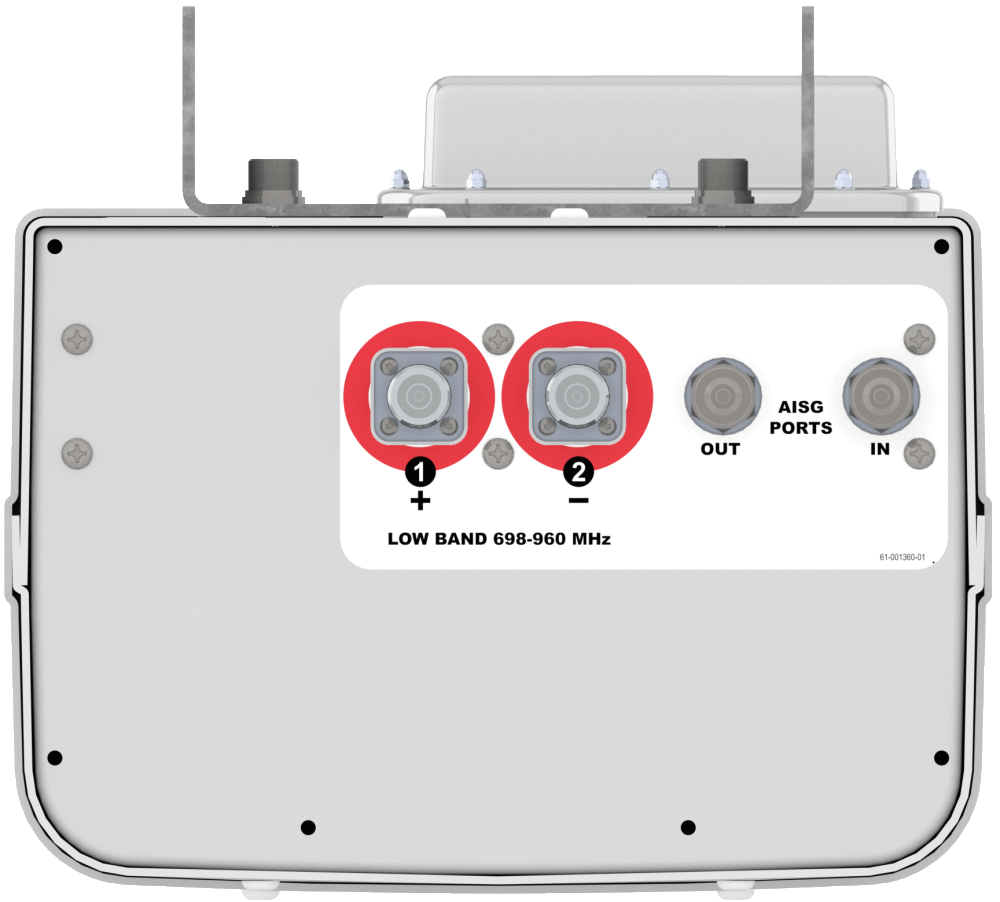

Bottom View	2PA65R-K8A

Connection Spacing Diagram	2PA65R-K8A

RET to Element Configuration	2PA65R-K8AA Element and RET configuration

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

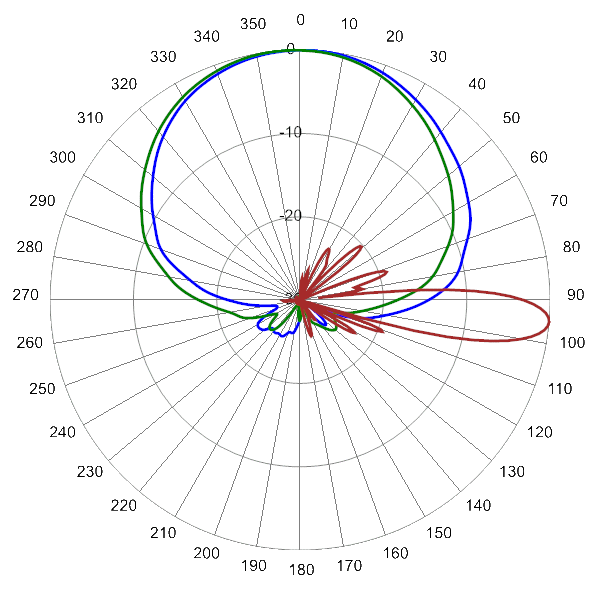

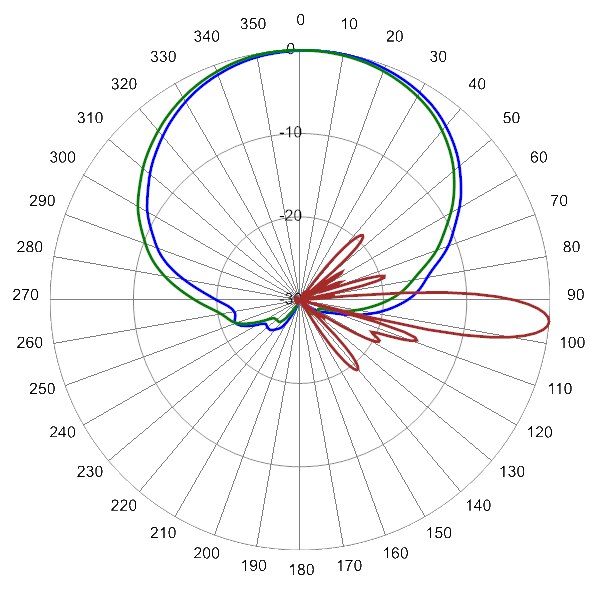

	710 MHz Azimuth with Elevation 5°	806 MHz Azimuth with Elevation 5°

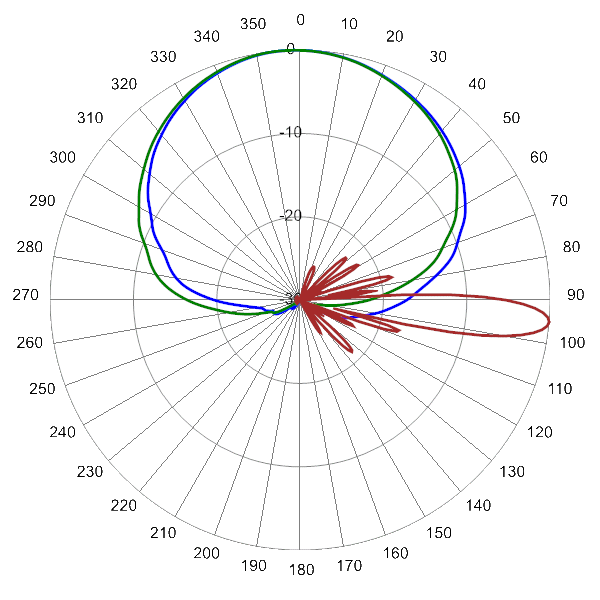

	880 MHz Azimuth with Elevation 5°	945 MHz Azimuth with Elevation 5°

MBK-01		MBK-01 Mounting Kit with 0° - 10° mechanical tilt
MBK-16		MBK-16 Mounting Kit with fixed 0° mechanical tilt
BSA-RET400		Remote Electrical Tilt System (RET)
AISGC-M-F-10FT		10 Foot (3 M) Male/Female AISG cable
SCU-AISG-P		Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	2PA65R-K8AA Connector Spacing Diagram
	2PA65R-K8AA Antenna/RET Config Diagram
	MBK-01 Installation Guide
	MBK-16 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

2PA65RK8A: Text/Planet Format - Default Azimuth

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET400 SA-DC0401
Configuration File	Version
Y004512R1.BIN	2

Parts & Accessories

2PA65R-K8AA-K	Eight foot (2.4 m) LowBand antenna with 65° azimuth beamwidth, 4.3-10 female connectors, 1 factory installed BSA-RET400 RET actuators and MBK-01 mounting bracket
MBK-01	MBK-01 Mounting Kit with 0° - 10° mechanical tilt
MBK-16	MBK-16 Mounting Kit with fixed 0° mechanical tilt
BSA-RET400	Type 17 Internal remote electrical tilt actuator
AISGC-M-F-xFT AISGC-M-F-10FT	10 Ft (3 m) Male/Female RRU to Antenna AISG cable

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
