      TriBand Eight Port Antenna OPA65R-KE4D




  PI OPA65RKE4DA EXT FRONT ISO PI OPA65RKE4DA EXT REAR ISO
  • Four foot (1.2 m) TriBand, eight port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies

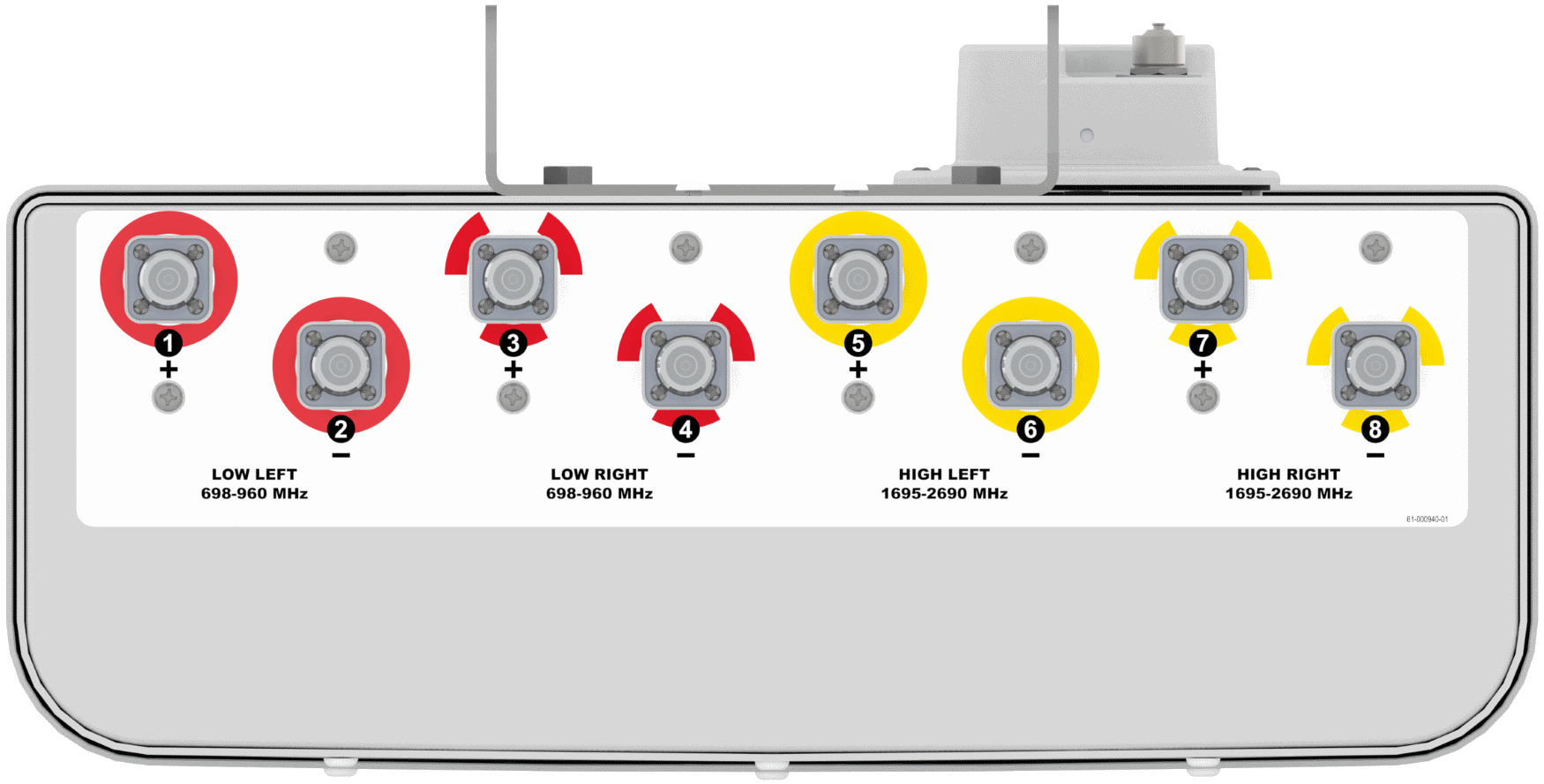

  • Four wide high band ports covering 1695-2690 MHz and four wide low band ports covering 698-960 MHz in a single antenna enclosure
  • Full Spectrum Compliance 698-960 MHz / 1695-2690 MHz
  • Array configuration allows for 4T4R (4X4 MIMO) on Low Band and 4T4R (4X4 MIMO) on High Band
  • LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
  • LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
  • Exceeds minimum PIM performance requirements
  • Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
  • Equipped with 2 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) Controllers (Type 1 External)
MBK-02   MBK-02 Mounting Kit
BSA-RET200   Remote Electrical Tilt System (RET)
CBK-AG-RRU-001   AISG Cable set for two RET antenna
CBK-RA-AG-RRU-005   AISG Right Angle Cable set for two RET Antenna
SCU-AISG2-P   Portable AISG 2.0 Site Control Unit
Configuration File
