Datasheet

Two Port High-Band Antenna

2PA65R-E5A

Five foot (1.5 m), WideBand, two port antenna with a 65° azimuth beamwidth covering 1695-2690 MHz frequencies
Two wide high band ports covering 1695-2690 MHz, with full spectrum compliance
Narrow enclosure with 10.1” (257 mm) width, reducing tower loading issues
LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
Exceeds minimum PIM performance requirements
4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
Equipped with 1 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) controller

Overview

The CCI WideBand Antenna is a two port antenna, with two wide high band ports covering 1695-2690 MHz. The CCI WideBand Antenna provides the capability to deploy 2×2 Multiple-input Multiple-output (MIMO). The CCI WideBand antenna single RET configuration tilts both ports together, allowing for electrical downtilt uniformity across both ports.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

2×2 MIMO for the high band
Ready for Network Standardization on 4.3-10 DIN connectors
With CCI’s WideBand Antennas, wireless providers can connect platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical

Ports	2 × High Band Ports for 1695-2690 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain	17.3 dBi	17.5 dBi	18.3 dBi	18.0 dBi	17.9 dBi
Azimuth Beamwidth (-3dB)	69°	68°	67°	65°	64°
Elevation Beamwidth (-3dB)	6.5°	5.9°	5.4°	4.5°	4.4°
Electrical Downtilt	0° to 10°	0° to 10°	0° to 10°	0° to 10°	0° to 10°
Elevation Sidelobes (1st Upper)	< -16 dB	< -17 dB	< -17 dB	< -16 dB	< -18 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB	> 35 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination (at Peak)	> 21 dB	> 20 dB	> 22 dB	> 25 dB	> 22 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio(VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Pol 45°	Dual Pol 45°	Dual Pol 45°	Dual Pol 45°	Dual Pol 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain over all Tilts (dBi)	16.8	17.1	17.5	17.6	17.1
Gain over all Tilts Tolerance (dB)	0.3	0.4	0.5	0.3	0.7
Gain at Low-Tilt (dBi)	16.7	16.9	17.3	17.5	17.2
Gain at Mid-Tilt (dBi)	16.9	17.3	17.7	17.8	17.2
Gain at High-Tilt (dBi)	16.9	17.2	17.4	17.6	16.7
Azimuth Beamwidth Tolerance (°)	2.1	2.1	2.0	1.7	3.1
Elevation Beamwidth Tolerance (°)	0.4	0.3	0.6	0.2	0.2
Electrical Downtilt Deviation (°)	0.7	0.6	0.6	0.7	0.8
First Upper Sidelobe Suppression (dB)	14.5	15.5	14.7	13.0	18.8
Upper Sidelobe Suppression Peak to 20° (dB)	14.4	15.4	14.5	13.0	16.1
Front-to-Back Ratio over ±20° (dB)	32.8	32.5	32.4	33.9	33.2
Cross-polar Discrimination at ±60° (dB)	11.2	8.2	7.7	8.0	8.2

Mechanical

Dimensions (L×W×D)	58.2×10.1×4.2 in (1479×257×106 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load	141 lbs (626 N) @ 100 mph (161 kph)
Side Wind Load	70 lbs (312 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	5.5 ft² (0.5 m²)
Weight *	25.4 lbs (11.5 kg)
Connector	2 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting

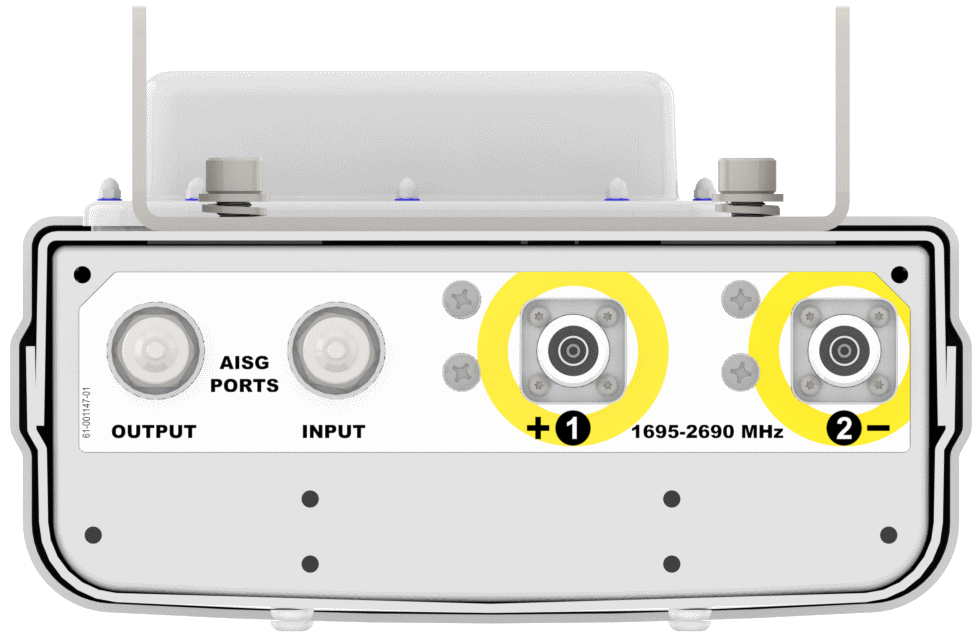

Bottom View

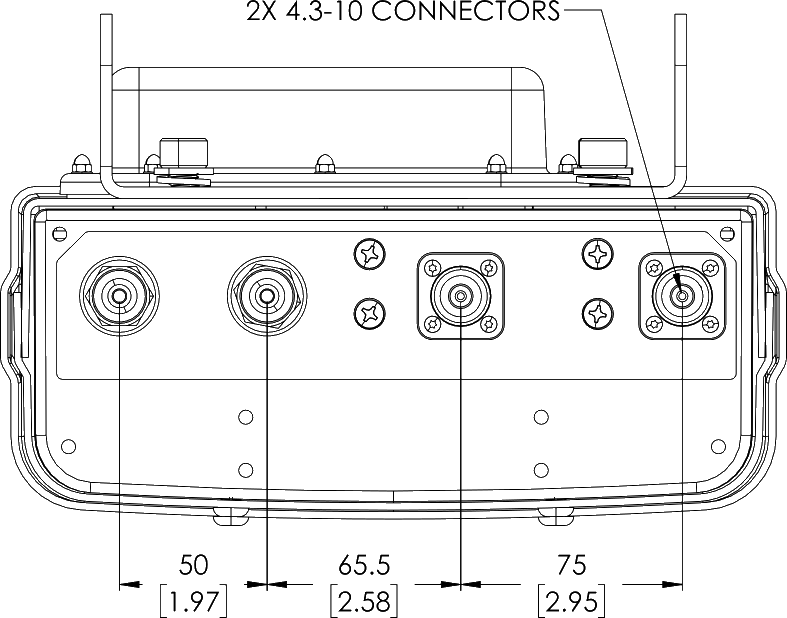

Connector Spacing

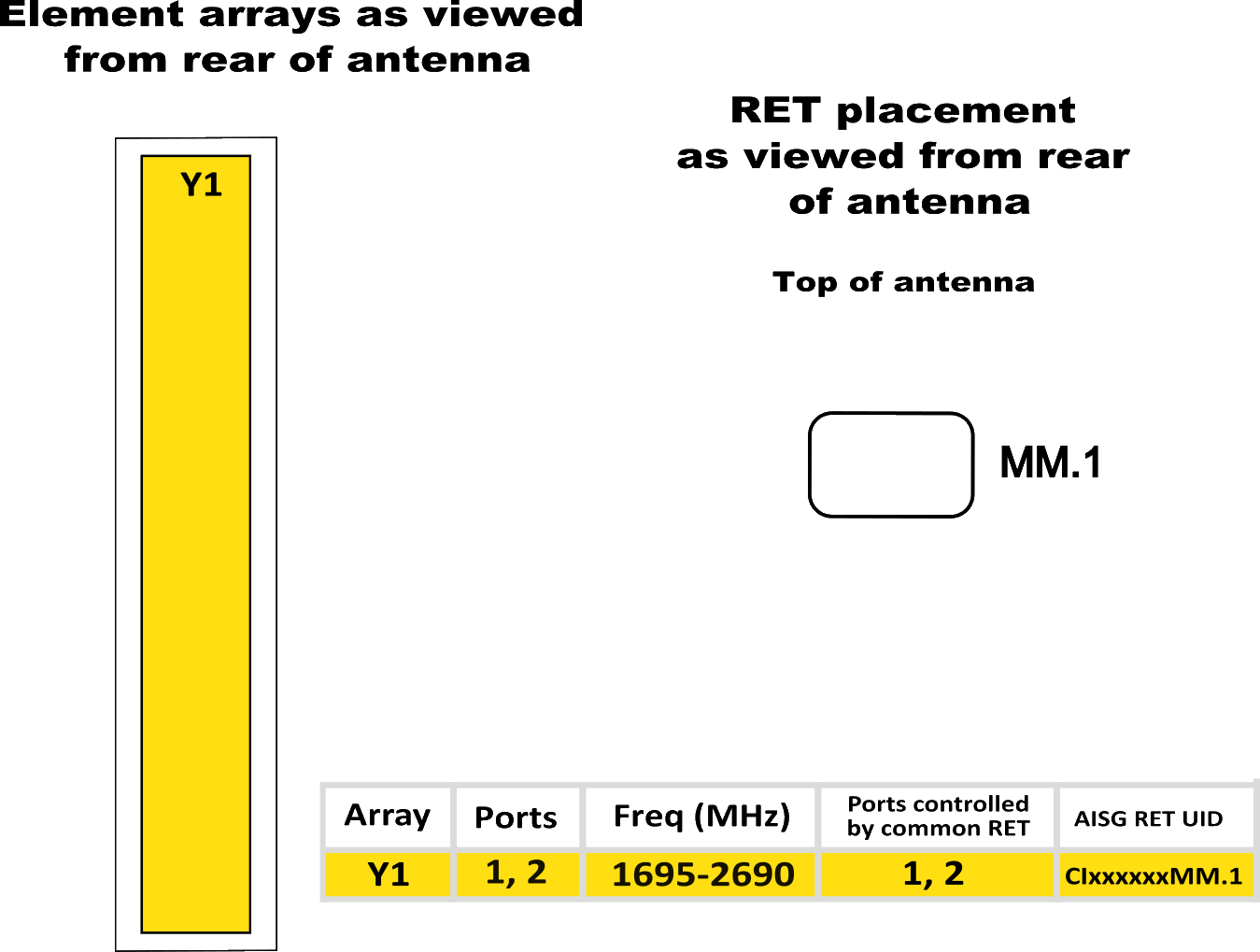

RET to Element Configuration

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

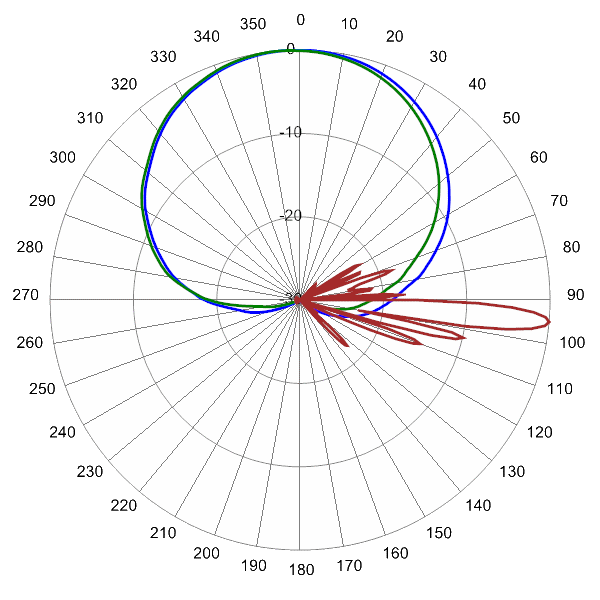

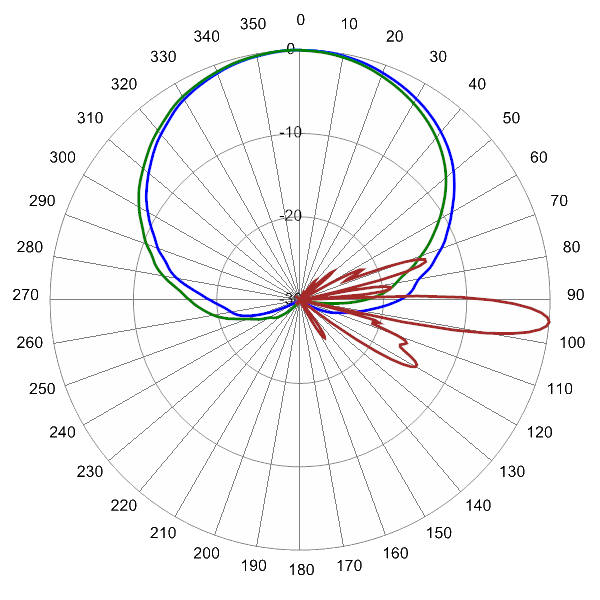

	1740 MHz Azimuth & Elevation 5°	2155 MHz Azimuth & Elevation 5°

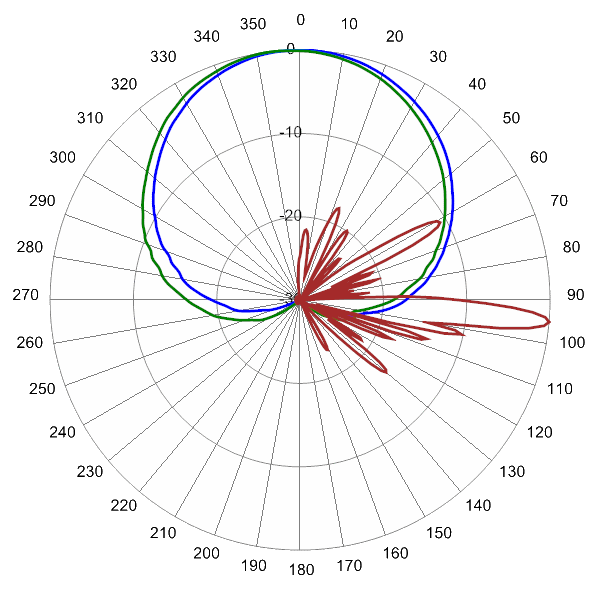

	2360 MHz Azimuth & Elevation 5°	2580 MHz Azimuth & Elevation 5°

Model BSA-RET400		Remote Electrical Tilt System (RET)
MBK-02		Mounting bracket kit(top and bottom) with 0° to 10° mechanical tilt adjustment
AISGC-M-F-10FT		10 Ft (3 m) Male/Female RRU to Antenna AISG cable
SCU-AISG2-P		Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	2PA65R-E5A Connector Spacing Drawing
	2PA65R-E5A RET to Element Configuration Diagram
	MBK-02 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

2PA65RE5A: Text/Planet Format - Default Azimuth

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET400 SA-DC0401
Configuration File	Version
Y004342Y1.BIN	2

Parts & Accessories

2PA65R-E5AA-K	Five foot (1.5 m) QuadPort antenna with 65° azimuth beamwidth, 4.3-10 female connectors, 1 factory installed BSA-RET400 RET actuators (Type 17 internal) and MBK-02 mounting brackets
MBK-02	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
BSA-RET400	Remote electrical tilt actuator
AISGC-M-F-xFT AISGC-M-F-10FT	10 Ft (3 m) Male/Female RRU to Antenna AISG cable

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
