Multi-Band Eight Port Antenna | OPA65R-BU8D | |||
|
MBK-01 | MBK-01 Mounting Kit with with 0° to 10° mechanical tilt adjustment | |
MBK-16 | MBK-16 Mounting Kit with fixed 0° mechanical tilt | |
BSA-RET200 | Type 1 External Remote Electrical Tilt System (RET) | |
BSA-RET400 | Type 17 Internal Remote Electrical Tilt System (RET) | |
CBK-AG-RRU-002 | AISG Cable set for two RET antenna with Type 1 RET | |
CBK-RA-AG-RRU-005 | AISG Right Angle Cable set for two RET antenna with Type 1 RET | |
AISGC-M-F-10FT | 10 Foot (3 M) Male/Female AISG cable for Type 17 RET | |
SCU-AISG-P | Portable AISG 2.0 Site Control Unit |

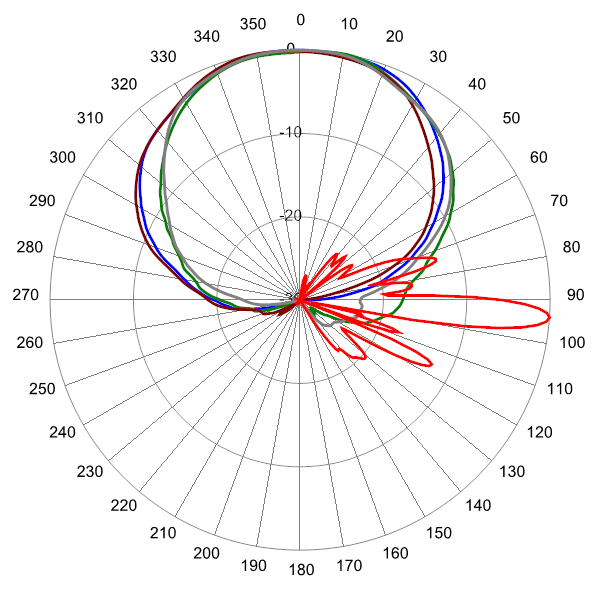

Antenna Pattern
Configuration File
RET Antenna configuration file update procedure | |
For Firmware select RET Actuator link below. |
BSA-RET200 SA-DC0301 | ||
Configuration File | Version | |
OPA65-BU8D-HB01.BIN | 01 | |
OPA65-BU8D-HU01.BIN | 01 |
BSA-RET200 SA-DC0401E | ||
Configuration File | Version | |
OPA65-BU8D-YB01.BIN | 01 | |
OPA65-BU8D-YU01.BIN | 01 |
