Datasheet

HexPort Multi-Band Antenna

HPA45R-BU6A

				Six foot (1.8 m), Multiband, six port antenna with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies Four wide high band ports covering 1695-2400 MHz and two wide low band ports covering 698-896 MHz in a single antenna New enclosure with <15.4” (391 mm) width, narrowest enclosure in the industry for a 45° Multiband Hexport Antenna Full Spectrum Compliance for WCS and AWS-3 frequencies and Band 14 Operations LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance Exceeds minimum PIM performance requirements Equipped with 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector Comes equipped with 3 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) controllers Ordering options for External RET Controllers (Type 1) or Internally Integrated RET Controllers (Type 17)

Overview

The CCI HexPort multiband array is a six port antenna, with four wide high band ports covering 1695-2400 MHz and two wide low band ports covering 698-896 MHz. The CCI HexPort provides the capability to deploy 4×4 Multiple-input Multiple-output (MIMO) in the high band and 2x2 Multiple-input Multiple-output in the low band. The CCI HexPort allows separate tilt control between the low band ports and high band ports. With the use of three (3) RET controllers, the paired high band ports can be tilted independently, enabling maximum flexibility in network deployment.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

4×4 MIMO for the high band and 2×2 MIMO for the low band
Ready for Network Standardization on 4.3-10 connectors
With CCI’s MultiBand antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical


Ports	2 × Low Band Ports for 698-896 MHz
Frequency Range	698-806 MHz	824-896 MHz
Gain¹	15.6 dBi	16.6 dBi
Gain (Average)²	15.3 dBi	16.1 dBi
Azimuth Beamwidth (-3dB)	51°	47°
Elevation Beamwidth (-3dB)	12.1°	10.5°
Electrical Downtilt	2° to 12°	2° to 12°
Elevation Sidelobes (1st Upper)	< -17 dB	< -18 dB
Front-to-Back Ratio @180°	> 28 dB	> 30 dB
Front-to-Back Ratio over ±20°	> 25 dB	> 28 dB
Cross-Polar Discrimination at Peak	> 20 dB	> 22 dB
Cross-Polar Discrimination at 3 dB²	18.2 dB	19.2 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -150 dBc	≤ -150 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground
¹Peak gain across sub-bands. ²Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6.


Ports	4 × High Band Ports for 1695-2690 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz
Gain¹	18.9 dBi	19.3 dBi	19.7 dBi	20.0 dBi
Gain (Average)²	18.0 dBi	18.7 dBi	19.0 dBi	19.2 dBi
Azimuth Beamwidth (-3dB)	44°	43°	42°	43°
Elevation Beamwidth (-3dB)	5.3°	4.9°	4.6°	4.1°
Electrical Downtilt	2° to 10°	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	<-16 dB	<-17 dB	<-17 dB	<-18 dB
Front-to-Back Ratio @180°	> 30 dB	> 32 dB	> 32 dB	> 35 dB
Front-to-Back Ratio over ±20°	> 25 dB	> 28 dB	> 28 dB	> 30 dB
Cross-Polar Discrimination at Peak	> 20 dB	> 20 dB	> 23 dB	> 25 dB
Cross-Polar Discrimination at 3 dB²	15.7 dB	16.7 dB	17.1 dB	19.0 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -150 dBc	≤ -150 dBc	≤ -150 dBc	≤ -150 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground
¹Peak gain across sub-bands. ²Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6.

Mechanical

Dimensions (L×W×D)	72.0×15.4×8.2 in (1828×391×208 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load	255 lbs (1136 N) @ 100 mph (161 kph)
Side Wind Load	153 lbs (680 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	10.0 ft² (0.9 m²)
Weight *	63.9 lbs (29.0 kg)
RET Weight	3.3 lbs (1.5 kg)
Connector	6 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting and RET

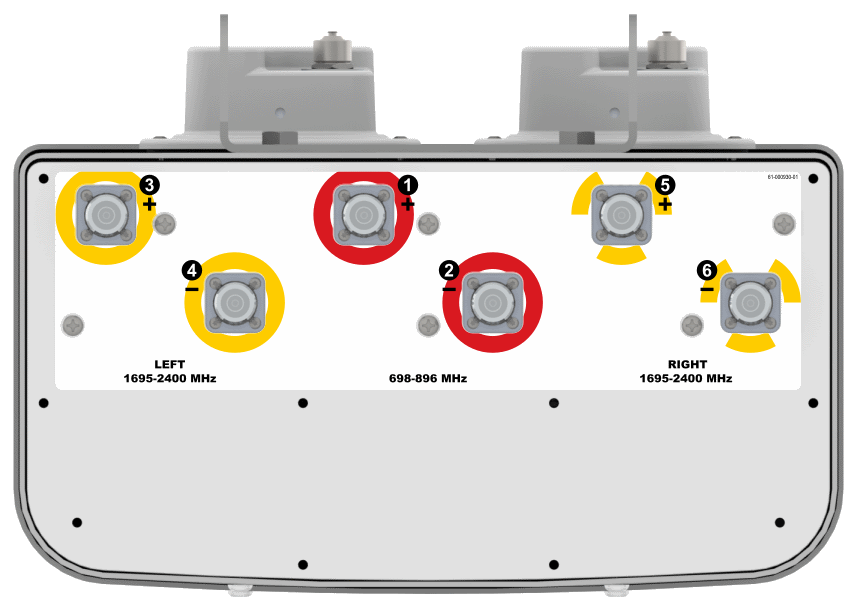

Bottom View	HPA45R-BU6A

Connector Spacing Diagram	HPA45R-BU6A

RET to Element Configuration	HPA45R-BU6AA Element and RET configuation

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at


	734 MHz Azimuth with Elevation 7°	806 MHz Azimuth with Elevation 7°


	1780 MHz Azimuth with Elevation 6°	1960 MHz Azimuth with Elevation 6°

	2155 MHz Azimuth with Elevation 6°	2360 MHz Azimuth with Elevation 6°

MBK-01		MBK-01 Mounting Kit
BSA-RET200		Remote Electrical Tilt System (RET)
BSA-RET400		Type 17 External Remote Electrical Tilt System (RET)
DPA-CBK-AG-RRU		AISG Cable set for three RET antenna
CBK-RA-AG-RRU-004		AISG Right Angle Cable set for three RET Antenna
SCU-AISG2-P		Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	HPA45R-BU6A Connector Spacing Diagram
	HPA45R-BU6AA Antenna/RET Config Diagram
	MBK-01 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

HPA45RBU6A: Text/Planet Format - Default Azimuth

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET200 SA-DC0301
Configuration File	Version
HPA45-BU6A-HB01.BIN	01
HPA45-BU6A-HU01.BIN	01

BSA-RET200 SA-DC0401E
Configuration File	Version
HPA45-BU6A-YB01.BIN	01
HPA45-BU6A-YU01.BIN	01

Parts & Accessories

HPA45R-BU6AA-K	Six foot (1.8 m) HexPort antenna with 45° azimuth beamwidth, 4.3-10 female connectors, 3 factory installed BSA-RET200 RET actuators (Type 1 External) and MBK-01 mounting bracket
HPA45R-BU6AB-K	Six foot (1.8 m) HexPort antenna with 45° azimuth beamwidth, 4.3-10 female connectors, 3 factory installed BSA-RET400 RET actuators (Type 17 internal) and MBK-01 mounting bracket
MBK-01	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
BSA-RET200	Type 1 Remote electrical tilt actuator
BSA-RET400	Type 17 remote electrical tilt actuator
DPA-CBK-AG-RRU	TriBand antenna with 3 RET to RRU AISG cable kit
CBK-RA-AG-RRU-004	TriBand antenna with 3 RET to RRU AISG right angle cable kit

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
