      Hybrid Bi-SectorTM Array HBSA65R-KUE9B




  PI HBSA65RKUE9A FRONT ISO TUBE PI HBSA65RKUE9A REAR ISO TUBE

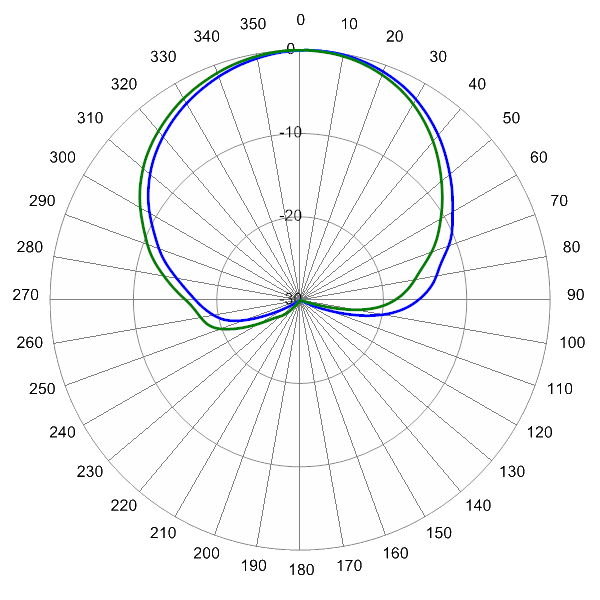

  • Nine foot (2.7 m), multiband, eight port Hybrid Bi-SectorTM Antenna. Deploying two high performing 65° HBW covering 694-960 MHz and 1695-2690 MHz frequency bands and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2400 MHz frequencies

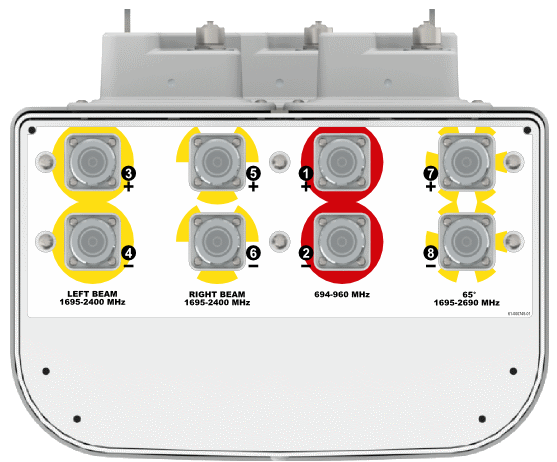

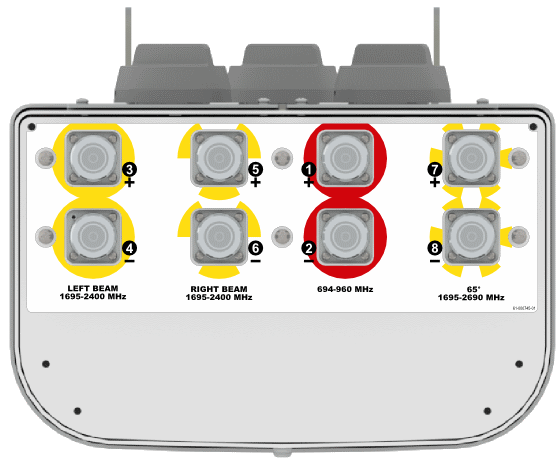

  • Two wide high band ports covering 1695-2690 MHz, four separate high band ports covering 1695-2400 MHz and two wide low band ports covering 694-960 MHz in a single antenna
  • Narrow Enclosure, 13.4” (340 mm) width. Narrowest Enclosure in the Industry for this type of Antenna.
  • Full Spectrum Compliance for 694-960 MHz / 1695-2690 Mhz

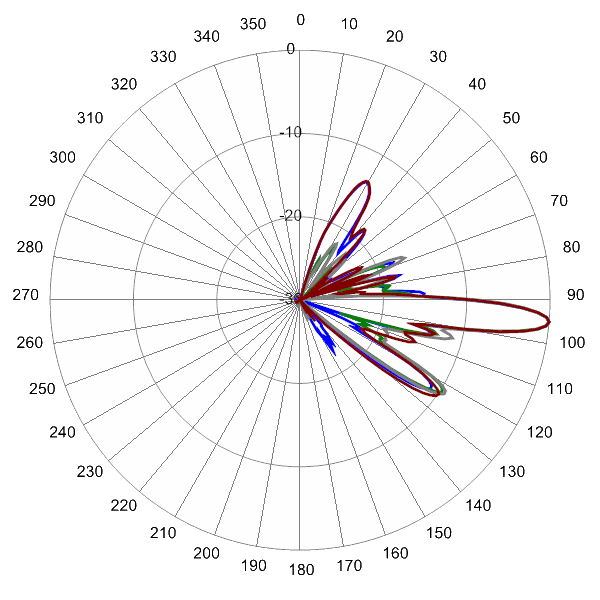

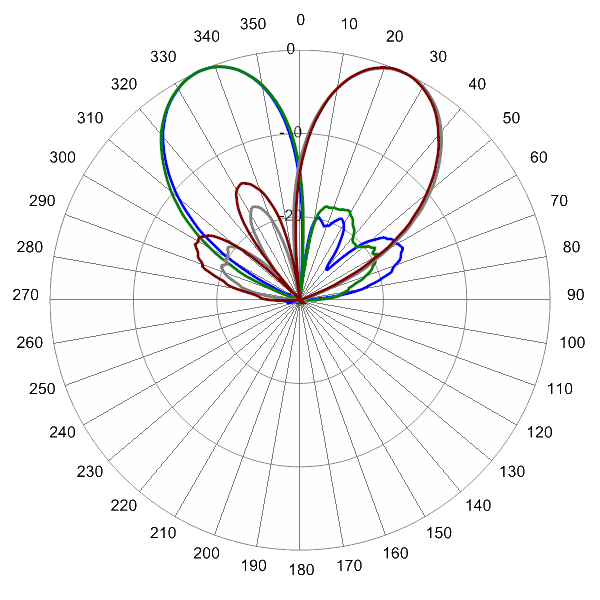

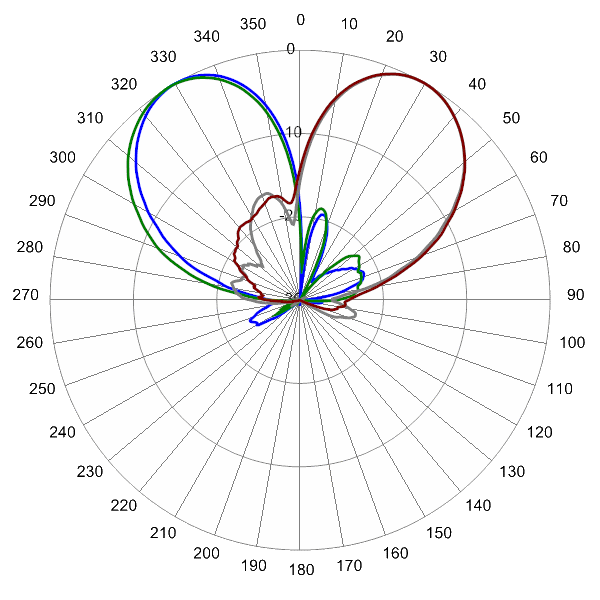

  • LTE Optimized Asymmetric Shaped Beams for improved LTE data throughput by minimizing beam crossover, providing for an efficient use of valuable radio capacity and frequency spectrum
  • LTE Optimized FBR, SPR and Boresight/Sector XPD Performance. Essential for today’s LTE Data Networks
  • Exceeds minimum PIM performance requirements
  • Ordering options include either Four Field Replaceable, integrated AISG 2.0 compliant External (Type 2) Remote Electrical Tilt (RET) or Four Variable Electrical Control Knobs (VET)



MBK-01   MBK-01 Mounting Kit
BSA-RET200   Remote Electrical Tilt System (RET)
KUE-CBK-AG-RRU   AISG Cable set for HyBird KUE Bi-Sector Antenna
KUE-CBK-RA-AG-RRU   AISG Right Angle Cable set for HyBird KUE Bi-Sector Antenna
SCU-AISG-P   Portable AISG 2.0 Site Control Unit
