      Ultra-wideband Bi-SectorTM Array BSA-S65R-U-H5




  PI BSAS65RUH5 front isometric PI BSAS65RUH5 rear isometric
  • Five foot (1.4 m), four port, dual beam antenna with patented asymmetrical beam shapes optimized for LTE

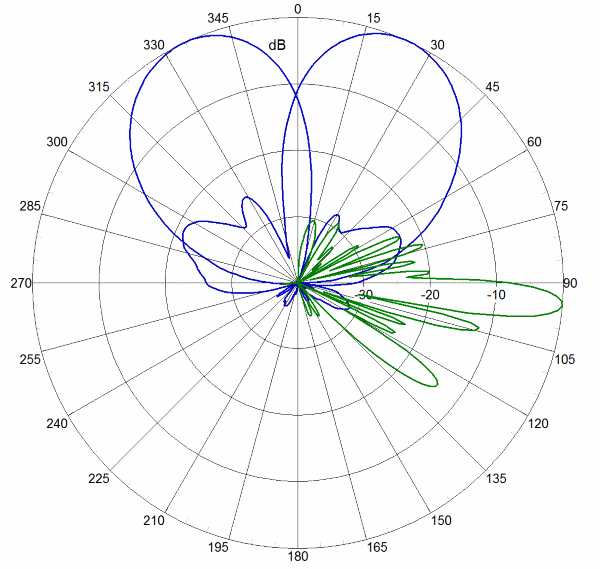

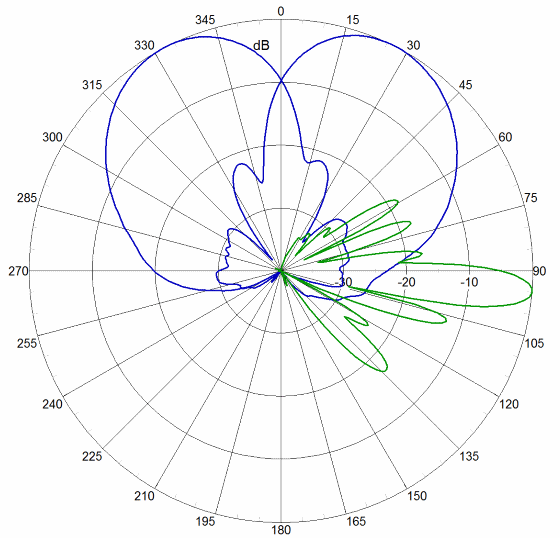

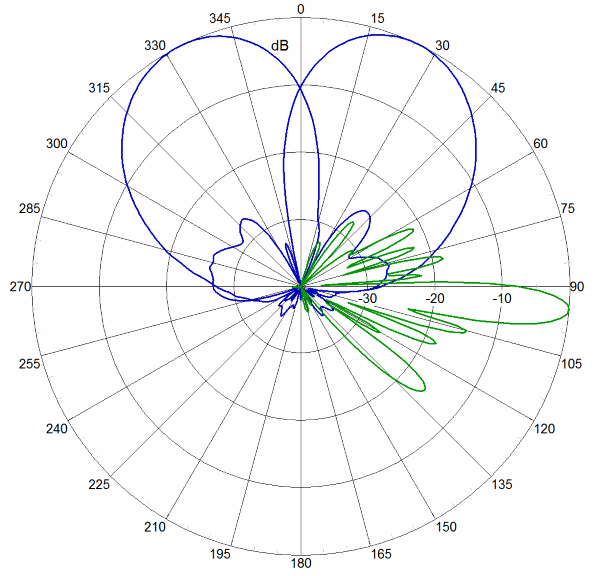

  • Two ultra-wideband 33° beams to match existing 65° patterns, covering 1710-2400 MHz
  • One pair of +45° and –45° cross-polarized ports for each beam
  • Slim and low weight single panel design supporting two beams in a single antenna
  • Field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) system with independent tilt control for each beam
  • Dramatic increase in site capacity through higher order sectorization which offsets the need to build new sites
  • Boosts data throughput by minimizing interference and optimizing coverage
  • Sharp elevation beamwidth aides in network planning
  • Optimal elevation sidelobe performance
  • Exceeds minimum PIM performance requirements

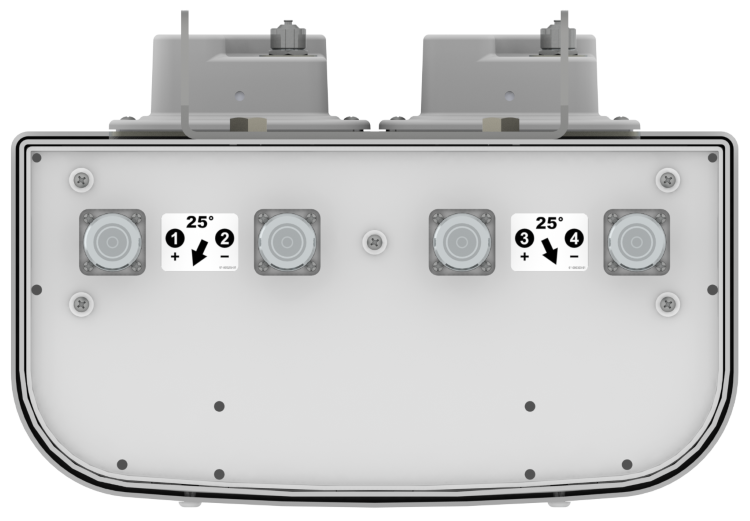

  • Ordering options for 7/16 DIN connector or the new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
  • Ordering options for either Remote Electrical Tilt (RET) or Variable Electrical Tilt (VET)
Model BSA-RET200   Remote Electrical Tilt System (RET)
Configuration File
For Firmware select RET Actuator link below.
BSA-RET200
SA-DC0301
Configuration FileVersion
01
BSA-RET200
SA-DC0401E
Configuration FileVersion
01
BSA-S65R-U-H5-C1
