      Wideband Bi-SectorTM Array BSA33R-W3A




  PI BSA33RW3A FRONT ISO PI BSA33RW3A REAR ISO
  • Three foot (0.9 m), Wideband, eight port Bi-SectorTM Antenna. Deploying a high performing two pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2180 MHz frequencies

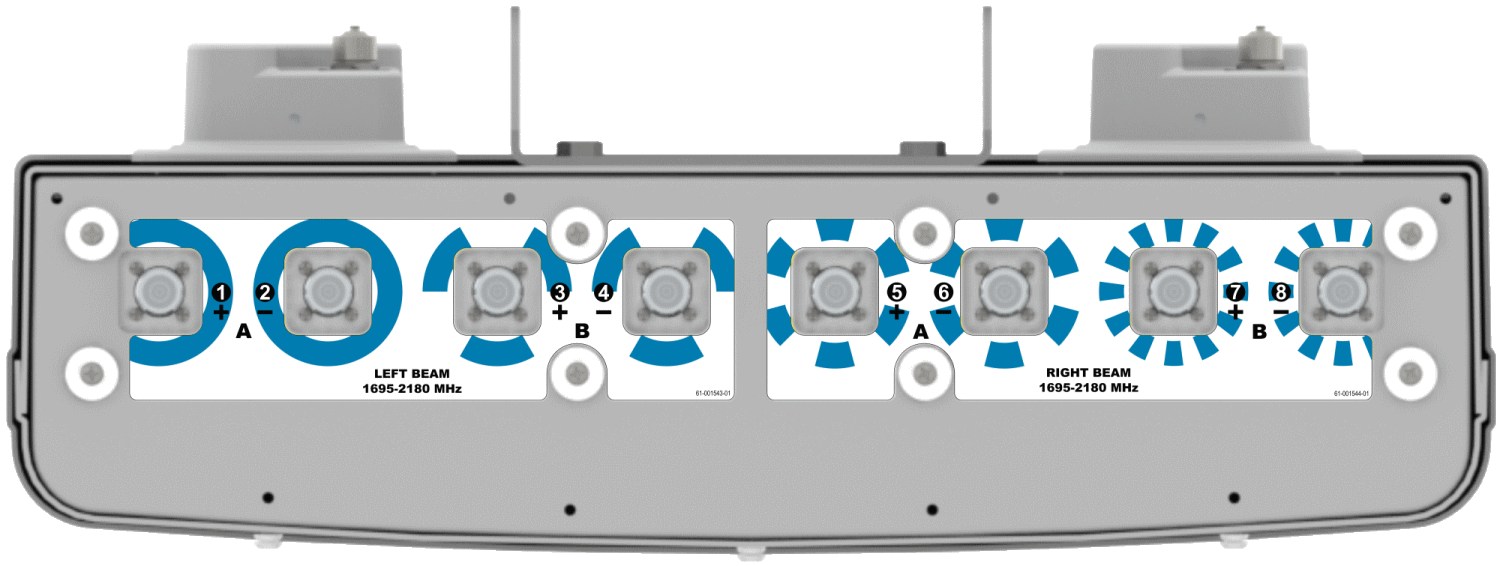

  • Eight wide High Band ports (4 ports per beam) covering 1695-2180 MHz and in a single antenna
  • Full Spectrum Compliance for 1695-2180 MHz Operations
  • LTE Optimized Asymmetric Shaped Beams for improved LTE data throughput by minimizing beam crossover, providing for an efficient use of valuable radio capacity and frequency spectrum
  • LTE Optimized FBR, SPR and Boresight/Sector XPD Performance, essential for today’s LTE Data Networks
  • Exceeds minimum PIM performance requirements
  • Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
  • Equipped with Two Field Replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET)
Model BSA-RET200   Remote Electrical Tilt System (RET)
MBK-10   MBK-10
CBK-AG-RRU-001   Bi-Sector antenna with 2 RET to RRU AISG cable kit
CBK-RA-AG-RRU-001   Bi-Sector antenna with 2 RET to RRU AISG right angle cable kit
SCU-AISG-P   Portable AISG 2.0 Site Control Unit
Configuration File
For Firmware select RET Actuator link below.
