      Wideband Bi-SectorTM Array BSA33R-E5A




  PI BSA33RE5A FRONT iso PI BSA33RE5A REAR iso
  • Five foot (1.5 m), Wideband, four port Bi-SectorTM Antenna. Deploying a high performing pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies

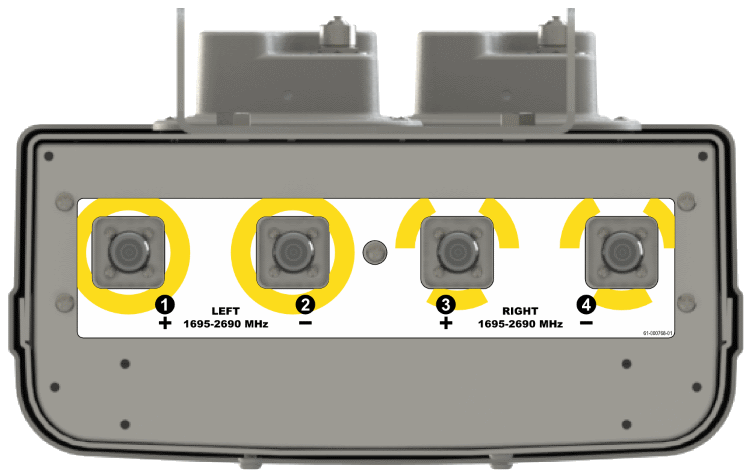

  • Four wide High Band ports (2 ports per beam) covering 1695-2690 MHz and in a single antenna
  • Full Spectrum Compliance for 1695-2690 MHz Operations
  • LTE Optimized Asymmetric Shaped Beams for improved LTE data throughput by minimizing beam crossover, providing for an efficient use of valuable radio capacity and frequency spectrum
  • LTE Optimized FBR, SPR and Boresight/Sector XPD Performance, essential for today’s LTE Data Networks
  • Exceeds minimum PIM performance requirements
  • Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
  • Equipped with Two Field Replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET)
  • Ordering options for External RET Controllers (Type 1) or Internally Integraged RET Controllers (Type 17) or VET manual knobs
Model BSA-RET200   Type 1 Remote Electrical Tilt System (RET)
BSA-RET400   Type 17 Remote Electrical Tilt System (RET)
MBK-02   MBK-02
QPA-CBK-AG-RRU   Bi-Sector antenna with 2 RET to RRU AISG cable kit
QPA-CBK-RA-AG-RRU   Bi-Sector antenna with 2 RET to RRU AISG right angle cable kit
SCU-AISG-P   Portable AISG 2.0 Site Control Unit
Configuration File
For Firmware select RET Actuator link below.
BSA-RET200
SA-DC0301
Configuration FileVersion
01
BSA-RET200
SA-DC0401E
Configuration FileVersion
01
