      Hybrid Bi-SectorTM Array HBSA33R-KE6C




  PI HBSA33RKE6CA FRONT ISO  PI HBSA33RKE6CA REAR ISO

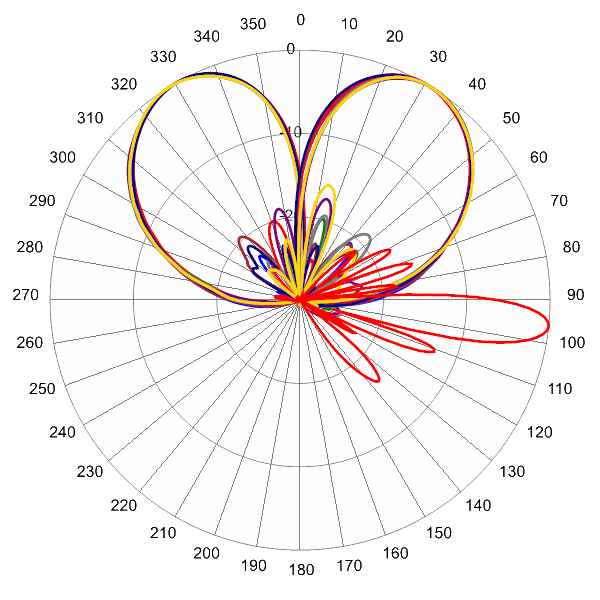

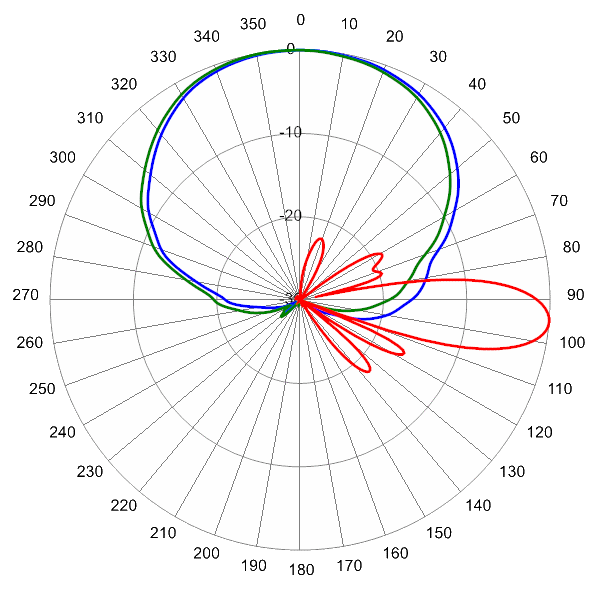

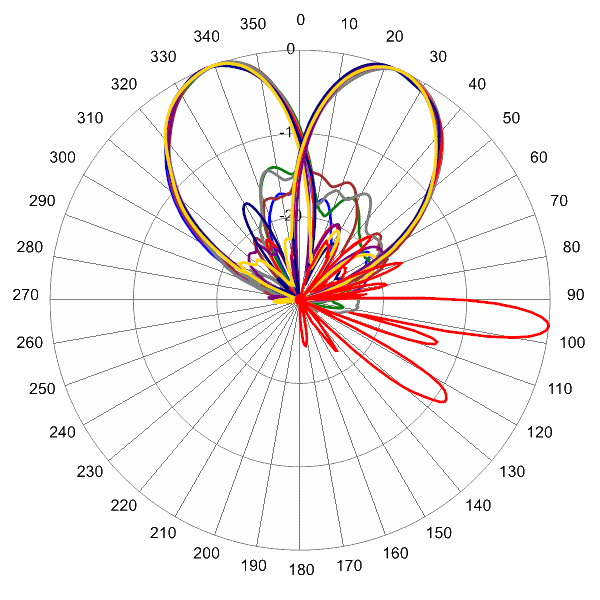

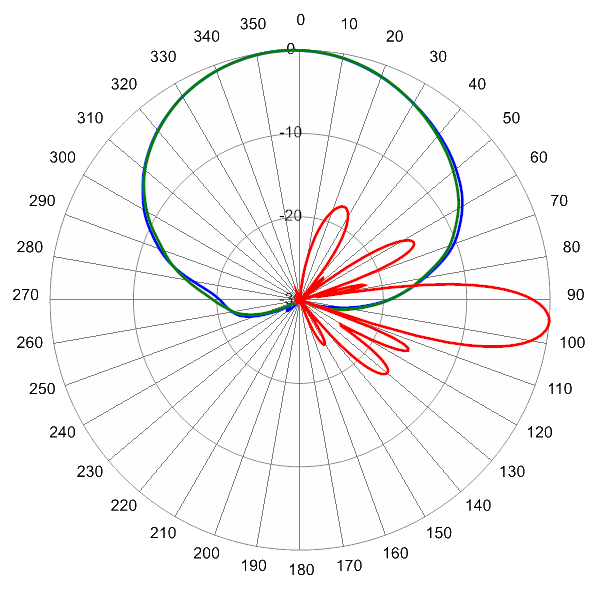

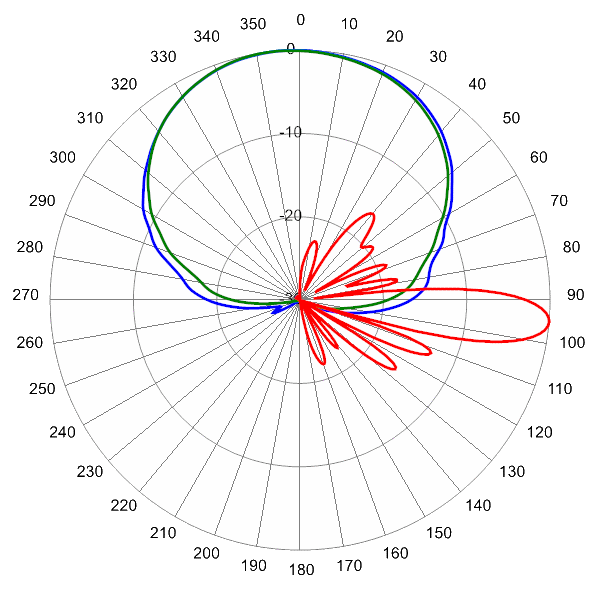

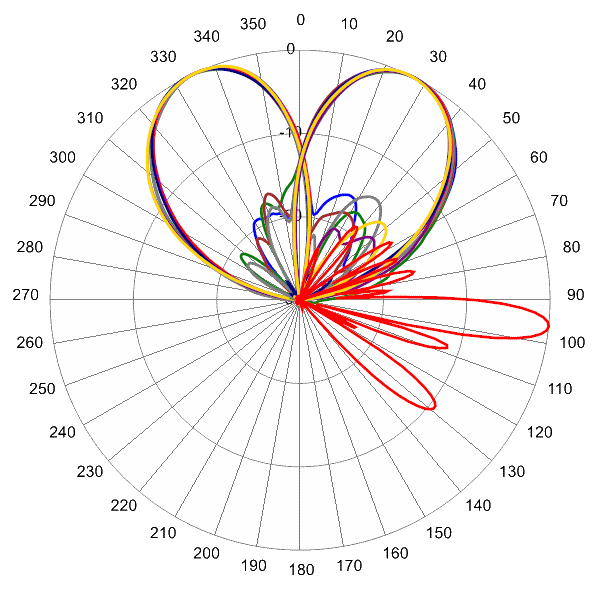

  • Six foot (1.8 m), multiband, Eighteen port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and two independent pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies

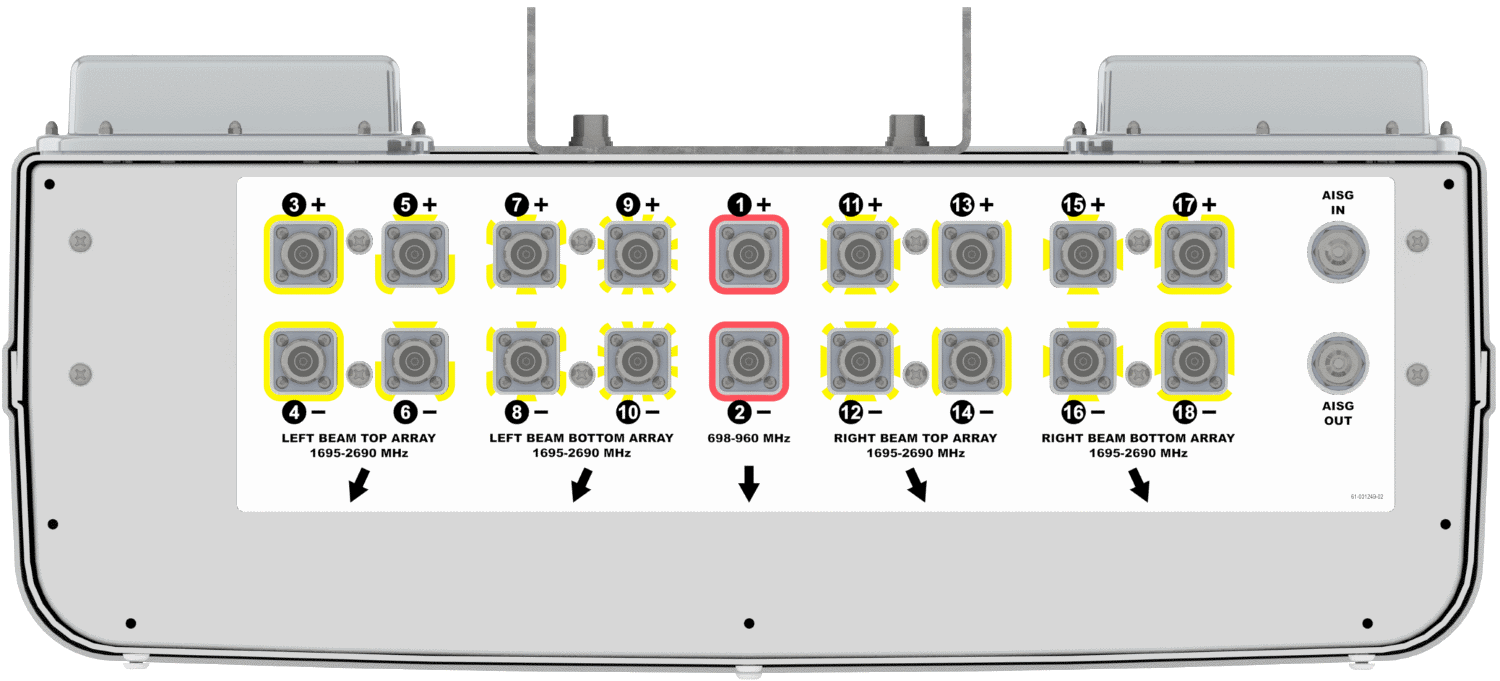

  • Sixteen wide high band ports covering 1695-2690 MHz and two wide low band ports covering 698-960 MHz in a single antenna
  • Full Spectrum Compliance for 698-960 MHz /1695-2690 MHz
  • Provides two independent pairs of LTE Optimized Asymmetric Shaped Beams for improved LTE data throughput by minimizing beam crossover, providing for an efficient use of valuable radio capacity and frequency spectrum
  • LTE Optimized FBR, SPR and Boresight/Sector XPD Performance, essential for today’s LTE Data Networks
  • Exceeds minimum PIM performance requirements
  • Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector

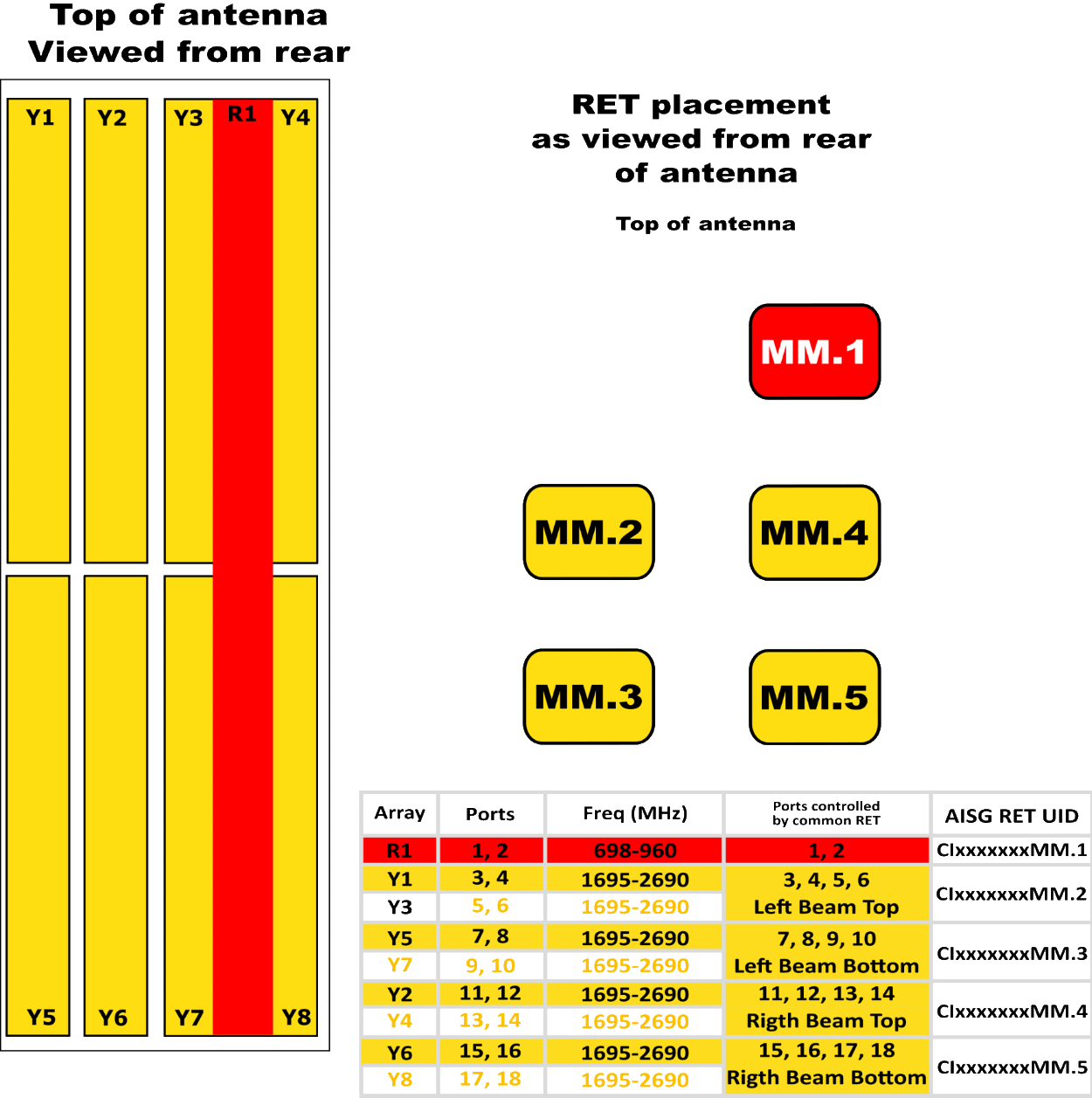

  • Equipped with Five Field Replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET)
MBK-01 MBK-01 Mounting Kit with 0° - 10° mechanical tilt
MBK-16 MBK-16 Mounting Kit with fixed 0° mechanical tilt
BSA-RET400 Type 17 Internal Remote Electrical Tilt System (RET)
AISGC-M-F-10FT 10 Foot (3 M) Male/Female AISG cable
SCU-AISG-P Portable AISG 2.0 Site Control Unit
Configuration File
