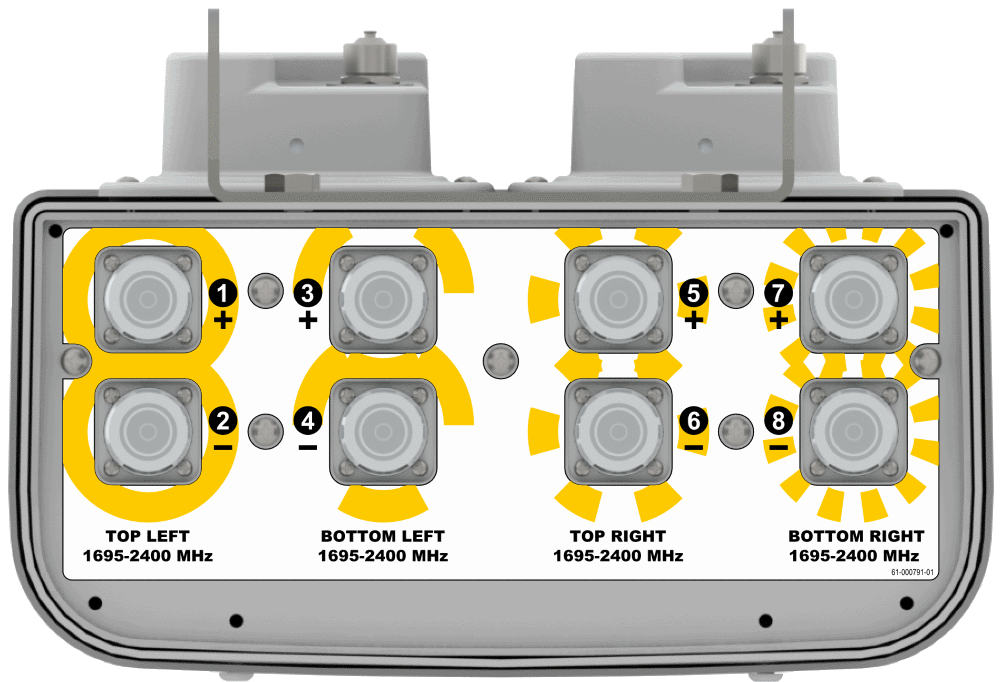

This version of the CCI Bi-Sector^TM Singleband Array is an eight port antenna, with eight wide high band ports covering 1695-2400 MHz. The CCI Bi-Sector^TM array uses a pair of CCI’s Patented Asymmetric 33° Shaped Beams. The CCI Bi-Sector^TM Array provides the capability to deploy Dual 4×4 Multiple-input Multiple-output (MIMO) in the high band array. The CCI Bi-Sector^TM Array utilizes two RET controllers, with a separate RET control for each pair of CCI’s Patented Asymmetric Shaped Beams and is also available with Manual Variable Electrical Tilt option.

The CCI Bi-Sector^TM Singleband Array, allow operators to reduce antenna count and replace existing 65° networks, while increasing cell site capacity and LTE data throughput by minimizing overlap between CCI’s Patented Asymmetric 33° Shaped Beams. This design approach lowers interference between sectors. All of this is achieved through a single panel array, producing significant CAPEX and OPEX cost savings for the operator.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.
