Datasheet

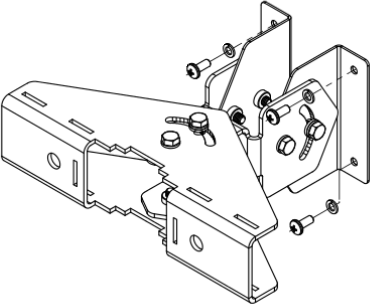

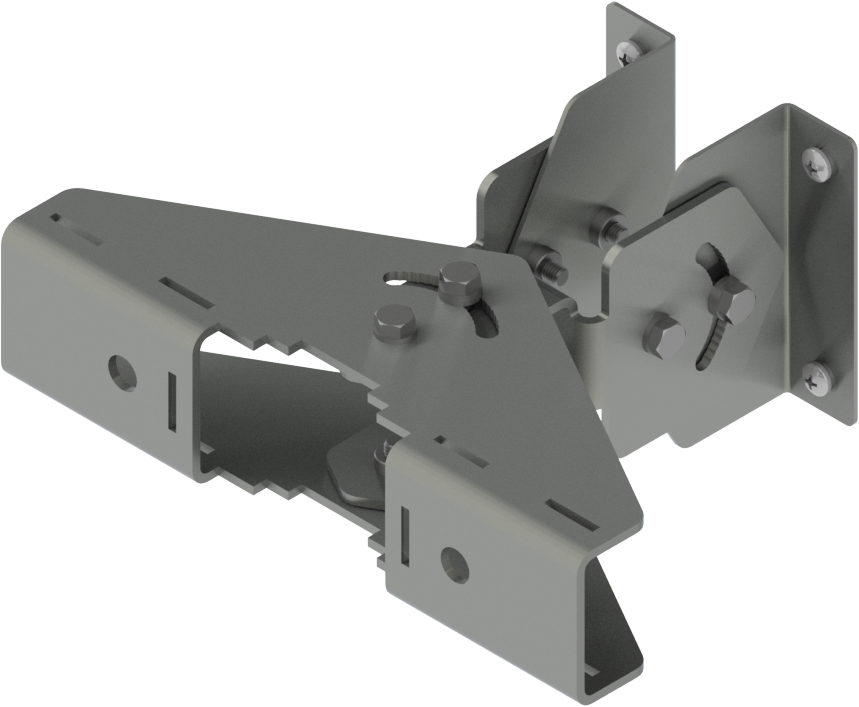

Mounting Bracket Kit

MBK-08

The antenna mounting bracket is specifically designed for mounting CCI's IDA-65F-KE-H1 Small Cell antennas to flat surfaces

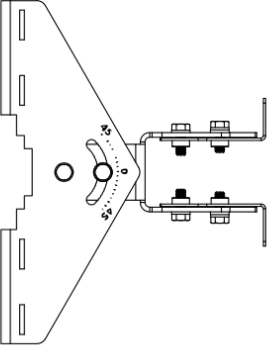

Design has manual tilt capacity in both planes
Rugged and weather resistant design
Bracket has four mounting holes suitable for M10 hardware
Kit can be converted to a pole mount with the addition of the MBC-07

Overview

This Pole Mounting Bracket is designed for use with CCI’s IDA-65F-KE-H1 antennas. The MBK-08 bracket kit delivers a very stable mounting system with the flexibility of using banding, bolts or U-bolts to fasten to either flat surfaces or poles up to 4" (10 cm) OD. The rugged design supports CCI’s antennas while resisting the elements.

CCI antenna brackets are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications
