| Triple Mount Stealth/Flagpole Bracket Kit | TM-02 | |||
 |
|
Mechanical
| Weight | 10.8 lbs (4.9 kg) |
| Fastener Size | M10 |
| Installation Torque | 15 ft·lb (20 N·m) |
| Cluster Bracket Pitch (Vertical) | 66.9 in (1700 mm) for 14C65R-BUH5A and 103.3 in (2625 mm) for 16C65R-BUH8A |
| Mechanical Tilt Adjustment | None |
 |
 |
|

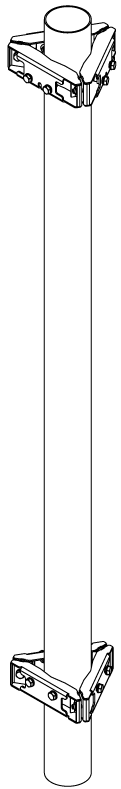

| TM-02 Bracket, small OD pole | TM-02 Bracket, larger OD pole |
 |
 |
|

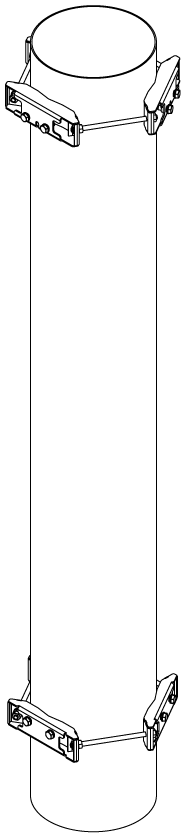

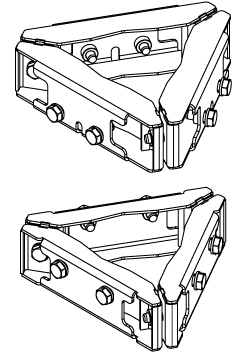

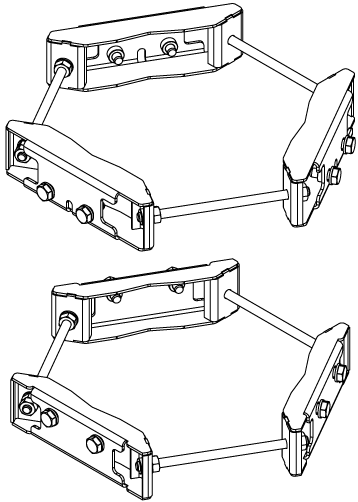

| TM-02 Mounting Brackets (on 4.0" OD Pole) | TM-02 Mounting Brackets (on 10.75" OD Pole) |
 |
 |
|

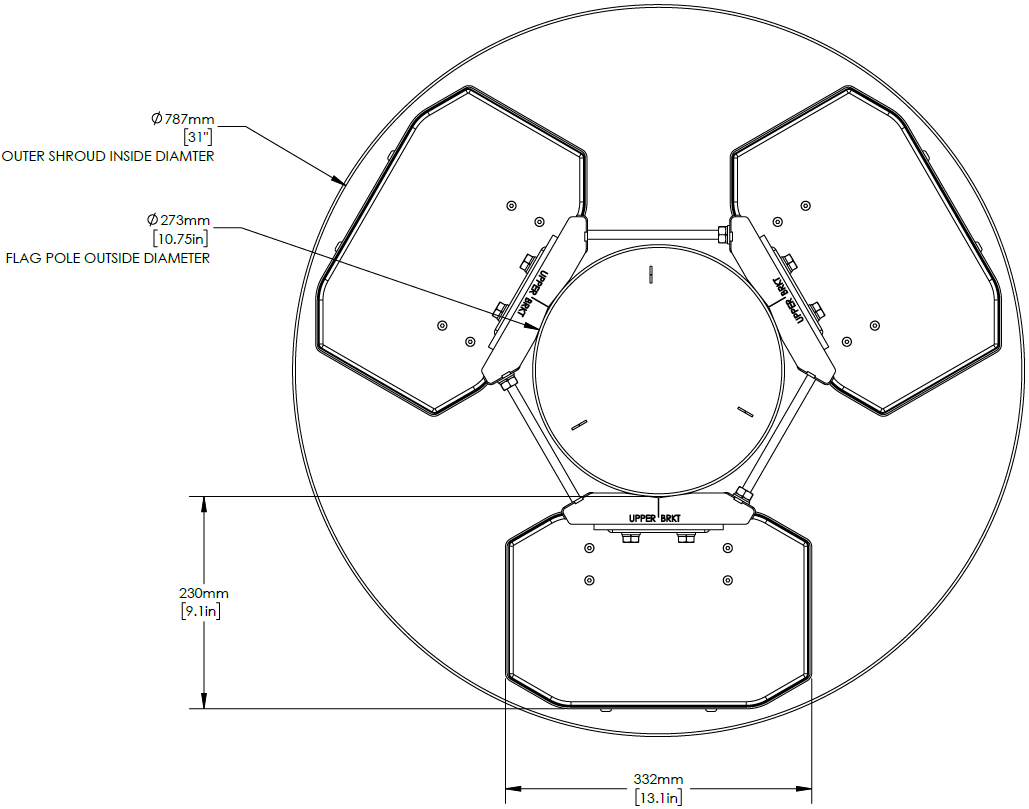

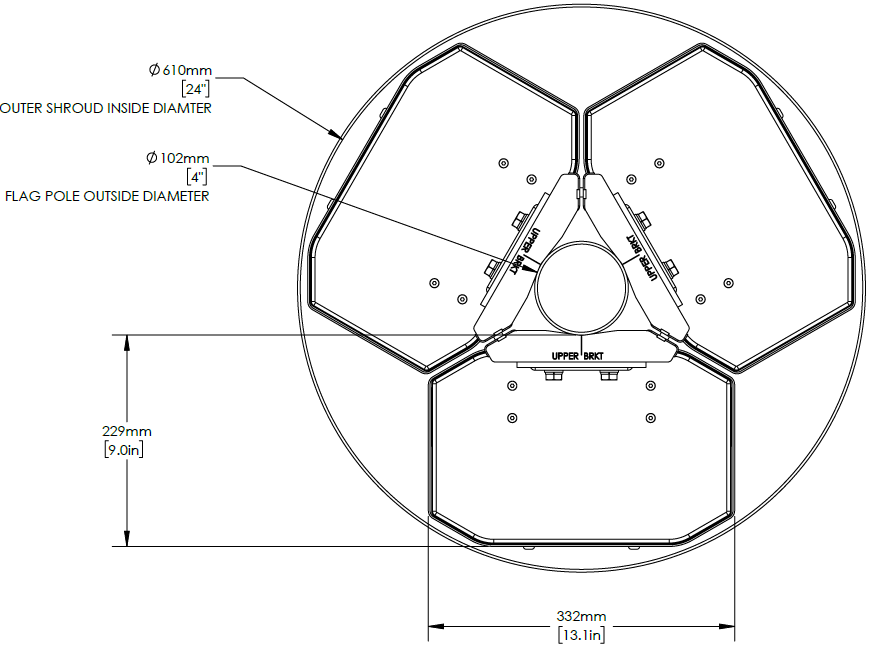

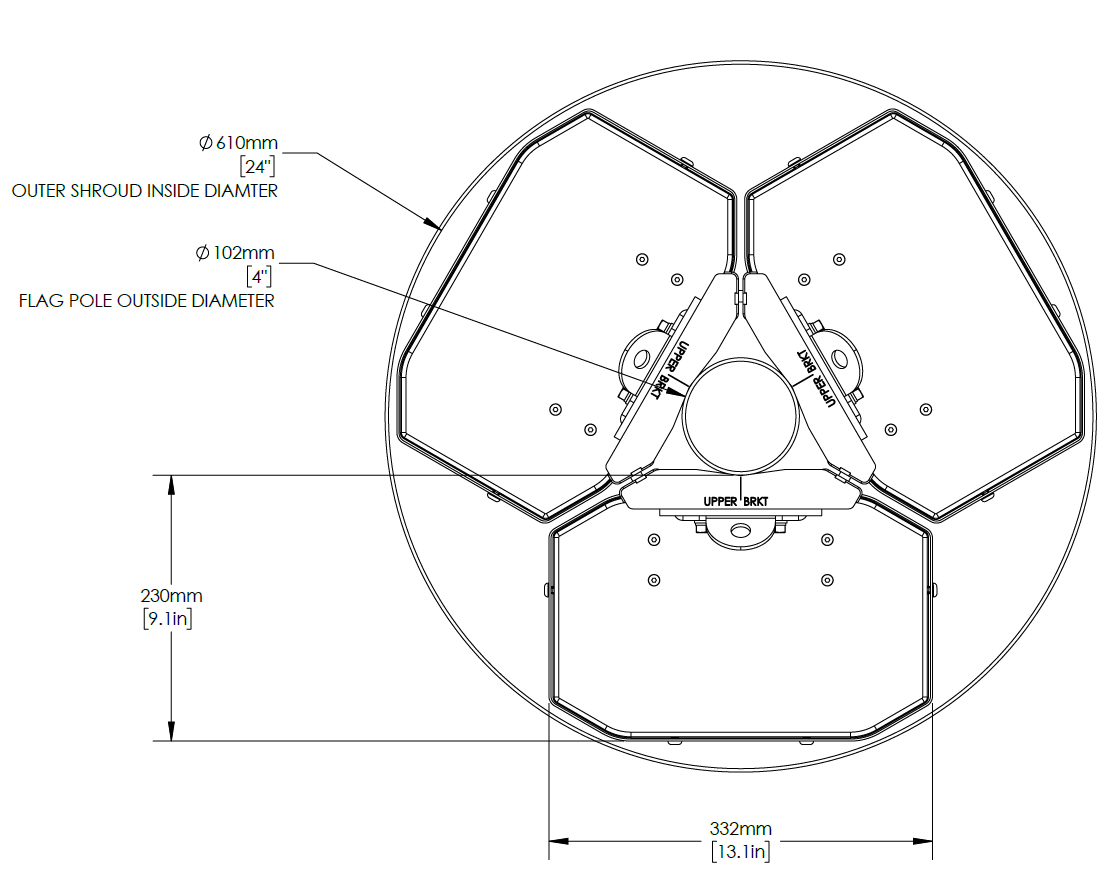

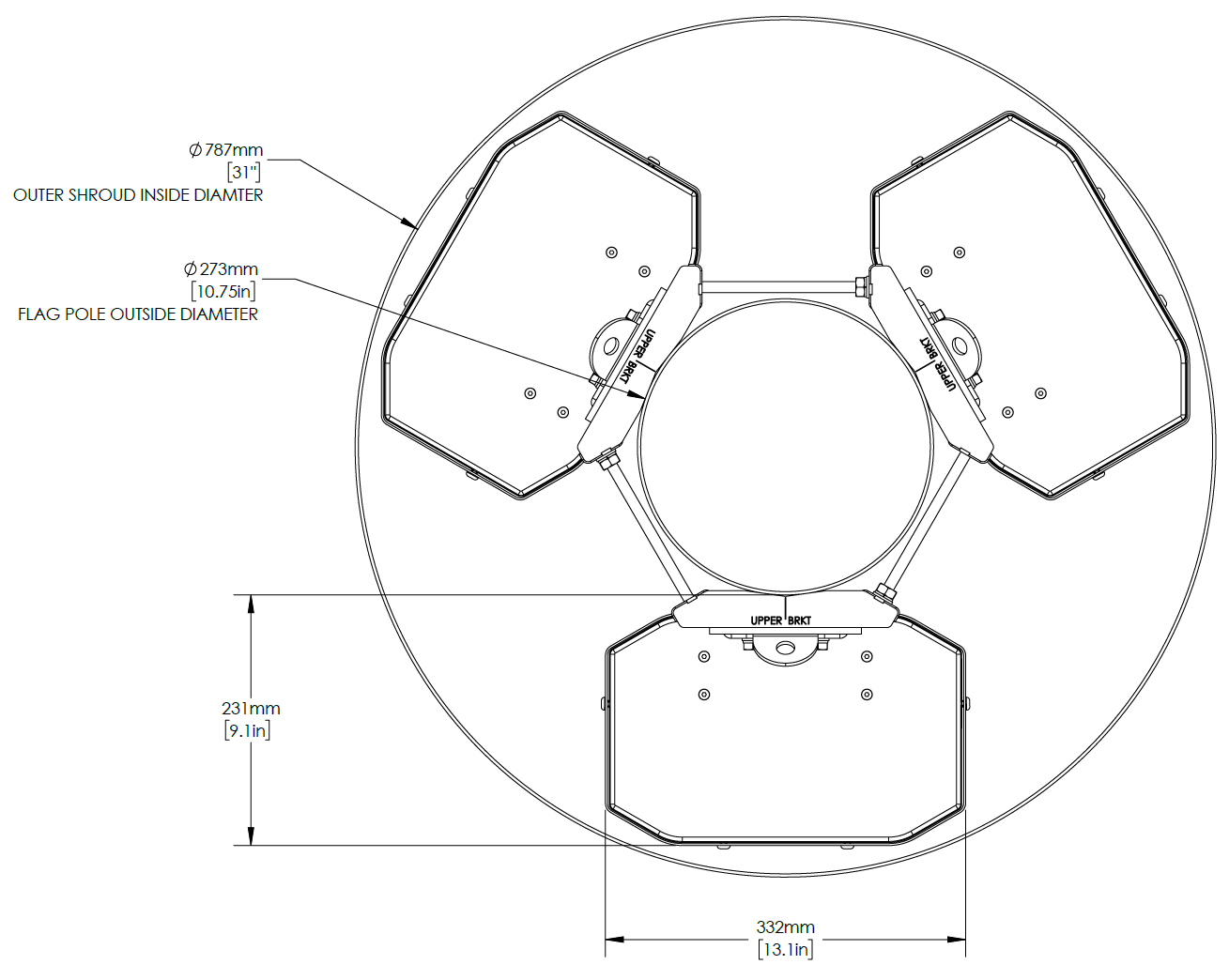

| 3 - 65° Antennas Mounted on 4" (101.6 mm) OD Pole | 3 - 65° Antennas Mounted on 10.75" (273.1 mm) OD Pole |
|
|
