Triple Mount Cluster Bracket Kit | TM-01 | |||
|
|||
This fixed tilt Triple Mount Cluster Bracket kit is designed for use with up to 3 CCI Multiport Panel Antennas from 2 to 6 feet (0.6 to 1.8 m) tall. The Triple Mount Cluster Bracket Kit can accommodate pole diameters ranging from 2 – 5 inches (51 – 127 mm). |
Weight | 21.6 lbs (9.8 kg) |
Fastener Size | M10 |
Installation Torque | 40 ft·lb (54 N·m) |
Hinge Pitch (Vertical) | 13.0 in (330 mm) or 31.5 in (800 mm) or 47.2 in (1200 mm) |
Mechanical Tilt Adjustment | None |

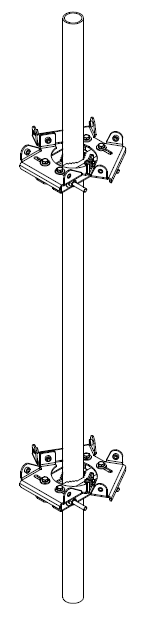

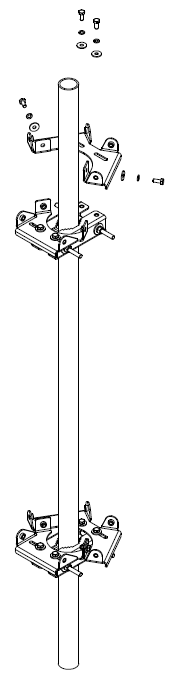

TM-01 Bracket | TM-01 Mounting Brackets (on Pole) | |

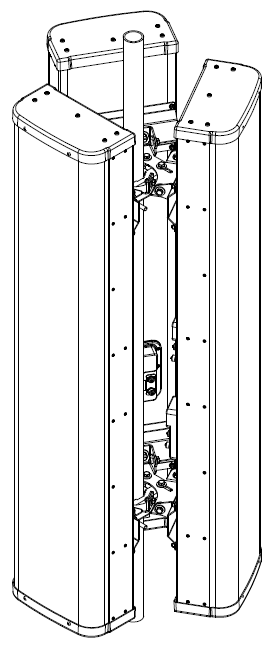

3 - 65° Antennas Mounted on Pole using TM-01 Brackets (Iso and Top Views) |
|
