| Mounting Bracket Kit | MBK-19 | |||
 |
|
Mechanical
| Weight | 26.5 lbs (12.0 kg) |
| Hinge Pitch | 27.6 in (700 mm) |
| Mounting Pole Dimension | 3.5 to 4.5 in (89.1 to 115 mm) |
| Fastener Size | M10 HHC Screw, DIN 933, ISO 4017 M12 Hex Nut, DIN 934, ISO 4032 |
| Installation Torque | M10-18 ft·lbs (25 N·m), M12-40 ft·lbs (54 N·m) |
| Maximum Static Load | 170.9 lbs (77.5kg) |
| Mechanical Tilt | 0° to 20° |
 |
|

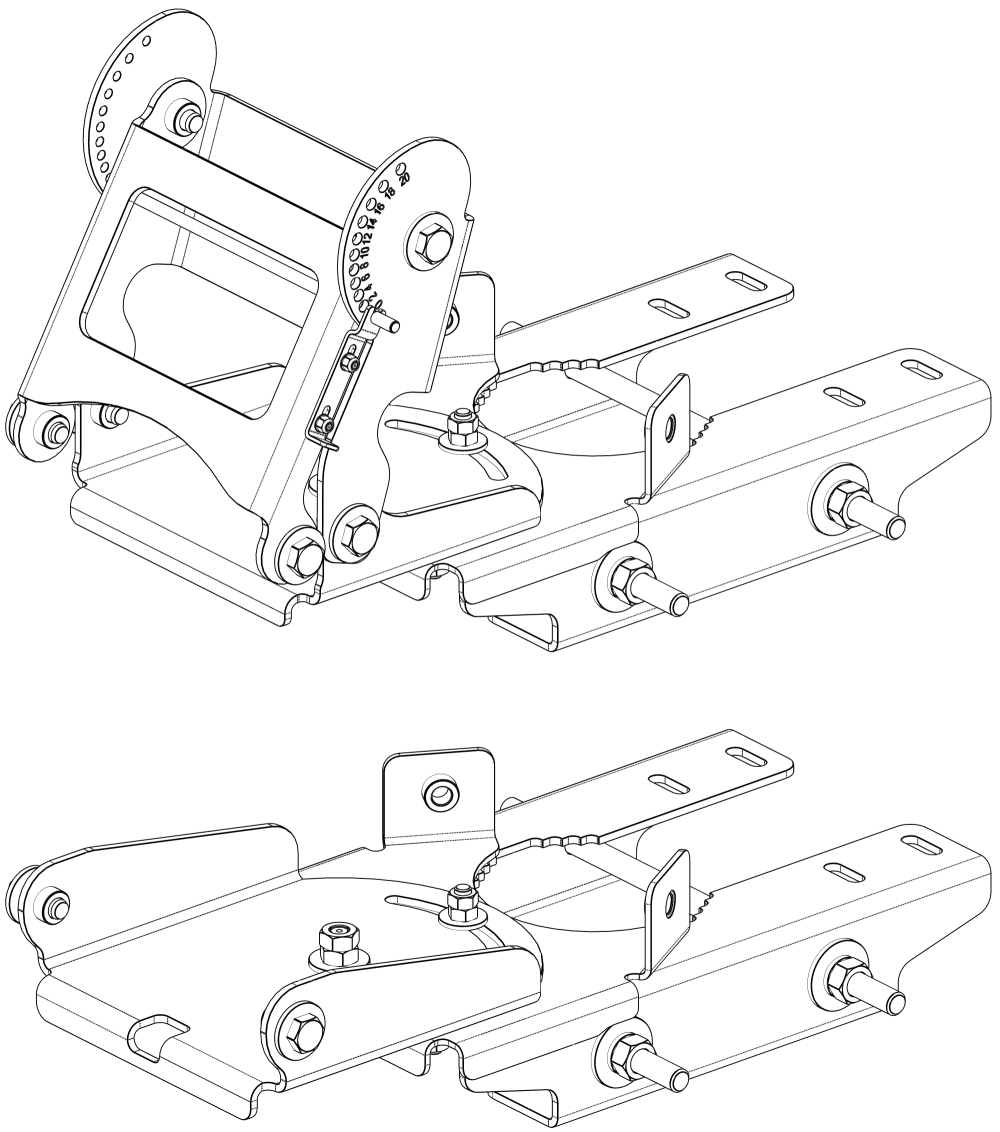

| MBK-19 |
 |
|
| Mechanical Tilt Setting Chart For QPA65R-W4BA |
|
|
