Radio Interconnect and Manifold

RM-02

PI RM 02

Interconnect system for Nokia AHEB Radio
RoHS Compliant

Overview

Mechanical interface removes the need for RF and AISG cable jumpers between radio and antenna.

Electrical

Parameter	Ports	Frequency	Value*
Return Loss	INPUT FROM RADIO / OUTPUT TO FILTER	1710-1880 MHz	> 25 dB
Return Loss	SMA MONITOR PORT	1805-1880 MHz	> 16 dB
Insertion Loss	INPUT FROM RADIO / OUTPUT TO FILTER	1710-1880 MHz	< 0.3 dB
Coupling	INPUT FROM RADIO / SMA MONITOR PORT	1805-1880 MHz	39.0-41.0 dB
Isolation	OUTPUT TO FILTER / SMA MONITOR PORT	1805-1880 MHz	> 55 dB
^*Requirements above must use a 50 Ohm load that has a Return Loss >35 dB from 1805 – 1880 MHz.

Parameter	Input Frequency	Input Power	Measured Port	Measured Frequency	Requirement
IMD 1800 MHz 3^rd Order	1880 MHz	43 dBm	SMA MONITOR PORT	1730-1785 MHz	< -120 dBm
	1805-1832.5 MHz	43 dBm
^*Perform test as described in 740-0003-01 IMD Test Procedure for Inline Passive Device Setup For Couplers & Power Dividers.

Mechanical

Model Number	RM-02
Fits Radio	Nokia AHEB Radio
For Antenna Models	QPA65R-W3B and QPA65R-W4B
Overall Weight	3.5 lbs. (1.6 kg) not including radio

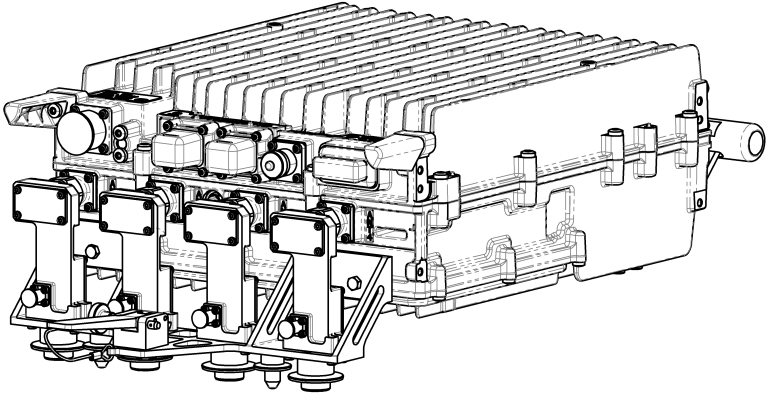

	Radio installed to Manifold and Mount

Environmental Specifications

Environmental Specifications

Model Number	RM-02
Temperature Range	-45° to 70° C

	Datasheet
	RM-02 Installation Guide

Parts

Model Number	RM-02
Overall Weight	3.5 lbs (1.6 kg) not including radio
