Datasheet

35W SDAR Medium Power Amplifier

MPA2332-35

Designed to integrate within the existing SXM DRU Environment
Fixed 46 dB Gain
3.16W to 35W (+35.0 to +45.5 dBm) High Power Output
High Linearity
Good Reverse Isolation
High reliability
ALC Protection
Auto-Recovery after removal of faut condition
Hard Reset function available

Overview

Communication Components Inc. 35W Medium Power Amplifier (MPA) operates in a fixed gain mode capable of providing 2W to 20W RF Output power as measured at the RF Output Coupler. The 10 dB RF output range is controlled by the exciter. The MPA offers a wide Input Dynamic Range. The amplifiers Front Panel LED's provide Broadcast and Alarm status.

Technical Description

The MPA RF output is protected from excessive VSWR conditions such as open and short circuits. The amplifier module automatically recovers upon removal of the fault condition. The MPA's Automatic Level Control (ALC) loop is independent of the exciter. Internal faults cause the MPA to go into "Standby" mode, and alarm status is also provided via RS422 signaling. The MPA has a hard reset function provided.

Electrical

RF Parameters	Ports	Specification
Frequency Range	INPUT, OUTPUT	2320 MHz Min., 2345 MHz Max.
VSWR (Return Loss)	OUTPUT	1.2:1 max. (20.8 dB min.)
VSWR (Return Loss)	INPUT	1.2:1 max. (20.8 dB min.)
Output VSWR Tolerance	Output	>10:1
Gain	INPUT - OUTPUT	46 dB
Gain Flatness*		< 0.5 dB (Across Each Operating Band)
Gain Slope		< 0.2 dB/MHz
Output Stability		±0.3 dB (over temperature range)
Output Power Range		≥ 35 to 45.5 dBm (3.16W to 35.0W) - Prior to output filtering
Output PAR		6 dB (@ 0.1 CCDF)
Output Saturated Power		+53 dBm min. (@30.0 VDC)
Forward Output Power Sample		-40 dBc (±0.2 dB)
Instantaneous Bandwidth		≥ 25 MHz
Input Dynamic Range		-13 dBm through +13 dBm (0 dBm nominal)
Output Harmonic Suppression		≥ 60 dBc (Before Filtering)
Group Delay		≤ 60 nanoseconds
Noise Figure		< 10 dB
Output RF Emissions		Complies with SXM SX9845-0218 RD4

General Characteristics
Impedance	50 ohms
Operating Voltage	30.0 VDC ±1.0 VDC
Nominal Current at Rated Power	4.0A (TBD)
Output Stage Efficiency	≥35% (TBD) (At Rated Power)
Monitor & Control Interface	Serial RS422 / D-Sub9-Female
Hard RESET Interface	DB9-Male
PSU COMM Interface	Amphenol 4 pin C09131G100 Series
Monitoring & Control	Complies with TRS-RR-SPEC-02-10-100 Revision 0.8

Front Panel LEDs
Major Alarm	Green/Red
Minor Alarm	Green/Red
Fan	Green/Red
Broadcast	Green/Amber (Operating/Standby)

Environmental

Operating Temperature	-10˚C to +55˚C
Storage Temperature	-20˚C to +65˚C
Relative Humidity	5% to 99%
MTBF	>80,000 hours

Mechanical

Output Connector	1 x N (Female)
Input connector	1 x SMA (Female)
Output Sample connector	1 x SMA (Female)
Power Connector	Molex #42818-0212 (2 position)
Control Interface Connector	DB-9 Female
Control Interface	Serial RS-422, 38.4 KBaud
Reset Connector	DB-9 Male
Reset Interface	Discrete & 3.3V Logic
PSU COMM Connector	Amphenol 4 pin C09131G100 Series
Dimensions (w/o fans or mtg. tab) - (H×W×D)	14.0 x 8.55 x 3.375 in. (355.6 x 217.2 x 85.7 mm)
Dimensions (with fans, including mtg. tab) - (H×W×D)	15.5 x 8.55 x 3.375 in. (393.7 x 217.2 x 85.7 mm)
Weight	TBD Lbs ( TBD kg)
Mounting	19 in. rack mountable (using a 2U shelf)

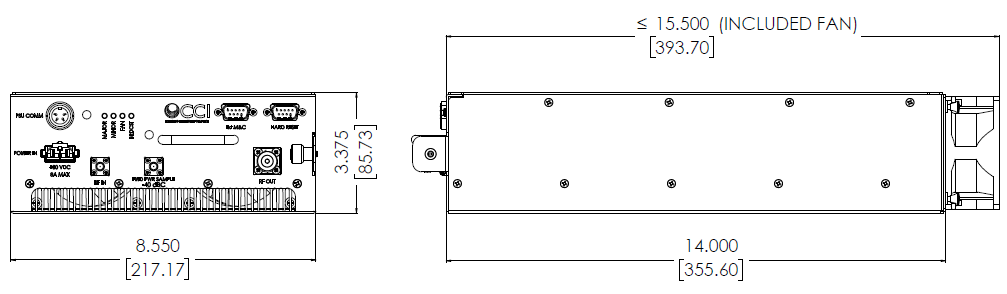

	MPA-2332-AWS Outline Drawing, Place Holder for MPA-2332-35 Outline Drawing

Pin Number	Description
1	GND
2	TX-
3	RX-
4	N/C (Not Connected)
5	GND
6	Reset+
7	RX+
8	TX+
9	Reset-
	MPA-2332-35 35W SDAR Medium Power Amplifier Master & Control Interface Connector Pinout

Pin Number	Description
1	N/C
2	N/C
3	N/C
4	N/C
5	MPA_EN/RESET# +
6	N/C
7	N/C
8	N/C
9	MPA_EN/RESET# -
	MPA-2332-35 35W SDAR Medium Power Amplifier Hard Reset Connector Pinout

Pin Number	Description
1	SDA1
2	SCL1
3	NC
4	GND
	MPA-2332-35 35W SDAR Medium Power Amplifier PSU COMM Connector Pinout

Monitor Point	Condition	LED Status	Alarm Reported	MPA Condition
RF Input Power	RF IN > +3.0 dBm	Minor Alarm LED	Minor Alarm Reported	ALC Engages
	RF IN > +8.0 dBm	Major Alarm LED	Major Alarm Reported	MPA Disabled
RF Output Power	RF OUT ≥ +46.5 dBm	Minor Alarm LED	Minor Alarm Reported	N/A
	RF OUT ≥ +47.5 dBm	Major Alarm LED	Major Alarm Reported	MPA Disabled
Gain	Gain ≤ 44.0 dB	Minor Alarm LED	Minor Alarm Reported	N/A
	Gain ≤ 43.0 dB	Major Alarm LED	Minor Alarm Reported	MPA Disabled
RF Reflected	R_L < -10.0 dB	Minor Alarm LED	Minor Alarm Reported	N/A
	R_L < -7.0 dB	Major Alarm LED	Major Alarm Reported	MPA Disabled
Temperature	T_Baseplate > +80°C	Minor Alarm LED	Minor Alarm Reported	N/A
	T_Baseplate > +90°C	Major Alarm LED	Major Alarm Reported	MPA Disabled
	T_Baseplate ≤ -25°C	Major Alarm LED	Major Alarm Reported	MPA Disabled
Fans	Single Fan Fails	Minor Alarm LED	Minor Alarm Reported	N/A
	Both Fans Fail	Major Alarm LED	Major Alarm Reported	MPA Disabled
	MPA-2332-35 35W SDAR Medium Power Amplifier Status

Block Diagram

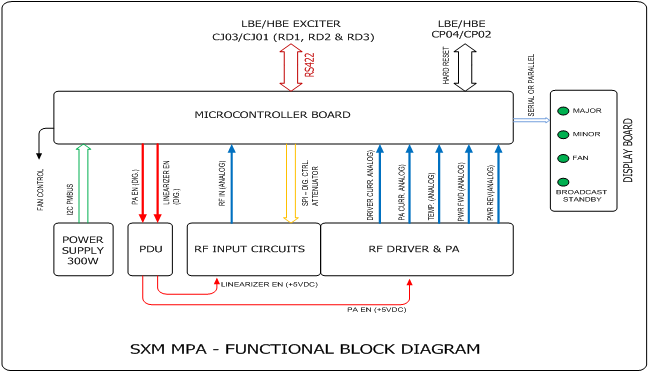

	MPA-2332-35 Block Diagram

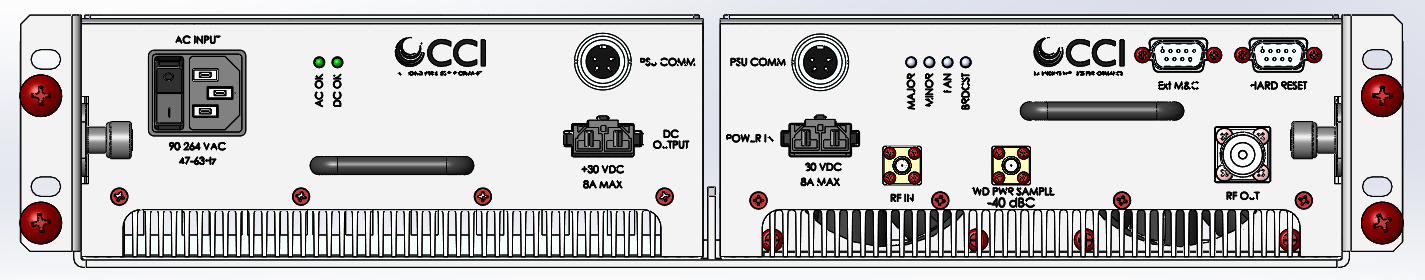

	SXM-35W-MPA-SYS-1 System Level Model Number for the WCS 20W Repeater System (includes 35W SDAR Medium Power Amplifier and +29.0 VDC Power Supply and 2U Tray)

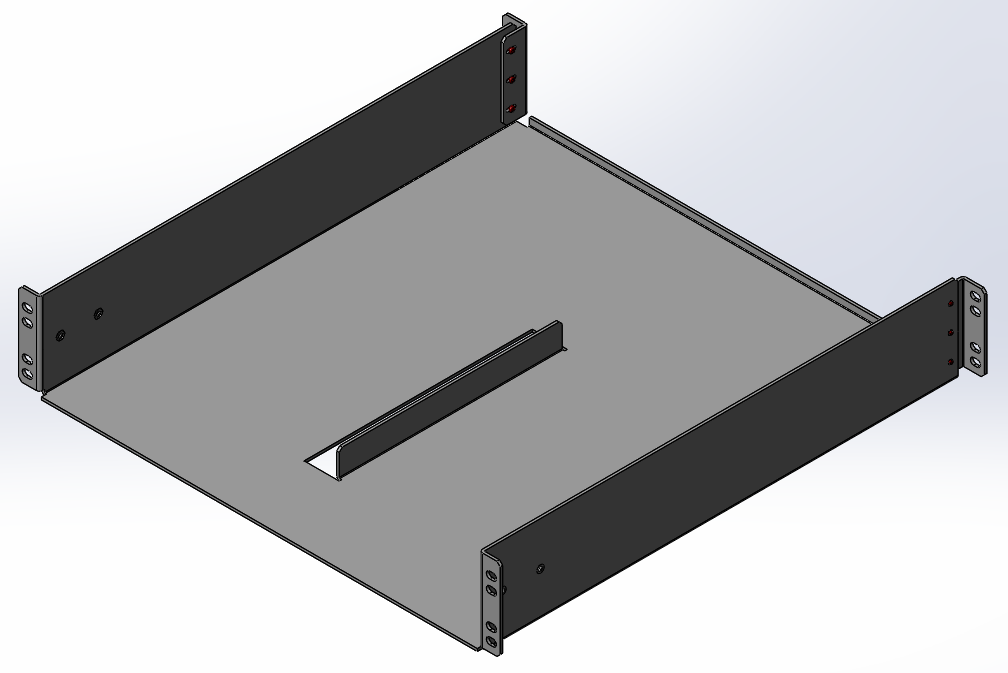

	TRA-19-2U (3D Render of 2U Tray)

Accessories

SCU-AISG2-3	AISG 2.0 Site Controller
RET-CBK	AISG Cable Kit
BT-0723-DMDF-AG-O	DIN-Male RF Port, DIN-Female RF+DC+AISG Port
BT-0723-DFDM-AG-O	DIN-Female RF Port, DIN-Male RF+DC+AISG Port
BT-0723-DFDF-AG-O	DIN-Female RF Port, DIN-Female RF+DC+AISG Port

Product Information

		Datasheet
		MPA-2332-35 Dimension Drawing Drawing

Parts & Accessories

MPA-2332-35	35W SDAR Medium Power Amplifier
TRA-19-2U	2U (3.5") Shelf
PSU-300-30	AC/DC Power Supply (300W, +30.0 VDC)

Standards & Compliance

Safety	UL 60950-1
FCC	TBD

Certifications

ISO 9001
