      Multi-Band Twelve Port Antenna TPA65R-BU6D




  PI TPA65RBU6D FRONT ISO PI TPA65RBU6D REAR ISO
  • Six foot (1.8 m) multiband, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies

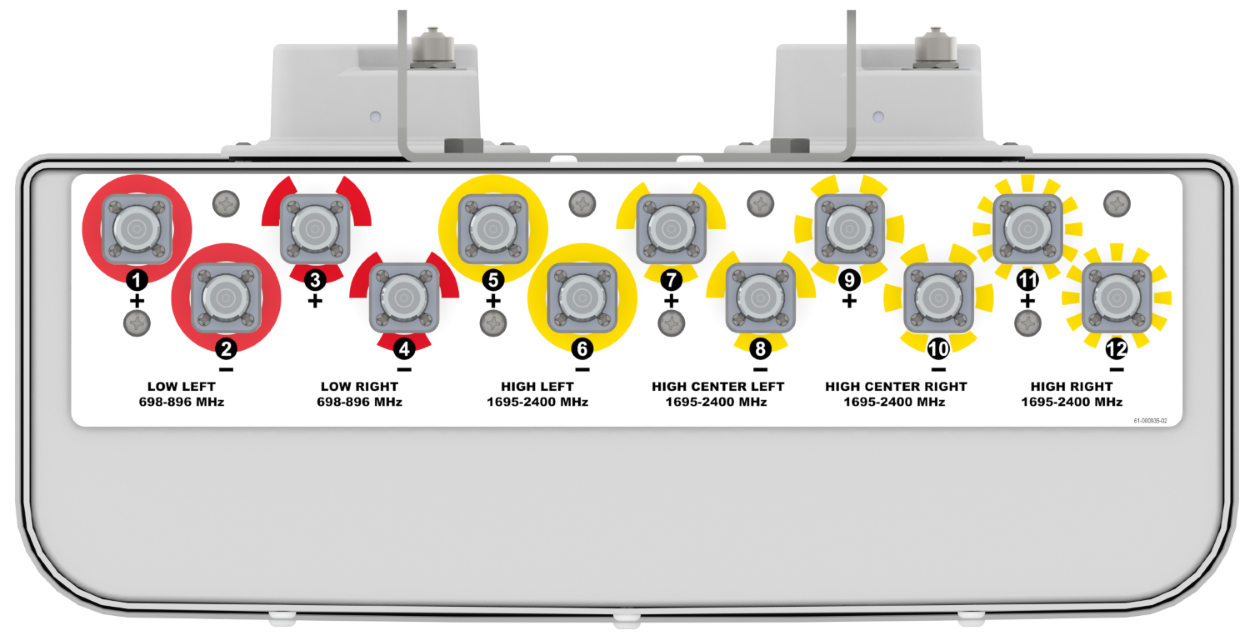

  • Eight high band ports covering 1695-2400 MHz and four low band ports covering 698-896 MHz in a single antenna enclosure
  • Innovative Low and High Band Array configuration allows for 4T4R (4x4 MIMO) on Low Band and Dual 4T4R (4x4 MIMO) High Band Arrays, using full length arrays (non stacked), all in a 20.7” (525 mm) width enclosure, an Industry First
  • Full Spectrum Compliance for WCS and AWS-3 frequencies and Band 14 Operations
  • Array configuration allows for 4T4R (4X4 MIMO) on Low Band, essential for Band 14 Operations
  • LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
  • LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
  • Exceeds minimum PIM performance requirements
  • Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
  • Ordering options for External RET Controllers (Type 1) or Internally Integrated RET Controllers (Type 17)
MBK-16   MBK-16 Mounting Kit with fixed 0° mechanical tilt
MBK-01   MBK-01 Mounting Kit with 0° to 10° mechanical tilt adjustment
BSA-RET200   Type 1 External Remote Electrical Tilt System (RET)
BSA-RET400   Type 17 Internal Remote Electrical Tilt System (RET)
DPA-CBK-AG-RRU   AISG Cable set for three RET antenna
DPA-CBK-RA-AG-RRU   AISG Right Angle Cable set for three RET Antenna
SCU-AISG-P   Portable AISG 2.0 Site Control Unit
Configuration File
