 Details |
|||||
ODA65F-KE1A
|
One foot (0.3 m), multiband, four port antenna with a 65° azimuth beamwidth, covering 694-960 MHz and 1695-2690 MHz frequencies. |
|||||||
- Frequency Band698-798 MHz, 698-896 MHz, 698-960 MHz, 790-960 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
- Height1 ft. (0 - 457 mm)
- Number of Sectors1
- Horizontal Beamwidth50° to 70°
- Number of Ports4
- Low Band Ports2
- High Band Ports2
 |
 |
|
Details |
|||||
SCA-DR1-65F2-E-H2S
|
Two foot (0.4 m), two port 65 degree Small Cell panel antenna optimized over the PCS (1850-1995 MHz) and BRS (2496 to 2690 MHz) bands |
|||||||
- Frequency Band1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz
- Height1 ft. (0 - 457 mm)
- Number of Sectors1
- Horizontal Beamwidth50° to 70°
- Number of Ports2
- High Band Ports2
 |
|
Details |
|||||
SCA-DR3-65F-EEE-H2 |
Two foot (0.5 m), six port, tri-sector antenna each sector with uniform horizontal beamwidths covering the extended band from 1710-2690 MHz. |
||||||
- Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
- Height 2 ft. (458 - 761 mm)
- Number of Sectors3 (MBA3)
- Horizontal Beamwidth50° to 70°
- Number of Ports6
- High Band Ports6
 |
|
Details |
|||||

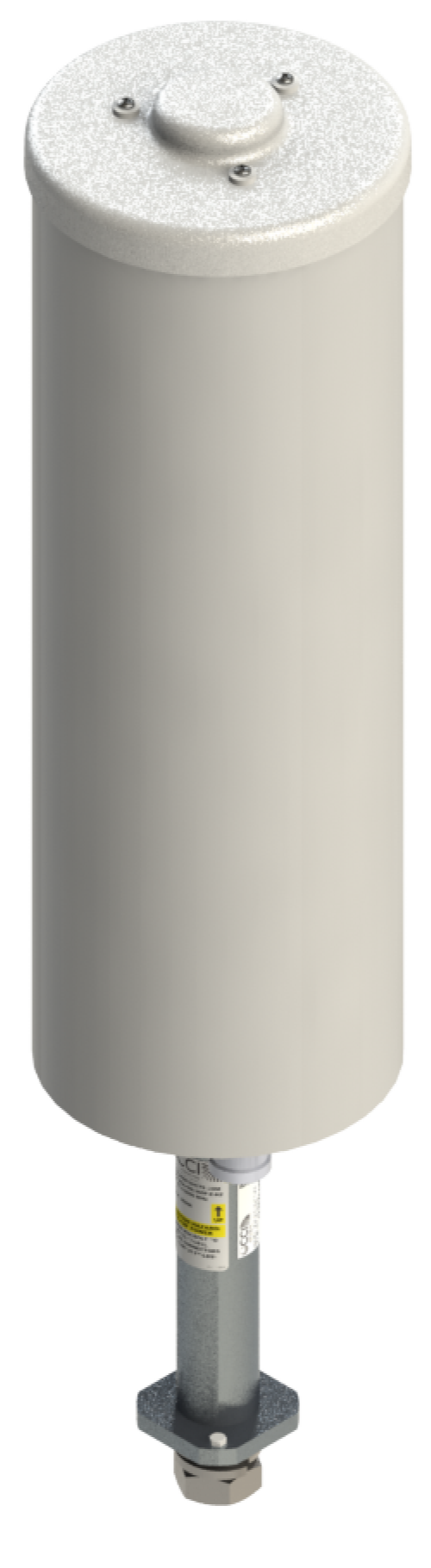

SCA-OM-360F-E-H2 |
Two foot (0.5 m), two port, quasi-omni antenna with uniform horizontal beamwidths covering the extended band from 1710-2690 MHz |
||||||
- Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
- Height 2 ft. (458 - 761 mm)
- Number of Sectors1
- Horizontal Beamwidth360° (Omni)
- Number of Ports2
- High Band Ports2
 |
|
Details |
|||||

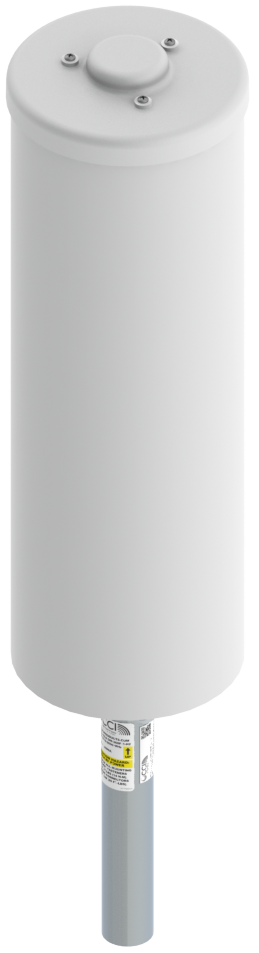

SCA-OM-360F2-E-H2S
|
Two foot (0.5 m), two port, quasi-omni antenna with uniform horizontal beamwidths covering the extended band from 1710-2690 MHz. |
||||||
- Frequency Band1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
- Height 2 ft. (458 - 761 mm)
- Number of Sectors1
- Horizontal Beamwidth360° (Omni)
- Number of Ports2
- High Band Ports2
| Results 1 - 5 of 7 | Results Per Page: 5 10 20 50 All |
